Home>Electricity>Alternator>Alternator Audi A3 (8L1)
AUDI A3 (8L1)
Model
Engine
Displacement and power
From To
A3 (8L1) 1.9 TDI
AGR
CCM:
1896
HP:
90
KW:
66
09.1996 => 07.2001
A3 (8L1) 1.9 TDI
AHF
CCM:
1896
HP:
110
KW:
81
08.1997 => 07.2001
A3 (8L1) 1.9 TDI
ALH
CCM:
1896
HP:
90
KW:
66
09.1996 => 07.2001
A3 (8L1) 1.9 TDI
ASV
CCM:
1896
HP:
110
KW:
81
08.1997 => 07.2001

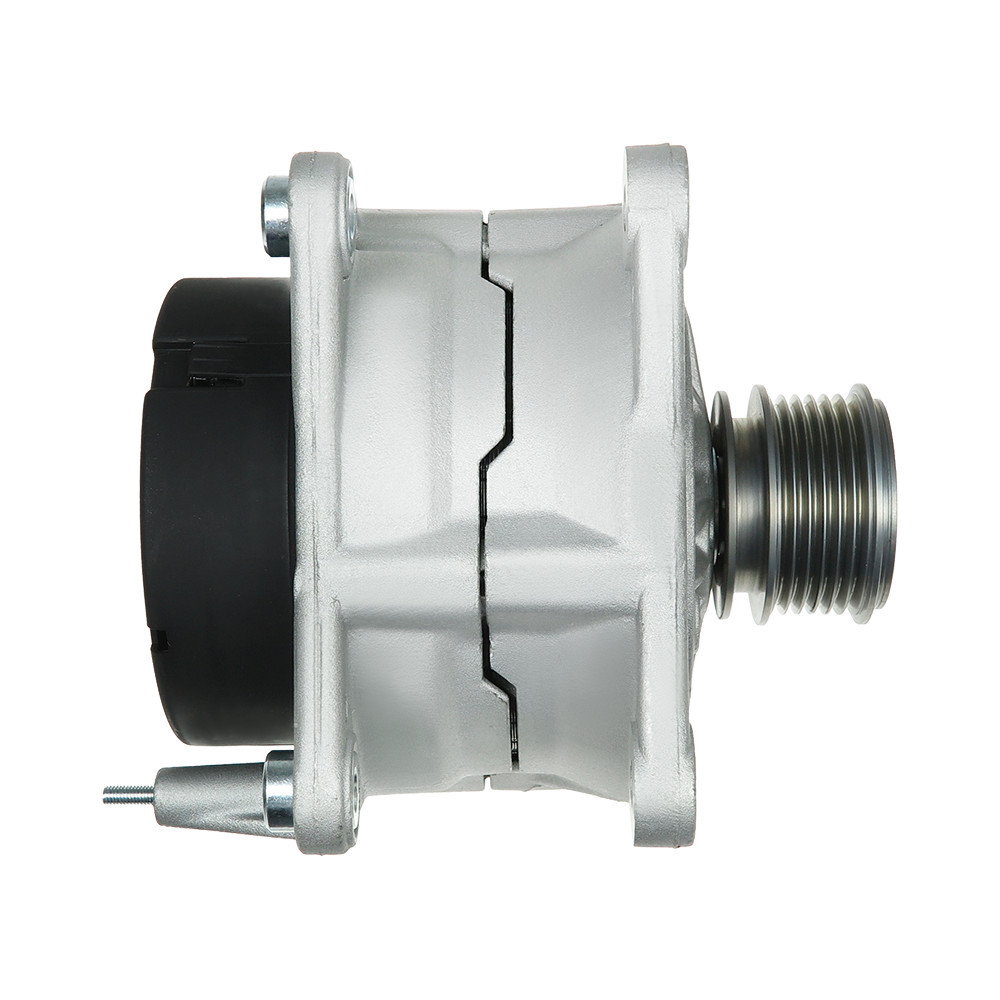

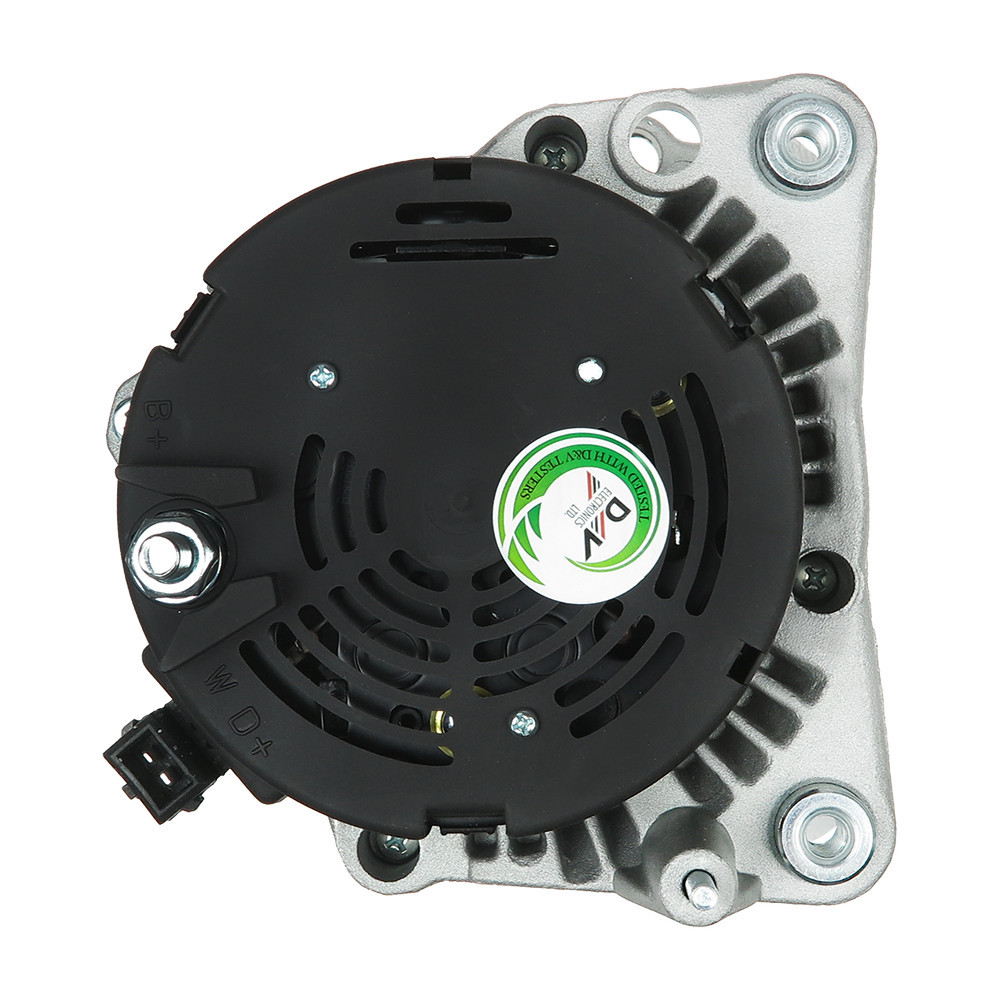

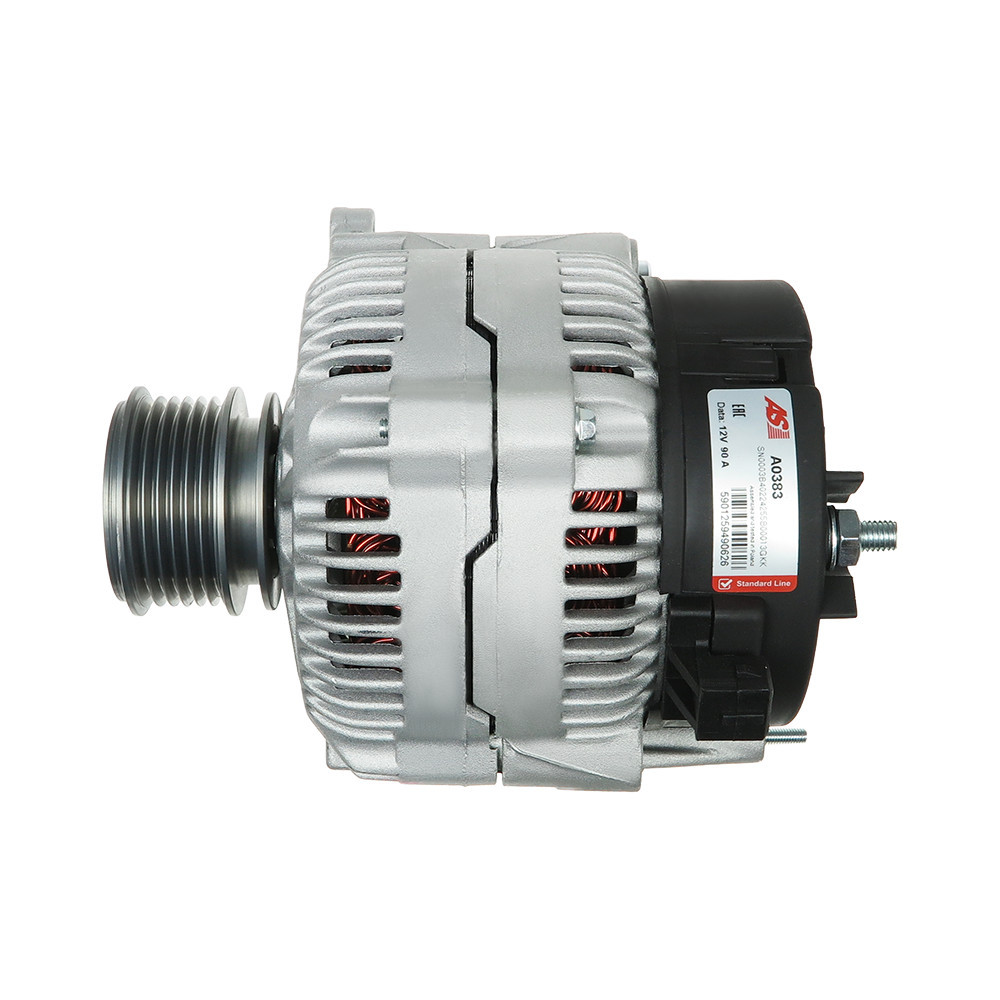

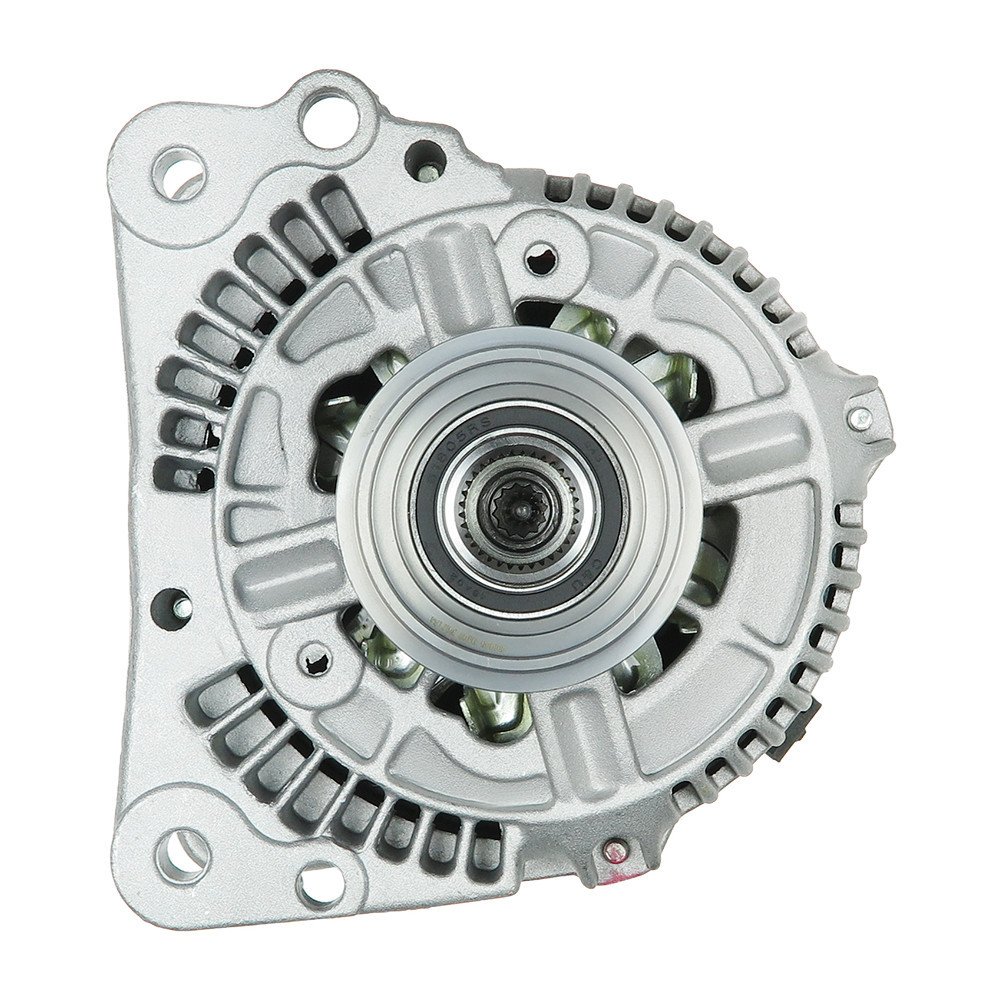

  • Type of part : Alternator
  • Motorization : A3 (8L1)
  • Can be mounted on : Audi
  • Years : 1996, 1997, 1998, 1999, 2000, 2001
  • Amperage : 90
  • Number of grooves (pulley) : 6
  • Voltage : 12

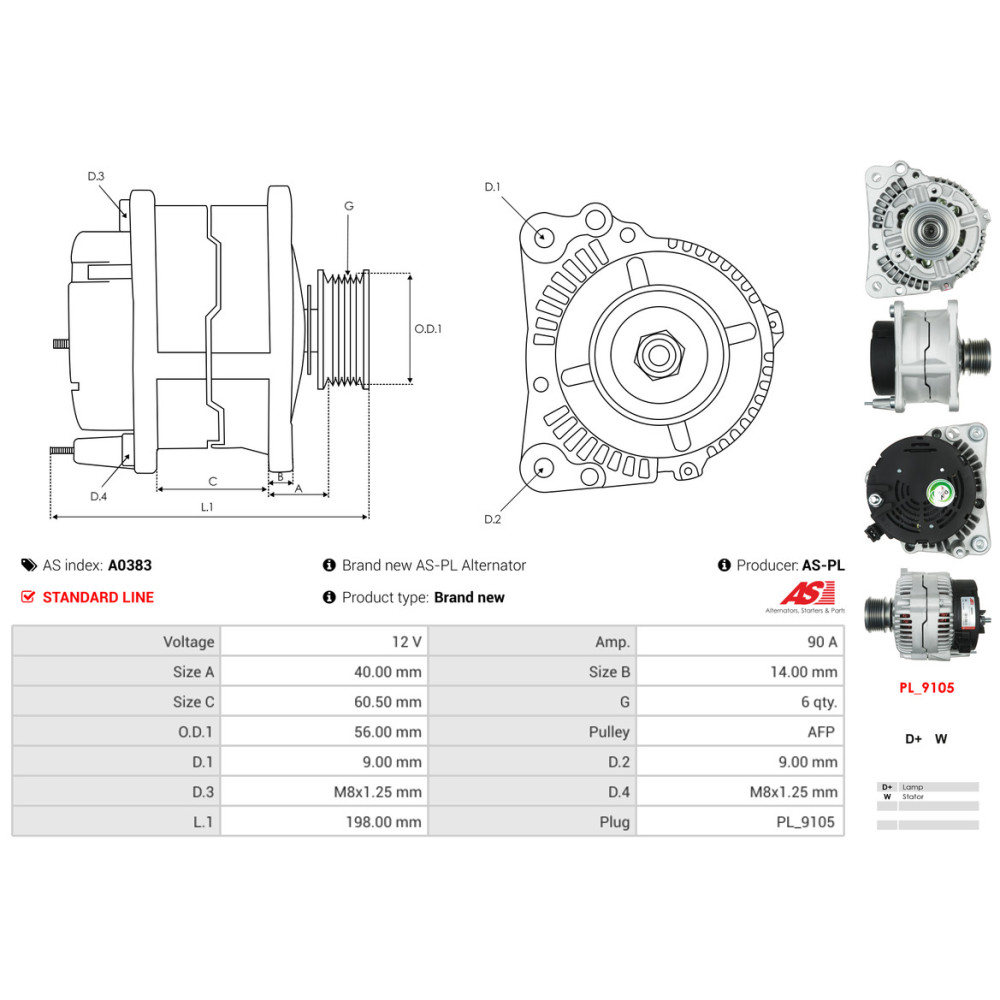

  • L.1 [ mm ] : 198.00
  • Taille A [ mm ] : 40.00
  • Taille B [ mm ] : 14.00
  • D.3 [ mm ] : M8x1.25
  • D.4 [ mm ] : M8x1.25
  • Taille C [ mm ] : 60.50
  • Plug type : PL_9105
  • Pulley : AFP
  • D.1 [ mm ] : 9.00
  • D.2 [ mm ] : 9.00
  • O.D.1 [ mm ] : 56.00
  • Type : A3 (8L1) 1.9 TDI
  • Engine code : AGR, AHF, ALH, ASV
  • Genuine part : no
