New Alternator Toyota HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

Alternator Toyota HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

    • 0124315033 (BOSCH)

Alternator Toyota HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

OEM part number : 0124315033 (BOSCH)

Application

Recommended price* : 314,42 € tax incl.

Reduced price!209,62 €

-104,81 €

TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
Model
Engine
Displacement and power
From To
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D
2KD-FTV
CCM:
2494
HP:
95
KW:
70
09.2006 =>
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH200, KDH202, KDH212, KDH222)
2KD-FTV
CCM:
2494
HP:
117
KW:
86
09.2006 =>
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220)
2KD-FTV
CCM:
2494
HP:
102
KW:
75
06.2004 =>
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
  • Can be mounted on : Toyota
  • Amperage : 80
  • Number of grooves (pulley) : 7
  • Voltage : 12
  • From : 2006

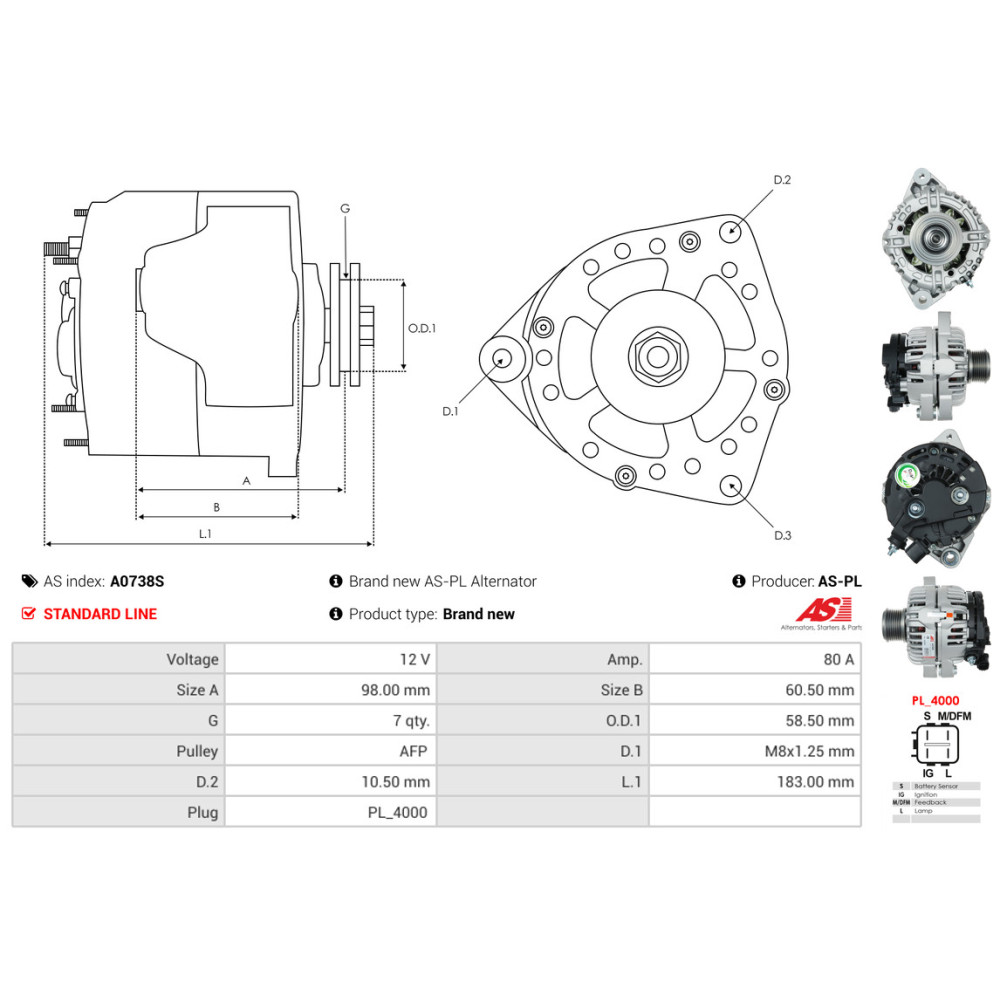

  • L.1 [ mm ] : 183.00
  • Taille A [ mm ] : 98.00
  • Taille B [ mm ] : 60.50
  • Plug type : PL_4000
  • Pulley : AFP
  • D.1 [ mm ] : M8x1.25
  • D.2 [ mm ] : 10.50
  • O.D.1 [ mm ] : 58.50
  • Type : HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-
  • Engine code : 2KD-FTV
