Home>Electricity>Alternator>Alternator Toyota YARIS (_P9_)
TOYOTA YARIS (_P9_)
Model
Engine
Displacement and power
From To
YARIS (_P9_) 1.0 GPL (KSP90_)
1KR-FE
CCM:
998
HP:
69
KW:
51
01.2006 => 12.2011
YARIS (_P9_) 1.0 VVT-i (KSP90_, KSP90R)
1KR-FE
CCM:
998
HP:
69
KW:
51
08.2005 => 12.2011
  • Genuine part : no

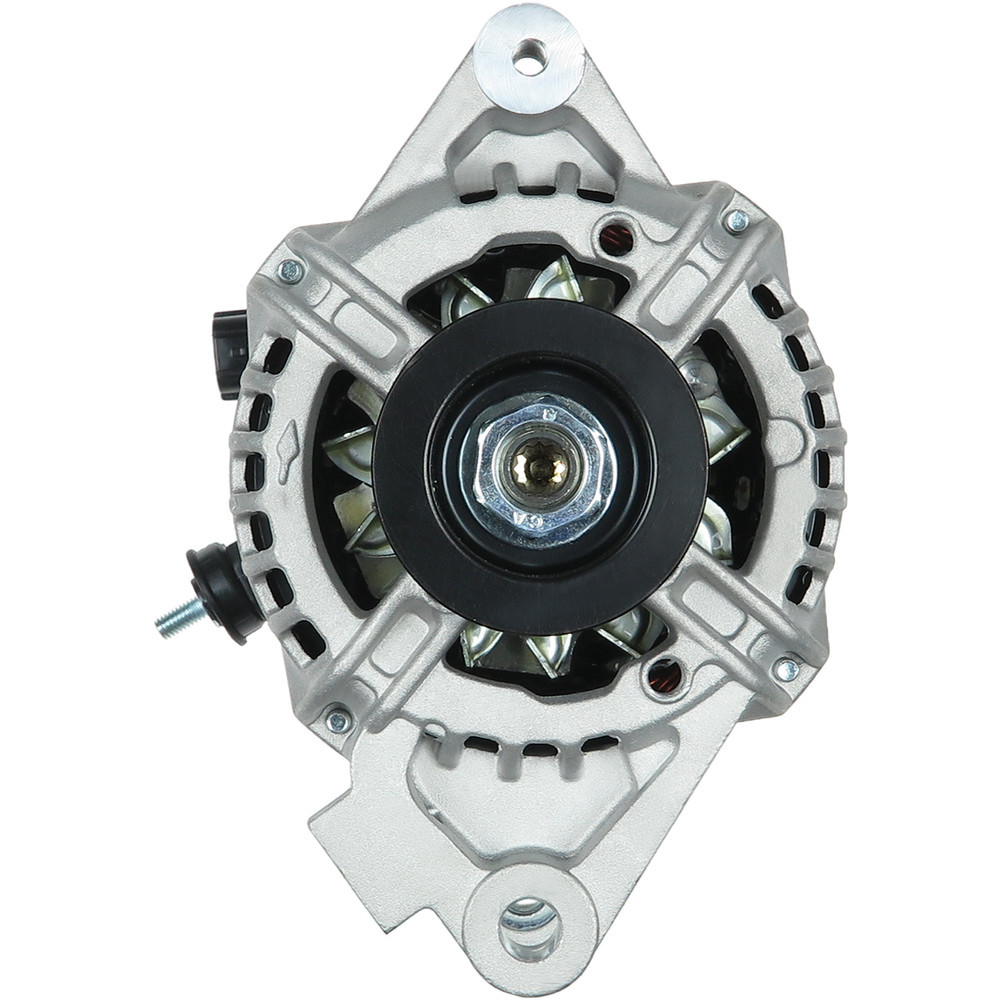

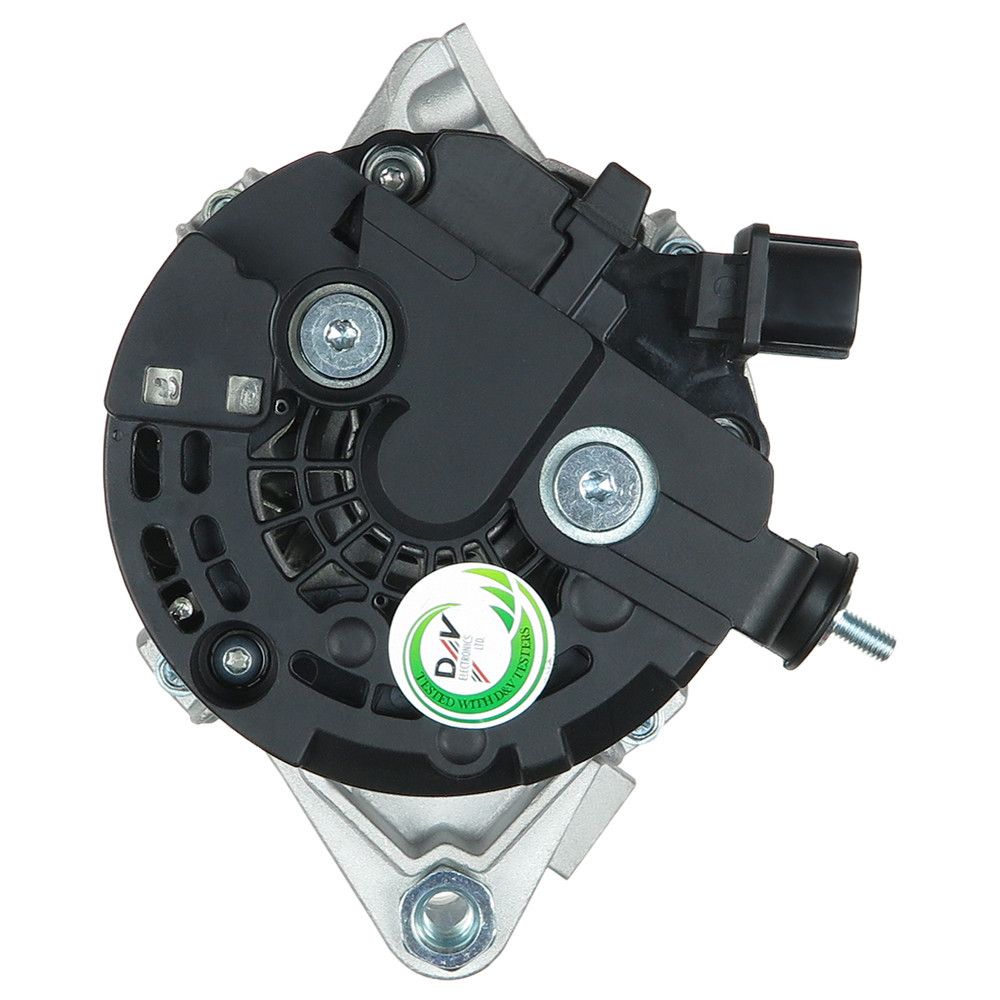

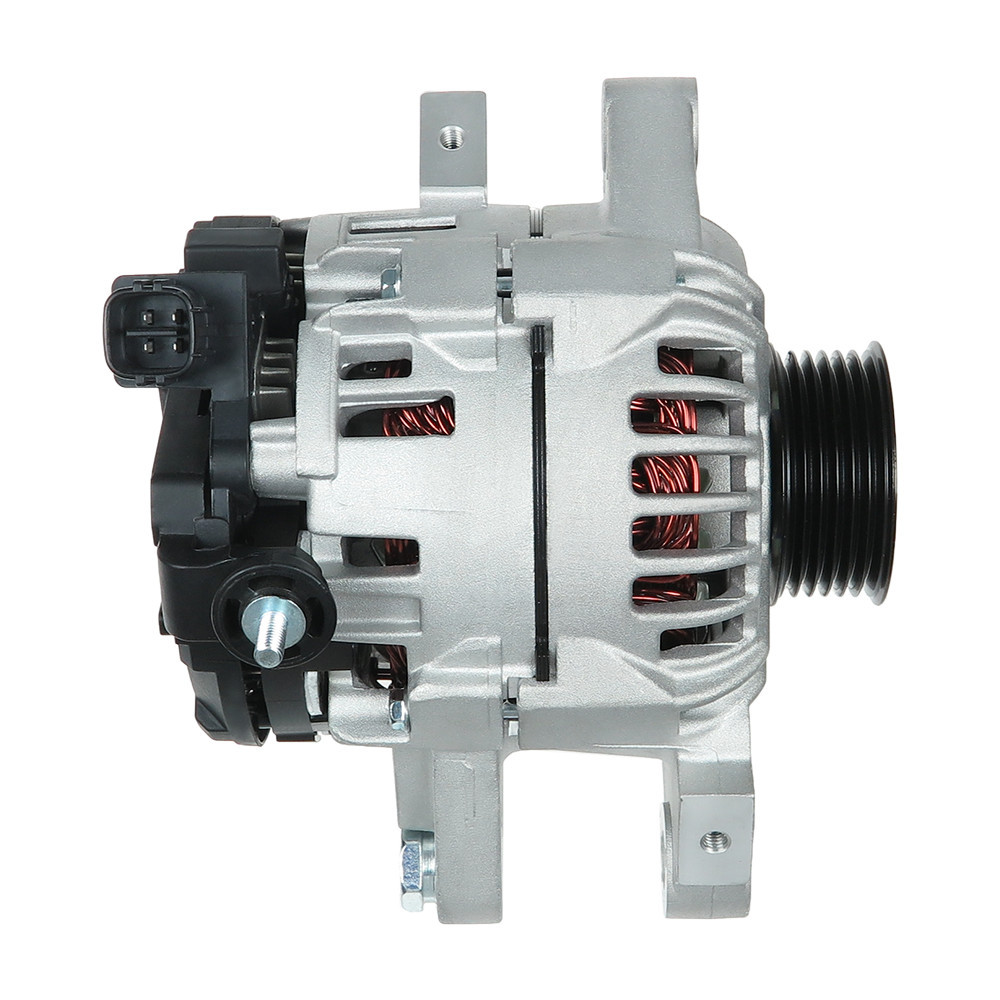

  • Type of part : Alternator
  • Motorization : YARIS (_P9_)
  • Can be mounted on : Toyota
  • Years : 2006, 2007, 2008, 2009, 2010, 2011
  • Amperage : 80
  • Number of grooves (pulley) : 6
  • Voltage : 12

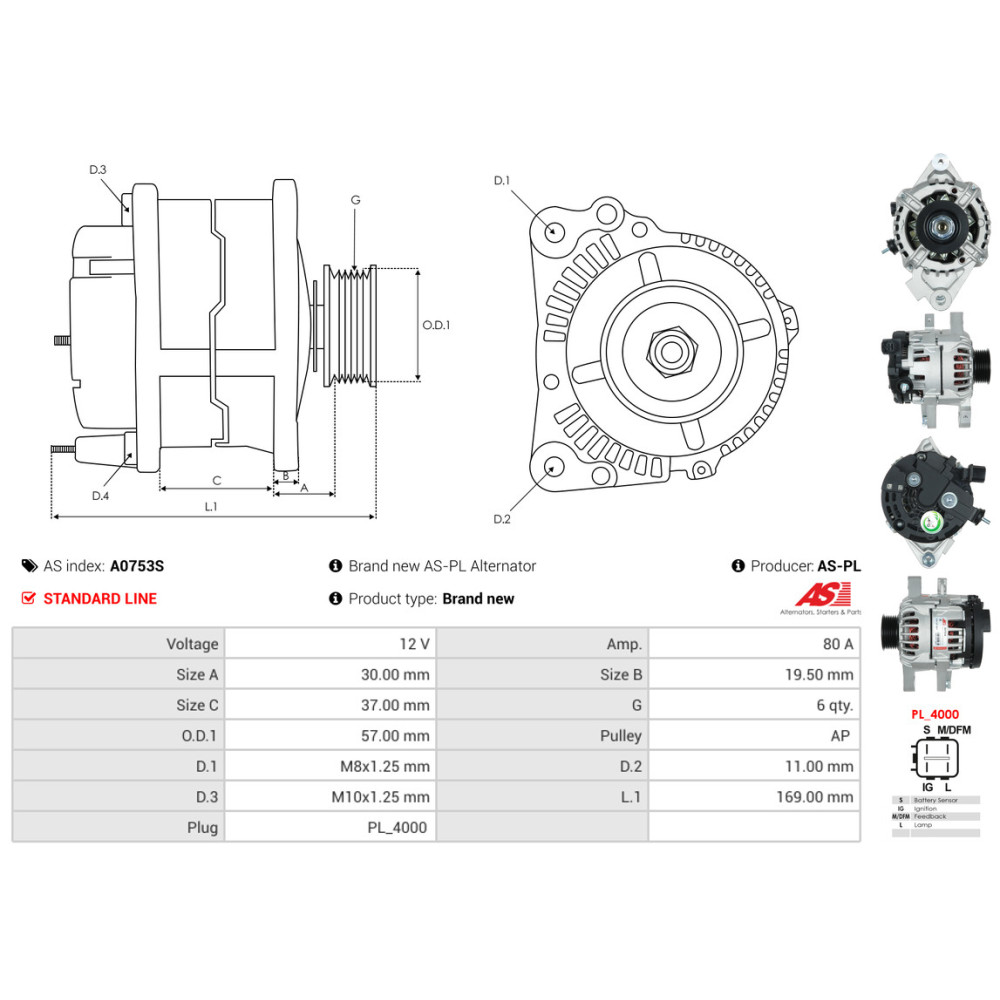

  • L.1 [ mm ] : 169.00
  • Taille A [ mm ] : 30.00
  • Taille B [ mm ] : 19.50
  • D.3 [ mm ] : M10x1.25
  • Taille C [ mm ] : 37.00
  • Plug type : PL_4000
  • Pulley : AP
  • D.1 [ mm ] : M8x1.25
  • D.2 [ mm ] : 11.00
  • O.D.1 [ mm ] : 57.00
  • Type : YARIS (_P9_) 1.0 GPL (KSP90_), YARIS (_P9_) 1.0 VVT-i (KSP90_, KSP90R)
  • Engine code : 1KR-FE
