Alternator Toyota HILUX VII Pickup (_N1_, _N2_, _N3_)

Reference:
- F000BL0132 (BOSCH)

Application
Data sheet

TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_)

Model

Engine

Displacement and power

From To

HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D 4WD (KUN25)

2KD-FTV

CCM:

2494

HP:

102

KW:

03.2005 => 05.2015

HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15)

2KD-FTV

CCM:

2494

HP:

KW:

08.2005 => 10.2006

HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15, KUN10)

2KD-FTV

CCM:

2494

HP:

102

KW:

03.2005 => 05.2015

HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15, KUN35)

2KD-FTV

CCM:

2494

HP:

144

KW:

106

01.2010 => 05.2015

HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15_, KUN15R)

2KD-FTV

CCM:

2494

HP:

120

KW:

06.2006 => 05.2015

HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (KUN25)

2KD-FTV

CCM:

2494

HP:

144

KW:

106

12.2007 => 05.2015

HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (KUN25_)

2KD-FTV

CCM:

2494

HP:

128

KW:

11.2004 => 12.2005

HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (KUN25_, KUN25R)

2KD-FTV

CCM:

2494

HP:

120

KW:

06.2006 => 05.2015

HILUX VII Pickup (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (KUN26)

1KD-FTV

CCM:

2982

HP:

163

KW:

120

03.2005 => 05.2015

Genuine part : no
Type of part : Alternator
Motorization : HILUX VII Pickup (_N1_, _N2_, _N3_)
Can be mounted on : Toyota
Years : 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Amperage : 90
Number of grooves (pulley) : 7
Voltage : 12

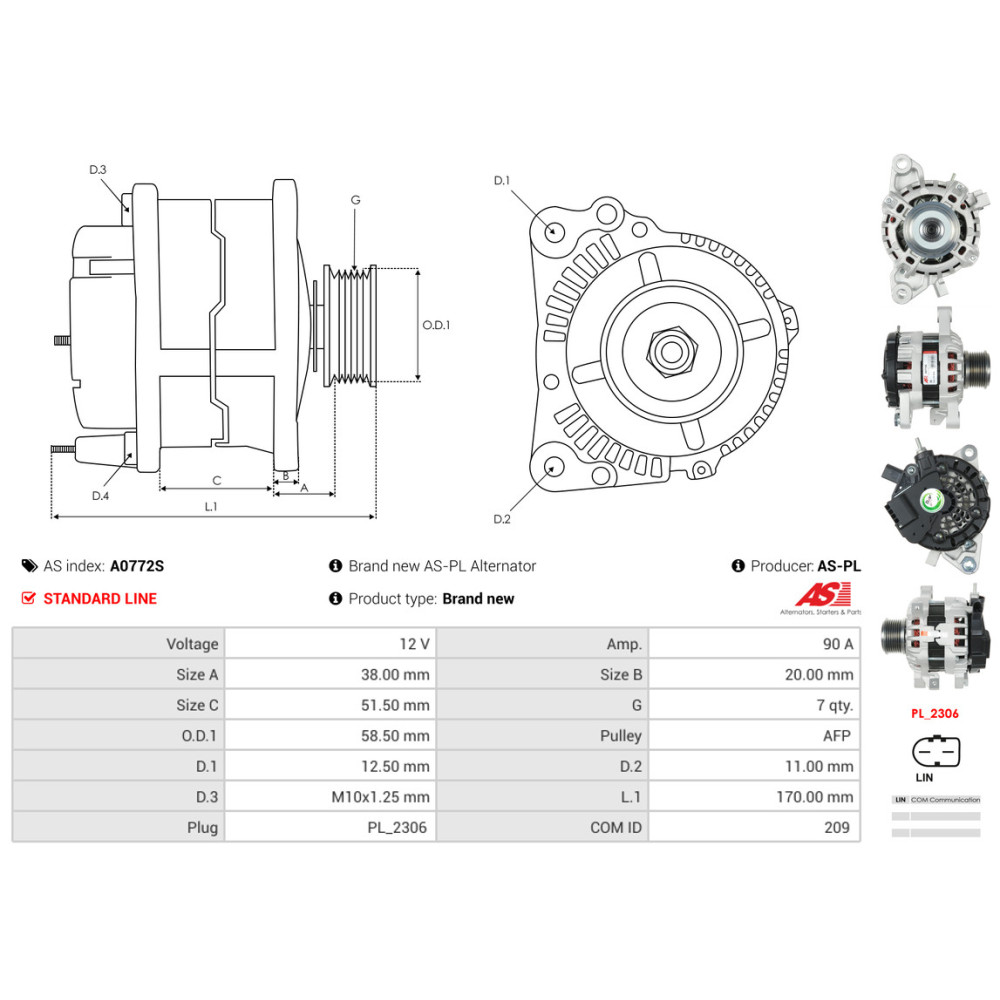

L.1 [ mm ] : 170.00
Taille A [ mm ] : 38.00
Taille B [ mm ] : 20.00
D.3 [ mm ] : M10x1.25
Taille C [ mm ] : 51.50
COM ID : 209
Plug type : PL_2306
Pulley : AFP
D.1 [ mm ] : 12.50
D.2 [ mm ] : 11.00
O.D.1 [ mm ] : 58.50
Type : HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D 4WD (KUN, HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN1, HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (, HILUX VII Pickup (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (
Engine code : 1KD-FTV, 2KD-FTV
