Home>Electricity>Alternator>Alternator BMW 3 (F30, F80)
BMW 3 (F30, F80)
Model
Engine
Displacement and power
From To
3 (F30, F80) 316 d
B47D20A
CCM:
1995
HP:
116
KW:
85
03.2012 => 10.2018
3 (F30, F80) 316 d
N47D20C
CCM:
1995
HP:
116
KW:
85
03.2012 => 10.2018
3 (F30, F80) 318 d
B47D20A
CCM:
1995
HP:
150
KW:
110
07.2015 => 10.2018
3 (F30, F80) 318 d xDrive
B47D20A
CCM:
1995
HP:
150
KW:
110
07.2015 => 02.2018
3 (F30, F80) 320 d
B47D20A
CCM:
1995
HP:
163
KW:
120
11.2011 => 10.2018
3 (F30, F80) 320 d
N47D20C
CCM:
1995
HP:
163
KW:
120
11.2011 => 10.2018
3 (F30, F80) 320 d xDrive
B47D20A
CCM:
1995
HP:
190
KW:
140
07.2015 => 10.2018
3 (F30, F80) 325 d
B47D20B
CCM:
1995
HP:
224
KW:
165
03.2016 => 02.2018
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : 3 (F30, F80)
  • Can be mounted on : BMW
  • Amperage : 150
  • Number of grooves (pulley) : 6
  • Voltage : 12
  • From : 2012, 2013, 2014, 2015, 2016, 2017, 2018

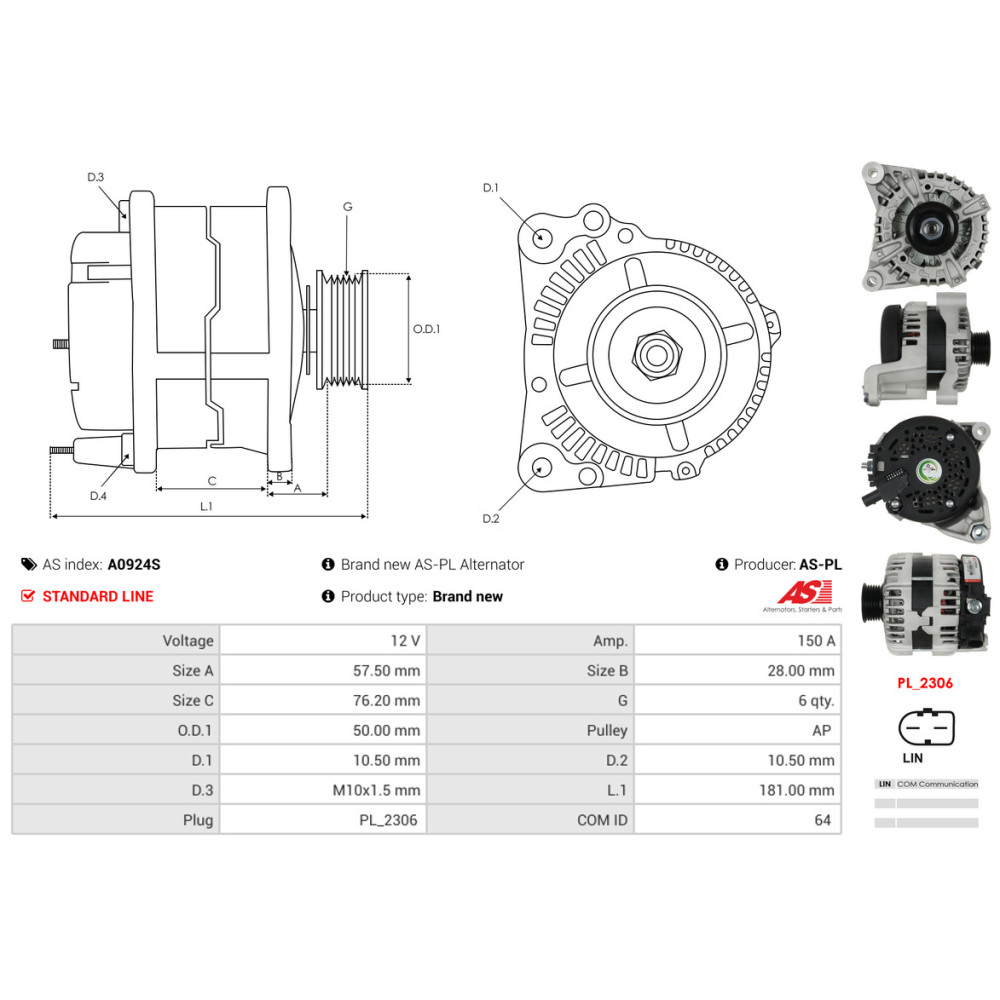

  • L.1 [ mm ] : 181.00
  • Taille A [ mm ] : 57.50
  • Taille B [ mm ] : 28.00
  • D.3 [ mm ] : M10x1.5
  • Taille C [ mm ] : 76.20
  • COM ID : 64
  • Plug type : PL_2306
  • Pulley : AP
  • D.1 [ mm ] : 10.50
  • D.2 [ mm ] : 10.50
  • O.D.1 [ mm ] : 50.00
  • Type : 3 (F30, F80) 316 d, 3 (F30, F80) 318 d, 3 (F30, F80) 318 d xDrive, 3 (F30, F80) 320 d, 3 (F30, F80) 320 d xDrive, 3 (F30, F80) 325 d
  • Engine code : B47D20A, B47D20B, N47D20C
