Alternator BMW 5 Touring Van (G31)

Reference:
- 0125812025 (BOSCH)

This product is no longer in stock

Application
Data sheet

BMW 5 Touring Van (G31)

Model

Engine

Displacement and power

From To

5 Touring Van (G31) 530 d

B57D30A

CCM:

2993

HP:

265

KW:

195

03.2017 =>

5 Touring Van (G31) 530 d xDrive

B57D30A

CCM:

2993

HP:

265

KW:

195

03.2017 =>

5 Touring Van (G31) 530 i

B48B20B

CCM:

1998

HP:

252

KW:

185

03.2017 =>

5 Touring Van (G31) 530 i xDrive

B48B20B

CCM:

1998

HP:

252

KW:

185

07.2017 =>

5 Touring Van (G31) 540 i xDrive

B58B30A

CCM:

2998

HP:

340

KW:

250

03.2017 =>

Genuine part : no
Type of part : Alternator
Motorization : 5 Touring Van (G31)
Can be mounted on : BMW
Amperage : 180
Number of grooves (pulley) : 6
Voltage : 12
From : 2017

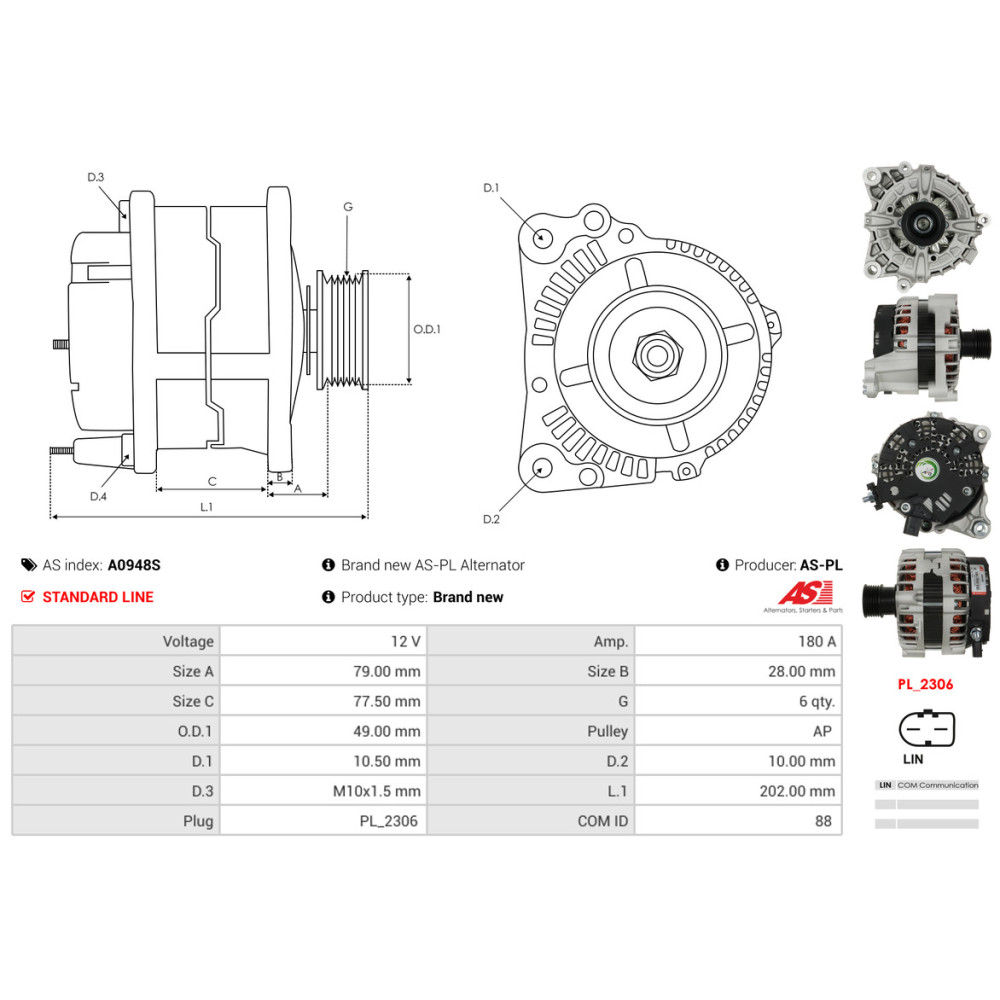

L.1 [ mm ] : 202.00
Taille A [ mm ] : 79.00
Taille B [ mm ] : 28.00
D.3 [ mm ] : M10x1.5
Taille C [ mm ] : 77.50
COM ID : 88
Plug type : PL_2306
Pulley : AP
D.1 [ mm ] : 10.50
D.2 [ mm ] : 10.00
O.D.1 [ mm ] : 49.00
Type : 5 Touring Van (G31) 530 d, 5 Touring Van (G31) 530 d xDrive, 5 Touring Van (G31) 530 i, 5 Touring Van (G31) 530 i xDrive, 5 Touring Van (G31) 540 i xDrive
Engine code : B48B20B, B57D30A, B58B30A
