Alternator BMW X3 (G01, F97, G08)

Reference:
- 0125812025 (BOSCH)

This product is no longer in stock

Application
Data sheet

BMW X3 (G01, F97, G08)

Model

Engine

Displacement and power

From To

X3 (G01, F97, G08) sDrive 20 i

B48B20A

CCM:

1998

HP:

184

KW:

135

12.2017 =>

X3 (G01, F97, G08) sDrive 20 i 1.6

B48B16A

CCM:

1597

HP:

170

KW:

125

12.2017 =>

X3 (G01, F97, G08) xDrive 20 i

B48B20A

CCM:

1998

HP:

184

KW:

135

12.2017 =>

X3 (G01, F97, G08) xDrive 20 i

B48B20B

CCM:

1998

HP:

184

KW:

135

12.2017 =>

X3 (G01, F97, G08) xDrive 30 d

B57D30A

CCM:

2993

HP:

249

KW:

183

12.2017 => 06.2020

X3 (G01, F97, G08) xDrive 30 i

B46B20B

CCM:

1998

HP:

252

KW:

185

08.2017 =>

X3 (G01, F97, G08) xDrive 30 i

B48B20B

CCM:

1998

HP:

249

KW:

183

08.2017 =>

X3 (G01, F97, G08) xDrive M40 d

B57D30B

CCM:

2993

HP:

326

KW:

240

08.2018 => 06.2020

X3 (G01, F97, G08) xDrive M40 i

B58B30A

CCM:

2998

HP:

354

KW:

260

09.2018 => 08.2019

Genuine part : no
Type of part : Alternator
Motorization : X3 (G01, F97, G08)
Can be mounted on : BMW
Amperage : 180
Number of grooves (pulley) : 6
Voltage : 12
From : 2017

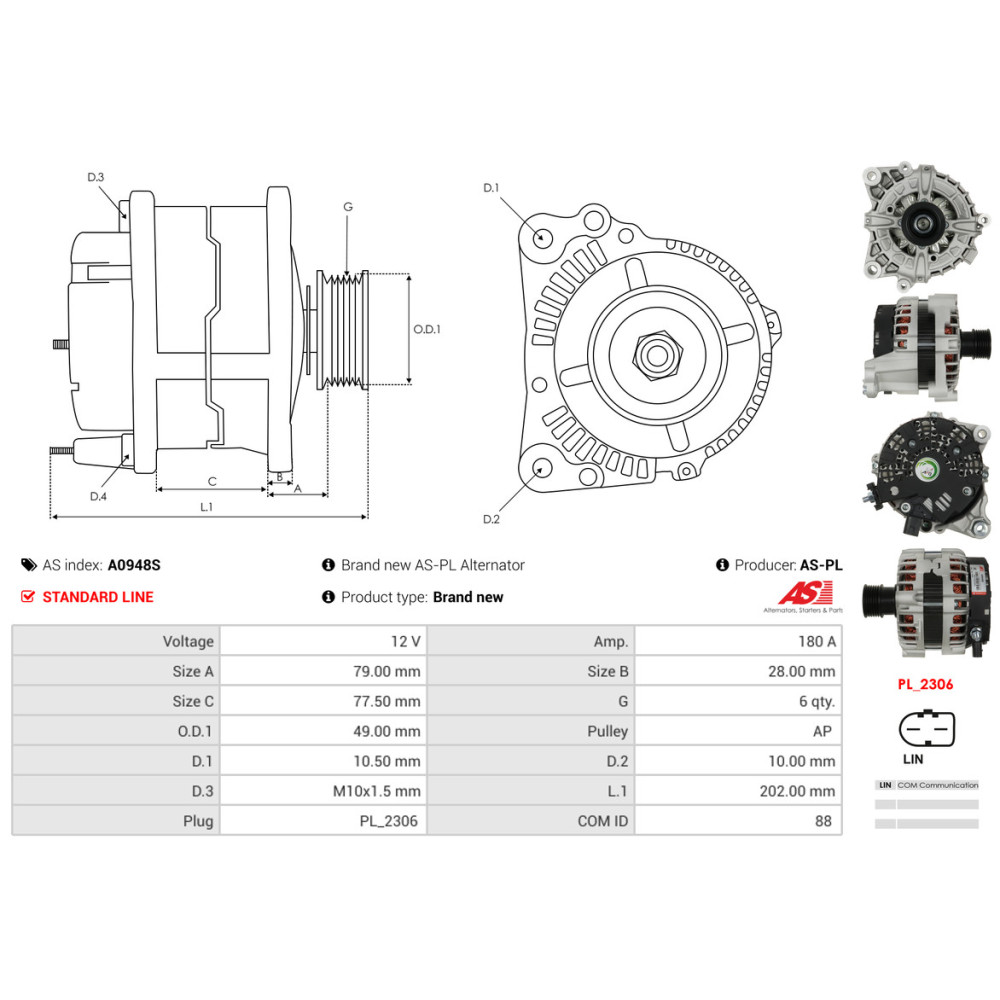

L.1 [ mm ] : 202.00
Taille A [ mm ] : 79.00
Taille B [ mm ] : 28.00
D.3 [ mm ] : M10x1.5
Taille C [ mm ] : 77.50
COM ID : 88
Plug type : PL_2306
Pulley : AP
D.1 [ mm ] : 10.50
D.2 [ mm ] : 10.00
O.D.1 [ mm ] : 49.00
Type : X3 (G01, F97, G08) sDrive 20 i, X3 (G01, F97, G08) sDrive 20 i 1.6, X3 (G01, F97, G08) xDrive 20 i, X3 (G01, F97, G08) xDrive 30 d, X3 (G01, F97, G08) xDrive 30 i, X3 (G01, F97, G08) xDrive M40 d, X3 (G01, F97, G08) xDrive M40 i
Engine code : B46B20B, B48B16A, B48B20A, B48B20B, B57D30A, B57D30B, B58B30A
