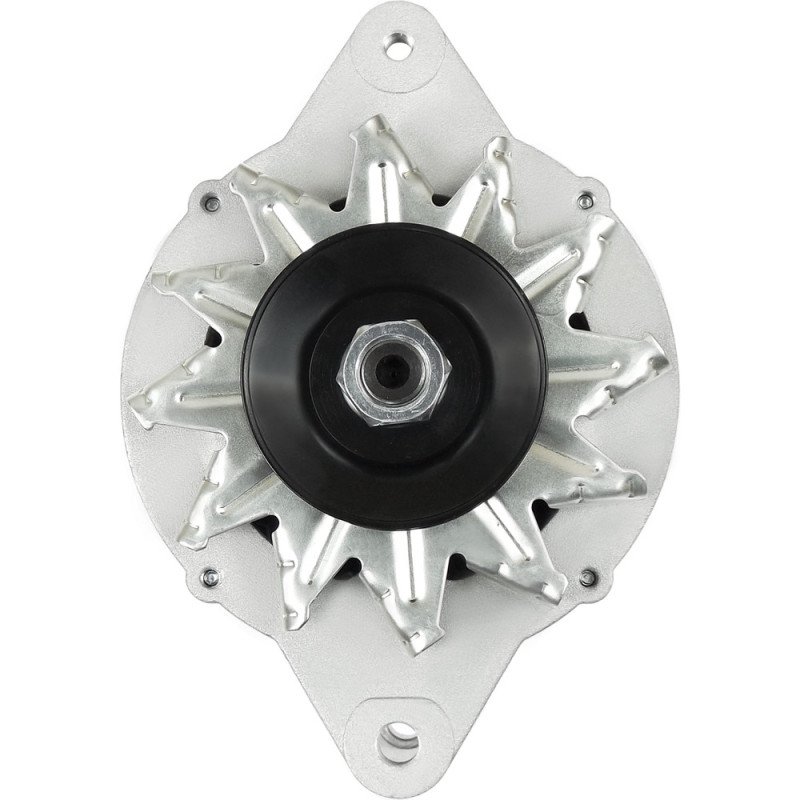

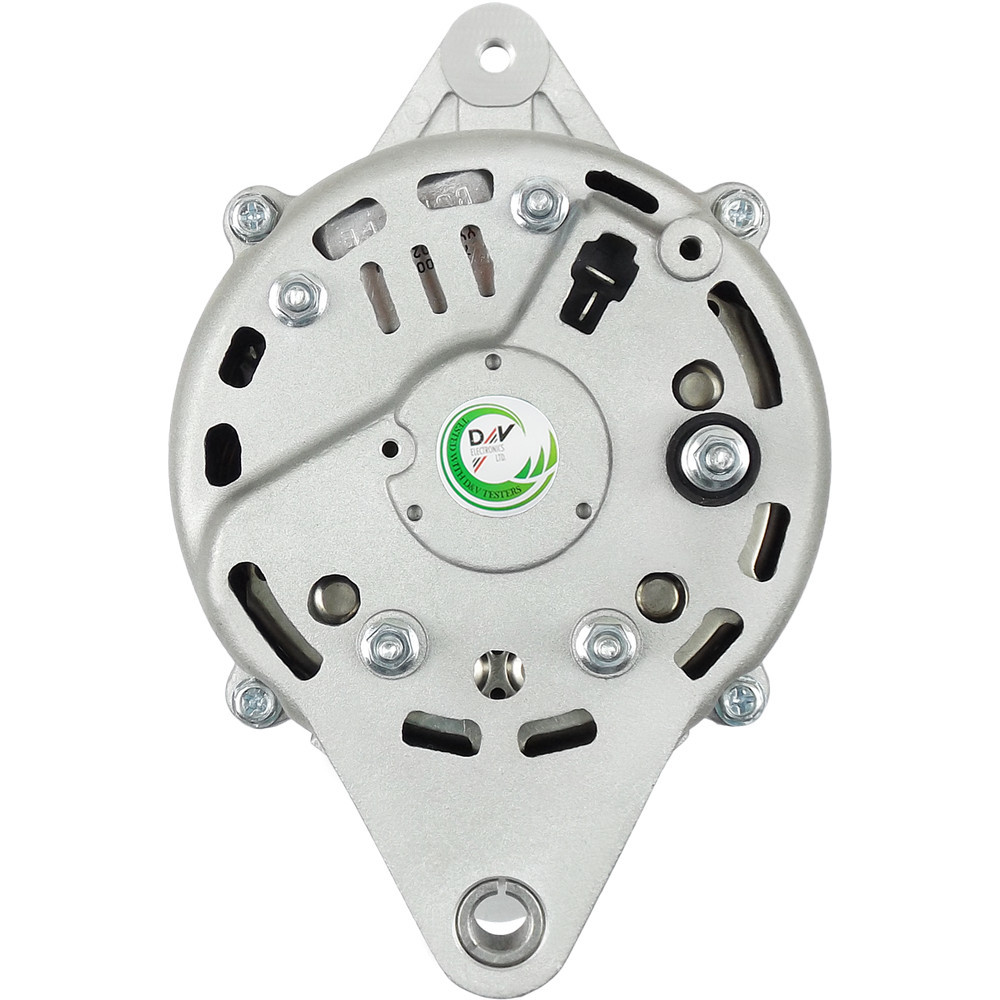

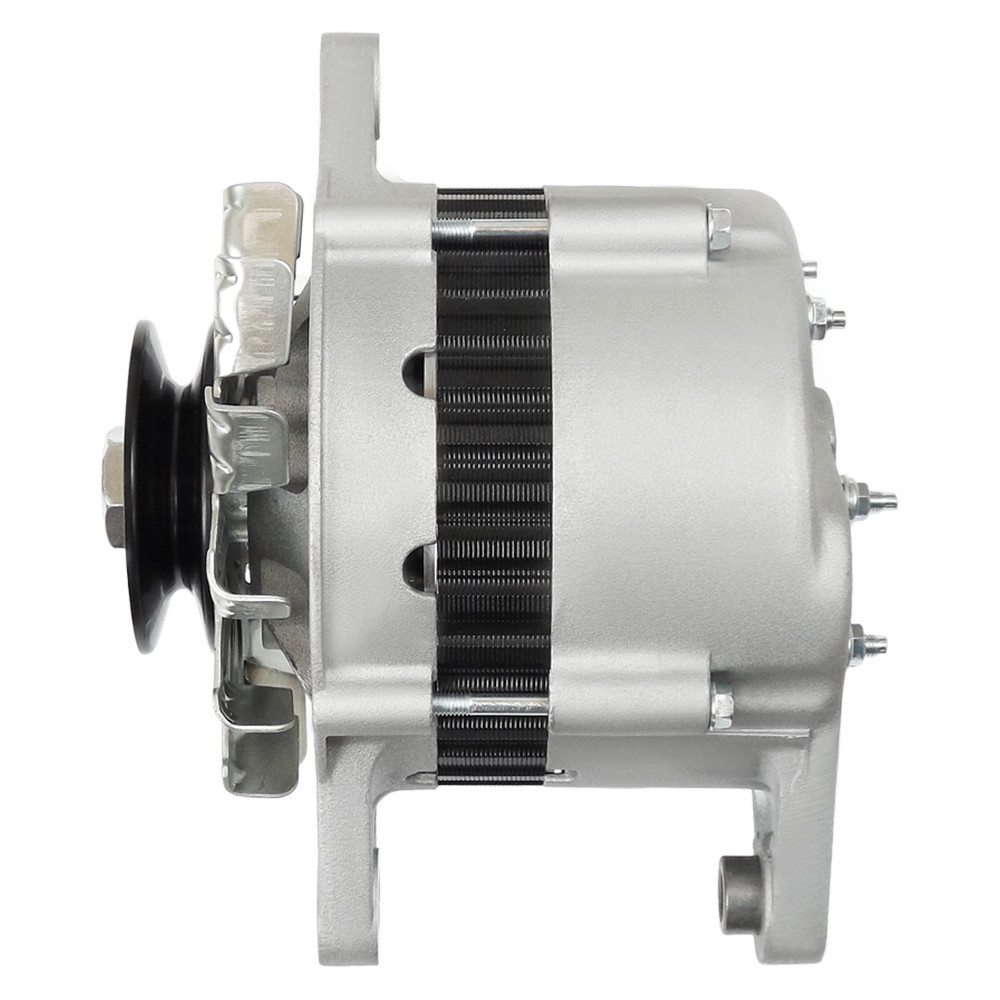

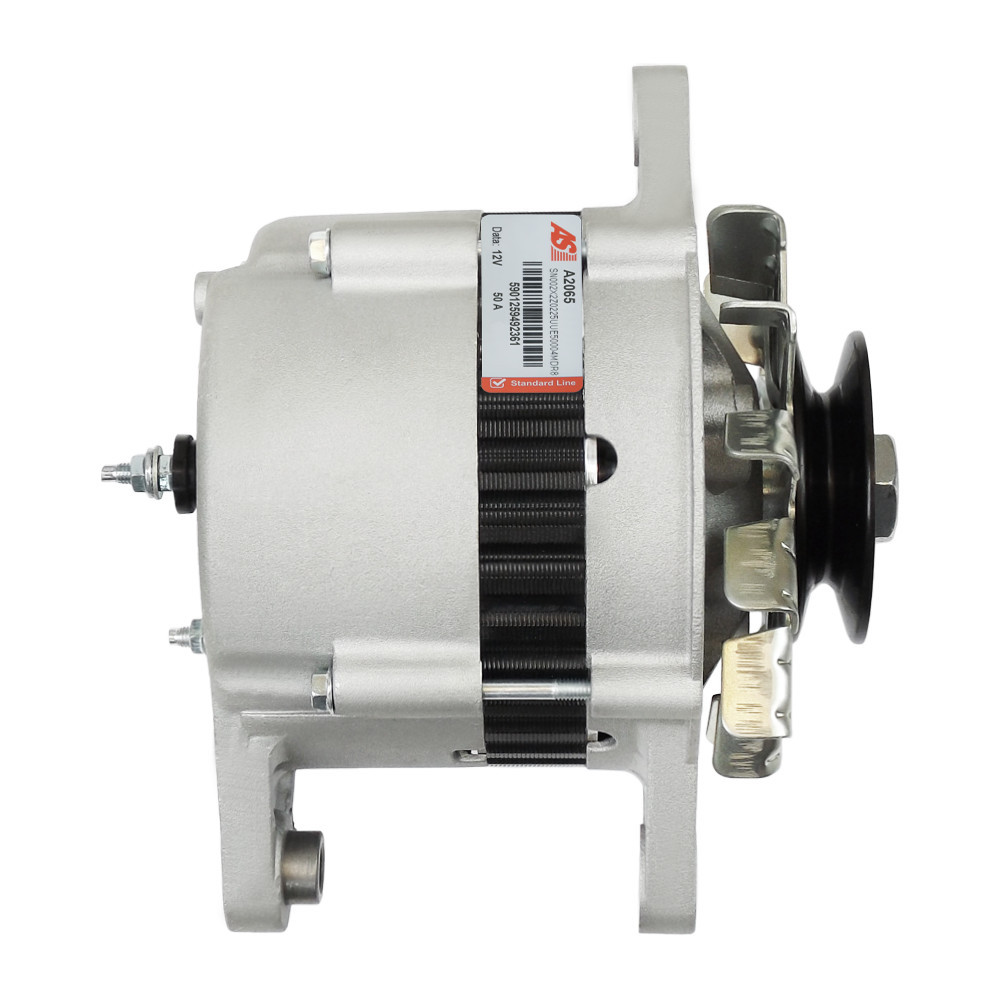

Home>Electricity>Alternator>Alternator Nissan PICK UP (D21)
NISSAN PICK UP (D21)
Model
Engine
Displacement and power
From To
PICK UP (D21) 2.0
Z20
CCM:
1952
HP:
90
KW:
66
09.1988 => 12.1997
PICK UP (D21) 2.4
Z24
CCM:
2389
HP:
103
KW:
76
09.1985 => 05.1994
PICK UP (D21) 2.4 4WD
Z24
CCM:
2389
HP:
107
KW:
79
01.1988 => 12.1996
PICK UP (D21) 2.4 4WD
Z24i
CCM:
2389
HP:
101
KW:
74
03.1986 => 04.1992
PICK UP (D21) 2.4 4x4
Z24
CCM:
2389
HP:
103
KW:
76
09.1985 => 05.1994
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : PICK UP (D21)
  • Can be mounted on : Nissan
  • Years : 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
  • Amperage : 50
  • Number of grooves (pulley) : 1
  • Voltage : 12

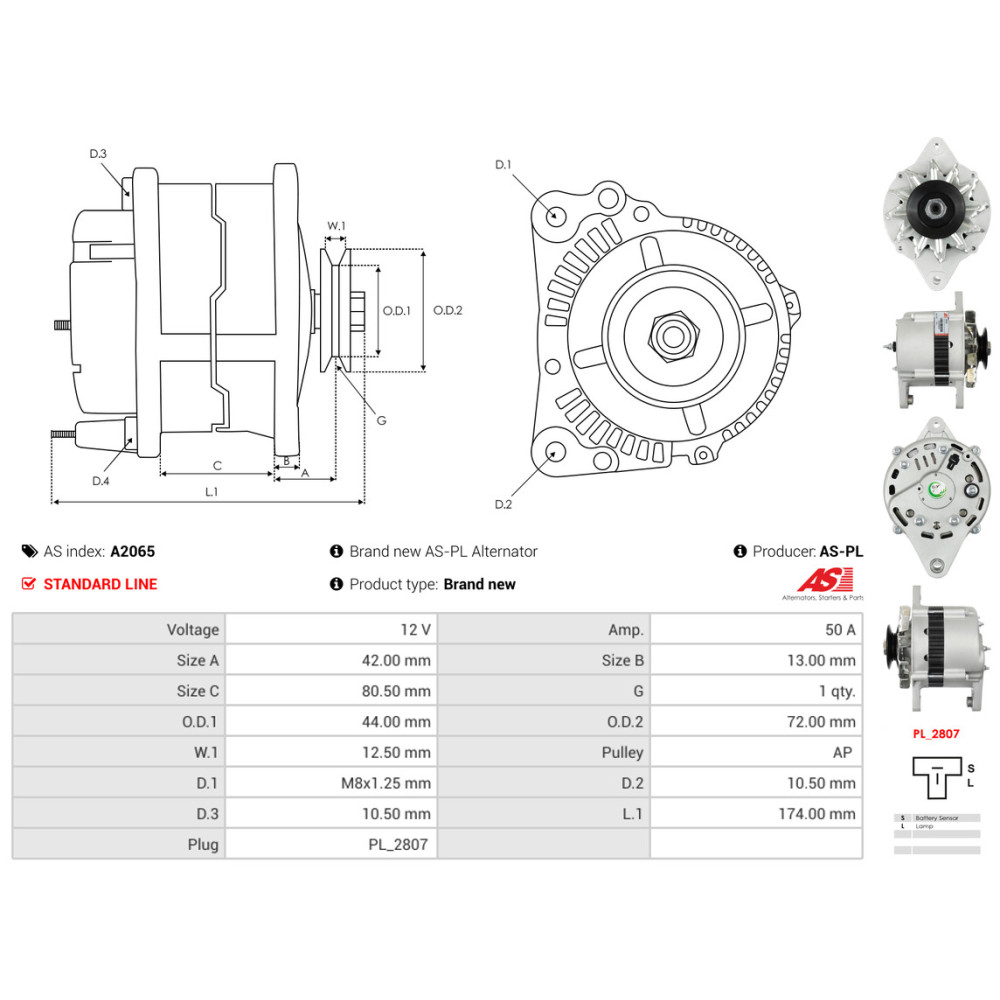

  • L.1 [ mm ] : 174.00
  • Taille A [ mm ] : 42.00
  • Taille B [ mm ] : 13.00
  • D.3 [ mm ] : 10.50
  • O.D.2 [ mm ] : 72.00
  • Taille C [ mm ] : 80.50
  • W.1 [ mm ] : 12.50
  • Plug type : PL_2807
  • Pulley : AP
  • D.1 [ mm ] : M8x1.25
  • D.2 [ mm ] : 10.50
  • O.D.1 [ mm ] : 44.00
  • Type : PICK UP (D21) 2.0, PICK UP (D21) 2.4, PICK UP (D21) 2.4 4WD, PICK UP (D21) 2.4 4x4
  • Engine code : Z20, Z24, Z24i
