NISSAN TERRANO II (R20)
Model
Engine
Displacement and power
From To
TERRANO II (R20) 2.7 TD 4WD
TD27T
CCM:
2664
HP:
101
KW:
74
02.1993 => 01.2002
TERRANO II (R20) 2.7 TDi 4WD
TD27TI
CCM:
2664
HP:
125
KW:
92
05.1996 => 09.2007
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : TERRANO II (R20)
  • Can be mounted on : Nissan
  • Years : 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
  • Amperage : 70
  • Number of grooves (pulley) : 1
  • Voltage : 12
  • Vacuum pump : Yes

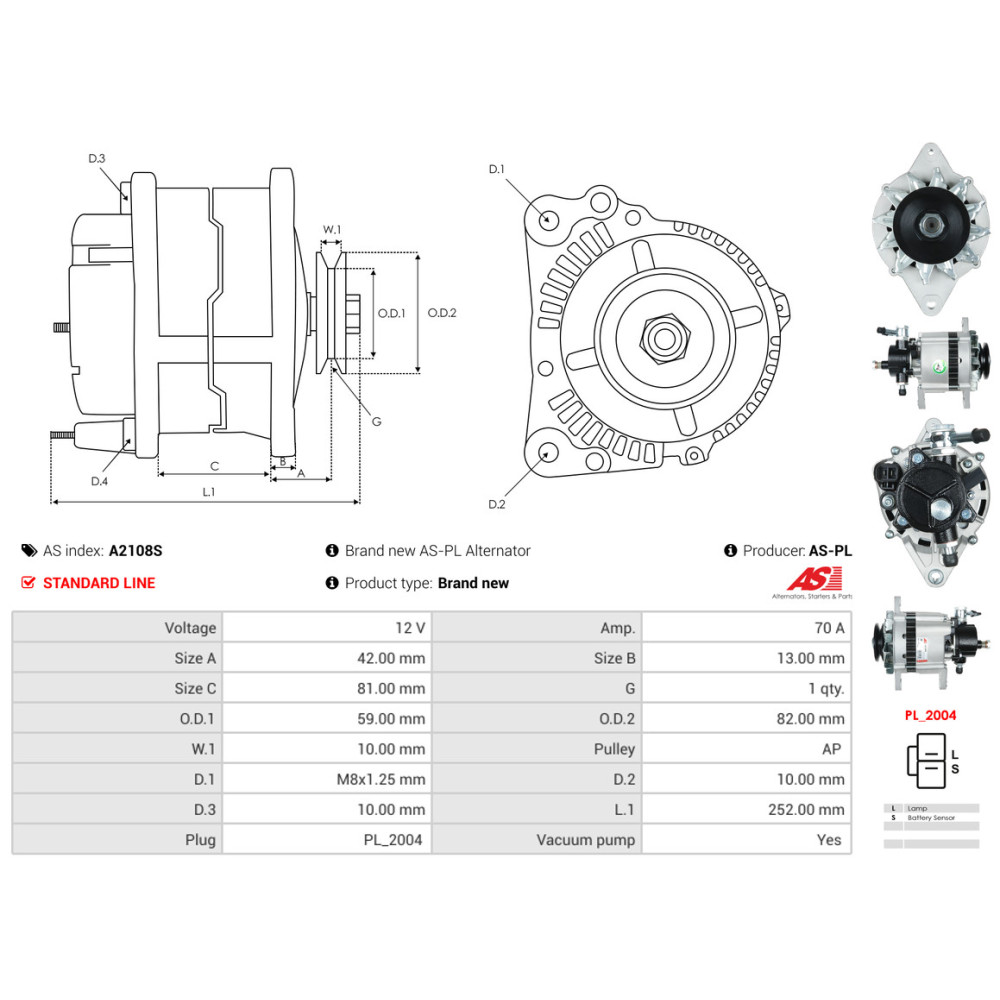

  • L.1 [ mm ] : 252.00
  • Taille A [ mm ] : 42.00
  • Taille B [ mm ] : 13.00
  • D.3 [ mm ] : 10.00
  • O.D.2 [ mm ] : 82.00
  • Taille C [ mm ] : 81.00
  • W.1 [ mm ] : 10.00
  • Plug type : PL_2004
  • Pulley : AP
  • D.1 [ mm ] : M8x1.25
  • D.2 [ mm ] : 10.00
  • O.D.1 [ mm ] : 59.00
  • Type : TERRANO II (R20) 2.7 TD 4WD, TERRANO II (R20) 2.7 TDi 4WD
  • Engine code : TD27T, TD27TI
