Home>Electricity>Alternator>Alternator Nissan URVAN Van (E24)
NISSAN URVAN Van (E24)
Model
Engine
Displacement and power
From To
URVAN Van (E24) 2.3 D
TD23
CCM:
2289
HP:
69
KW:
51
01.1988 => 05.1997
URVAN Van (E24) 2.5 D
TD25
CCM:
2494
HP:
80
KW:
59
12.1988 => 05.1997
  • Genuine part : no

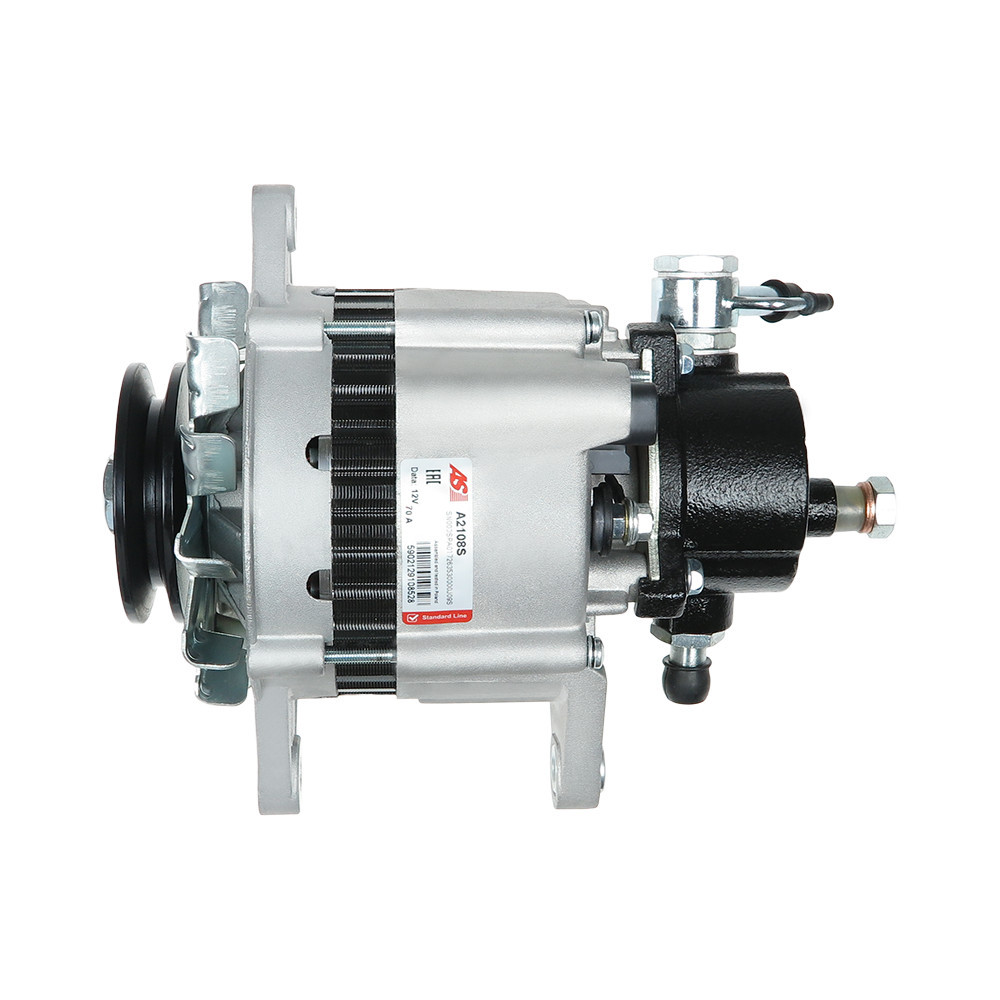

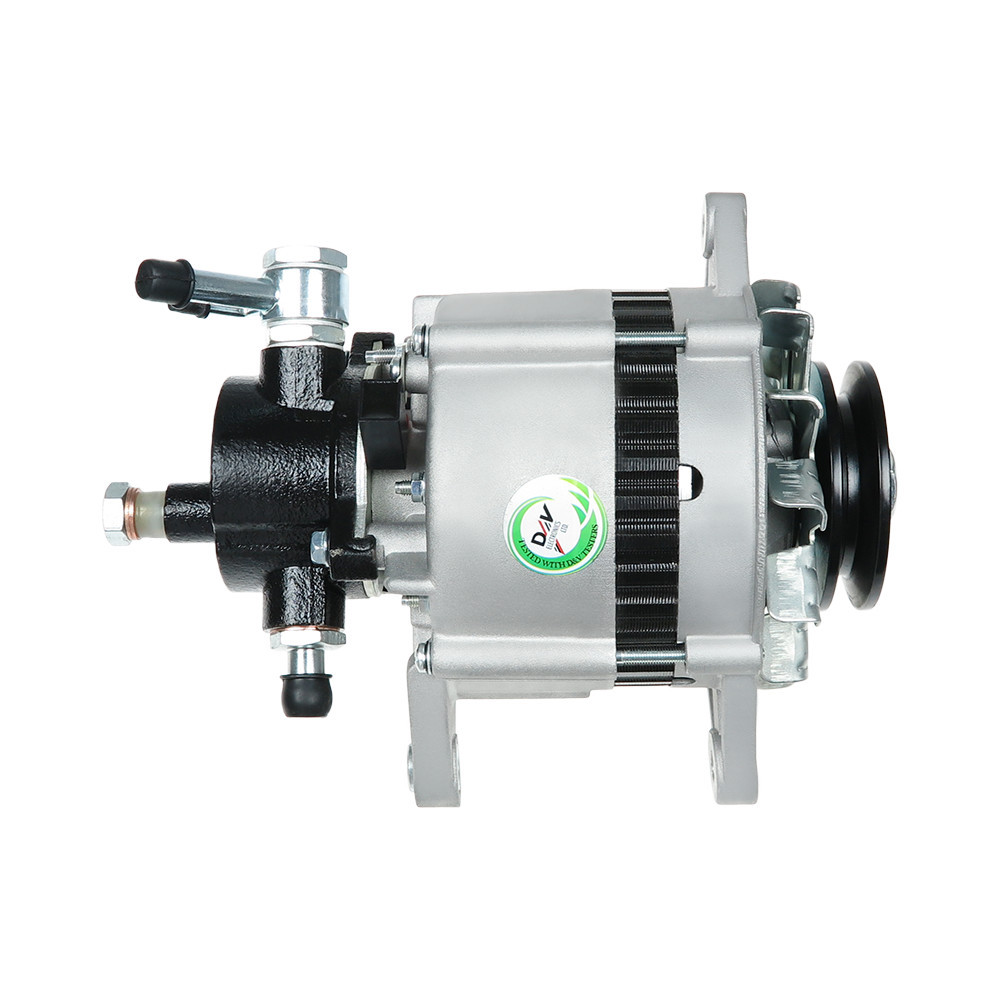

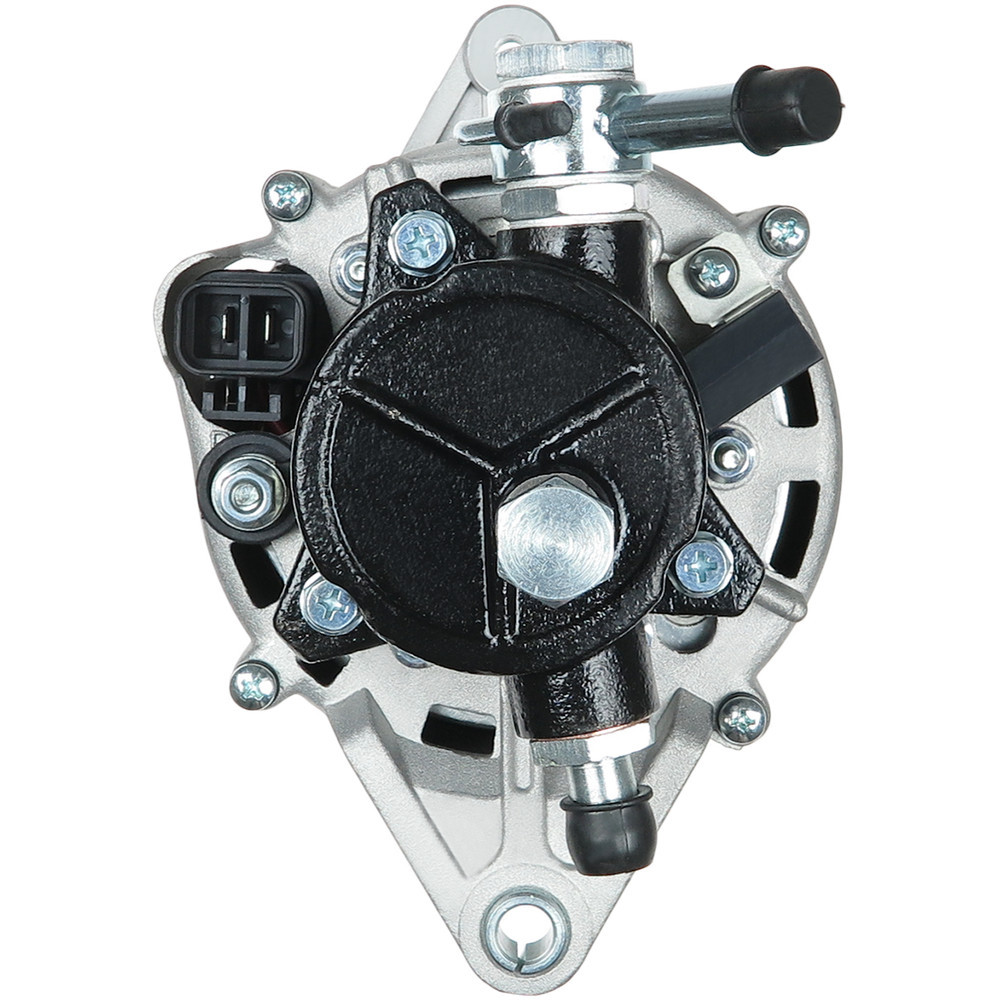

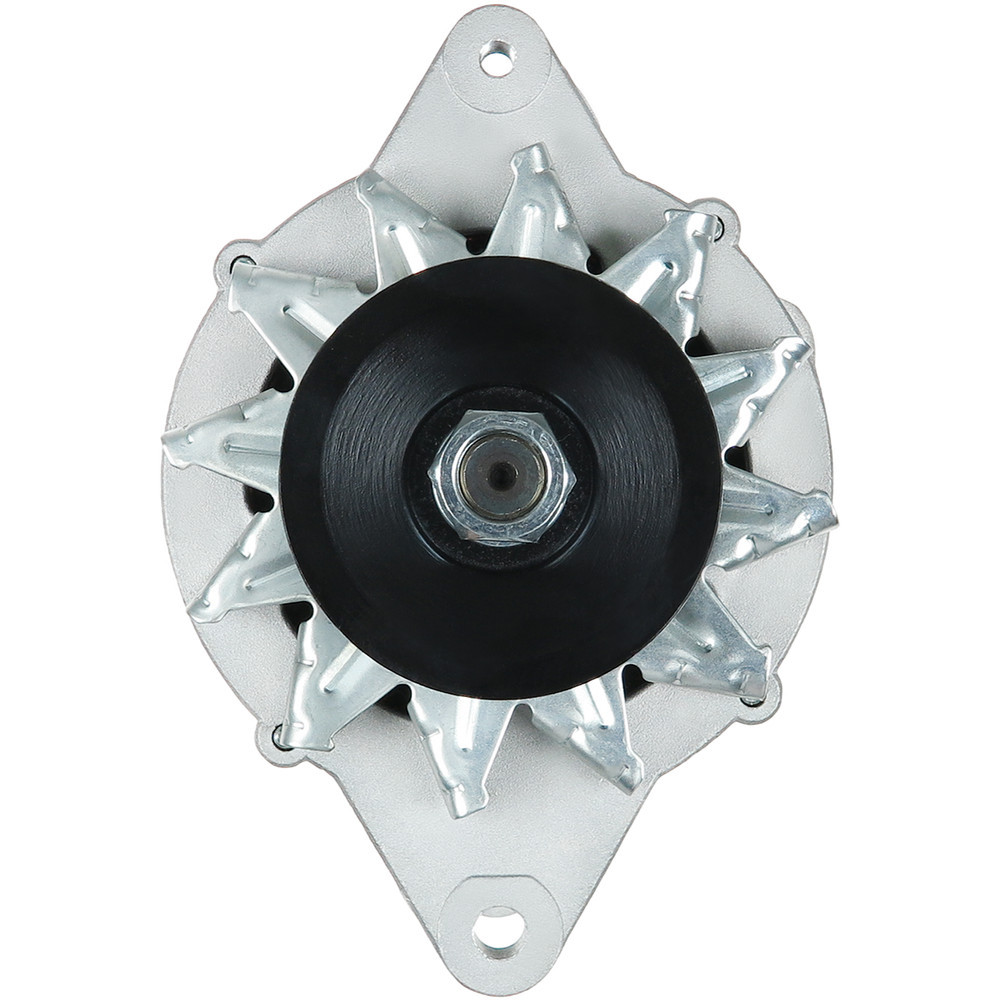

  • Type of part : Alternator
  • Motorization : URVAN Van (E24)
  • Can be mounted on : Nissan
  • Years : 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
  • Amperage : 70
  • Number of grooves (pulley) : 1
  • Voltage : 12
  • Vacuum pump : Yes

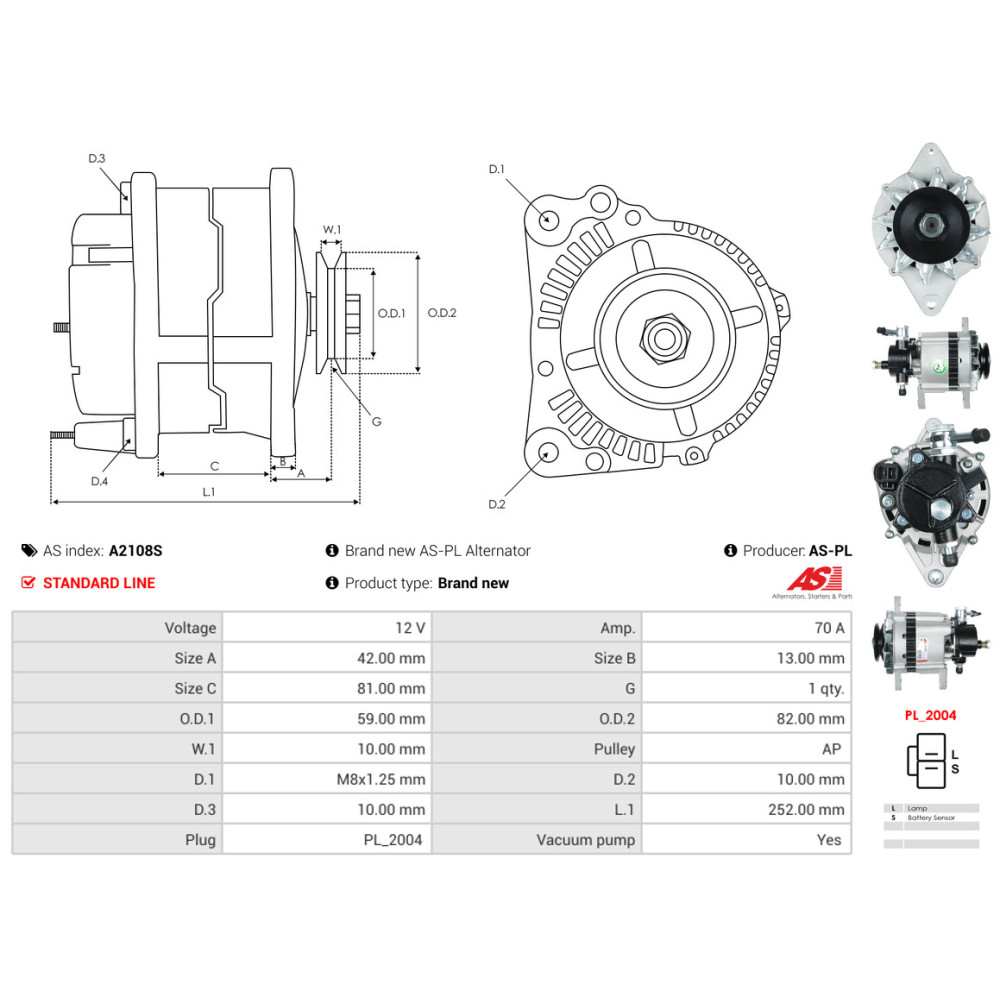

  • L.1 [ mm ] : 252.00
  • Taille A [ mm ] : 42.00
  • Taille B [ mm ] : 13.00
  • D.3 [ mm ] : 10.00
  • O.D.2 [ mm ] : 82.00
  • Taille C [ mm ] : 81.00
  • W.1 [ mm ] : 10.00
  • Plug type : PL_2004
  • Pulley : AP
  • D.1 [ mm ] : M8x1.25
  • D.2 [ mm ] : 10.00
  • O.D.1 [ mm ] : 59.00
  • Type : URVAN Van (E24) 2.3 D, URVAN Van (E24) 2.5 D
  • Engine code : TD23, TD25
