Home>Electricity>Alternator>Alternator Mazda 323 I Station Wagon (FA)
MAZDA 323 I Station Wagon (FA)
Model
Engine
Displacement and power
From To
323 I Station Wagon (FA) 1.5 (FA45V)
D5
CCM:
1490
HP:
70
KW:
52
04.1982 => 05.1986
  • Genuine part : no

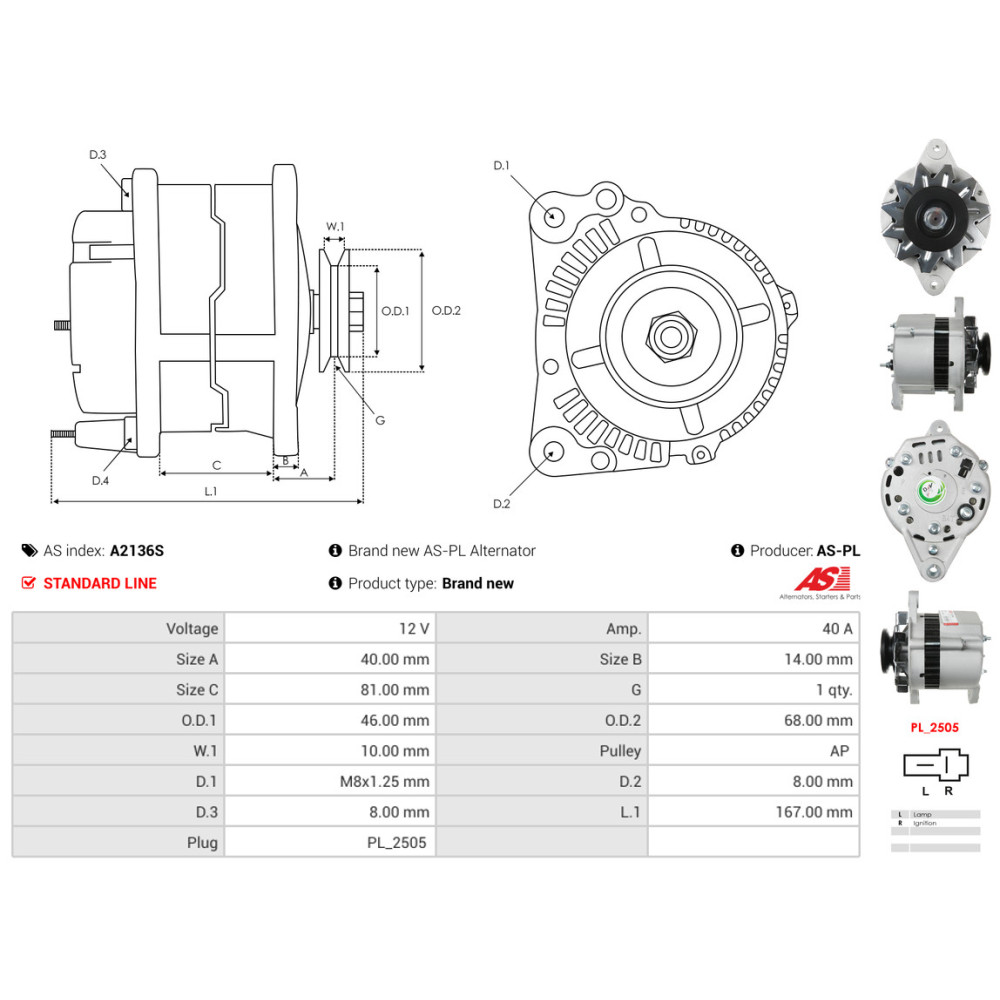

  • Type of part : Alternator
  • Motorization : 323 I Station Wagon (FA)
  • Can be mounted on : Mazda
  • Amperage : 40
  • Number of grooves (pulley) : 1
  • Voltage : 12
  • From : 1982, 1983, 1984, 1985, 1986
  • L.1 [ mm ] : 167.00
  • Taille A [ mm ] : 40.00
  • Taille B [ mm ] : 14.00
  • D.3 [ mm ] : 8.00
  • O.D.2 [ mm ] : 68.00
  • Taille C [ mm ] : 81.00
  • W.1 [ mm ] : 10.00
  • Plug type : PL_2505
  • Pulley : AP
  • D.1 [ mm ] : M8x1.25
  • D.2 [ mm ] : 8.00
  • O.D.1 [ mm ] : 46.00
  • Type : 323 I Station Wagon (FA) 1.5 (FA45V)
  • Engine code : D5
