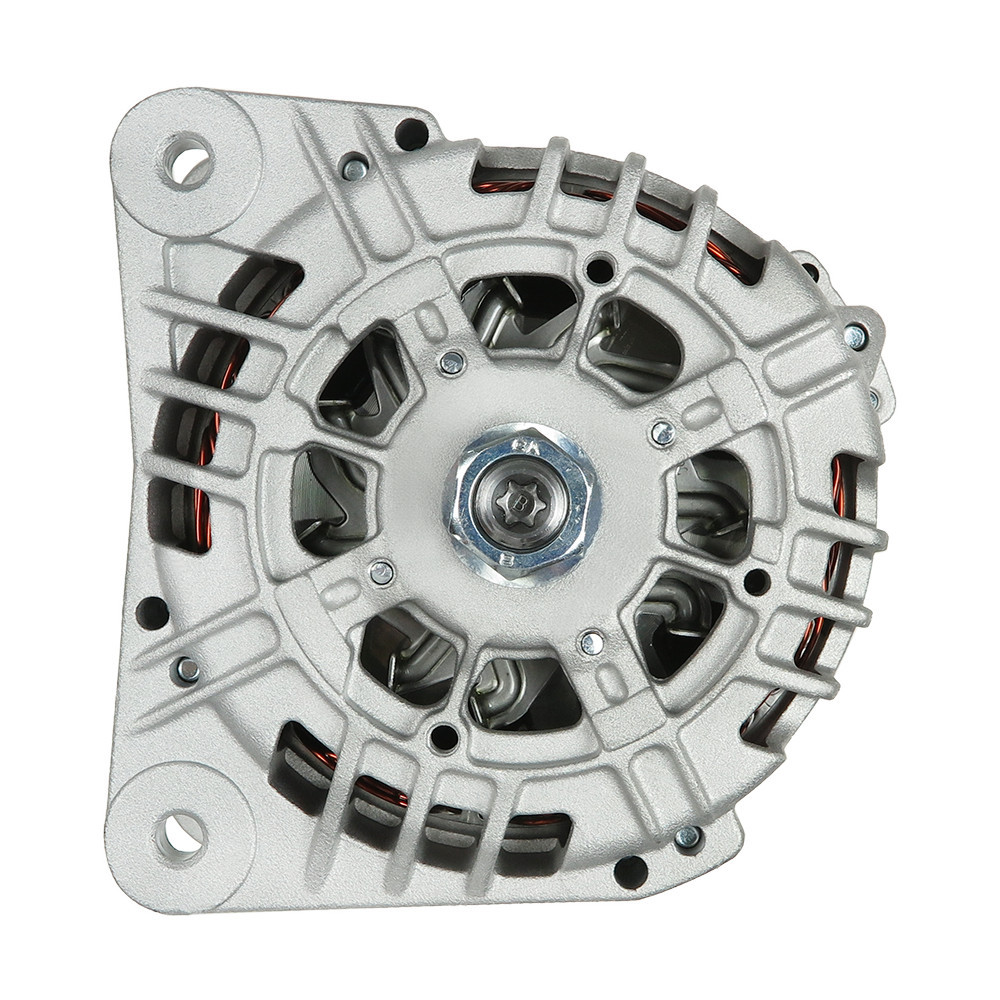

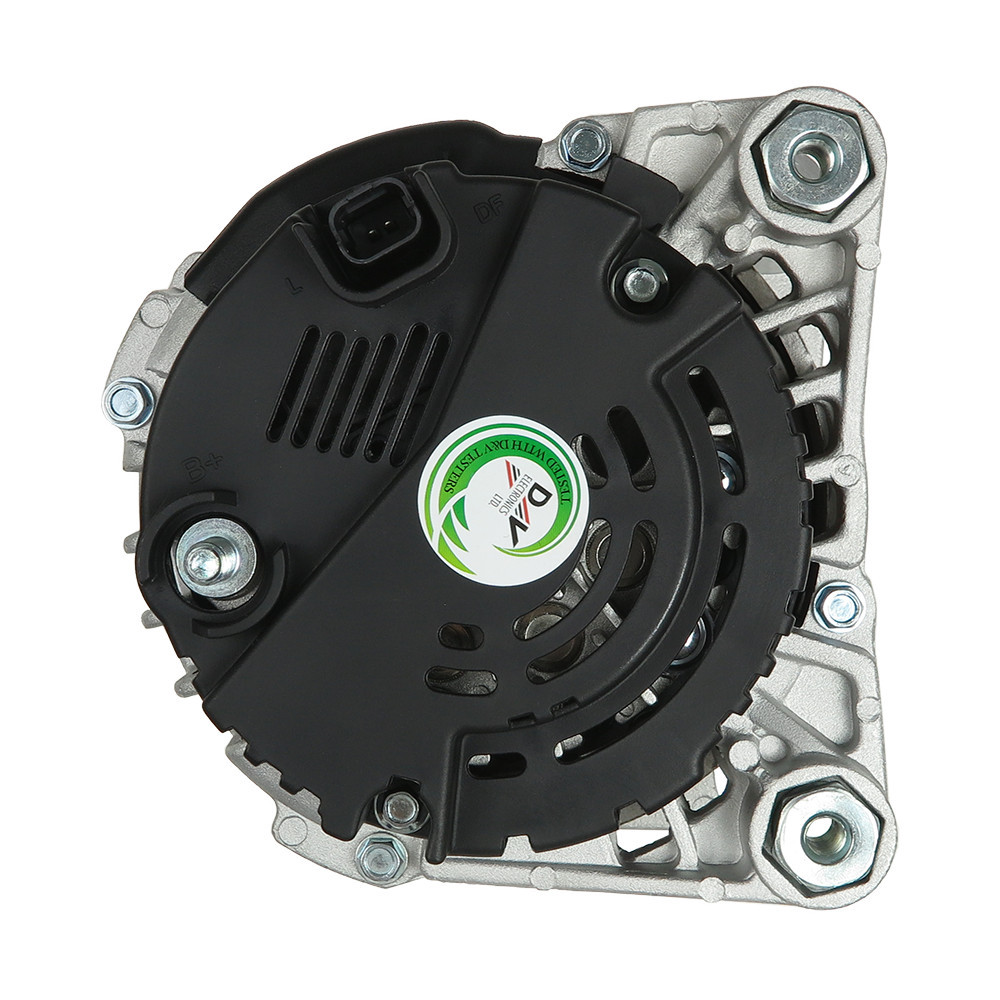

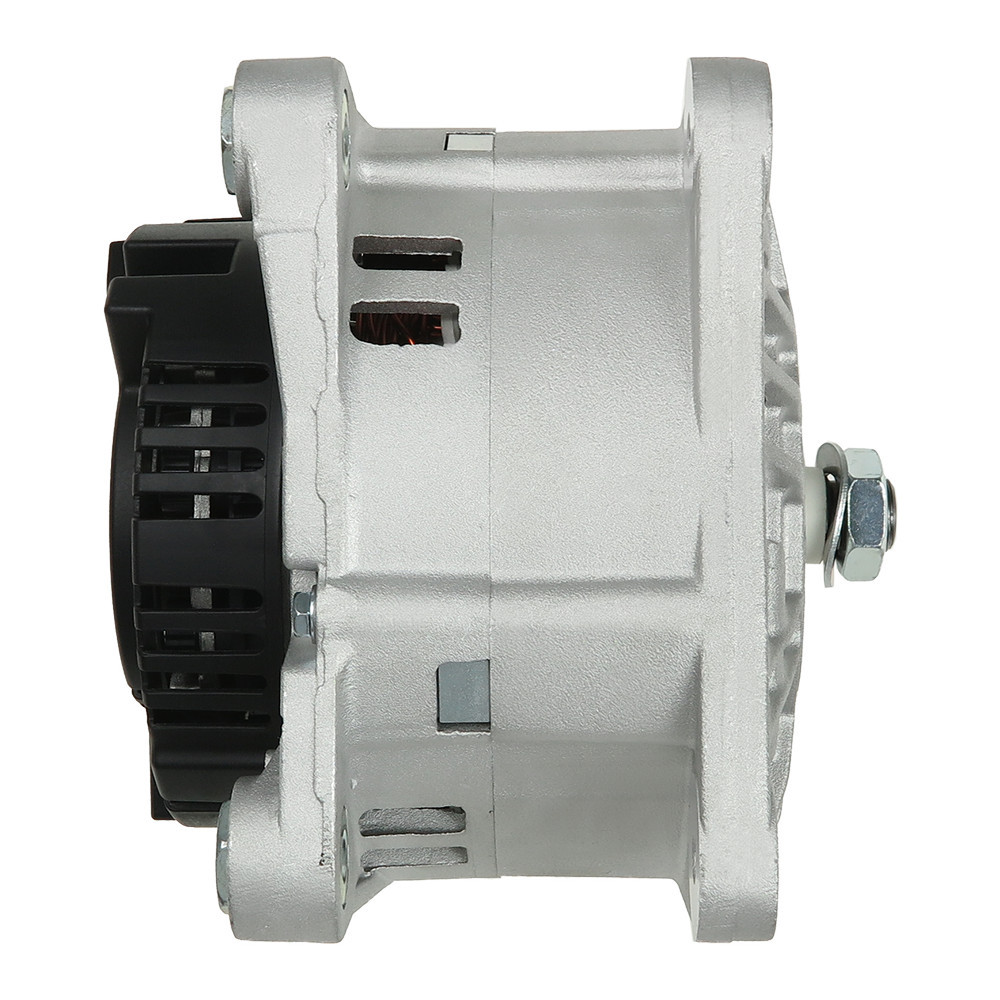

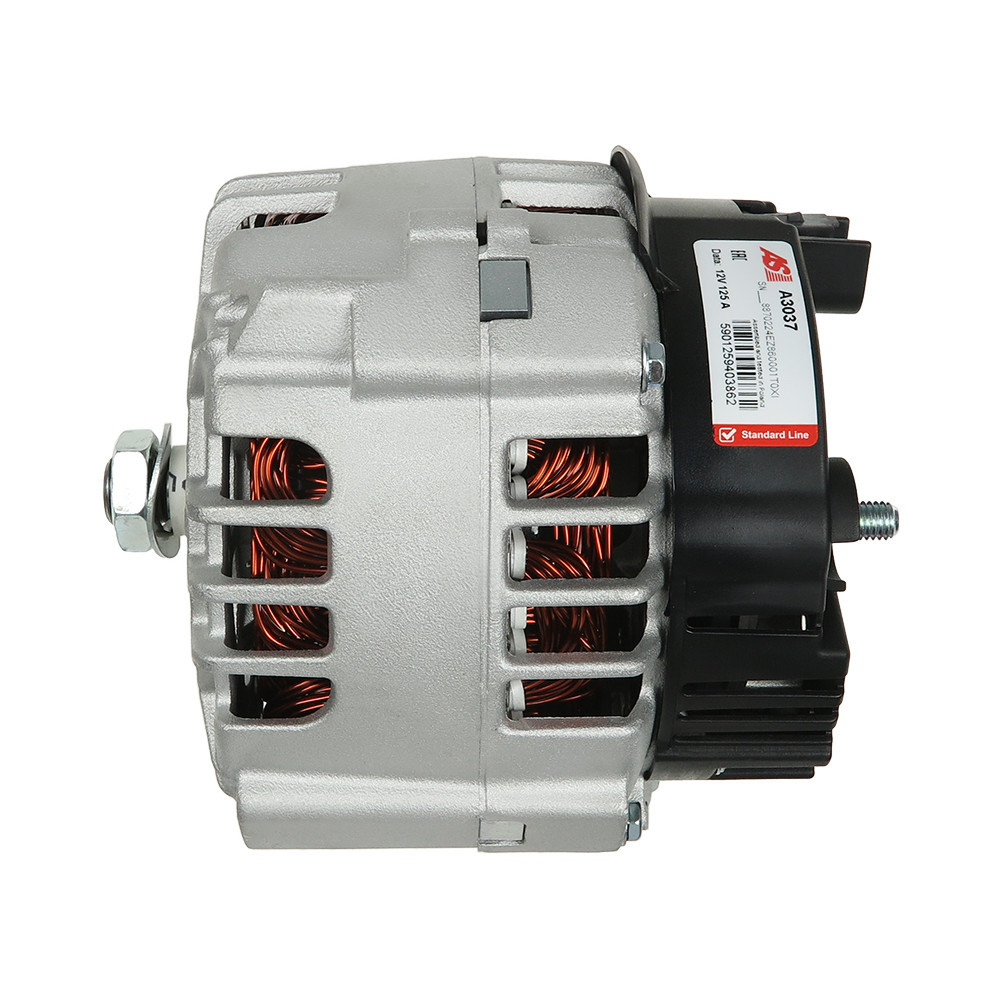

Alternator Nissan PRIMASTAR Platform/Chassis (X83)

NISSAN PRIMASTAR Platform/Chassis (X83)

Model

Engine

Displacement and power

From To

PRIMASTAR Platform/Chassis (X83) 1.9 dCi 100

F9Q760

CCM:

1870

HP:

101

KW:

07.2002 => 08.2006

PRIMASTAR Platform/Chassis (X83) 1.9 dCi 80

F9Q762

CCM:

1870

HP:

KW:

07.2002 => 08.2006

PRIMASTAR Platform/Chassis (X83) 2.0

F4R720

CCM:

1998

HP:

120

KW:

07.2002 => 08.2006

PRIMASTAR Platform/Chassis (X83) 2.5 dCi 140

G9U730

CCM:

2463

HP:

135

KW:

07.2002 => 08.2006

PRIMASTAR Platform/Chassis (X83) 2.5 dCi 150

G9U630

CCM:

2463

HP:

146

KW:

107

04.2006 =>

Genuine part : no
Type of part : Alternator
Motorization : PRIMASTAR Platform/Chassis (X83)
Can be mounted on : Nissan
Amperage : 125
Voltage : 12
From : 2002, 2003, 2004, 2005, 2006

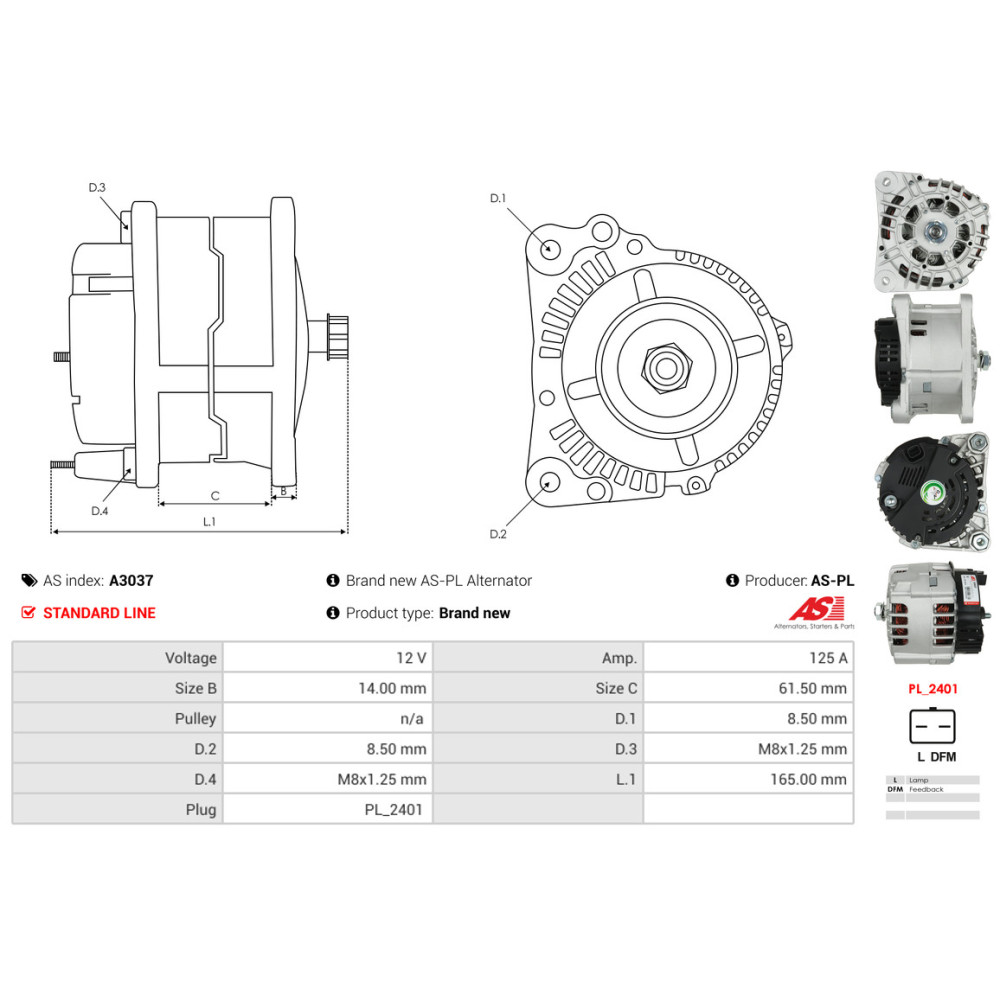

L.1 [ mm ] : 165.00
Taille B [ mm ] : 14.00
D.3 [ mm ] : M8x1.25
D.4 [ mm ] : M8x1.25
Taille C [ mm ] : 61.50
Plug type : PL_2401
Pulley : n/a
D.1 [ mm ] : 8.50
D.2 [ mm ] : 8.50
Type : PRIMASTAR Platform/Chassis (X83) 1.9 dCi 100, PRIMASTAR Platform/Chassis (X83) 1.9 dCi 80, PRIMASTAR Platform/Chassis (X83) 2.0, PRIMASTAR Platform/Chassis (X83) 2.5 dCi 140, PRIMASTAR Platform/Chassis (X83) 2.5 dCi 150
Engine code : F4R720, F9Q760, F9Q762, G9U630, G9U730
