Home>Electricity>Alternator>Alternator BMW X1 (E84)
BMW X1 (E84)
Model
Engine
Displacement and power
From To
X1 (E84) sDrive 18 d
N47D20C
CCM:
1995
HP:
136
KW:
100
03.2009 => 06.2015
X1 (E84) sDrive 20 d
N47D20C
CCM:
1995
HP:
163
KW:
120
03.2010 => 06.2015
X1 (E84) xDrive 18 d
N47D20C
CCM:
1995
HP:
136
KW:
100
03.2009 => 06.2015
X1 (E84) xDrive 20 d
N47D20C
CCM:
1995
HP:
163
KW:
120
03.2010 => 06.2015
X1 (E84) xDrive 23 d
N47D20D
CCM:
1995
HP:
204
KW:
150
10.2009 => 06.2015
X1 (E84) xDrive 25 d
N47D20D
CCM:
1995
HP:
218
KW:
160
10.2009 => 06.2015
X1 (E84) xDrive 28 i
N52B30A
CCM:
2996
HP:
258
KW:
190
09.2009 => 08.2011
  • Genuine part : no

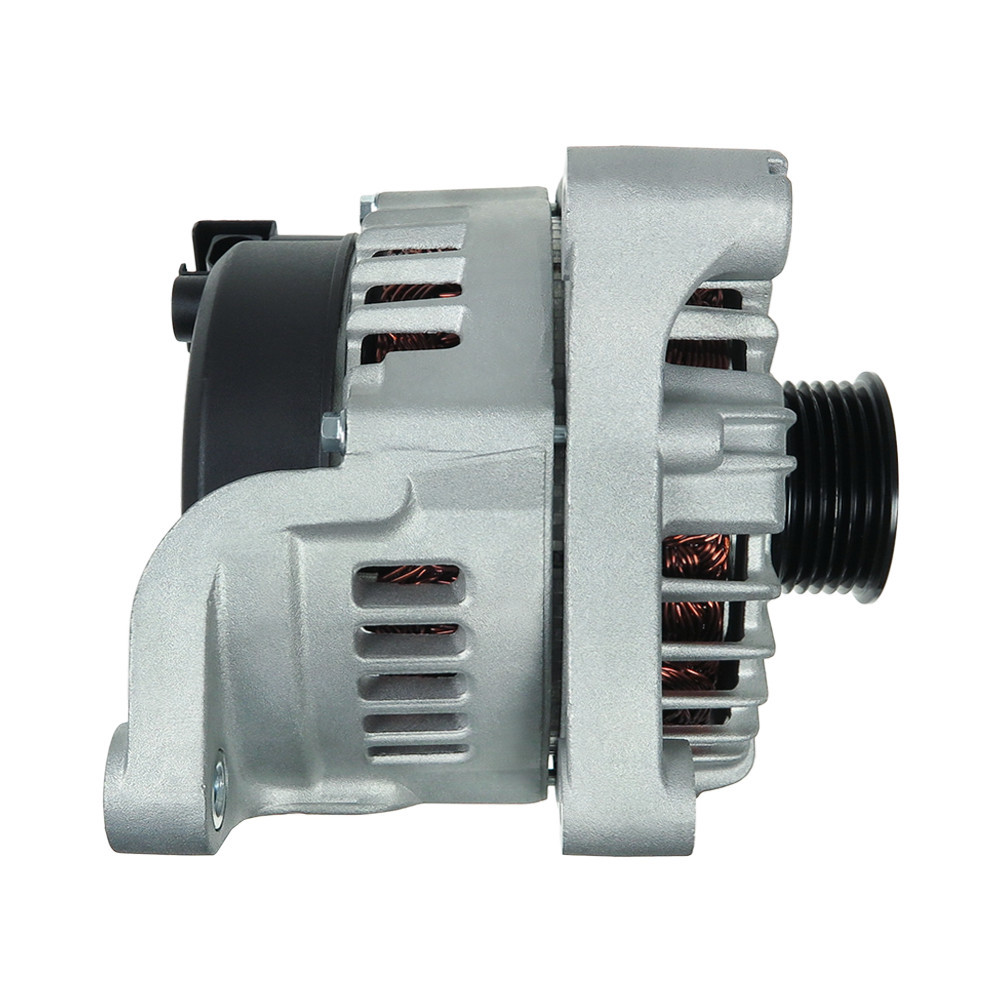

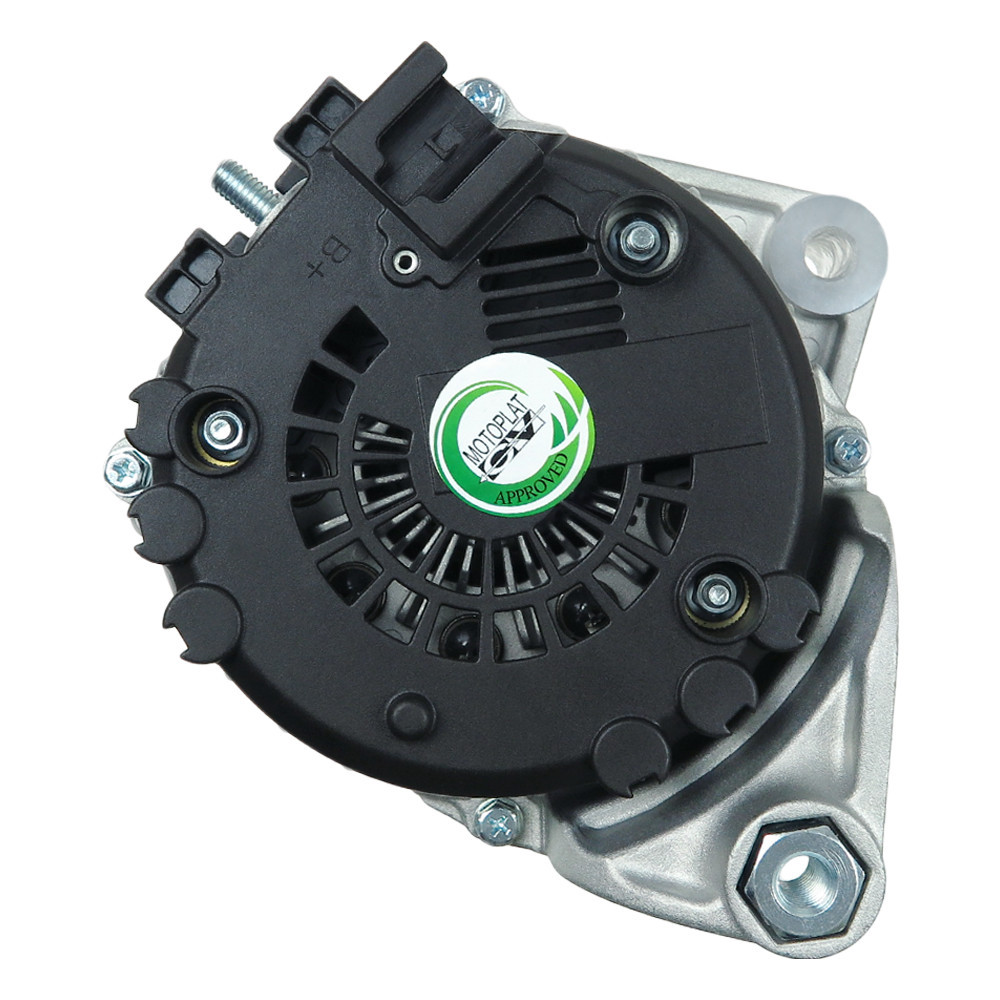

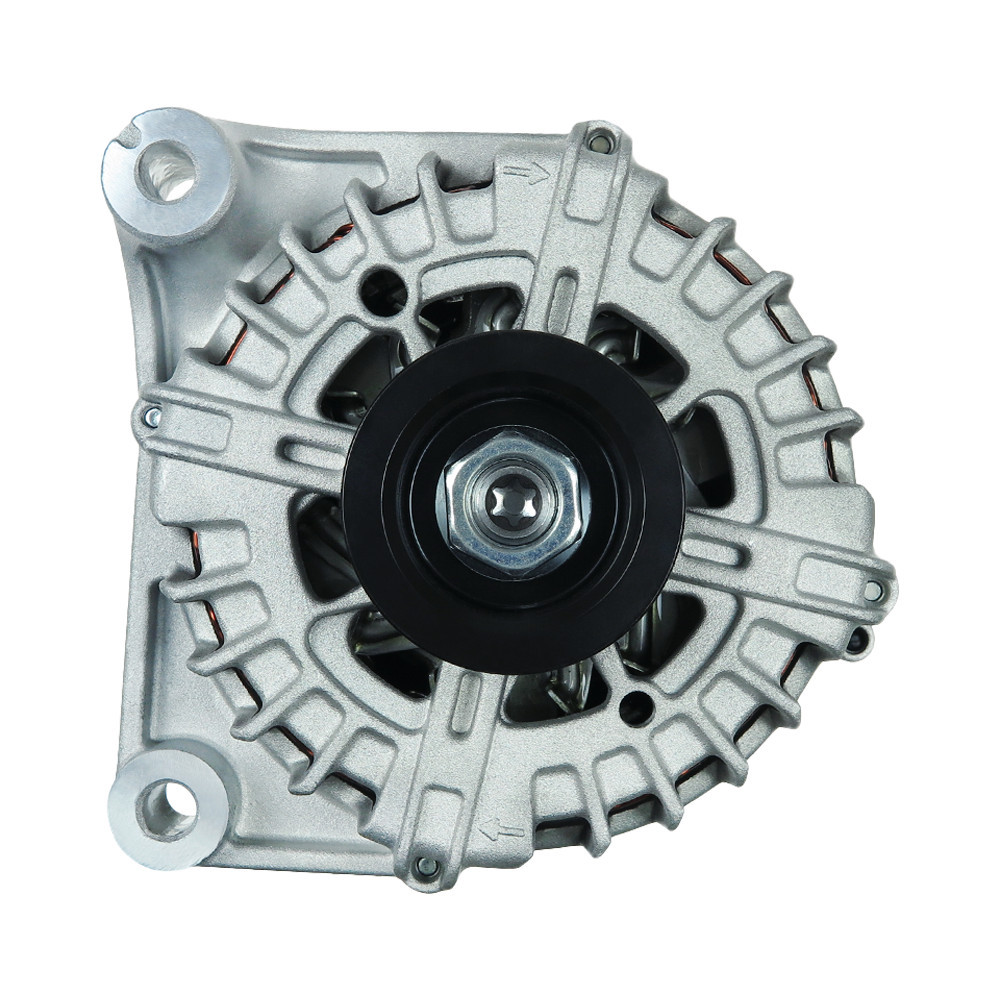

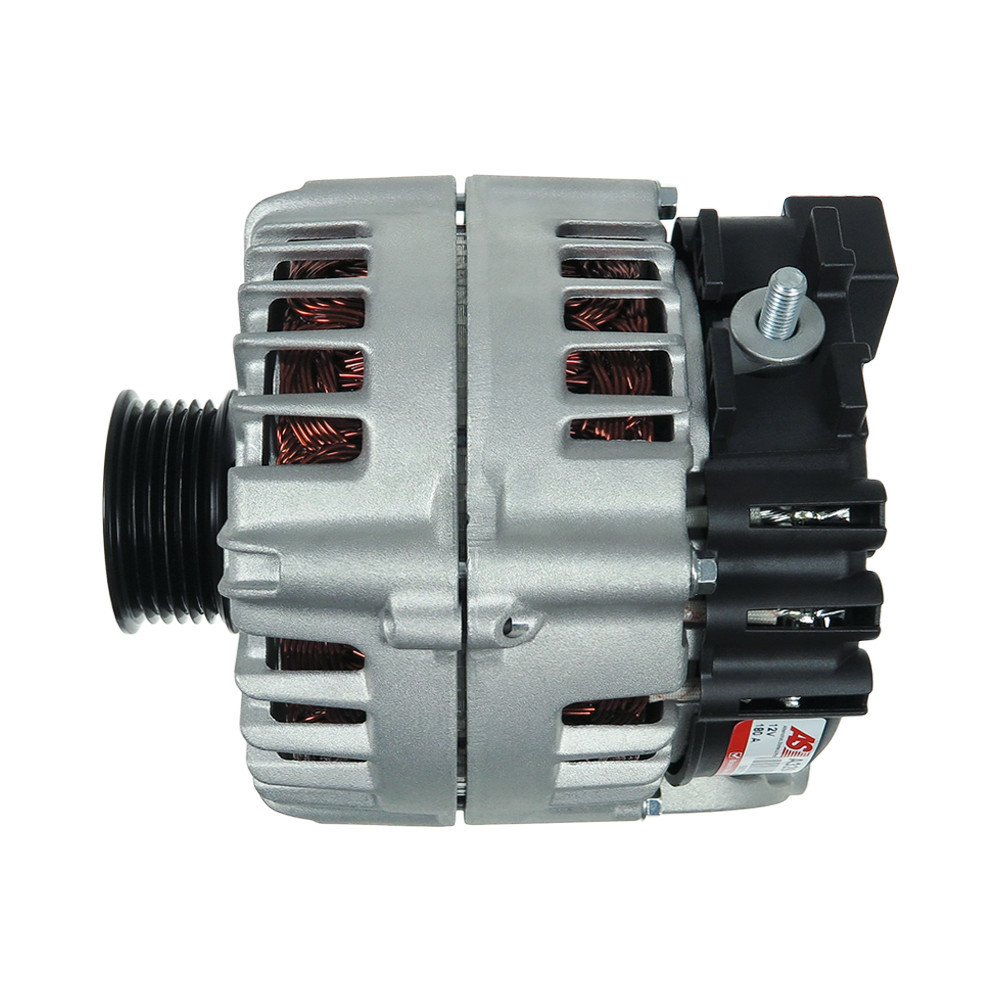

  • Type of part : Alternator
  • Motorization : X1 (E84)
  • Can be mounted on : BMW
  • Years : 2009, 2010, 2011, 2012, 2013, 2014, 2015
  • Amperage : 180
  • Number of grooves (pulley) : 6
  • Voltage : 12

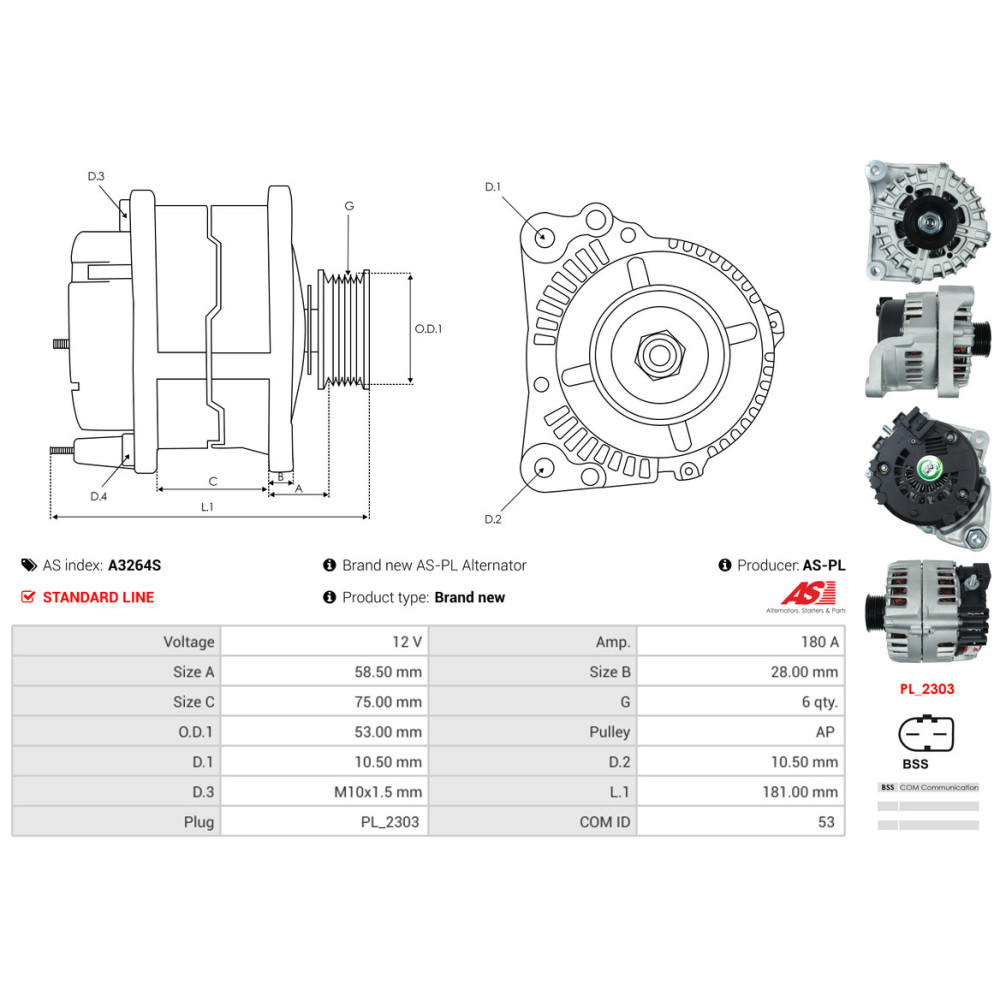

  • L.1 [ mm ] : 181.00
  • Taille A [ mm ] : 58.50
  • Taille B [ mm ] : 28.00
  • D.3 [ mm ] : M10x1.5
  • Taille C [ mm ] : 75.00
  • COM ID : 53
  • Plug type : PL_2303
  • Pulley : AP
  • D.1 [ mm ] : 10.50
  • D.2 [ mm ] : 10.50
  • O.D.1 [ mm ] : 53.00
  • Type : X1 (E84) sDrive 18 d, X1 (E84) sDrive 20 d, X1 (E84) xDrive 18 d, X1 (E84) xDrive 20 d, X1 (E84) xDrive 23 d, X1 (E84) xDrive 25 d, X1 (E84) xDrive 28 i
  • Engine code : N47D20C, N47D20D, N52B30A
