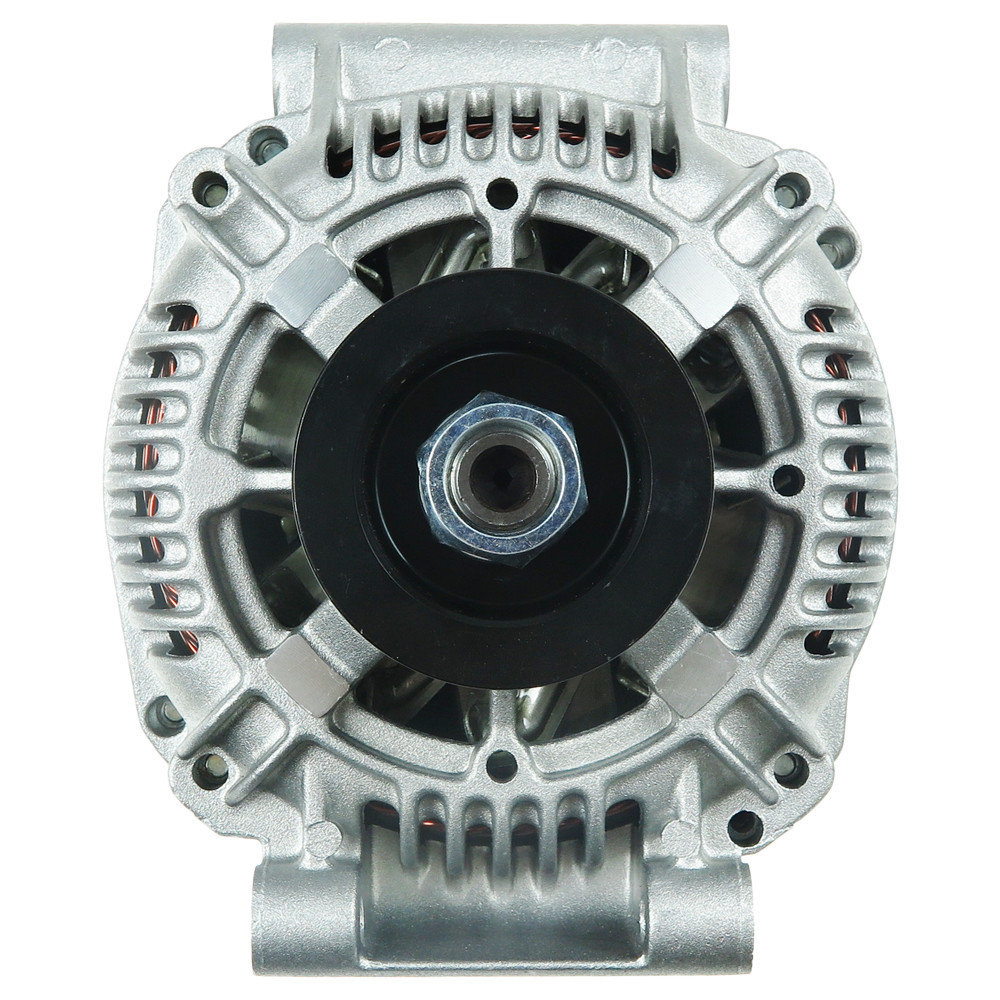

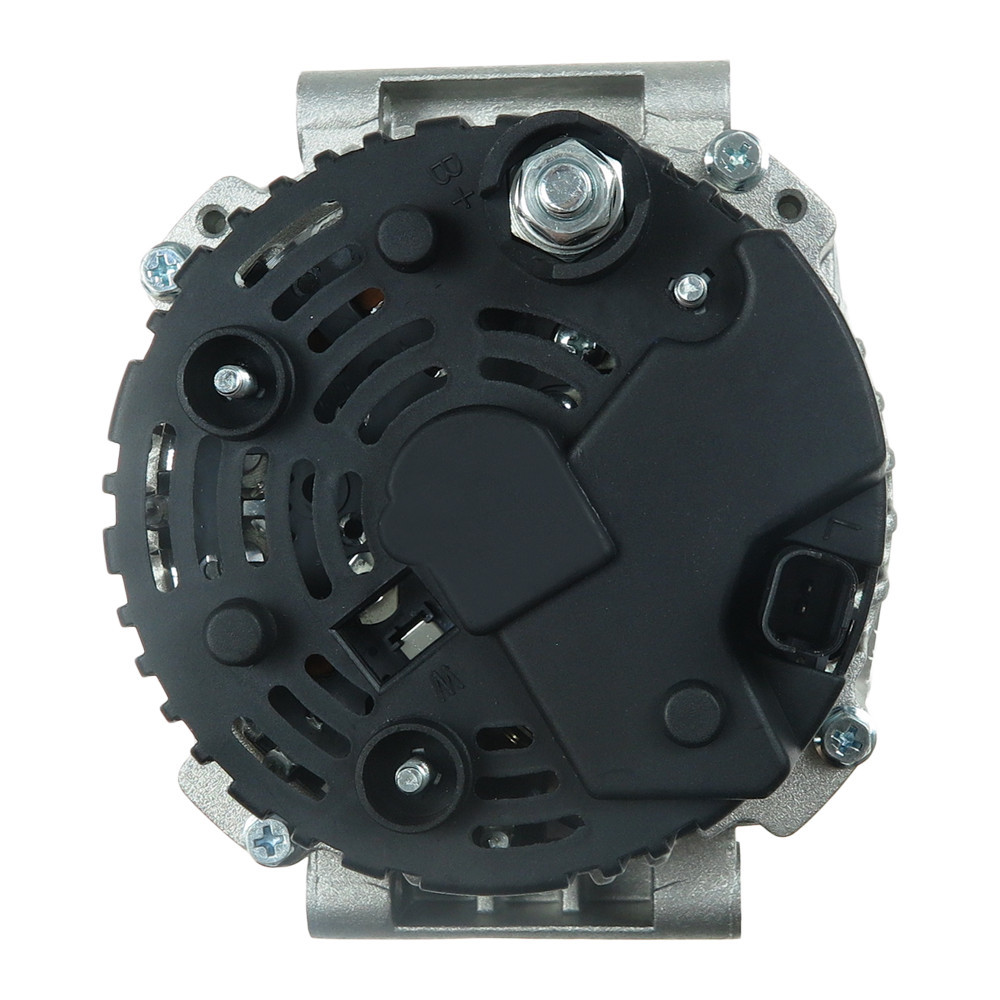

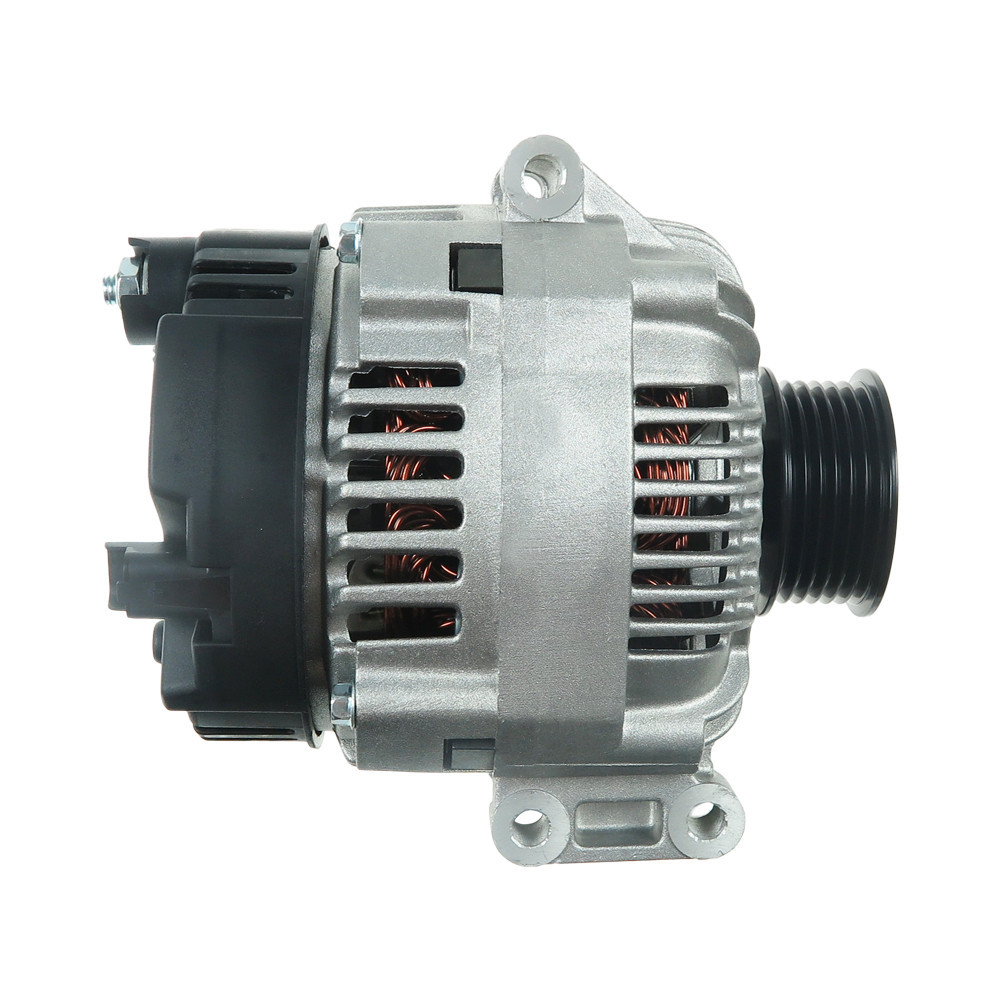

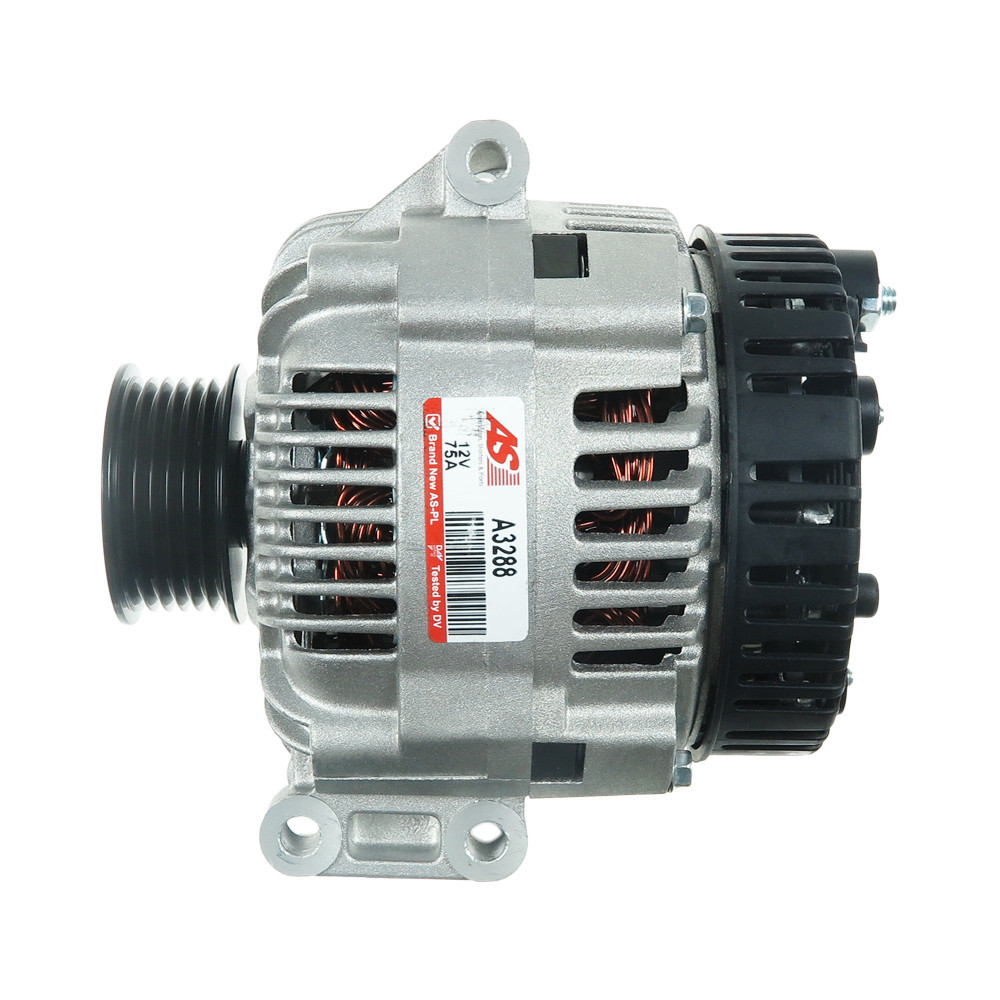

Alternator Dacia SANDERO

Reference:
- A11VI94 (VALEO)

Application
Data sheet

DACIA SANDERO

Model

Engine

Displacement and power

From To

SANDERO 1.4 (BS0C, BS0A, BS0G, BS1F, BS0E)

K7J710

CCM:

1390

HP:

KW:

06.2008 =>

SANDERO 1.4 (BS0C, BS0A, BS0G, BS1F, BS0E)

K7J714

CCM:

1390

HP:

KW:

06.2008 =>

SANDERO 1.4 MPI LPG

K7J714

CCM:

1390

HP:

KW:

01.2009 =>

SANDERO 1.6 (BS0D, BS0B, BS0F, BS0H)

K7M710

CCM:

1598

HP:

KW:

06.2008 =>

SANDERO 1.6 (BS0D, BS0B, BS0F, BS0H)

K7M718

CCM:

1598

HP:

KW:

06.2008 =>

SANDERO 1.6 LPG

K7M718

CCM:

1598

HP:

KW:

06.2008 => 12.2012

SANDERO 1.6 MPI 85 (BS03)

K7M800

CCM:

1598

HP:

KW:

05.2010 => 06.2013

SANDERO 1.6 MPI 85 (BS03)

K7M818

CCM:

1598

HP:

KW:

05.2010 => 06.2013

Genuine part : no
Type of part : Alternator
Motorization : SANDERO
Can be mounted on : Dacia
Amperage : 75
Number of grooves (pulley) : 6
Voltage : 12
From : 2008

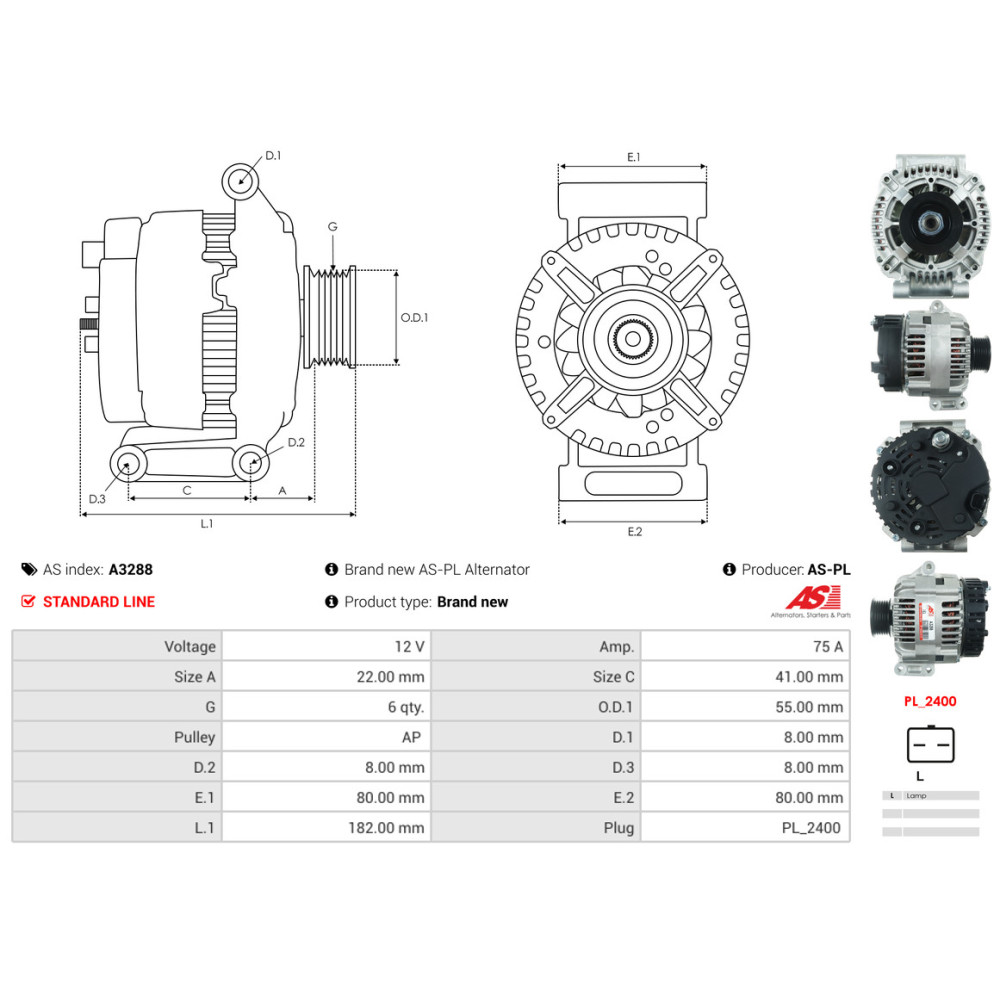

L.1 [ mm ] : 182.00
Taille A [ mm ] : 22.00
D.3 [ mm ] : 8.00
E.1 [ mm ] : 80.00
E.2 [ mm ] : 80.00
Taille C [ mm ] : 41.00
Plug type : PL_2400
Pulley : AP
D.1 [ mm ] : 8.00
D.2 [ mm ] : 8.00
O.D.1 [ mm ] : 55.00
Type : SANDERO 1.4 (BS0C, BS0A, BS0G, BS1F, BS0E), SANDERO 1.4 MPI LPG, SANDERO 1.6 (BS0D, BS0B, BS0F, BS0H), SANDERO 1.6 LPG, SANDERO 1.6 MPI 85 (BS03)
Engine code : K7J710, K7J714, K7M710, K7M718, K7M800, K7M818
