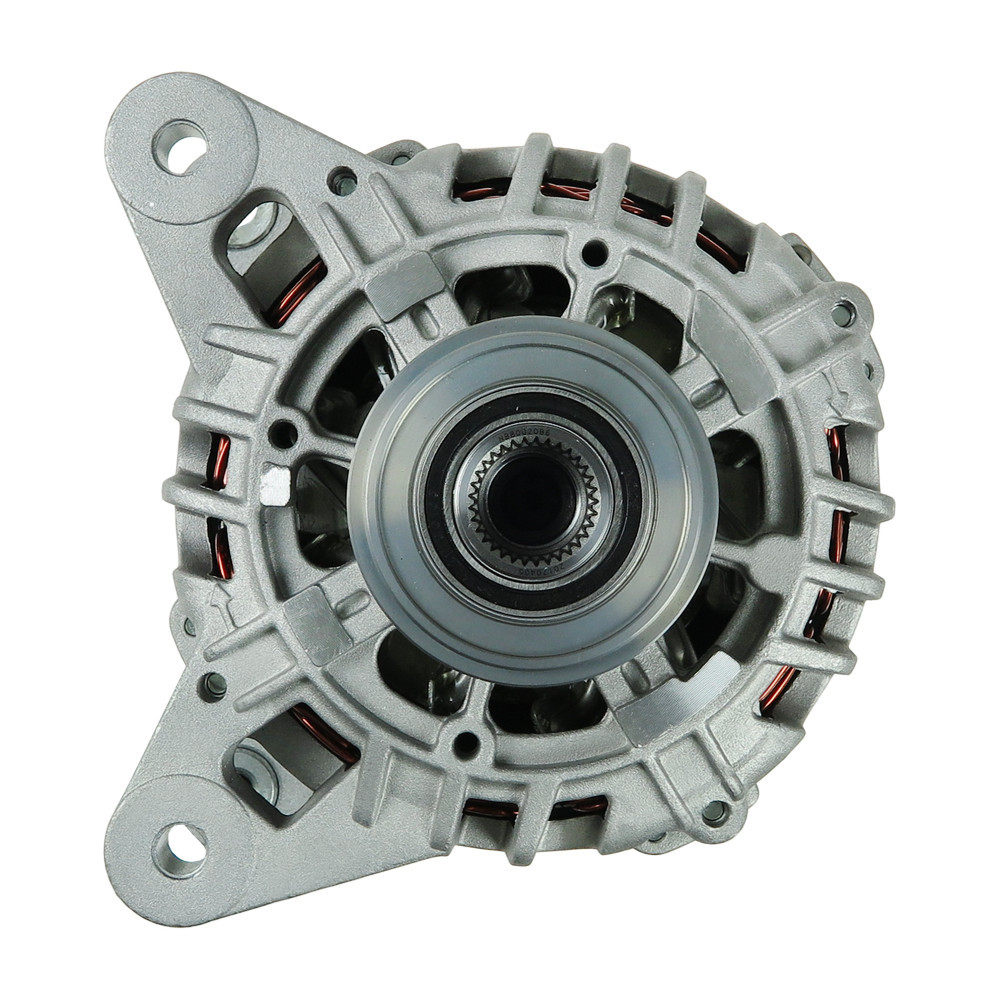

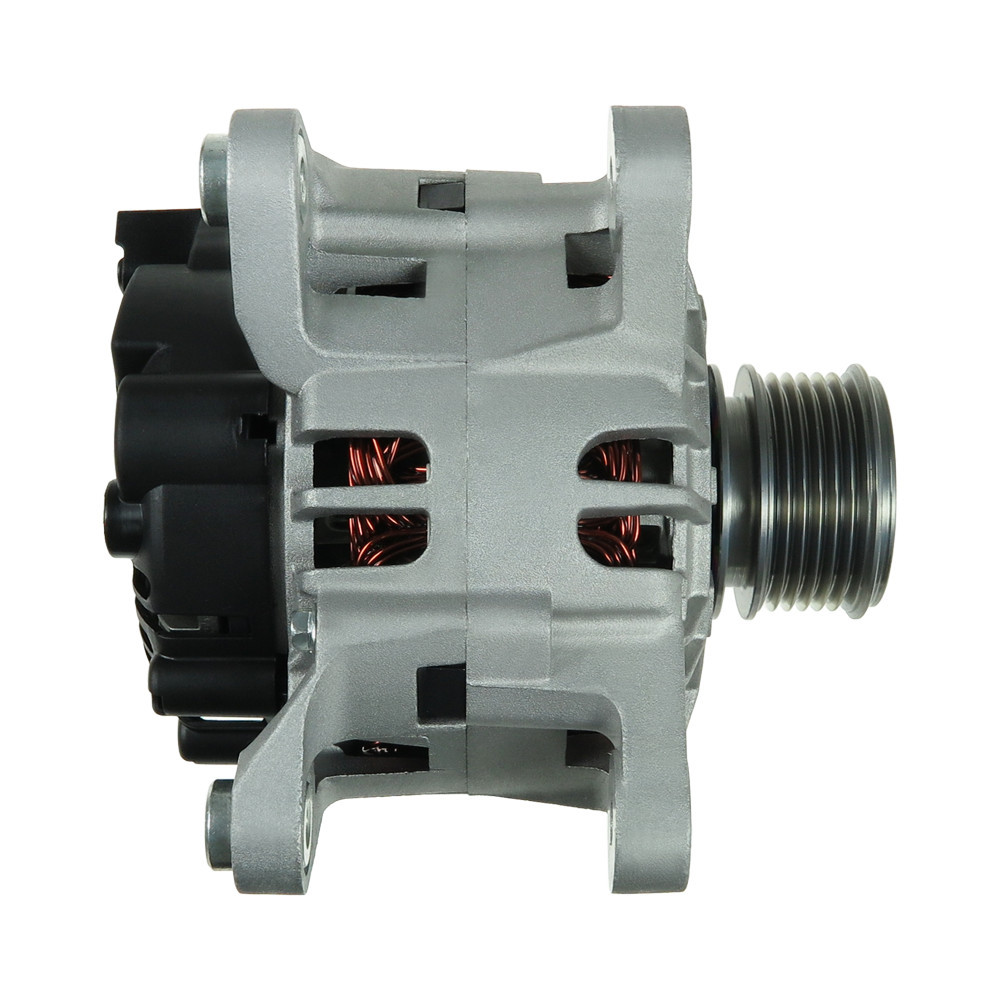

Alternator Dacia LOGAN (LS_)

Reference:
- 0986087000 (BOSCH)

Application
Data sheet

DACIA LOGAN (LS_)

Model

Engine

Displacement and power

From To

LOGAN (LS_) 1.5 dCi (LS04)

K9K892

CCM:

1461

HP:

KW:

05.2010 => 12.2012

LOGAN (LS_) 1.5 dCi (LS0J, LS0Y)

K9K790

CCM:

1461

HP:

KW:

09.2005 =>

LOGAN (LS_) 1.6 (LSOB, LSOD, LSOF, LSOH)

K7M710

CCM:

1598

HP:

KW:

09.2004 =>

LOGAN (LS_) 1.6 (LSOB, LSOD, LSOF, LSOH)

K7M718

CCM:

1598

HP:

KW:

09.2004 =>

LOGAN (LS_) 1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,...

K4M690

CCM:

1598

HP:

105

KW:

02.2006 =>

LOGAN (LS_) 1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,...

K4M694

CCM:

1598

HP:

105

KW:

02.2006 =>

LOGAN (LS_) 1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,...

K4M696

CCM:

1598

HP:

105

KW:

02.2006 =>

LOGAN (LS_) 1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,...

K4M697

CCM:

1598

HP:

105

KW:

02.2006 =>

LOGAN (LS_) 1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,...

K4M698

CCM:

1598

HP:

105

KW:

02.2006 =>

LOGAN (LS_) 1.6 16V Flexifuel

K4M696

CCM:

1598

HP:

105

KW:

07.2010 =>

LOGAN (LS_) 1.6 Bifuel

K7M718

CCM:

1598

HP:

KW:

05.2010 =>

LOGAN (LS_) 1.6 MPI 85

K7M800

CCM:

1598

HP:

KW:

05.2010 =>

Genuine part : no
Type of part : Alternator
Motorization : LOGAN (LS_)
Can be mounted on : Dacia
Amperage : 90
Number of grooves (pulley) : 6
Voltage : 12
From : 2010, 2011, 2012
L.1 [ mm ] : 176.00
Taille A [ mm ] : 38.00
Taille B [ mm ] : 15.00
D.3 [ mm ] : M8x1.25
D.4 [ mm ] : M8x1.25
Taille C [ mm ] : 61.50
Plug type : PL_2401
Pulley : AFP
D.1 [ mm ] : 8.50
D.2 [ mm ] : 8.50
O.D.1 [ mm ] : 55.00
Type : LOGAN (LS_) 1.5 dCi (LS04), LOGAN (LS_) 1.5 dCi (LS0J, LS0Y), LOGAN (LS_) 1.6 (LSOB, LSOD, LSOF, LSOH), LOGAN (LS_) 1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V,, LOGAN (LS_) 1.6 16V Flexifuel, LOGAN (LS_) 1.6 Bifuel, LOGAN (LS_) 1.6 MPI 85
Engine code : K4M690, K4M694, K4M696, K4M697, K4M698, K7M710, K7M718, K7M800, K9K790, K9K892
