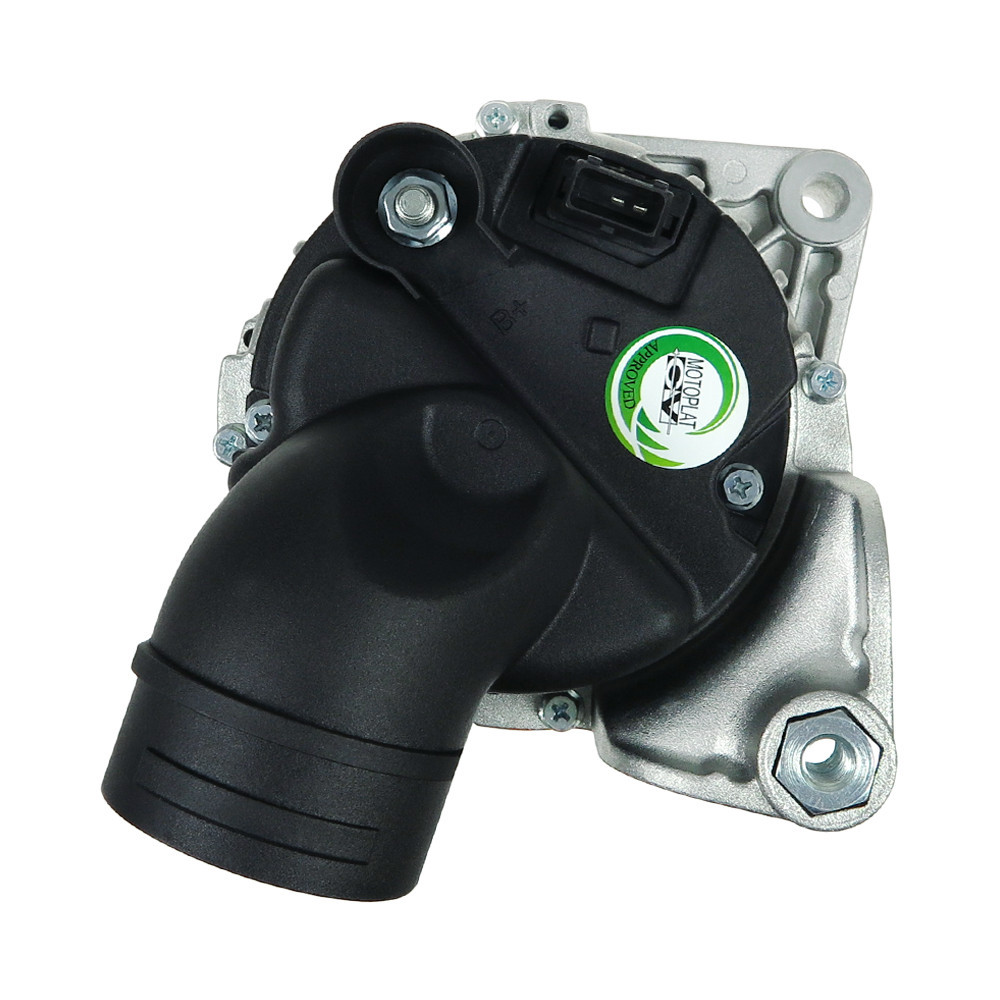

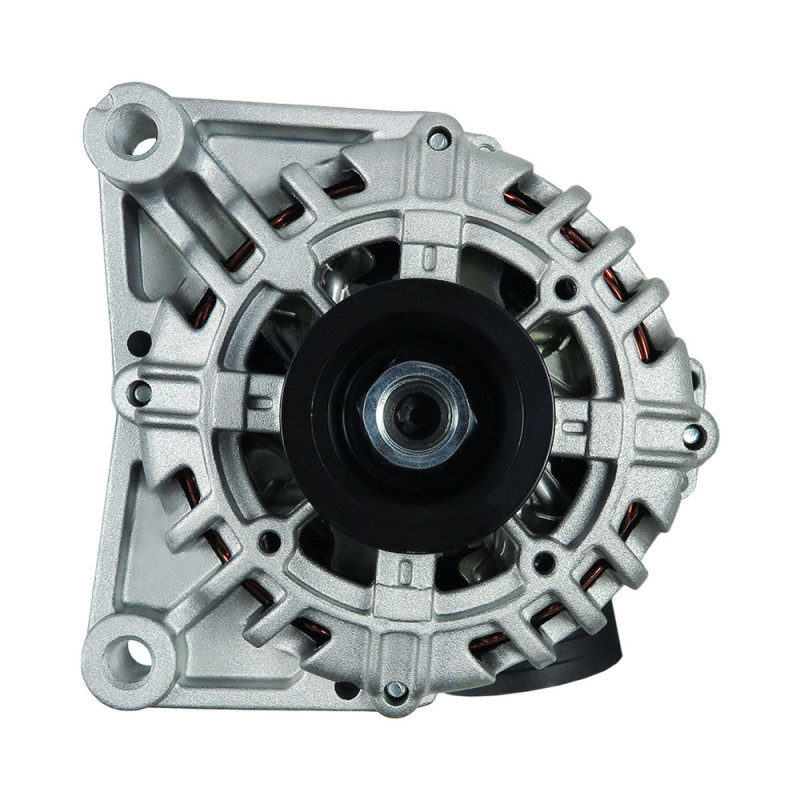

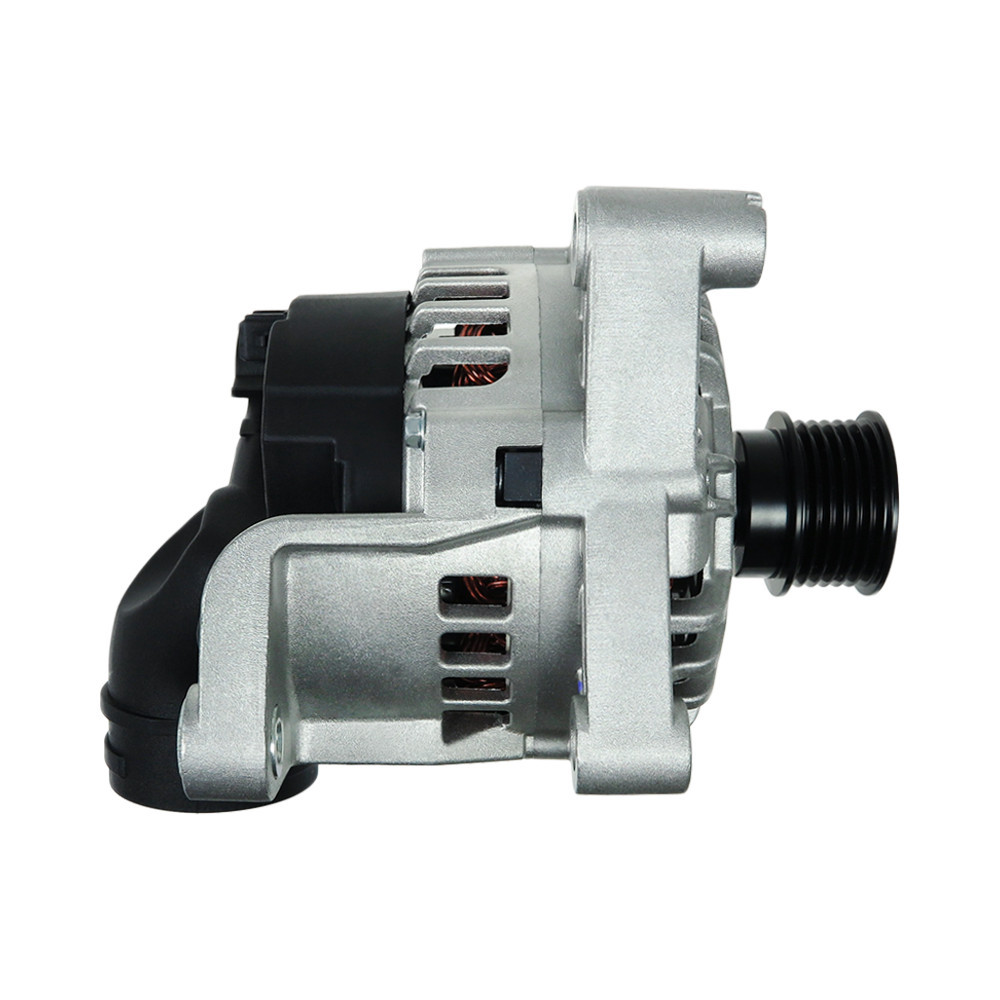

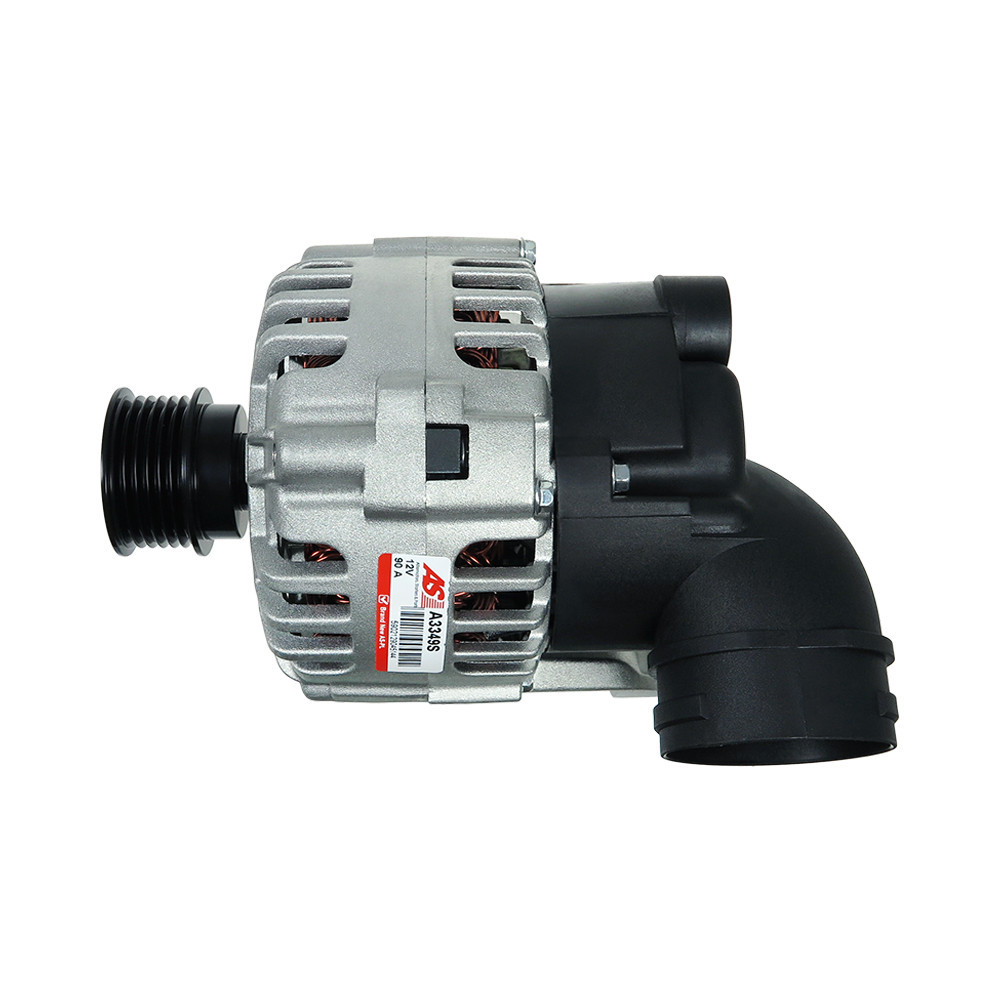

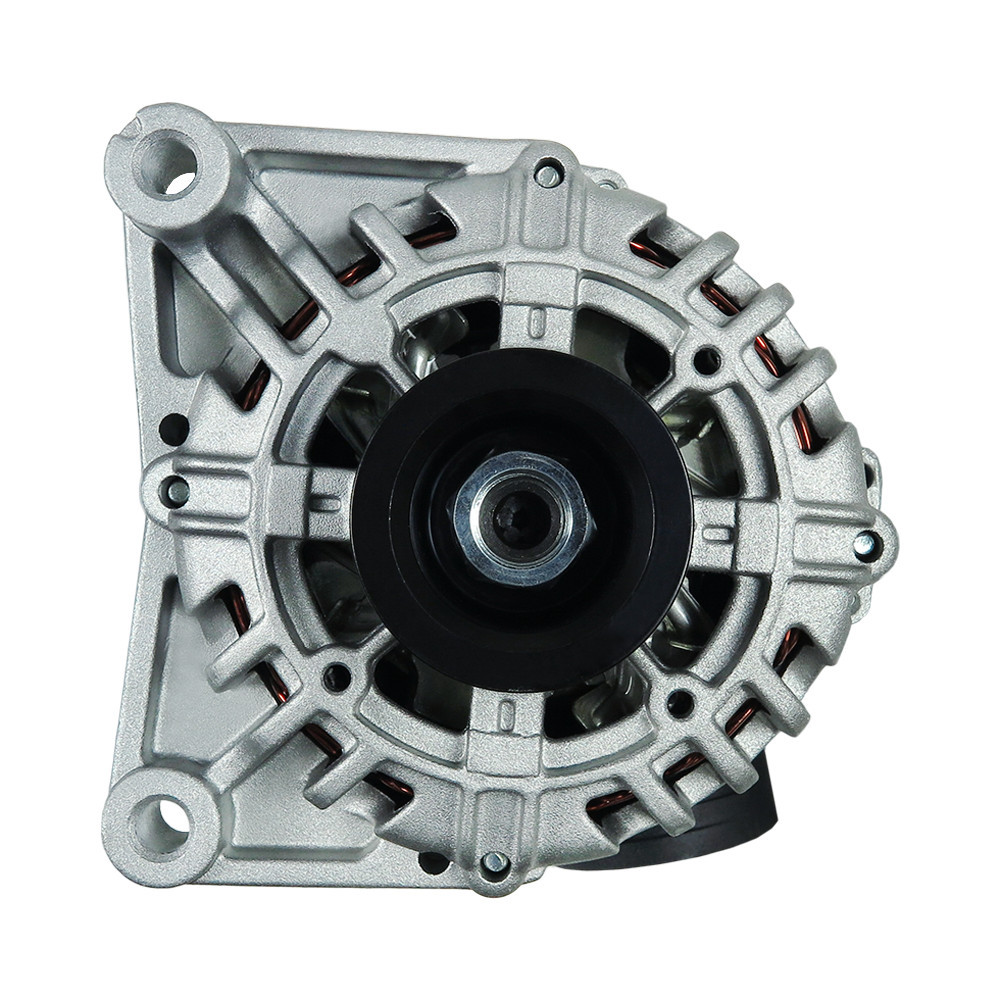

Alternator BMW 3 (E36)

Reference:
- SG9B029 (VALEO)

Application
Data sheet

BMW 3 (E36)

Model

Engine

Displacement and power

From To

3 (E36) 318 i

M43B18(184E2)

CCM:

1796

HP:

115

KW:

09.1993 => 11.1998

3 (E36) 320 i

M50B20(206S1)

CCM:

1990

HP:

150

KW:

110

01.1991 => 02.1998

3 (E36) 320 i

M50B20(206S2)

CCM:

1990

HP:

150

KW:

110

01.1991 => 02.1998

3 (E36) 320 i

M52B20(206S3)

CCM:

1990

HP:

150

KW:

110

01.1991 => 02.1998

3 (E36) 323 i

M52B25(256S3)

CCM:

2494

HP:

170

KW:

125

05.1995 => 11.1998

3 (E36) 328 i

M52B28(286S1)

CCM:

2793

HP:

193

KW:

142

01.1995 => 04.1998

Genuine part : no
Type of part : Alternator
Motorization : 3 (E36)
Can be mounted on : BMW
Years : 1993, 1994, 1995, 1996, 1997, 1998
Amperage : 90
Number of grooves (pulley) : 6
Voltage : 12

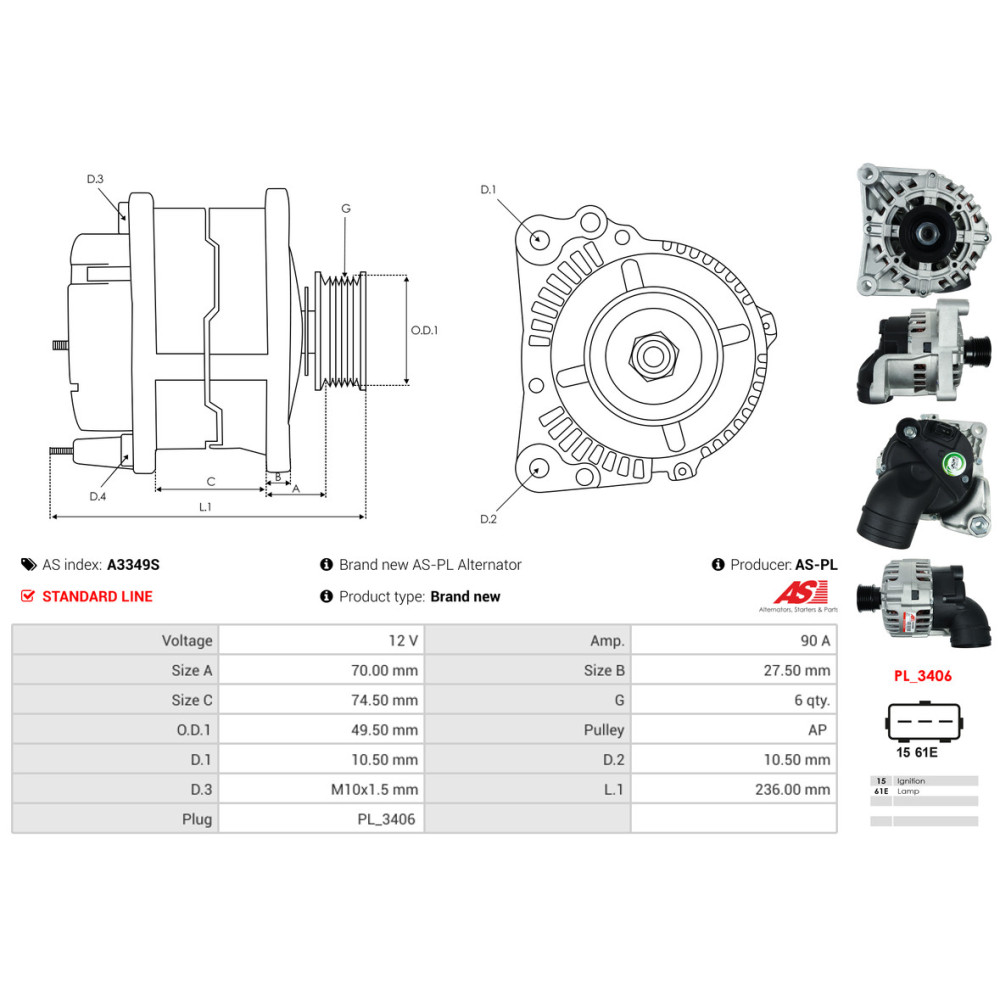

L.1 [ mm ] : 236.00
Taille A [ mm ] : 70.00
Taille B [ mm ] : 27.50
D.3 [ mm ] : M10x1.5
Taille C [ mm ] : 74.50
Plug type : PL_3406
Pulley : AP
D.1 [ mm ] : 10.50
D.2 [ mm ] : 10.50
O.D.1 [ mm ] : 49.50
Type : 3 (E36) 318 i, 3 (E36) 320 i, 3 (E36) 323 i, 3 (E36) 328 i
Engine code : M43B18(184E2), M50B20(206S1), M50B20(206S2), M52B20(206S3), M52B25(256S3), M52B28(286S1)
