Home>Electricity>Alternator>Alternator Toyota COROLLA Hatchback (KE, TE)
TOYOTA COROLLA Hatchback (KE, TE)
Model
Engine
Displacement and power
From To
COROLLA Hatchback (KE, TE) 1.2 (KE36_, KE36RV)
3K-B
CCM:
1166
HP:
54
KW:
40
09.1976 => 01.1980
COROLLA Hatchback (KE, TE) 1.2 (KE36_, KE36RV)
3K-C
CCM:
1166
HP:
54
KW:
40
09.1976 => 01.1980
COROLLA Hatchback (KE, TE) 1.2 (KE36_, KE36RV)
3K-H
CCM:
1166
HP:
54
KW:
40
09.1976 => 01.1980
COROLLA Hatchback (KE, TE) 1.6 (TE51_, TE51R)
2T
CCM:
1588
HP:
73
KW:
54
09.1976 => 01.1980
COROLLA Hatchback (KE, TE) 1.6 (TE51_, TE51R)
2TB
CCM:
1588
HP:
84
KW:
62
09.1976 => 01.1980
  • Genuine part : no

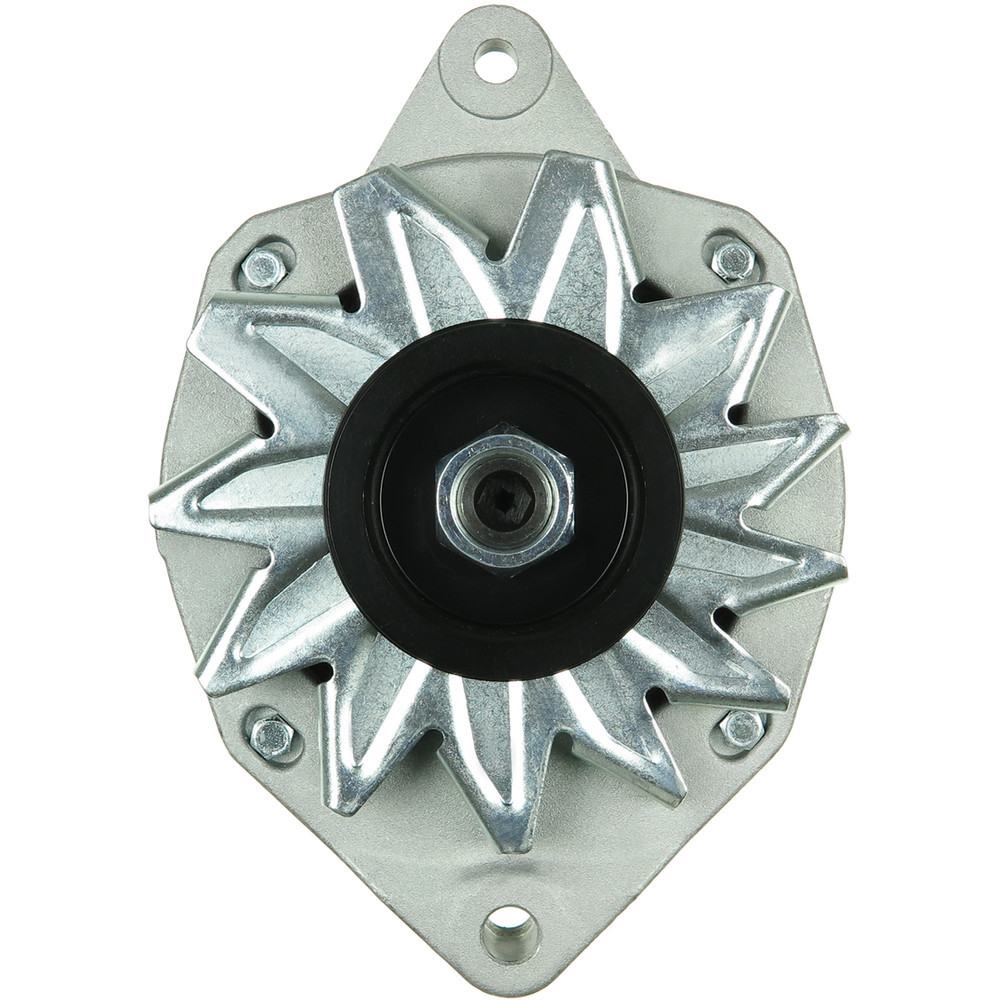

  • Type of part : Alternator
  • Motorization : COROLLA Hatchback (KE, TE)
  • Can be mounted on : Toyota
  • Years : 1976, 1977, 1978, 1979, 1980

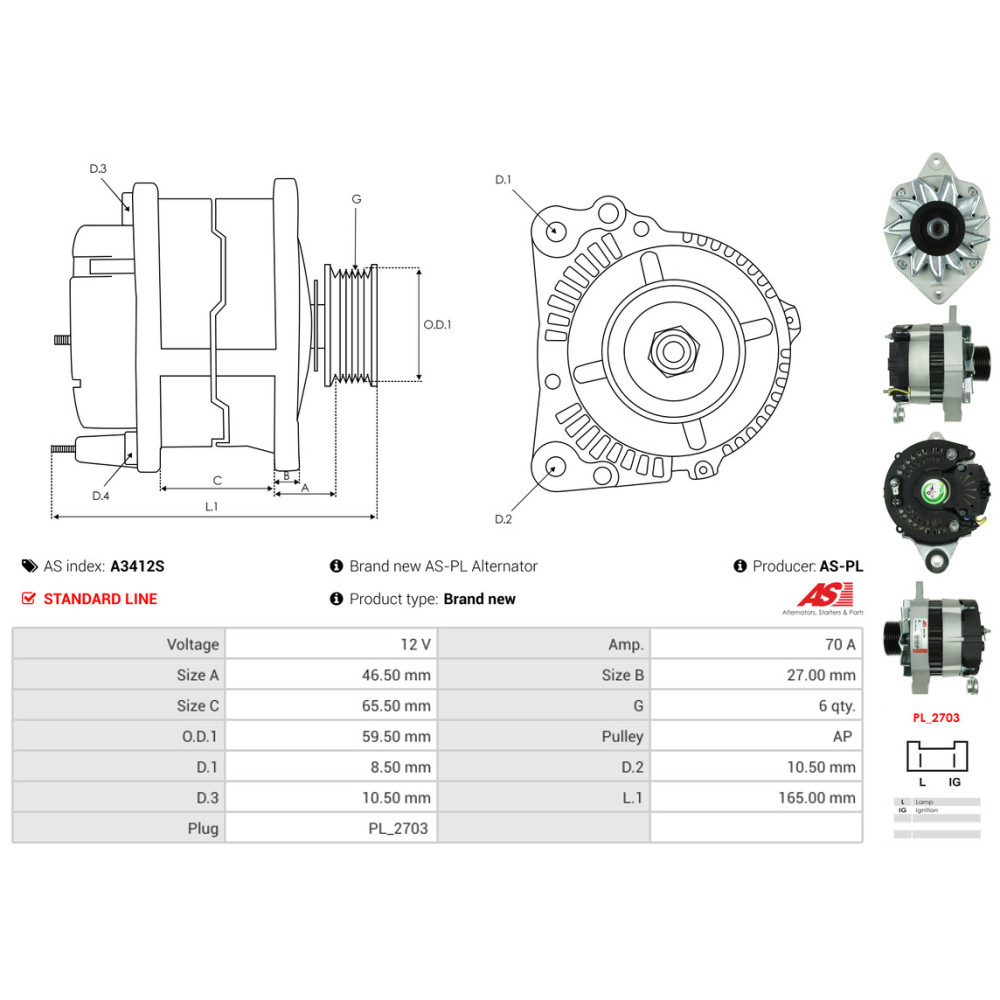

  • Amperage : 70
  • Number of grooves (pulley) : 6
  • Voltage : 12
  • L.1 [ mm ] : 165.00
  • Taille A [ mm ] : 46.50
  • Taille B [ mm ] : 27.00
  • D.3 [ mm ] : 10.50
  • Taille C [ mm ] : 65.50
  • Plug type : PL_2703
  • Pulley : AP
  • D.1 [ mm ] : 8.50
  • D.2 [ mm ] : 10.50
  • O.D.1 [ mm ] : 59.50
  • Type : COROLLA Hatchback (KE, TE) 1.2 (KE36_, KE36RV), COROLLA Hatchback (KE, TE) 1.6 (TE51_, TE51R)
  • Engine code : 2T, 2TB, 3K-B, 3K-C, 3K-H
