Home>Electricity>Alternator>Alternator Alfa Romeo 147 (937_)
ALFA ROMEO 147 (937_)
Model
Engine
Displacement and power
From To
147 (937_) 1.6 16V T.SPARK (937.AXA1A, 937.AXB1A, 937.BXB1A)
AR32104
CCM:
1598
HP:
120
KW:
88
01.2001 => 03.2010
147 (937_) 1.6 16V T.SPARK ECO (937.AXA1A, 937.BXA1A)
AR37203
CCM:
1598
HP:
105
KW:
77
01.2001 => 03.2010
147 (937_) 1.6 LPG (937BXB1A)
AR32104
CCM:
1598
HP:
120
KW:
88
03.2001 => 12.2009
  • Genuine part : no

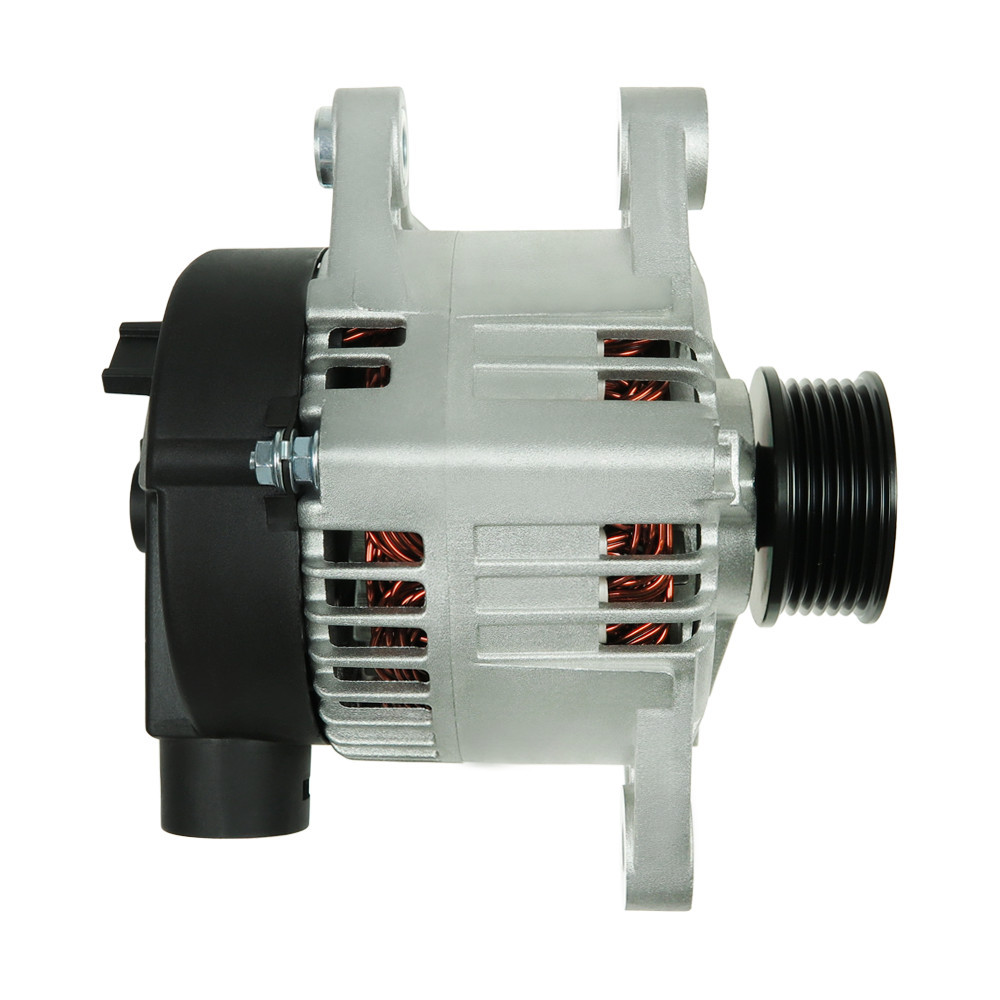

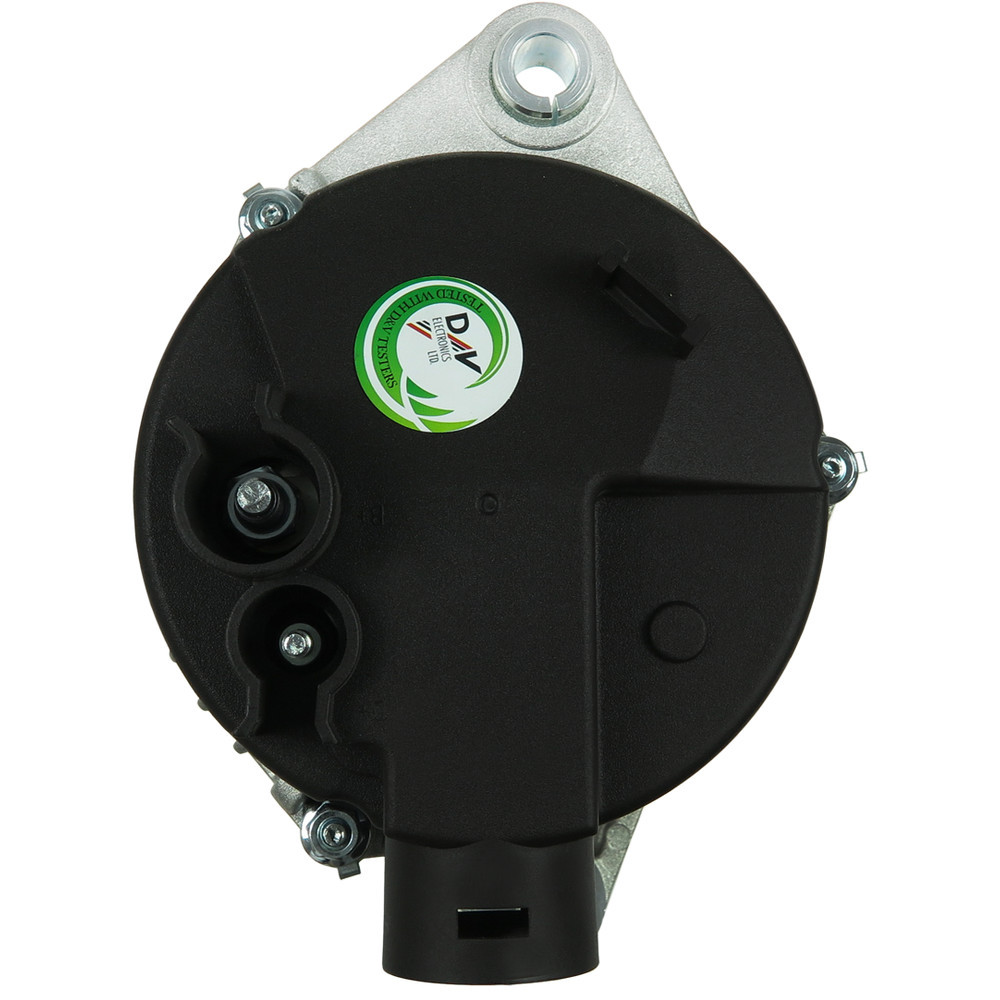

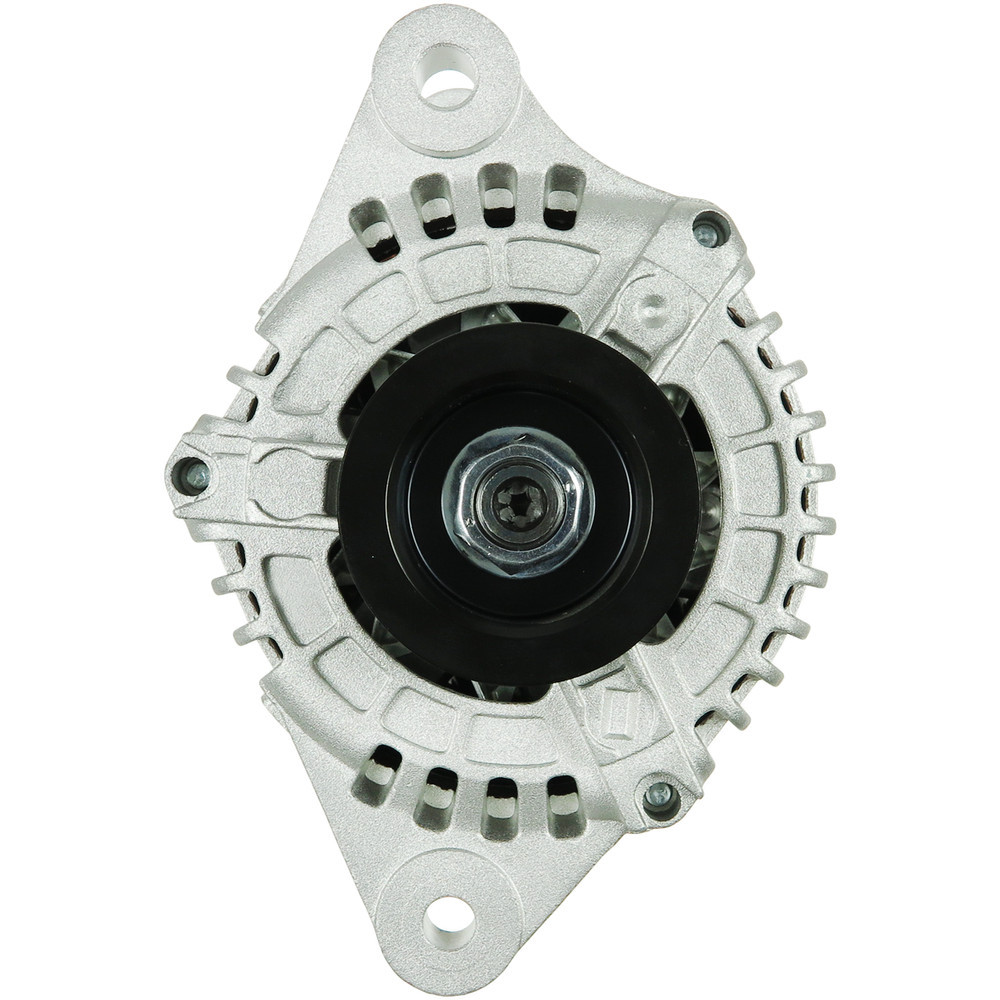

  • Type of part : Alternator
  • Motorization : 147 (937_)
  • Can be mounted on : Alfa Romeo
  • Years : 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
  • Amperage : 100
  • Number of grooves (pulley) : 6
  • Voltage : 12

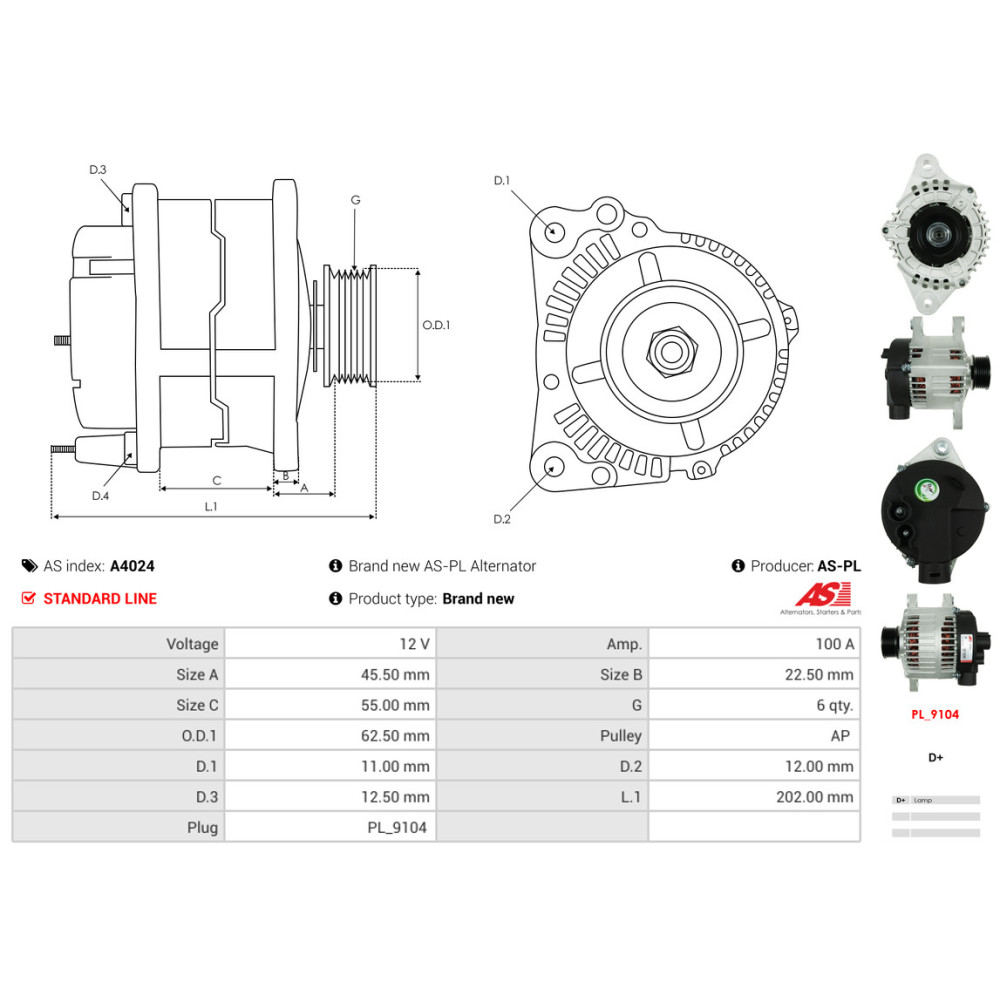

  • L.1 [ mm ] : 202.00
  • Taille A [ mm ] : 45.50
  • Taille B [ mm ] : 22.50
  • D.3 [ mm ] : 12.50
  • Taille C [ mm ] : 55.00
  • Plug type : PL_9104
  • Pulley : AP
  • D.1 [ mm ] : 11.00
  • D.2 [ mm ] : 12.00
  • O.D.1 [ mm ] : 62.50
  • Type : 147 (937_) 1.6 16V T.SPARK (937.AXA1A, 937.AXB1A, , 147 (937_) 1.6 16V T.SPARK ECO (937.AXA1A, 937.BXA, 147 (937_) 1.6 LPG (937BXB1A)
  • Engine code : AR32104, AR37203
