Home>Electricity>Alternator>Alternator Alfa Romeo GTV (916_)
ALFA ROMEO GTV (916_)
Model
Engine
Displacement and power
From To
GTV (916_) 1.8 16V (916C3)
AR32201
CCM:
1747
HP:
144
KW:
106
05.1998 => 10.2005
GTV (916_) 2.0 T.SPARK 16V (916.C2__, 916C2C00)
AR16201
CCM:
1970
HP:
150
KW:
110
06.1995 => 10.2005
GTV (916_) 2.0 T.SPARK 16V (916.C2__, 916C2C00)
AR32310
CCM:
1970
HP:
150
KW:
110
06.1995 => 10.2005
  • Genuine part : no

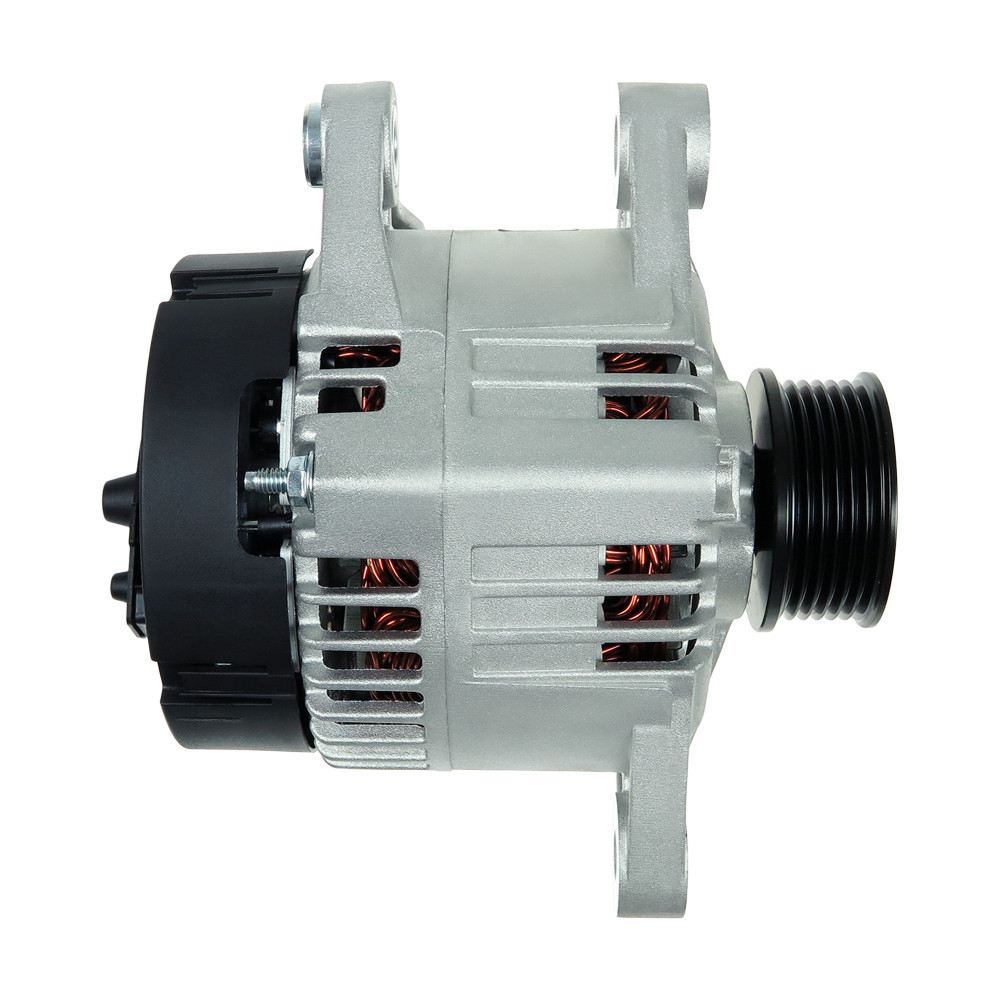

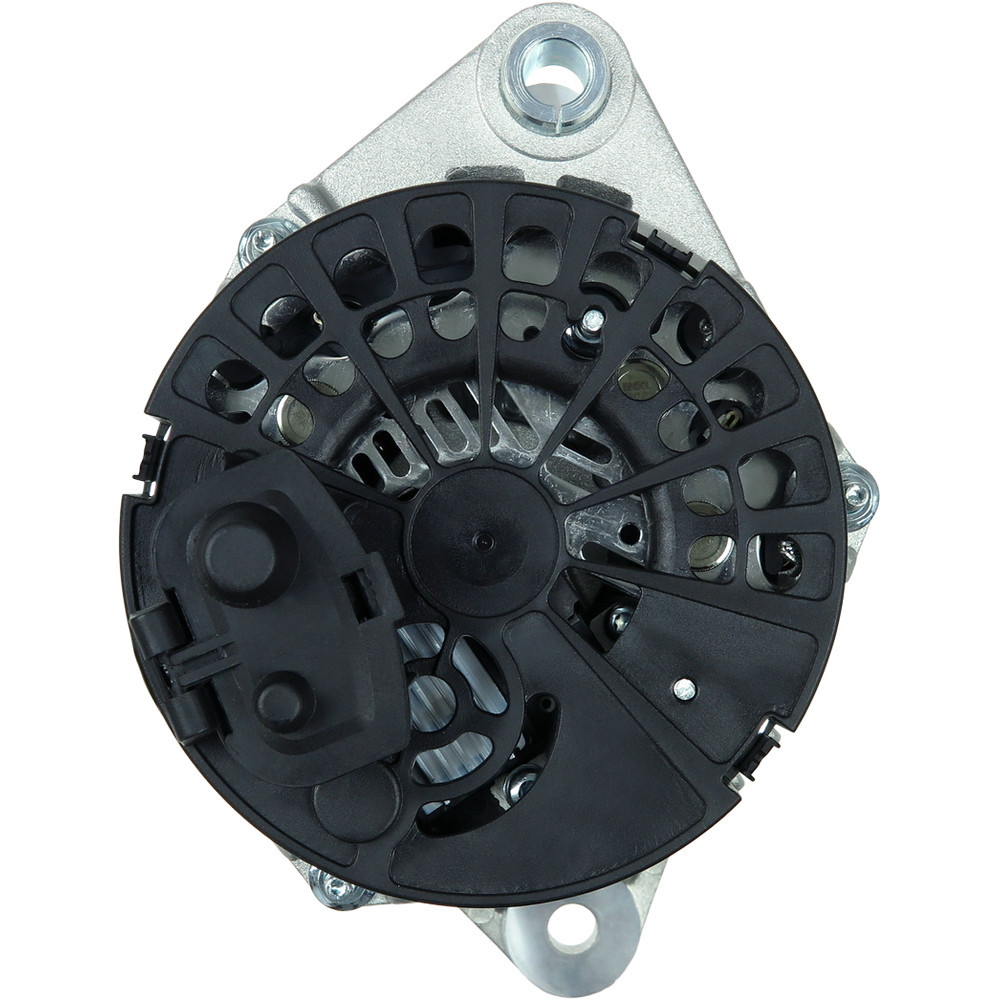

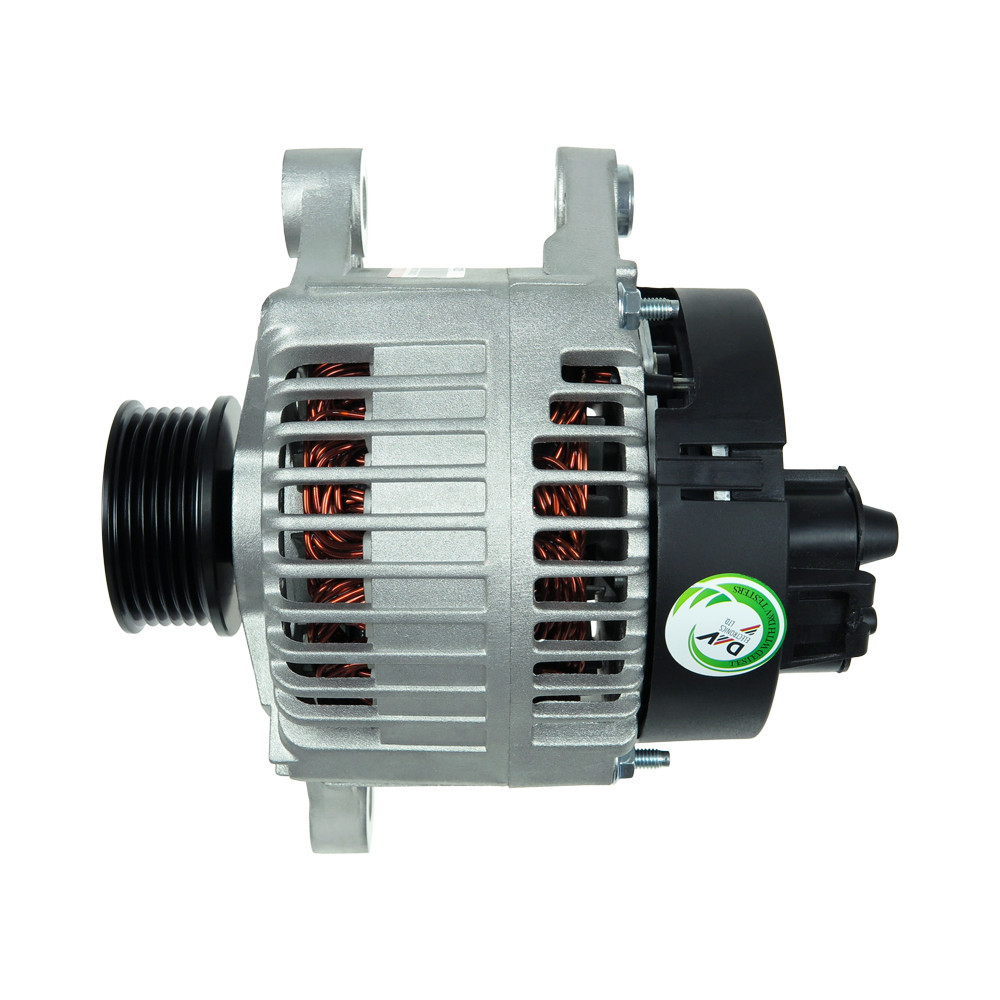

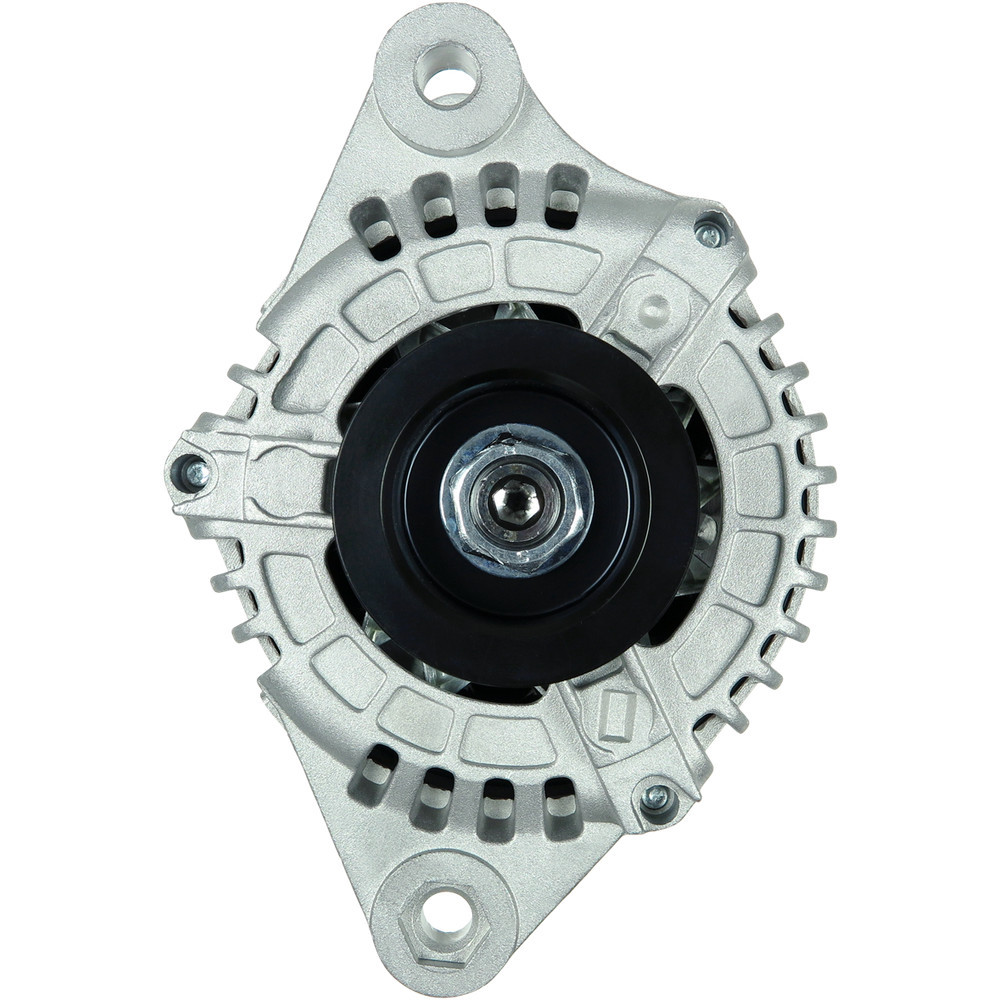

  • Type of part : Alternator
  • Motorization : GTV (916_)
  • Can be mounted on : Alfa Romeo
  • Years : 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
  • Amperage : 85
  • Number of grooves (pulley) : 6
  • Voltage : 12

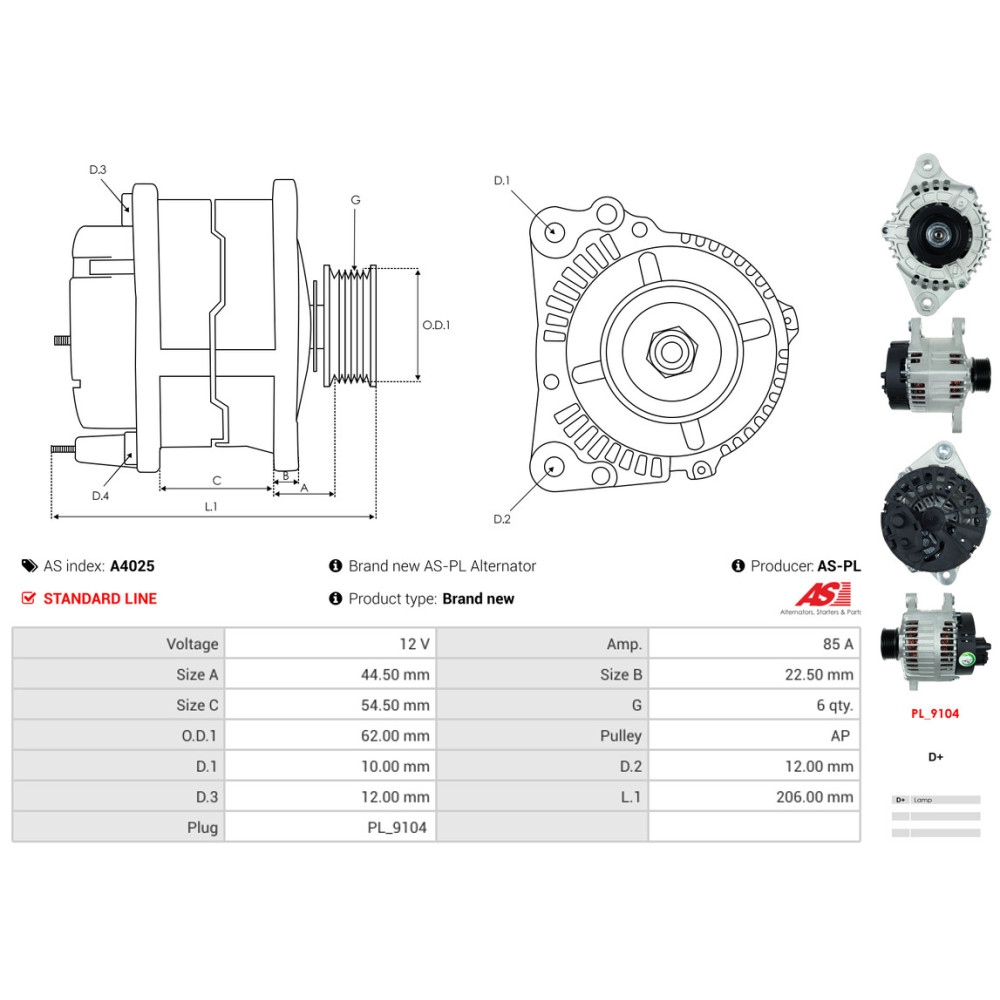

  • L.1 [ mm ] : 206.00
  • Taille A [ mm ] : 44.50
  • Taille B [ mm ] : 22.50
  • D.3 [ mm ] : 12.00
  • Taille C [ mm ] : 54.50
  • Plug type : PL_9104
  • Pulley : AP
  • D.1 [ mm ] : 10.00
  • D.2 [ mm ] : 12.00
  • O.D.1 [ mm ] : 62.00
  • Type : GTV (916_) 1.8 16V (916C3), GTV (916_) 2.0 T.SPARK 16V (916.C2__, 916C2C00)
  • Engine code : AR16201, AR32201, AR32310
