Home>Electricity>Alternator>Alternator Alfa Romeo 156 (932_)
ALFA ROMEO 156 (932_)
Model
Engine
Displacement and power
From To
156 (932_) 1.6 16V T.SPARK (932.A4, 932.A4100)
AR32102
CCM:
1598
HP:
120
KW:
88
09.1997 => 09.2005
156 (932_) 1.6 16V T.SPARK (932.A4, 932.A4100)
AR32103
CCM:
1598
HP:
120
KW:
88
09.1997 => 09.2005
156 (932_) 1.6 16V T.SPARK (932.A4, 932.A4100)
AR32104
CCM:
1598
HP:
120
KW:
88
09.1997 => 09.2005
156 (932_) 1.6 16V T.SPARK (932.A4, 932.A4100)
AR67601
CCM:
1598
HP:
120
KW:
88
09.1997 => 09.2005
156 (932_) 1.8 16V T.SPARK (932.A3100)
AR32205
CCM:
1747
HP:
140
KW:
103
09.1997 => 09.2005
156 (932_) 2.0 16V T.SPARK (932A21__)
AR32310
CCM:
1970
HP:
150
KW:
110
10.2000 => 03.2002
156 (932_) 2.4 JTD (932B1)
AR32501
CCM:
2387
HP:
136
KW:
100
09.1997 => 09.2003
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : 156 (932_)
  • Can be mounted on : Alfa Romeo
  • Years : 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

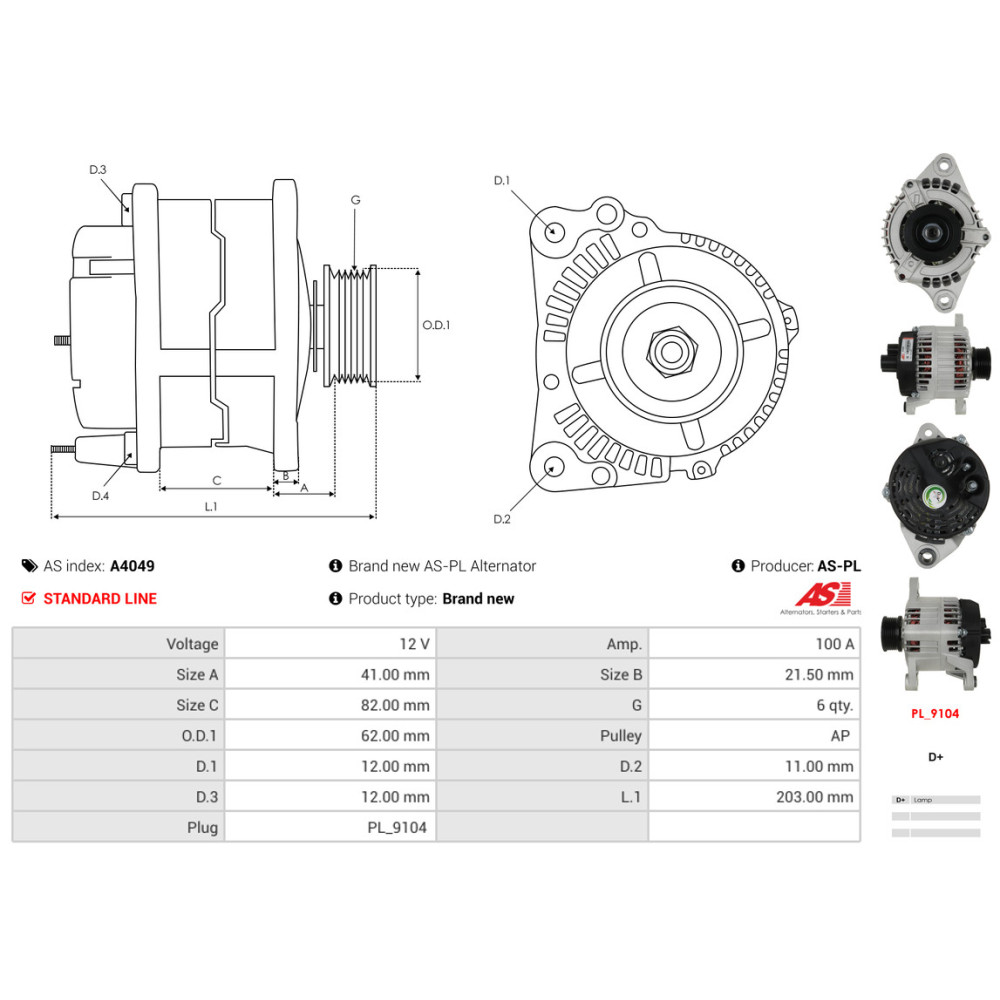

  • Amperage : 100
  • Number of grooves (pulley) : 6
  • Voltage : 12
  • L.1 [ mm ] : 203.00
  • Taille A [ mm ] : 41.00
  • Taille B [ mm ] : 21.50
  • D.3 [ mm ] : 12.00
  • Taille C [ mm ] : 82.00
  • Plug type : PL_9104
  • Pulley : AP
  • D.1 [ mm ] : 12.00
  • D.2 [ mm ] : 11.00
  • O.D.1 [ mm ] : 62.00
  • Type : 156 (932_) 1.6 16V T.SPARK (932.A4, 932.A4100), 156 (932_) 1.8 16V T.SPARK (932.A3100), 156 (932_) 2.0 16V T.SPARK (932A21__), 156 (932_) 2.4 JTD (932B1)
  • Engine code : AR32102, AR32103, AR32104, AR32205, AR32310, AR32501, AR67601
