New Alternator Alfa Romeo AR 6 Van (280_)

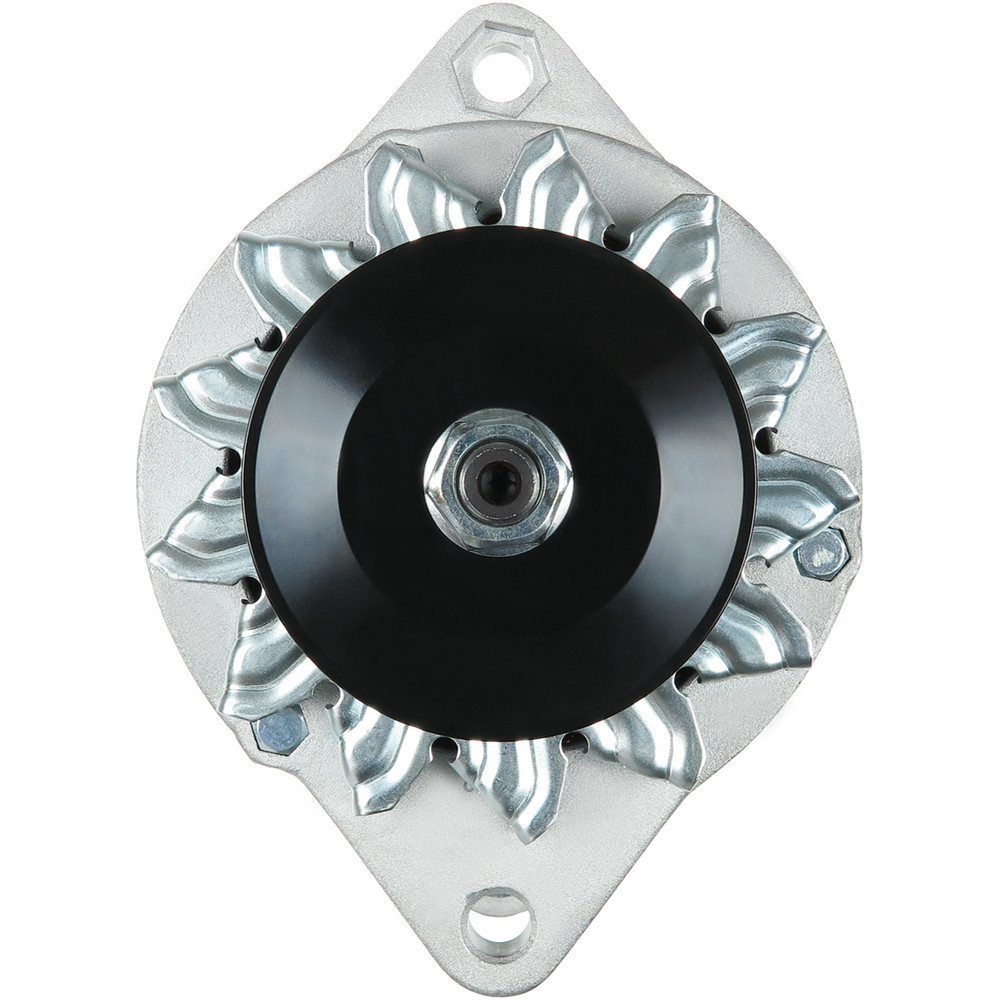

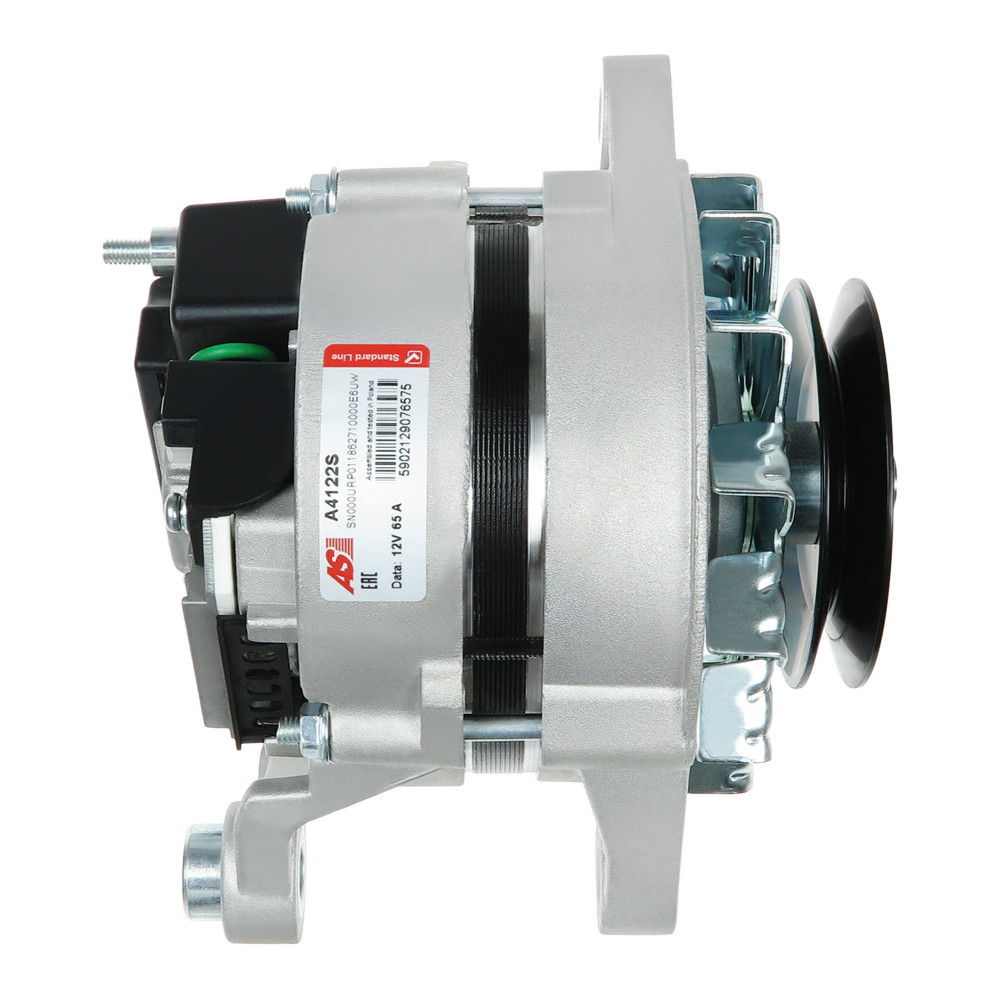

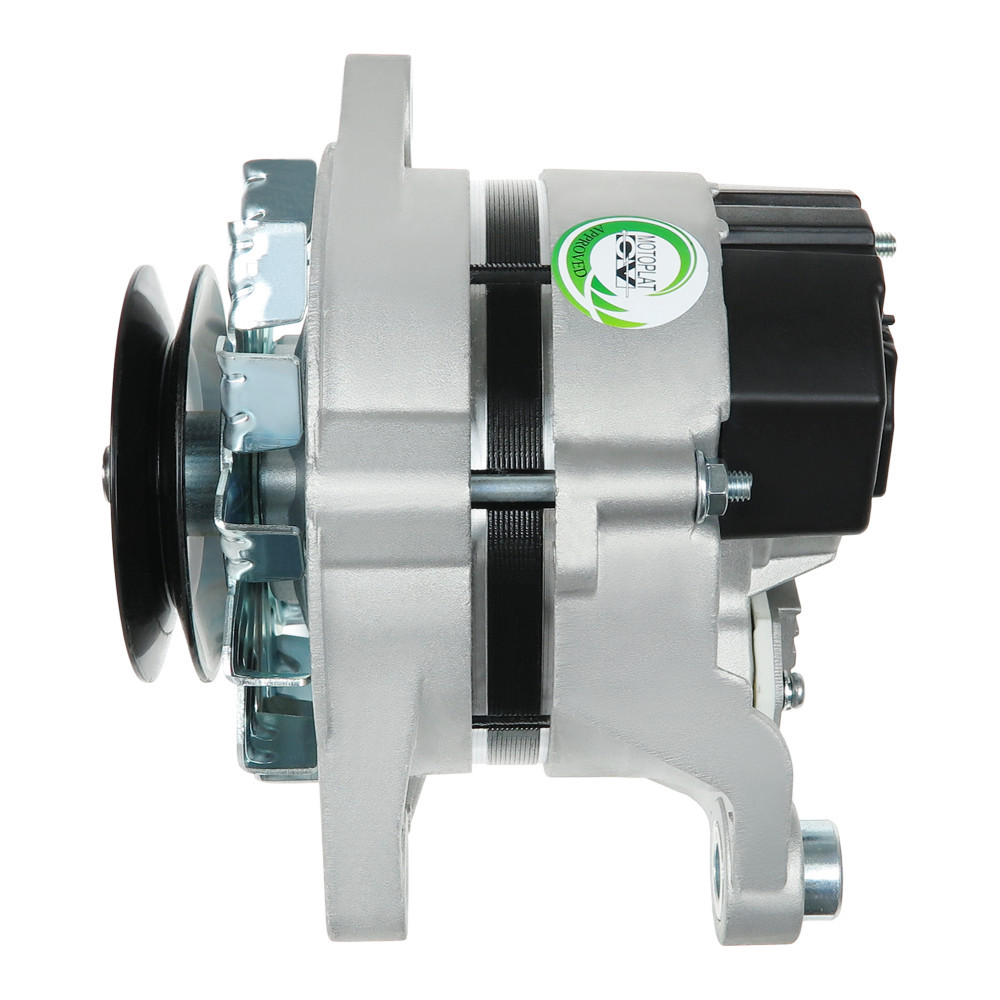

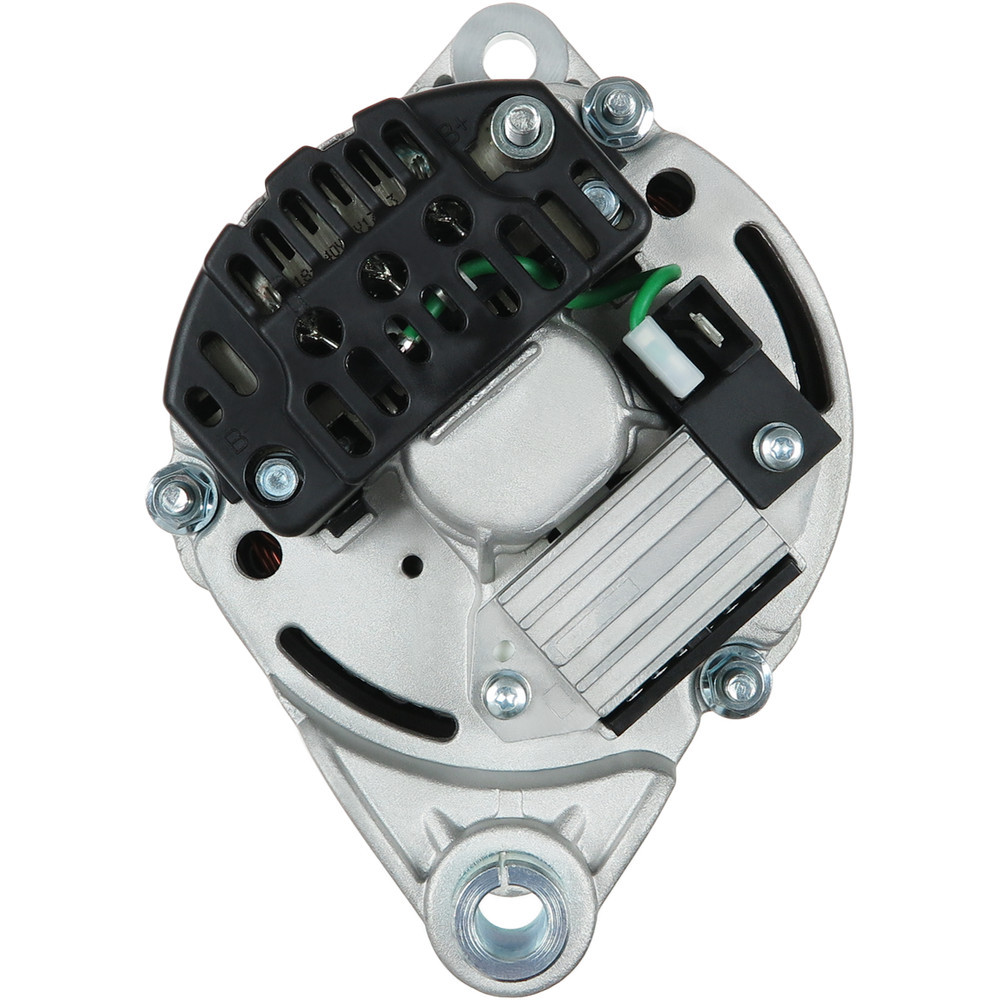

Alternator Alfa Romeo AR 6 Van (280_)

    • 63320049 (MAGNETI MARELLI)

Alternator Alfa Romeo AR 6 Van (280_)

OEM part number : 63320049 (MAGNETI MARELLI)

Application

Recommended price* : 234,62 € tax incl.

Reduced price!146,64 €

-87,98 €

ALFA ROMEO AR 6 Van (280_)
Model
Engine
Displacement and power
From To
AR 6 Van (280_) 2.4 D (280)
8144.61.200
CCM:
2445
HP:
72
KW:
53
04.1985 => 02.1986
AR 6 Van (280_) 2.4 TD (280)
8144.21.220
CCM:
2445
HP:
92
KW:
68
09.1986 => 12.1989
AR 6 Van (280_) 2.5 D (280)
8144.67.220
CCM:
2499
HP:
75
KW:
55
03.1986 => 12.1989
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : AR 6 Van (280_)
  • Can be mounted on : Alfa Romeo
  • Amperage : 65
  • Number of grooves (pulley) : 1
  • Voltage : 12
  • From : 1985, 1986

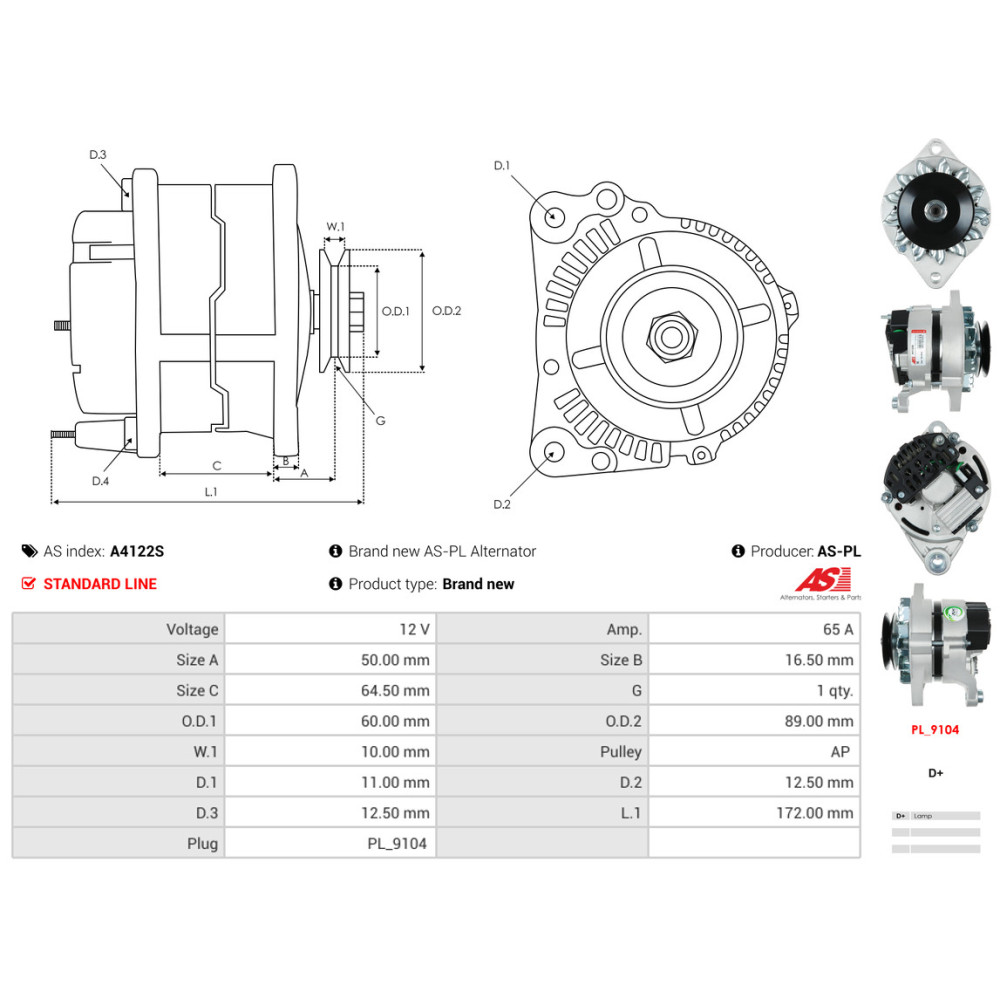

  • L.1 [ mm ] : 172.00
  • Taille A [ mm ] : 50.00
  • Taille B [ mm ] : 16.50
  • D.3 [ mm ] : 12.50
  • O.D.2 [ mm ] : 89.00
  • Taille C [ mm ] : 64.50
  • W.1 [ mm ] : 10.00
  • Plug type : PL_9104
  • Pulley : AP
  • D.1 [ mm ] : 11.00
  • D.2 [ mm ] : 12.50
  • O.D.1 [ mm ] : 60.00
  • Type : AR 6 Van (280_) 2.4 D (280), AR 6 Van (280_) 2.4 TD (280), AR 6 Van (280_) 2.5 D (280)
  • Engine code : 8144.21.220, 8144.61.200, 8144.67.220
