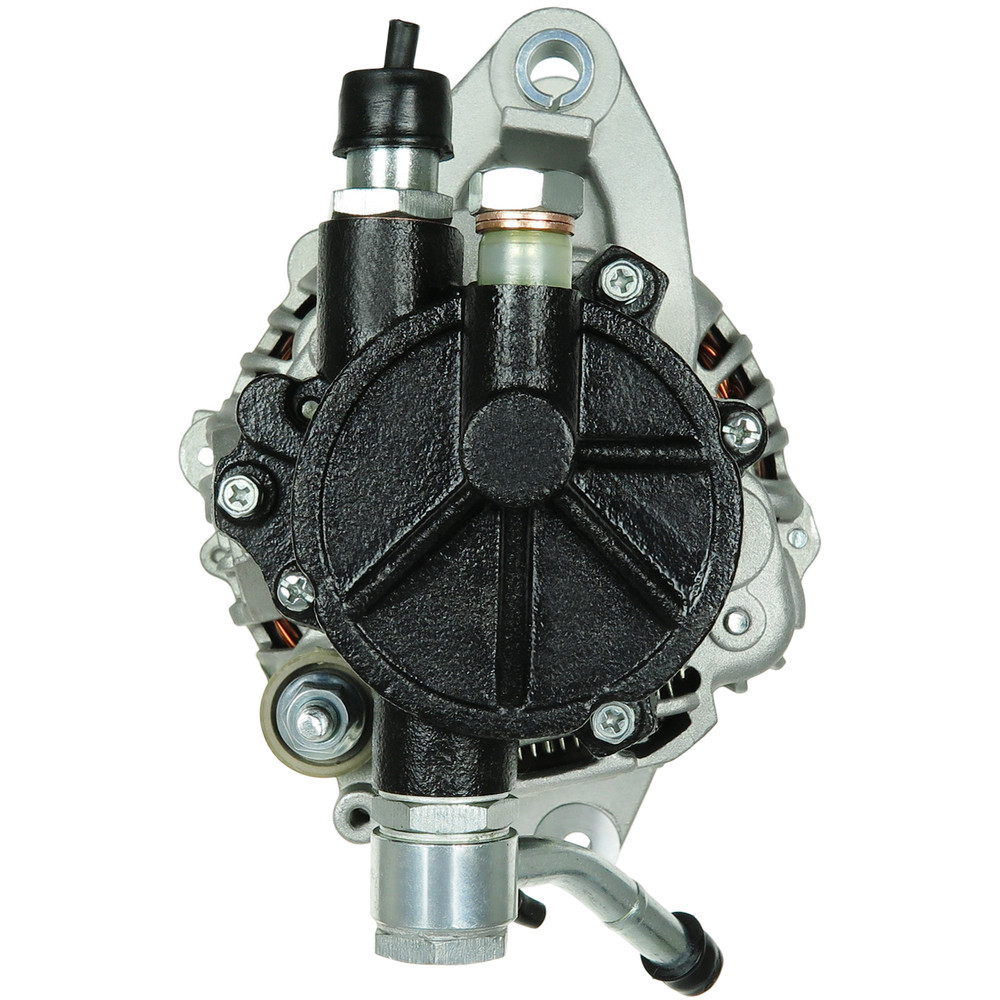

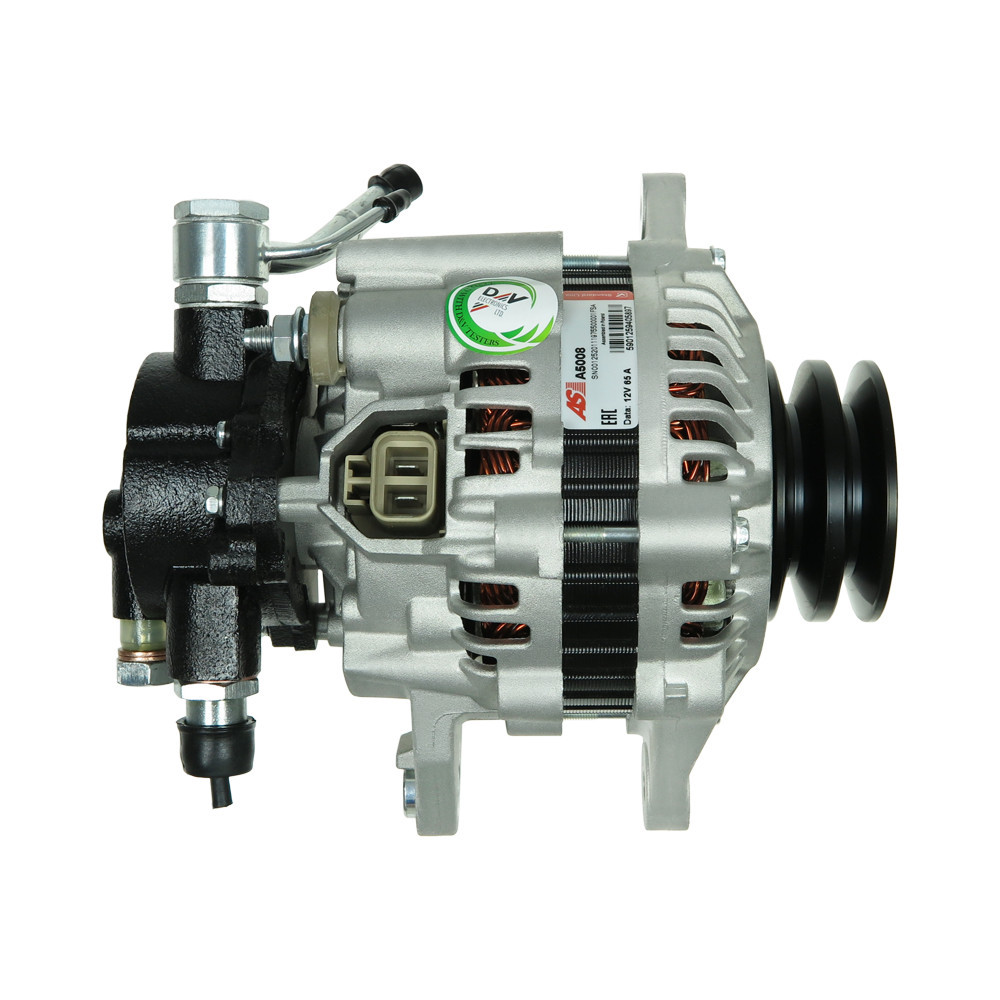

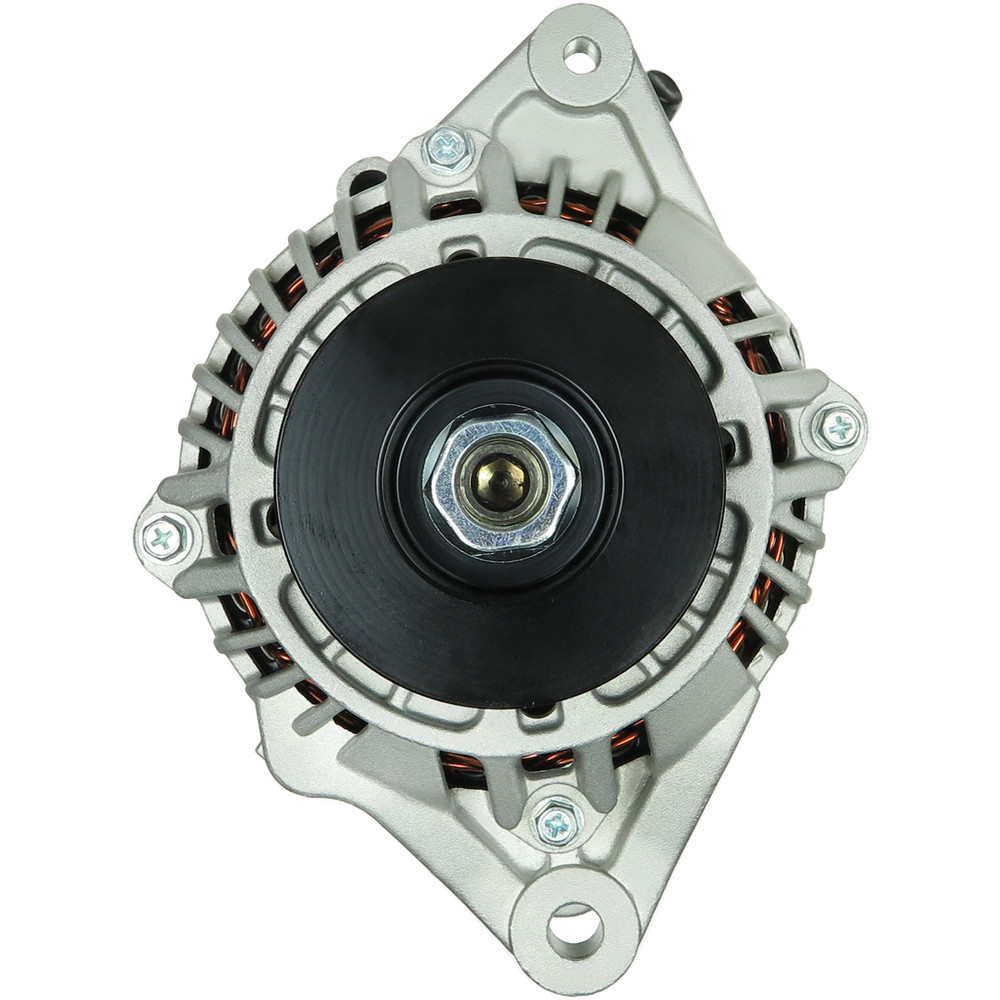

Alternator Mazda 323 C IV (BG)

Reference:
- 0986045561 (BOSCH)

Application
Data sheet

MAZDA 323 C IV (BG)

Model

Engine

Displacement and power

From To

323 C IV (BG) 1.3 (BG3S)

B383

CCM:

1324

HP:

KW:

09.1989 => 07.1994

323 C IV (BG) 1.3 16V (BG3S)

B384

CCM:

1324

HP:

KW:

09.1989 => 07.1994

323 C IV (BG) 1.3 16V (BG3S)

B385

CCM:

1324

HP:

KW:

09.1989 => 07.1994

323 C IV (BG) 1.6 (BG6Z)

B6E

CCM:

1597

HP:

KW:

09.1989 => 06.1991

323 C IV (BG) 1.6 16V (BG6Z)

CCM:

1597

HP:

KW:

03.1991 => 10.1994

323 C IV (BG) 1.7 D (BG7S)

PN54

CCM:

1720

HP:

KW:

08.1989 => 07.1994

323 C IV (BG) 1.8 (BG8S)

BP21

CCM:

1840

HP:

130

KW:

09.1989 => 06.1993

323 C IV (BG) 1.8 16V (BG8S)

BP22

CCM:

1840

HP:

140

KW:

103

09.1989 => 03.1993

323 C IV (BG) 1.8 16V (BG8S)

BP31

CCM:

1840

HP:

140

KW:

103

09.1989 => 03.1993

323 C IV (BG) 1.8 16V 4WD (BG8S)

CCM:

1840

HP:

103

KW:

11.1991 => 12.1993

323 C IV (BG) 1.8 16V GT (BG8S)

BP(DOHC)

CCM:

1840

HP:

128

KW:

09.1989 => 03.1993

323 C IV (BG) 1.8 16V Turbo 4WD (BG8S)

BPTurbo

CCM:

1840

HP:

163

KW:

120

09.1990 => 12.1992

Genuine part : no
Type of part : Alternator
Motorization : 323 C IV (BG)
Can be mounted on : Mazda
Years : 1989, 1990, 1991, 1992, 1993, 1994
Amperage : 65
Number of grooves (pulley) : 2
Voltage : 12
Vacuum pump : Yes

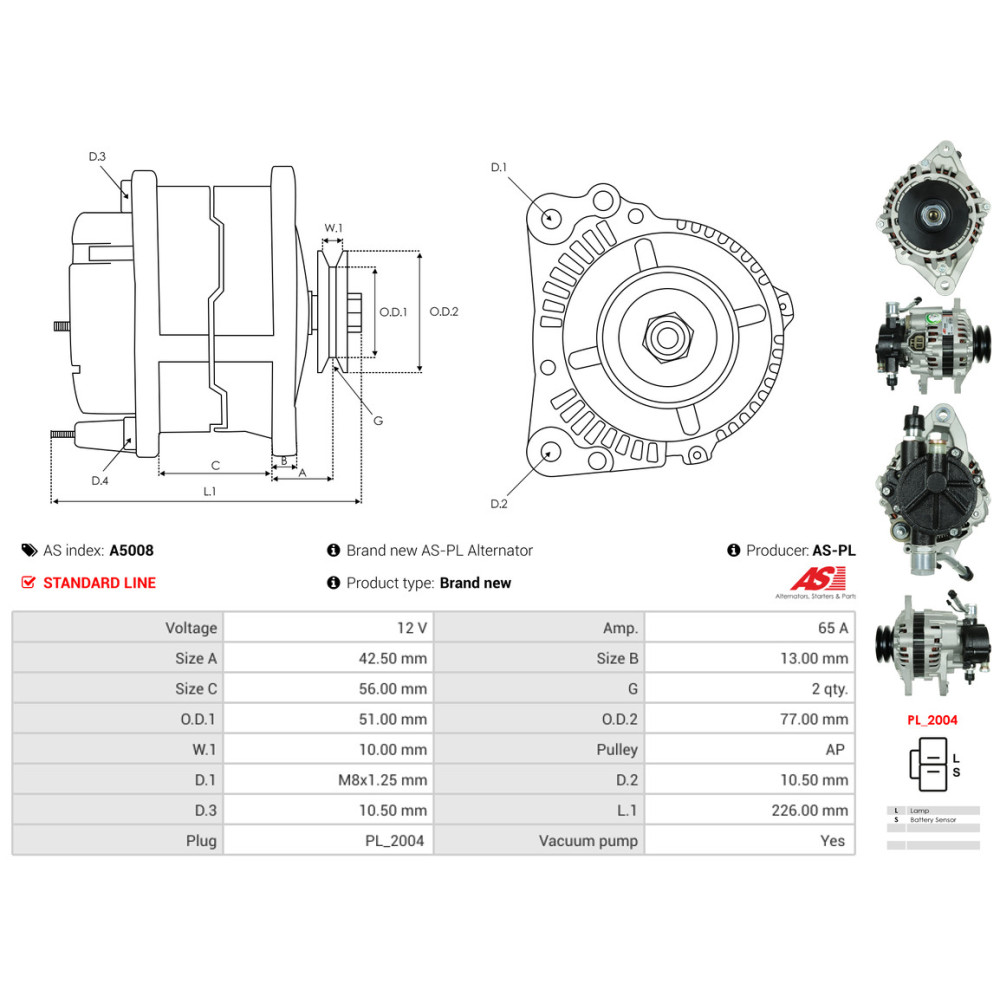

L.1 [ mm ] : 226.00
Taille A [ mm ] : 42.50
Taille B [ mm ] : 13.00
D.3 [ mm ] : 10.50
O.D.2 [ mm ] : 77.00
Taille C [ mm ] : 56.00
W.1 [ mm ] : 10.00
Plug type : PL_2004
Pulley : AP
D.1 [ mm ] : M8x1.25
D.2 [ mm ] : 10.50
O.D.1 [ mm ] : 51.00
Type : 323 C IV (BG) 1.3 (BG3S), 323 C IV (BG) 1.3 16V (BG3S), 323 C IV (BG) 1.6 (BG6Z), 323 C IV (BG) 1.6 16V (BG6Z), 323 C IV (BG) 1.7 D (BG7S), 323 C IV (BG) 1.8 (BG8S), 323 C IV (BG) 1.8 16V (BG8S), 323 C IV (BG) 1.8 16V 4WD (BG8S), 323 C IV (BG) 1.8 16V GT (BG8S), 323 C IV (BG) 1.8 16V Turbo 4WD (BG8S)
Engine code : B383, B384, B385, B6, B6E, BP, BP(DOHC), BP21, BP22, BP31, BPTurbo, PN54
