Home>Electricity>Alternator>Alternator BMW 1 (F21)
BMW 1 (F21)
Model
Engine
Displacement and power
From To
1 (F21) 118 d
B47D20A
CCM:
1995
HP:
150
KW:
110
03.2015 => 06.2019
1 (F21) 118 d xDrive
B47D20A
CCM:
1995
HP:
150
KW:
110
03.2015 => 05.2019
1 (F21) 120 d
B47D20A
CCM:
1995
HP:
190
KW:
140
03.2015 => 06.2019
1 (F21) 120 d xDrive
B47D20A
CCM:
1995
HP:
190
KW:
140
03.2015 => 06.2019
1 (F21) 125 d
B47D20B
CCM:
1995
HP:
224
KW:
165
03.2015 => 05.2019
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : 1 (F21)
  • Can be mounted on : BMW
  • Amperage : 150
  • Number of grooves (pulley) : 6
  • Voltage : 12
  • From : 2015, 2016, 2017, 2018, 2019

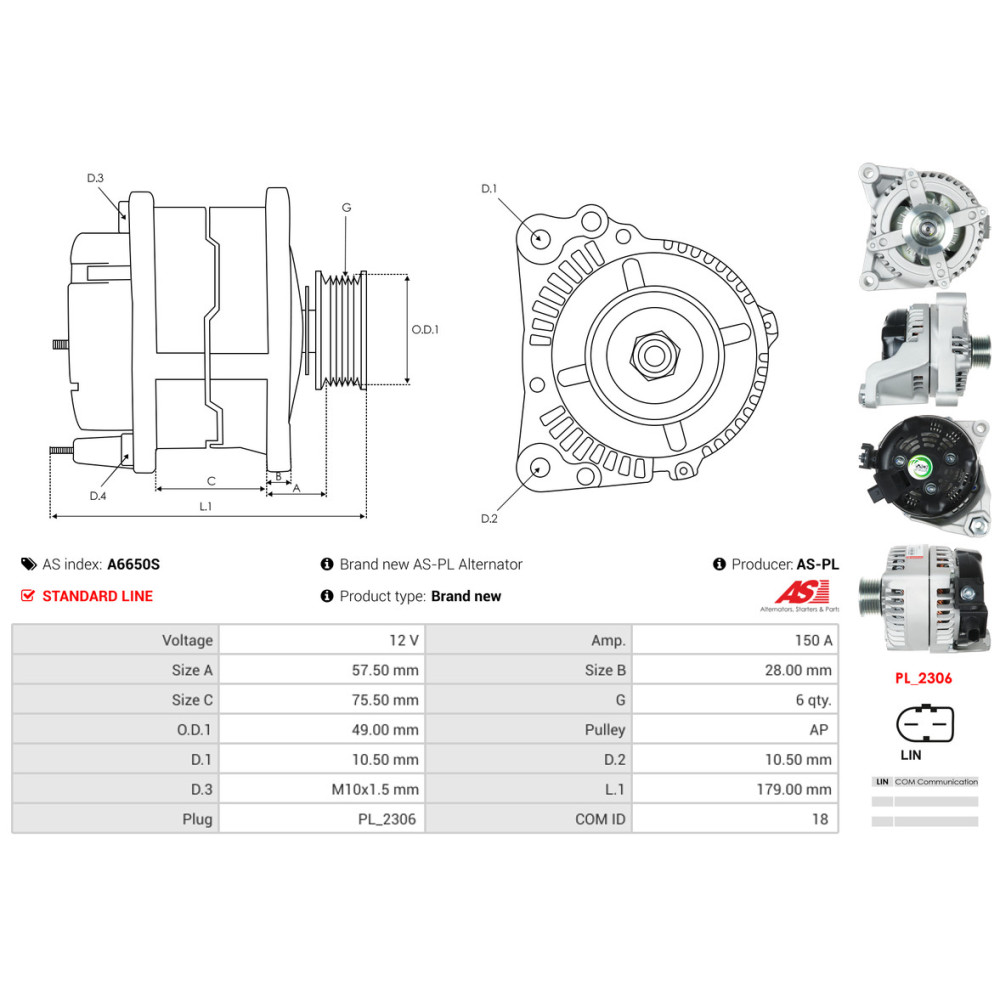

  • L.1 [ mm ] : 179.00
  • Taille A [ mm ] : 57.50
  • Taille B [ mm ] : 28.00
  • D.3 [ mm ] : M10x1.5
  • Taille C [ mm ] : 75.50
  • COM ID : 18
  • Plug type : PL_2306
  • Pulley : AP
  • D.1 [ mm ] : 10.50
  • D.2 [ mm ] : 10.50
  • O.D.1 [ mm ] : 49.00
  • Type : 1 (F21) 118 d, 1 (F21) 118 d xDrive, 1 (F21) 120 d, 1 (F21) 120 d xDrive, 1 (F21) 125 d
  • Engine code : B47D20A, B47D20B
