Alternator Daihatsu CHARADE III (G100, G101, G102)

DAIHATSU CHARADE III (G100, G101, G102)

Model

Engine

Displacement and power

From To

CHARADE III (G100, G101, G102) 1.0 (G100)

CB23

CCM:

993

HP:

KW:

03.1987 => 12.1992

CHARADE III (G100, G101, G102) 1.0 (G100)

CB90

CCM:

993

HP:

KW:

11.1990 => 12.1992

CHARADE III (G100, G101, G102) 1.0 D (G101)

CL11

CCM:

993

HP:

KW:

03.1987 => 12.1992

CHARADE III (G100, G101, G102) 1.0 GTi (G100)

CB80T

CCM:

993

HP:

101

KW:

03.1987 => 12.1992

Genuine part : no
Type of part : Alternator
Motorization : CHARADE III (G100, G101, G102)
Can be mounted on : Daihatsu
Years : 1987, 1988, 1989, 1990, 1991, 1992
Amperage : 45
Number of grooves (pulley) : 1
Voltage : 12

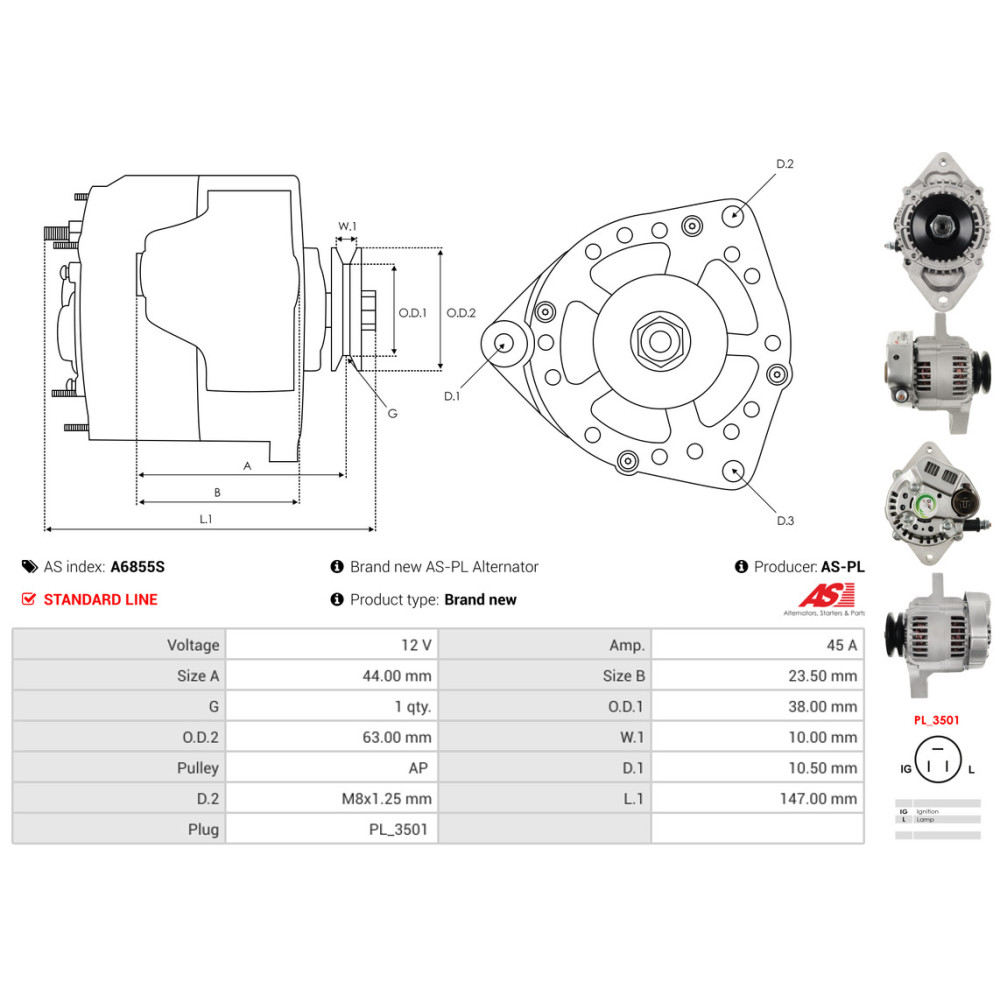

L.1 [ mm ] : 147.00
Taille A [ mm ] : 44.00
Taille B [ mm ] : 23.50
O.D.2 [ mm ] : 63.00
W.1 [ mm ] : 10.00
Plug type : PL_3501
Pulley : AP
D.1 [ mm ] : 10.50
D.2 [ mm ] : M8x1.25
O.D.1 [ mm ] : 38.00
Type : CHARADE III (G100, G101, G102) 1.0 (G100), CHARADE III (G100, G101, G102) 1.0 D (G101), CHARADE III (G100, G101, G102) 1.0 GTi (G100)
Engine code : CB23, CB80T, CB90, CL11
