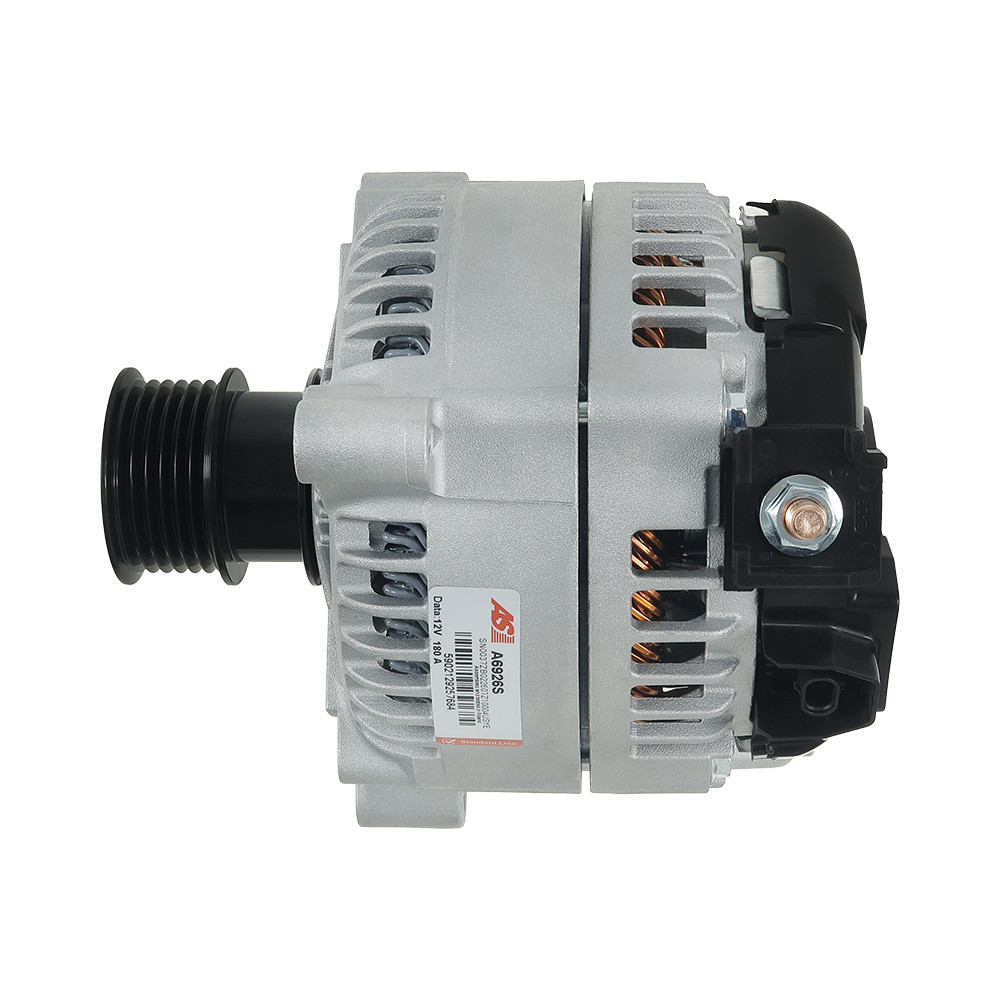

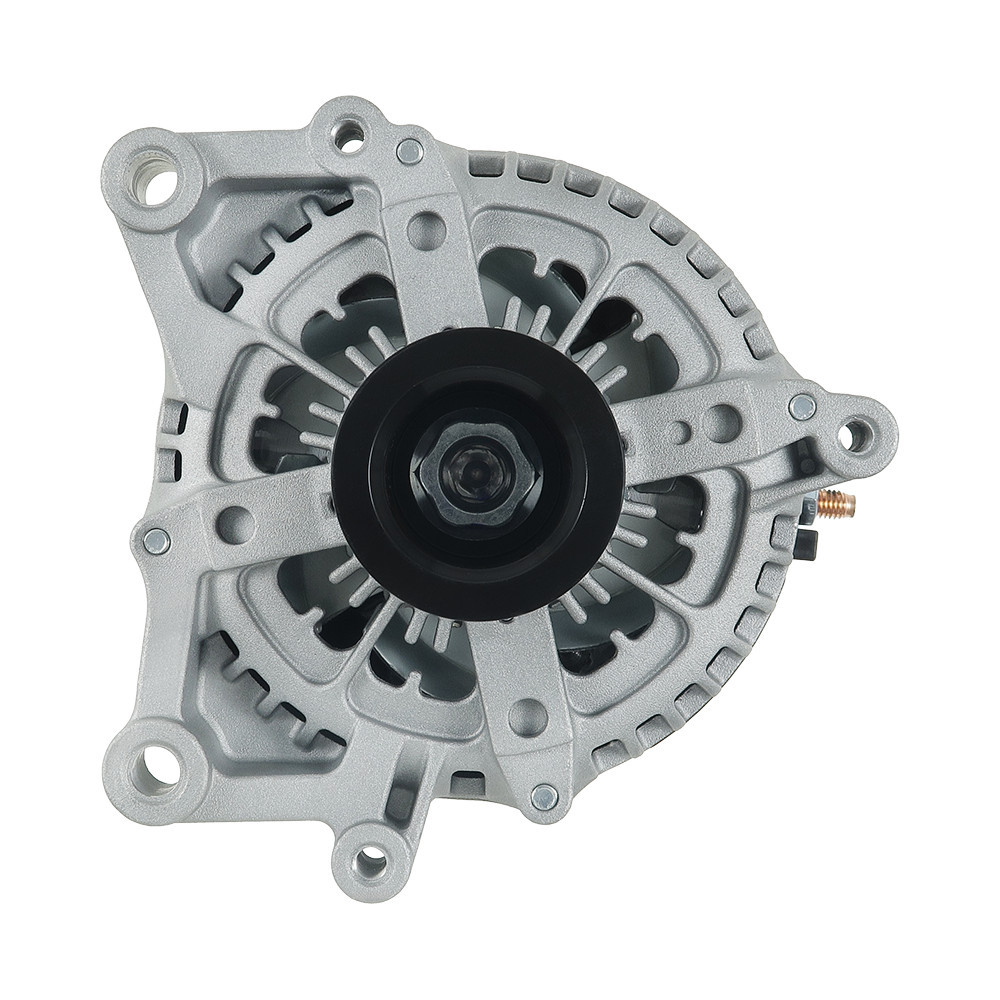

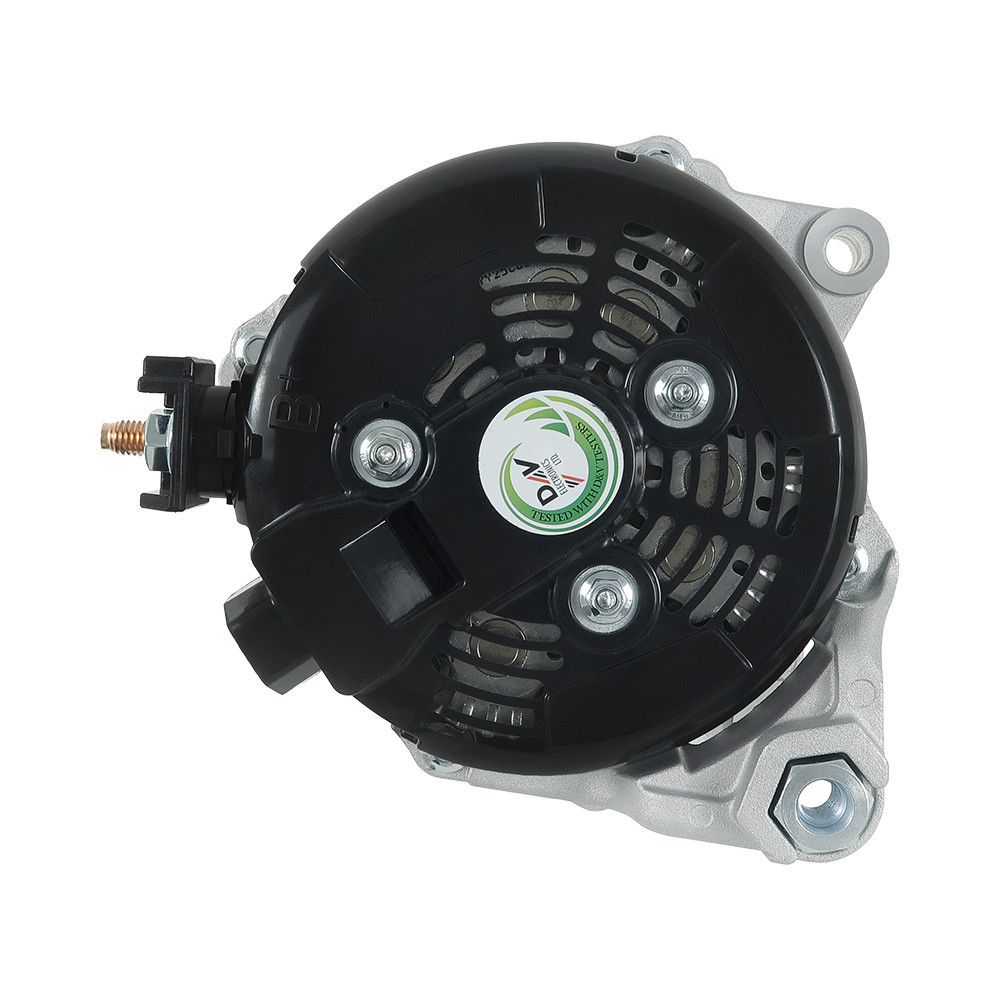

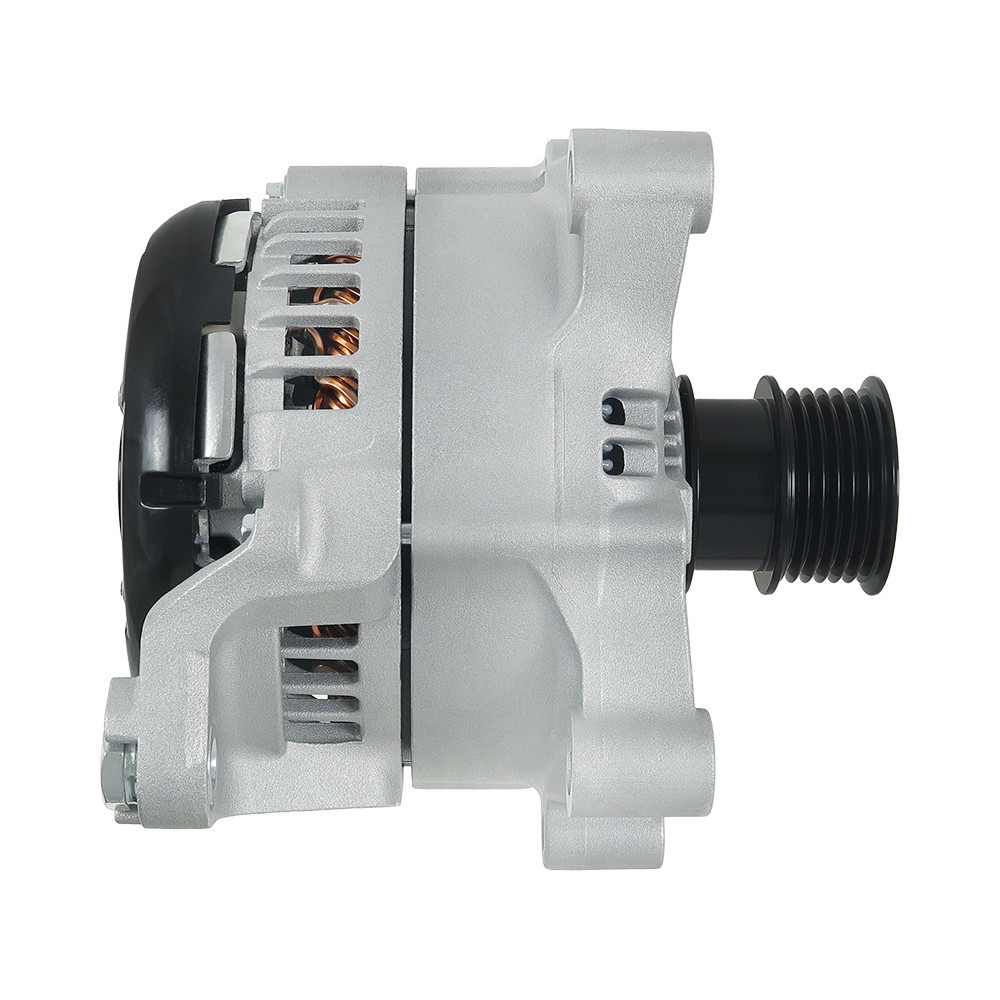

Alternator BMW 1 (F40)

Reference:
- 104211-0740 (DENSO)

Application
Data sheet

BMW 1 (F40)

Model

Engine

Displacement and power

From To

1 (F40) 116 d

B37C15A

CCM:

1496

HP:

116

KW:

07.2019 =>

1 (F40) 116 i

B38A15A

CCM:

1499

HP:

109

KW:

11.2020 =>

1 (F40) 118 i

B38A15A

CCM:

1499

HP:

136

KW:

100

11.2020 =>

1 (F40) 118 i

B38A15F

CCM:

1499

HP:

136

KW:

100

11.2020 =>

1 (F40) 120 d

B47C20B

CCM:

1995

HP:

190

KW:

140

03.2020 =>

1 (F40) 120 d xDrive

B47C20B

CCM:

1995

HP:

190

KW:

140

07.2019 =>

1 (F40) 120 i

B48A20A

CCM:

1998

HP:

178

KW:

131

11.2020 =>

1 (F40) 120 i

B48A20F

CCM:

1998

HP:

178

KW:

131

11.2020 =>

1 (F40) 128 ti

B48A20B

CCM:

1998

HP:

245

KW:

180

11.2020 =>

1 (F40) 128 ti

B48A20E

CCM:

1998

HP:

265

KW:

195

11.2020 =>

Genuine part : no
Type of part : Alternator
Motorization : 1 (F40)
Can be mounted on : BMW
Amperage : 180
Number of grooves (pulley) : 6
Voltage : 12
From : 2019

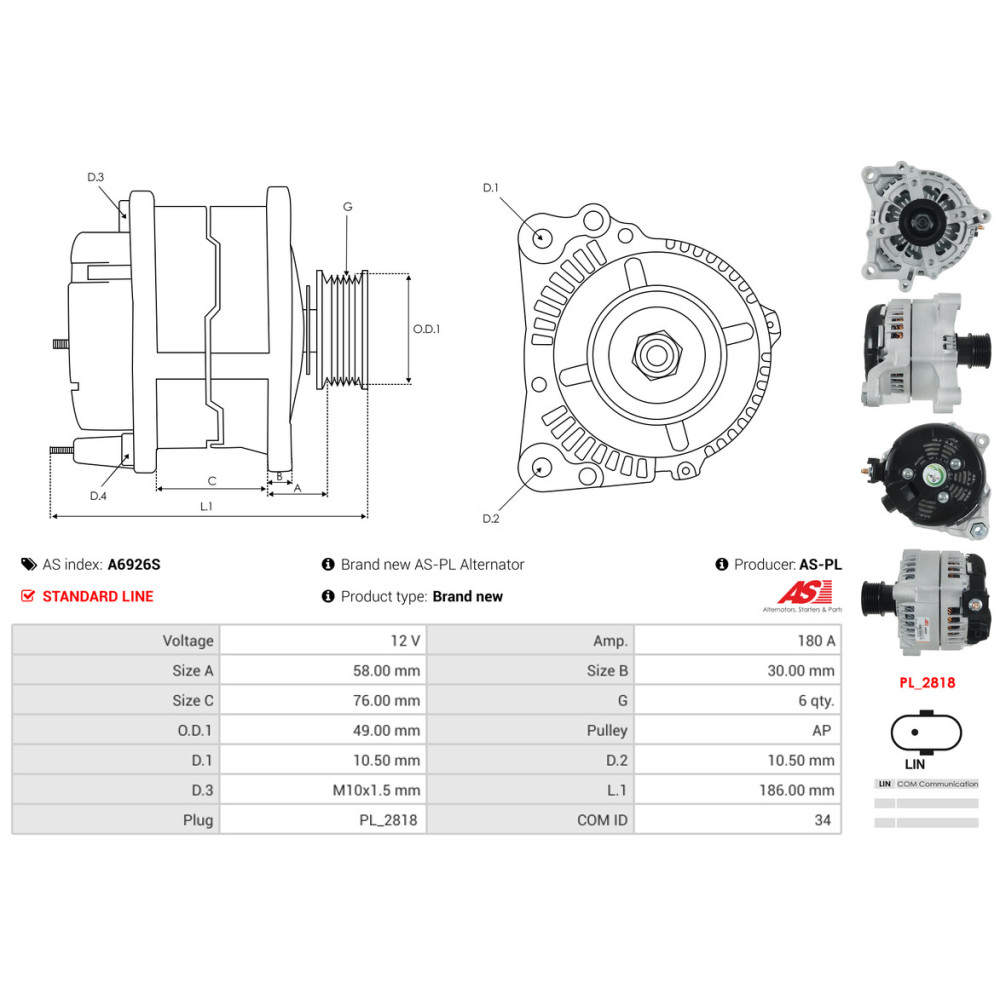

L.1 [ mm ] : 186.00
Taille A [ mm ] : 58.00
Taille B [ mm ] : 30.00
D.3 [ mm ] : M10x1.5
Taille C [ mm ] : 76.00
COM ID : 34
Plug type : PL_2818
Pulley : AP
D.1 [ mm ] : 10.50
D.2 [ mm ] : 10.50
O.D.1 [ mm ] : 49.00
Type : 1 (F40) 116 d, 1 (F40) 116 i, 1 (F40) 118 i, 1 (F40) 120 d, 1 (F40) 120 d xDrive, 1 (F40) 120 i, 1 (F40) 128 ti
Engine code : B37C15A, B38A15A, B38A15F, B47C20B, B48A20A, B48A20B, B48A20E, B48A20F
