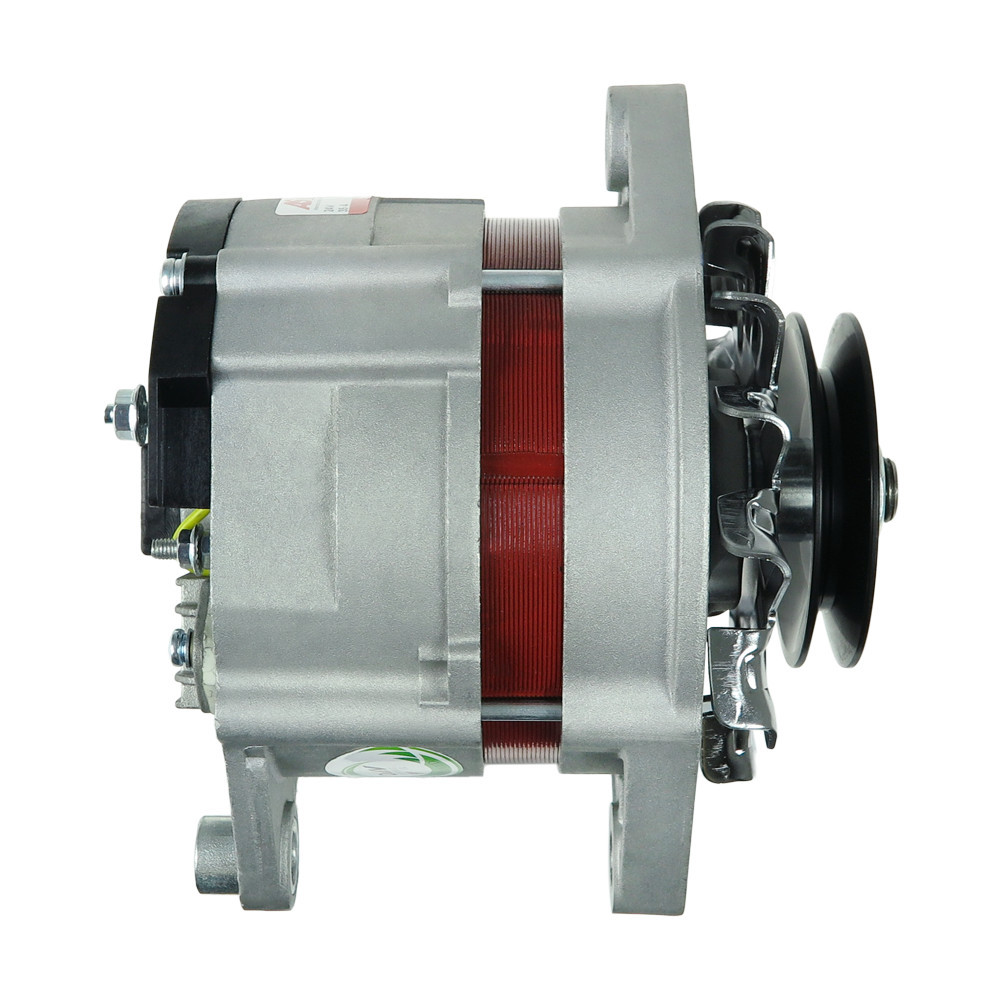

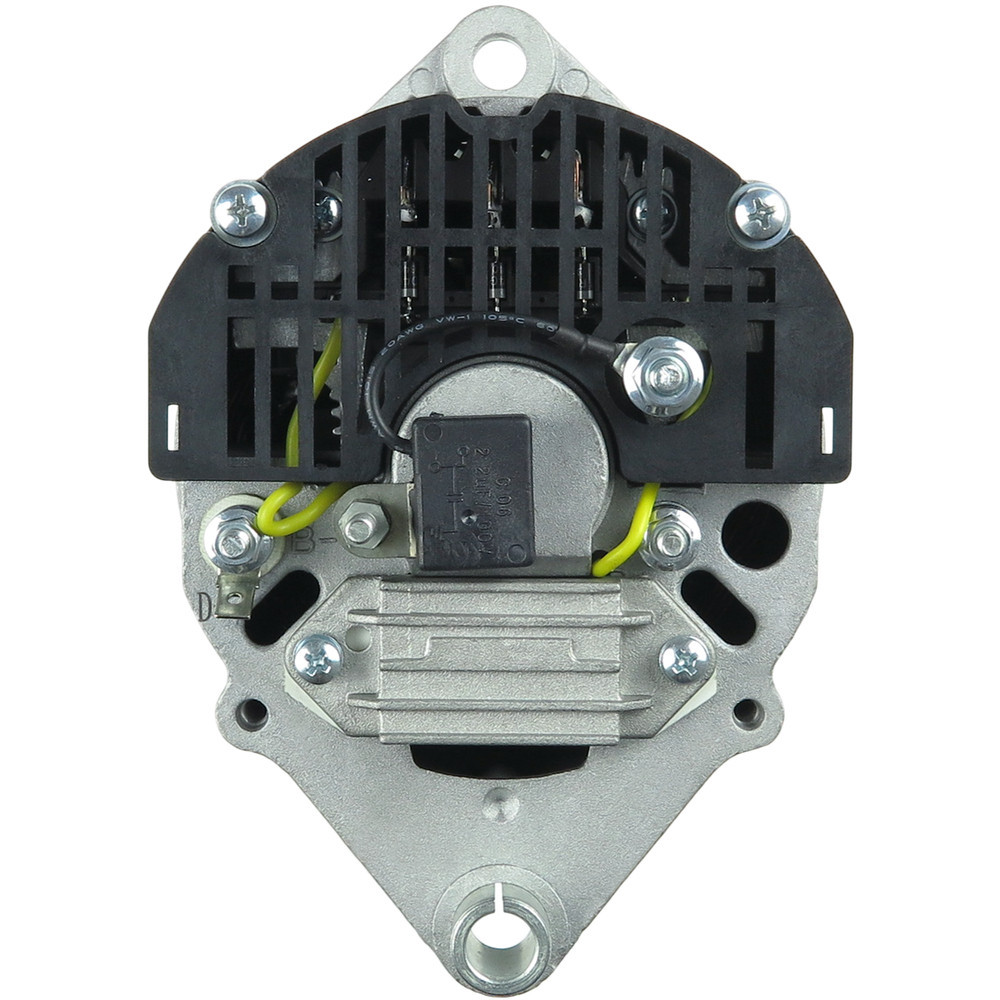

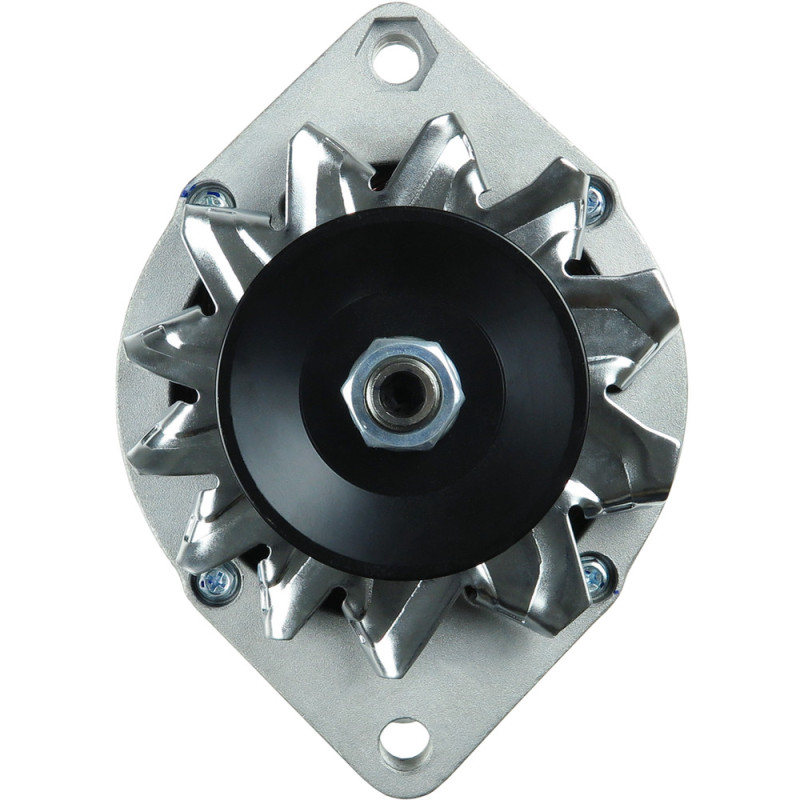

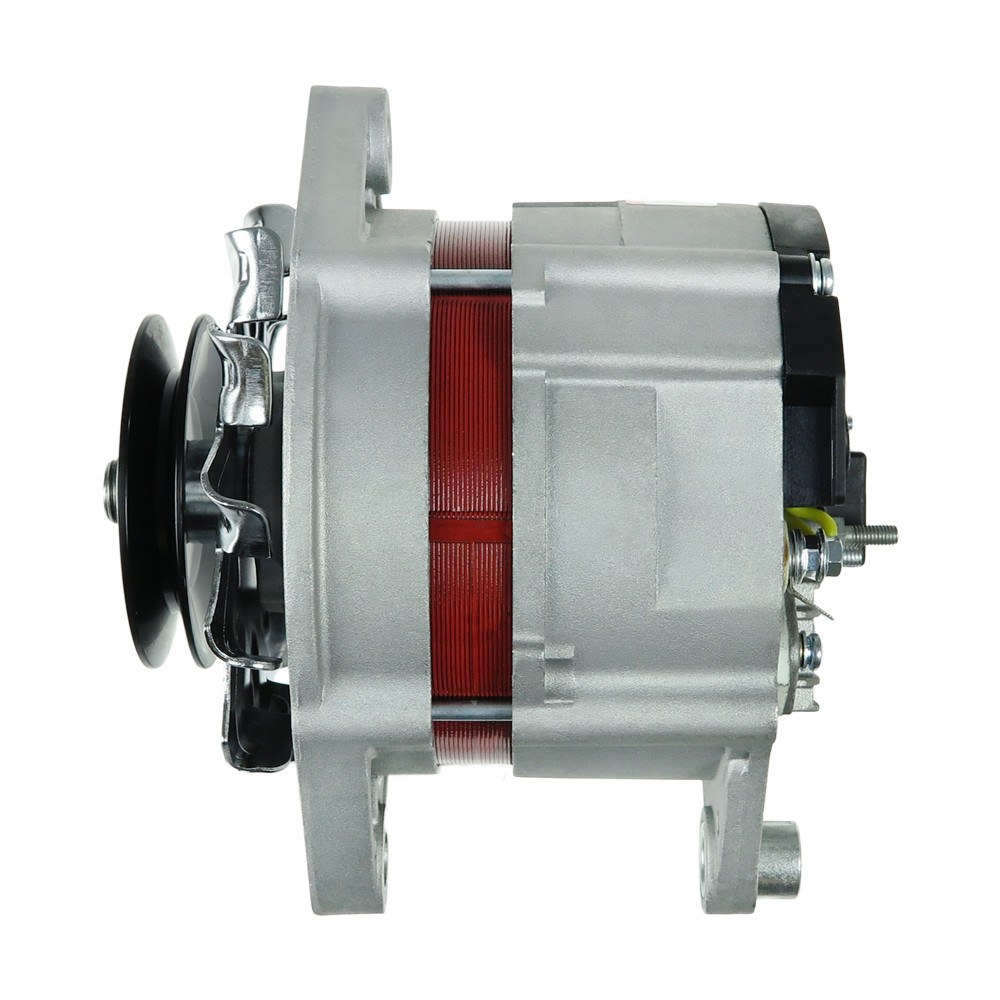

Alternator Fiat Series 600

Reference:
- 11.201.055 (ISKRA / LETRIKA)

Application
Data sheet

FIAT Series 600

Model

Engine

Displacement and power

From To

Series 600 619N1

8210.02.032

CCM:

13798

HP:

260

KW:

191

01.1970 => 12.1980

Series 600 619N1P

CCM:

13798

HP:

260

KW:

191

01.1972 => 12.1986

Series 600 619T1, 619T1P

CCM:

13798

HP:

260

KW:

191

01.1970 => 12.1980

Series 600 680N, 682N, CP48

CCM:

10170

HP:

123

KW:

01.1950 => 12.1952

Series 600 684N

8200.02.220

CCM:

9820

HP:

200

KW:

147

01.1970 => 12.1980

Series 600 684NP

8200.02.220

CCM:

9820

HP:

200

KW:

147

01.1974 => 12.1980

Series 600 684T, 684TL, 684TP

8200.02.220

CCM:

9820

HP:

200

KW:

147

01.1970 => 12.1980

Series 600 697N

CCM:

13798

HP:

261

KW:

192

01.1970 => 12.1995

Series 600 697NP

CCM:

13798

HP:

260

KW:

191

01.1970 => 12.1980

Series 600 697T

CCM:

13798

HP:

260

KW:

191

01.1970 => 12.1976

Genuine part : no
Type of part : Alternator
Motorization : Series 600
Can be mounted on : Fiat
Amperage : 35
Number of grooves (pulley) : 1
Voltage : 24
From : 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980

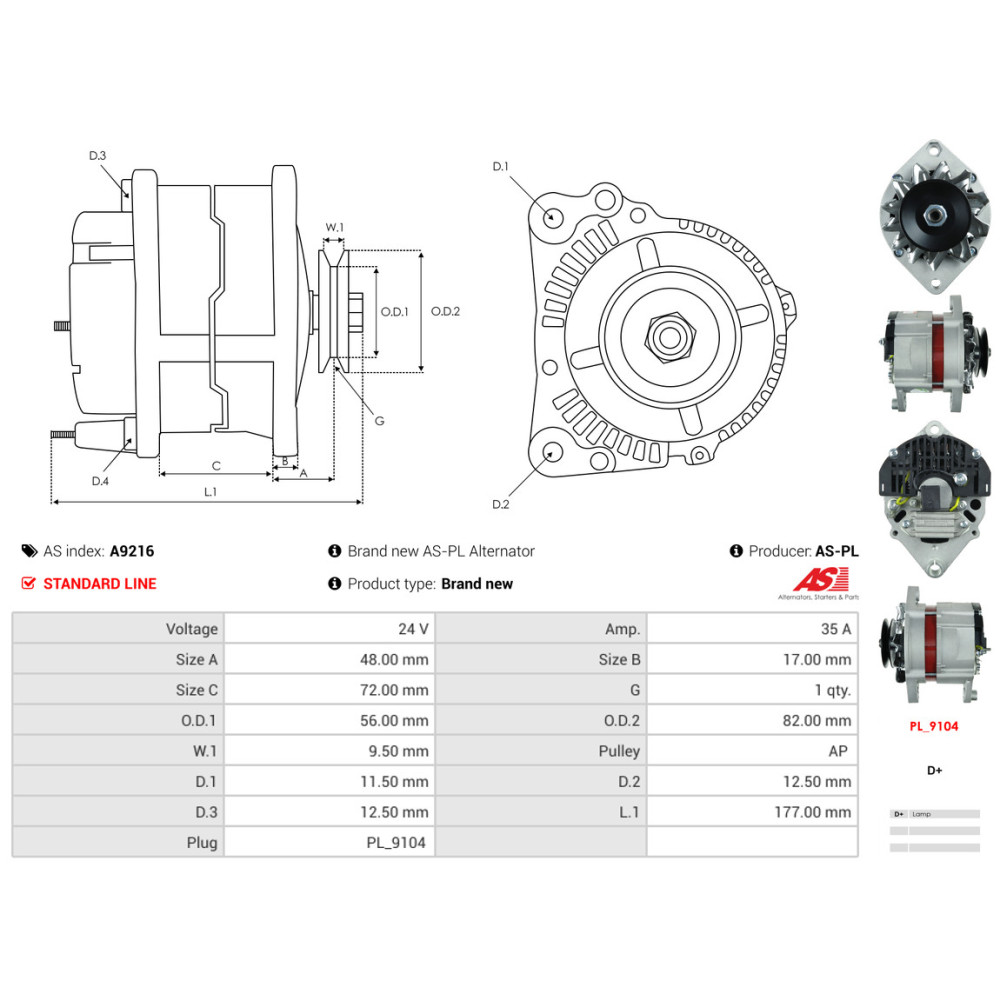

L.1 [ mm ] : 177.00
Taille A [ mm ] : 48.00
Taille B [ mm ] : 17.00
D.3 [ mm ] : 12.50
O.D.2 [ mm ] : 82.00
Taille C [ mm ] : 72.00
W.1 [ mm ] : 9.50
Plug type : PL_9104
Pulley : AP
D.1 [ mm ] : 11.50
D.2 [ mm ] : 12.50
O.D.1 [ mm ] : 56.00
Type : Series 600 619N1, Series 600 619N1P, Series 600 619T1, 619T1P, Series 600 680N, 682N, CP48, Series 600 684N, Series 600 684NP, Series 600 684T, 684TL, 684TP, Series 600 697N, Series 600 697NP, Series 600 697T
Engine code : 8200.02.220, 8210.02.032
