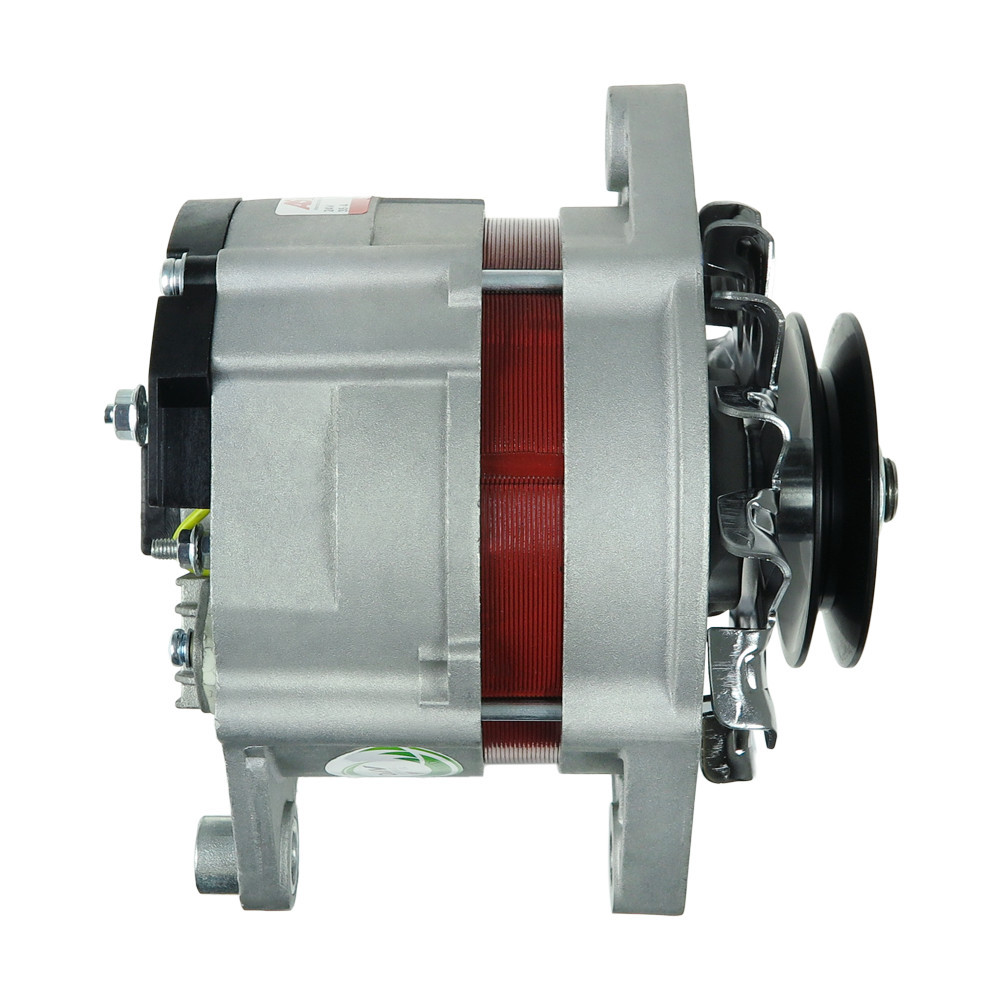

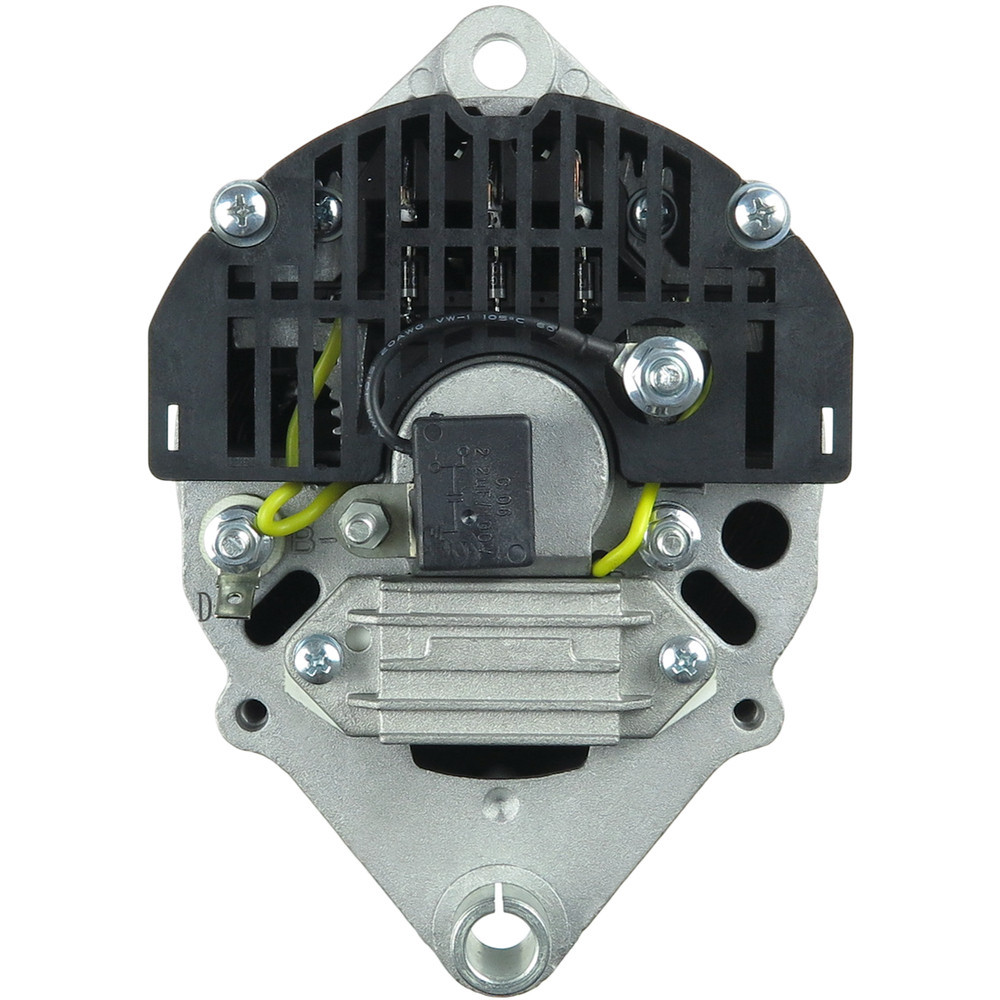

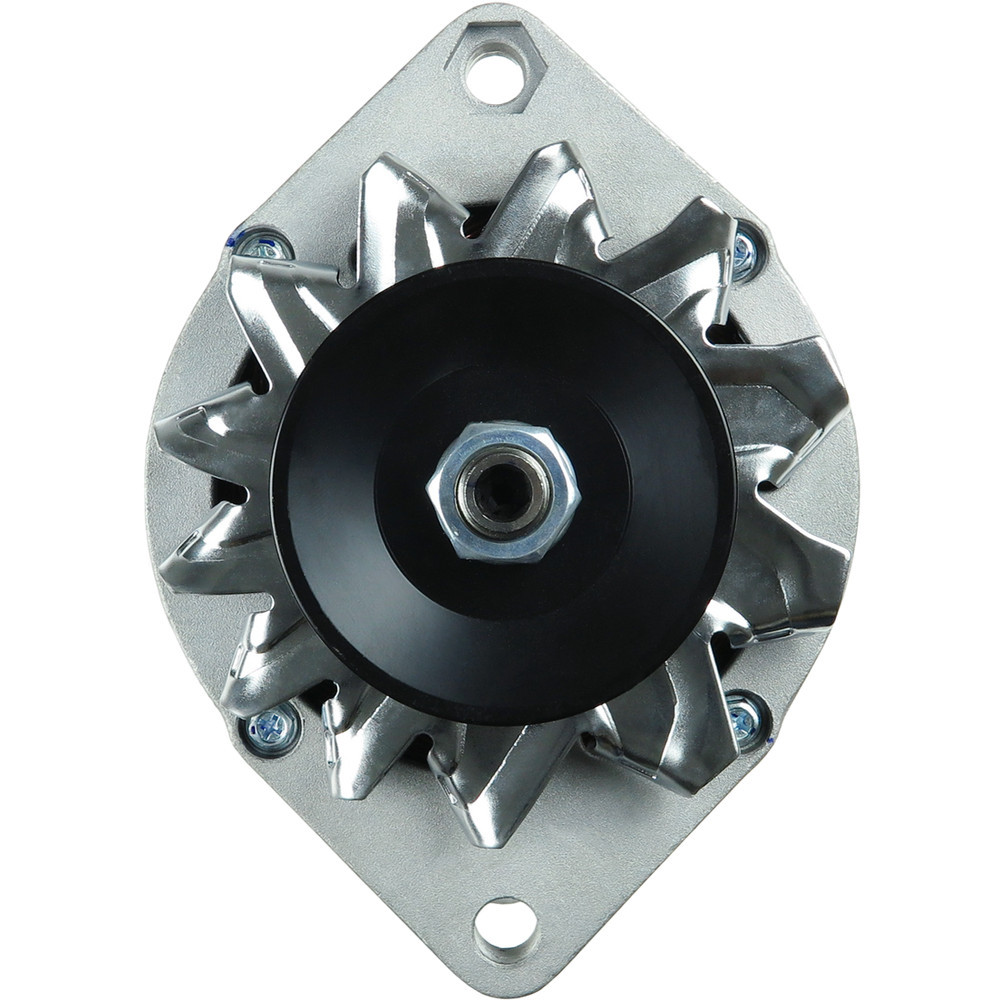

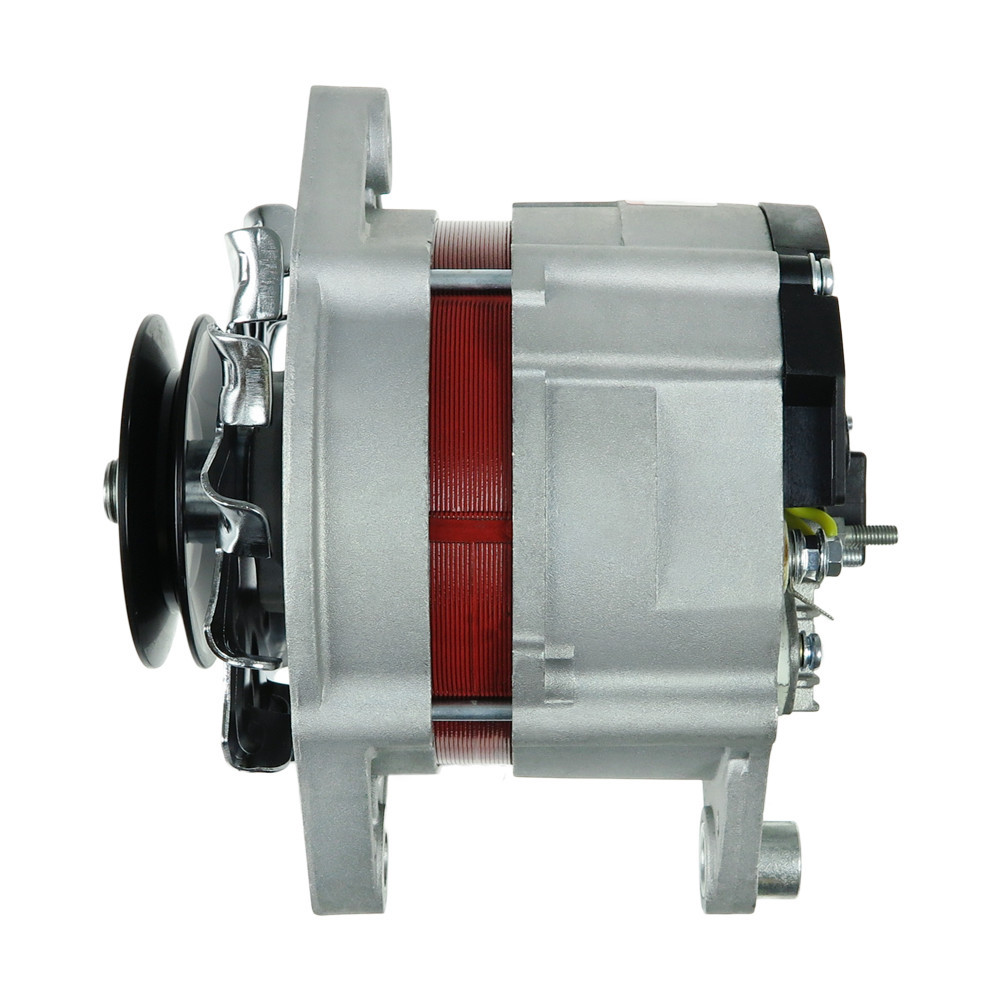

FIAT Series 90
Model
Engine
Displacement and power
From To
Series 90 90N, 90NC
8060.02.000
CCM:
5184
HP:
122
KW:
90
01.1972 => 12.1976
Series 90 90P
CCM:
5499
HP:
130
KW:
96
01.1979 => 12.1983
Series 90 90P
8060.02.000
CCM:
5184
HP:
122
KW:
90
01.1975 => 12.1977
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : Series 90
  • Can be mounted on : Fiat
  • Amperage : 35
  • Number of grooves (pulley) : 1
  • Voltage : 24
  • From : 1972, 1973, 1974, 1975, 1976

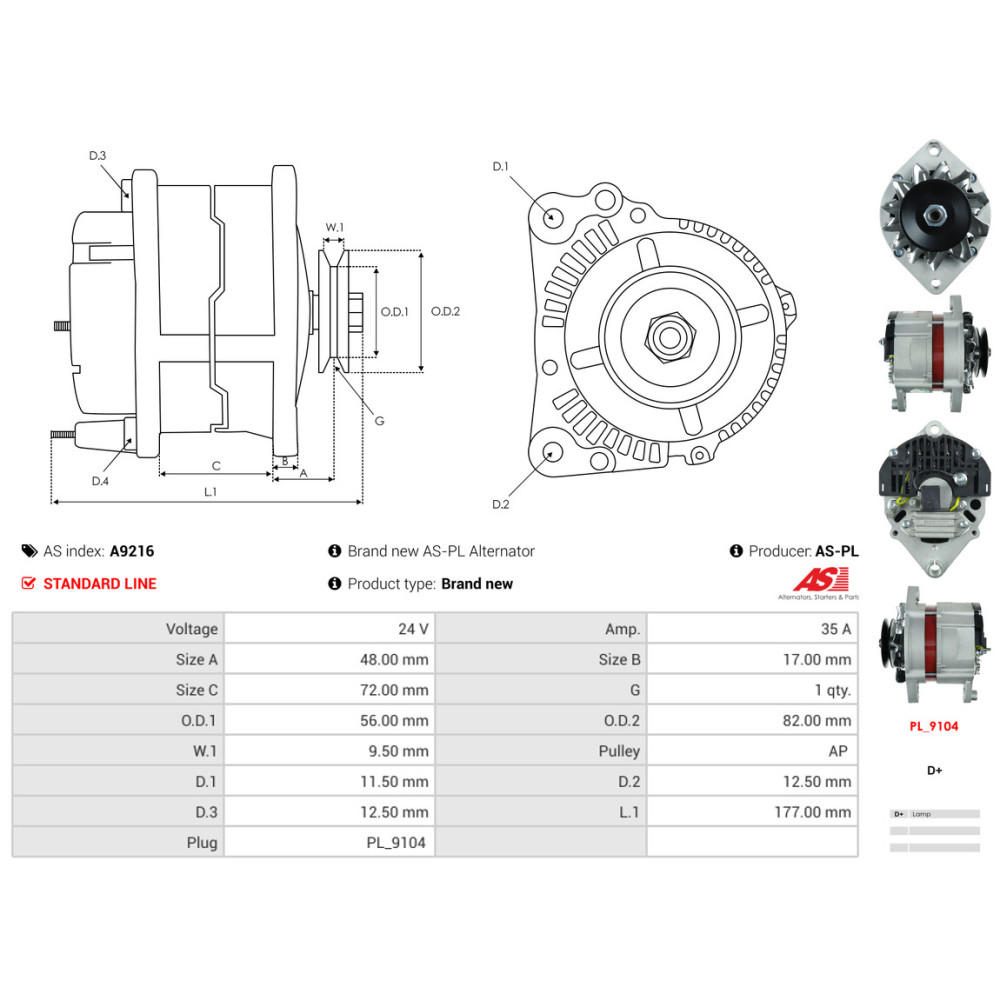

  • L.1 [ mm ] : 177.00
  • Taille A [ mm ] : 48.00
  • Taille B [ mm ] : 17.00
  • D.3 [ mm ] : 12.50
  • O.D.2 [ mm ] : 82.00
  • Taille C [ mm ] : 72.00
  • W.1 [ mm ] : 9.50
  • Plug type : PL_9104
  • Pulley : AP
  • D.1 [ mm ] : 11.50
  • D.2 [ mm ] : 12.50
  • O.D.1 [ mm ] : 56.00
  • Type : Series 90 90N, 90NC, Series 90 90P
  • Engine code : 8060.02.000
