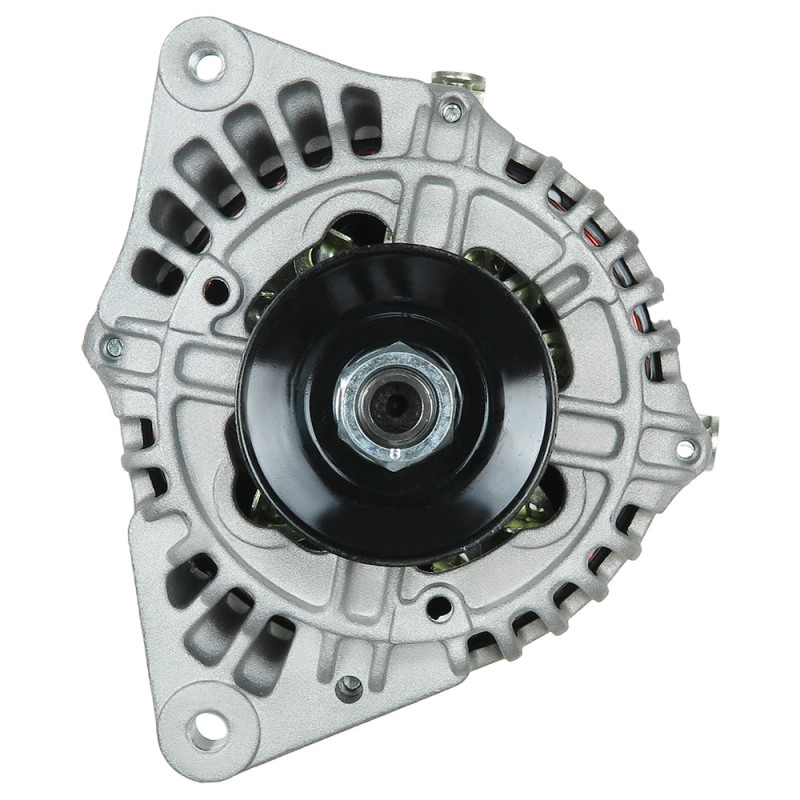

GEHL 5240
Model
Engine
Displacement and power
From To
5240 2.3
TD2009
CCM:
HP:
KW:
=>
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : 5240
  • Can be mounted on : Gehl
  • Amperage : 80
  • Number of grooves (pulley) : 1
  • Voltage : 12
  • From : 1

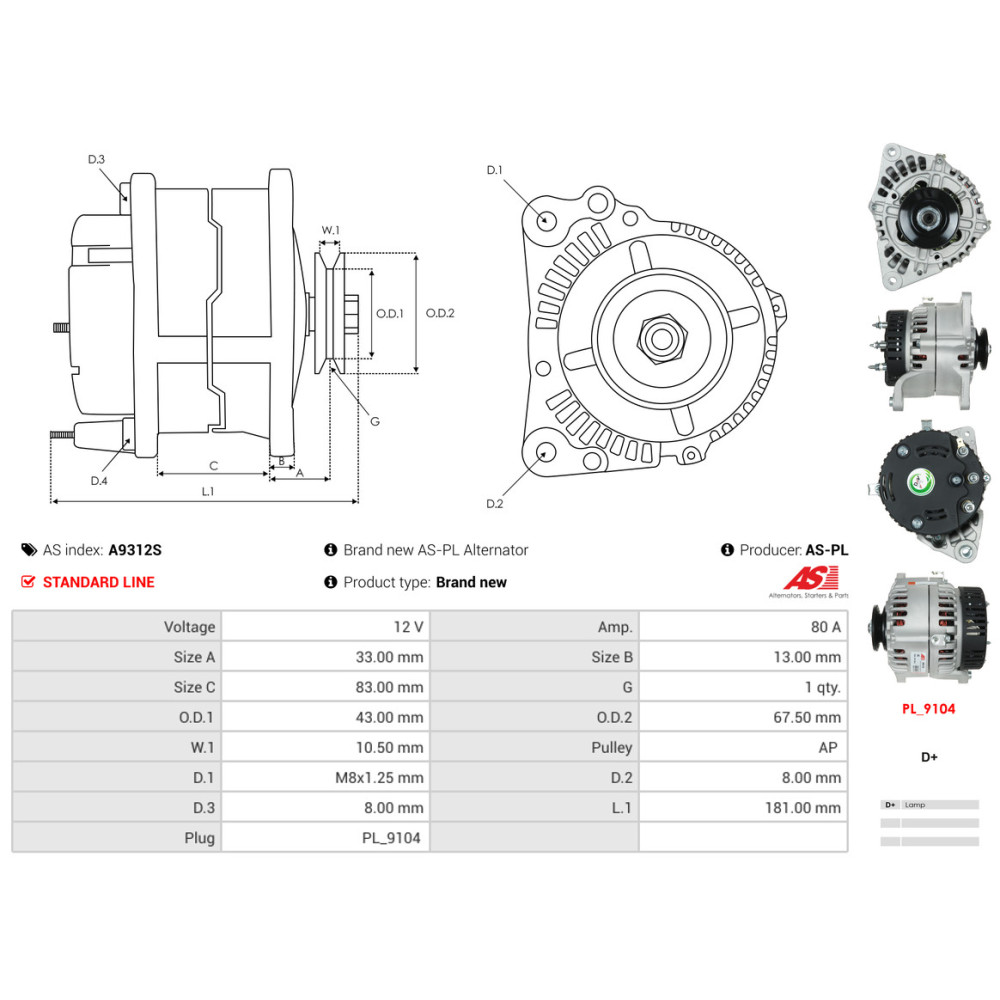

  • L.1 [ mm ] : 181.00
  • Taille A [ mm ] : 33.00
  • Taille B [ mm ] : 13.00
  • D.3 [ mm ] : 8.00
  • O.D.2 [ mm ] : 67.50
  • Taille C [ mm ] : 83.00
  • W.1 [ mm ] : 10.50
  • Plug type : PL_9104
  • Pulley : AP
  • D.1 [ mm ] : M8x1.25
  • D.2 [ mm ] : 8.00
  • O.D.1 [ mm ] : 43.00
  • Type : 5240 2.3
  • Engine code : TD2009
