Home>Electricity>Alternator>Alternator Fiat X 1/9 (128_)
FIAT X 1/9 (128_)
Model
Engine
Displacement and power
From To
X 1/9 (128_) 1.5 (128AS1_)
138A4.000
CCM:
1498
HP:
85
KW:
63
11.1978 => 12.1989
X 1/9 (128_) 1.5 (128AS1_)
138AS.000
CCM:
1498
HP:
85
KW:
63
11.1978 => 12.1989
  • Genuine part : no

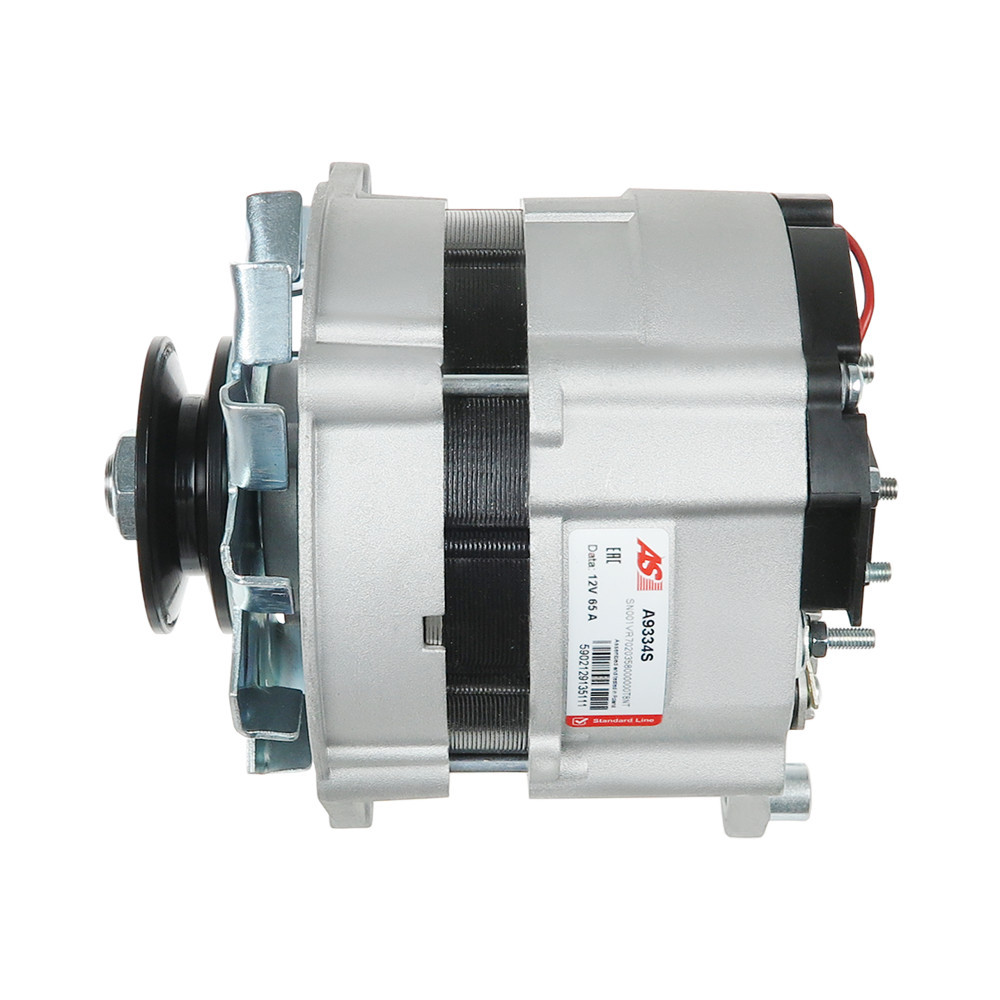

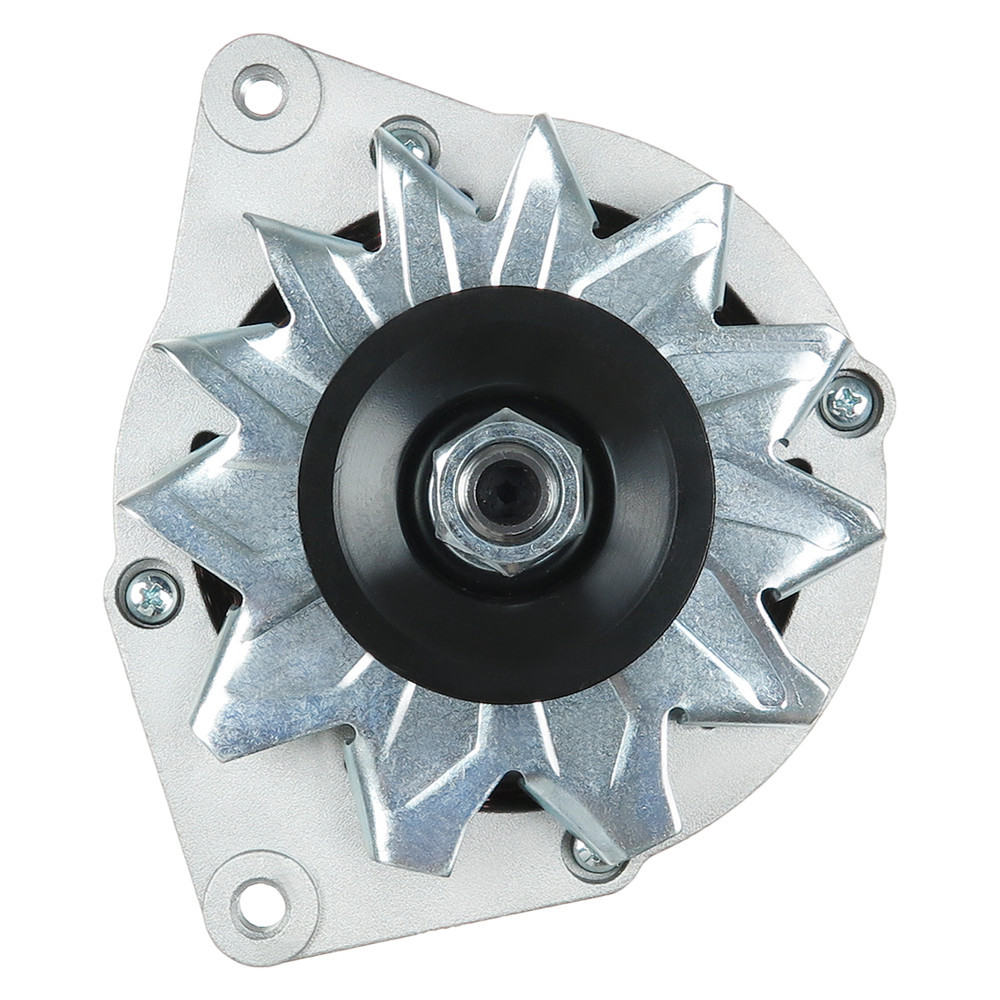

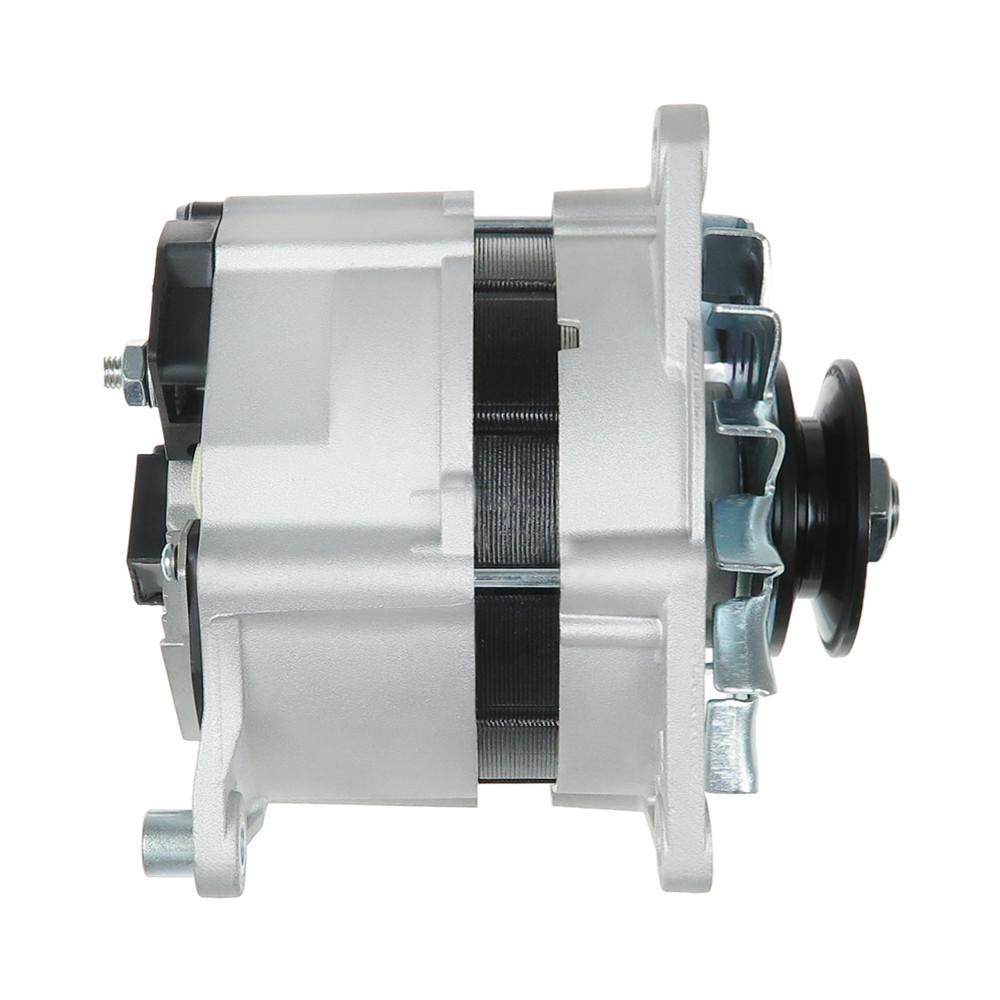

  • Type of part : Alternator
  • Motorization : X 1/9 (128_)
  • Can be mounted on : Fiat
  • Amperage : 65
  • Number of grooves (pulley) : 1
  • Voltage : 12
  • From : 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989

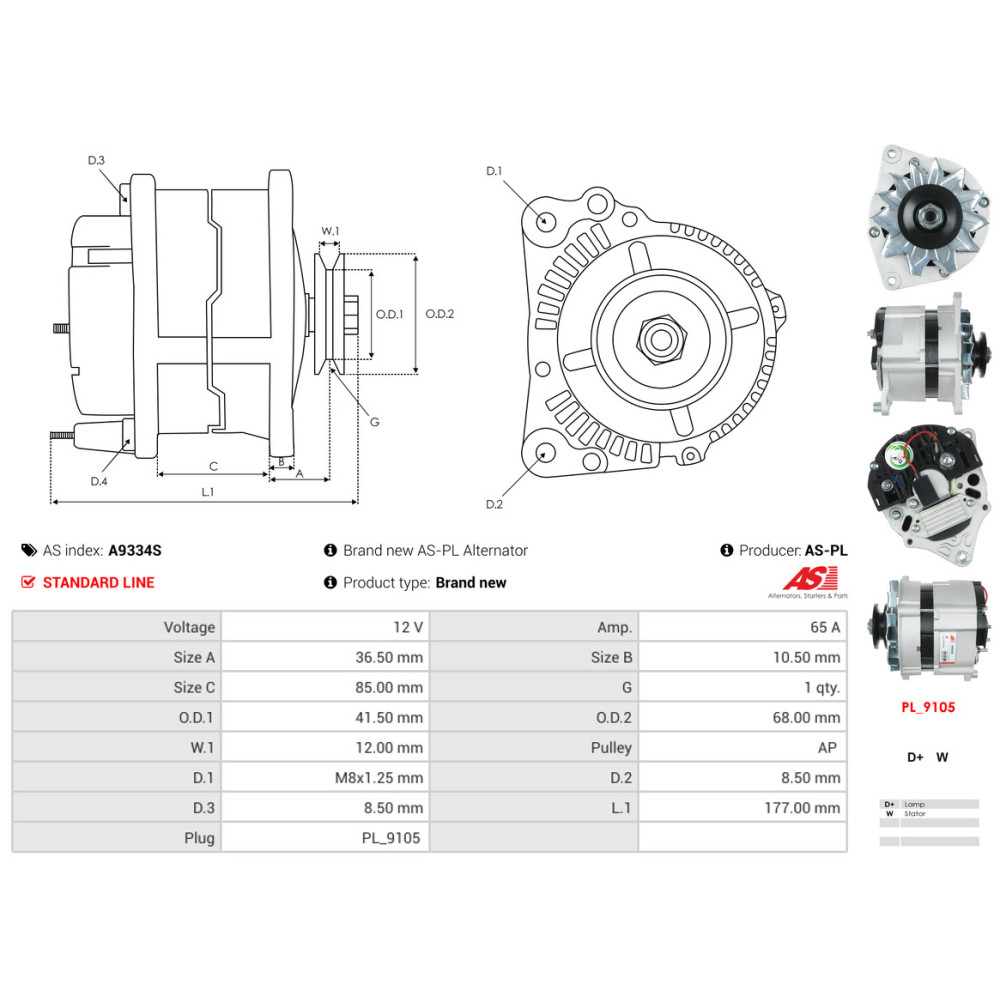

  • L.1 [ mm ] : 177.00
  • Taille A [ mm ] : 36.50
  • Taille B [ mm ] : 10.50
  • D.3 [ mm ] : 8.50
  • O.D.2 [ mm ] : 68.00
  • Taille C [ mm ] : 85.00
  • W.1 [ mm ] : 12.00
  • Plug type : PL_9105
  • Pulley : AP
  • D.1 [ mm ] : M8x1.25
  • D.2 [ mm ] : 8.50
  • O.D.1 [ mm ] : 41.50
  • Type : X 1/9 (128_) 1.5 (128AS1_)
  • Engine code : 138A4.000, 138AS.000
