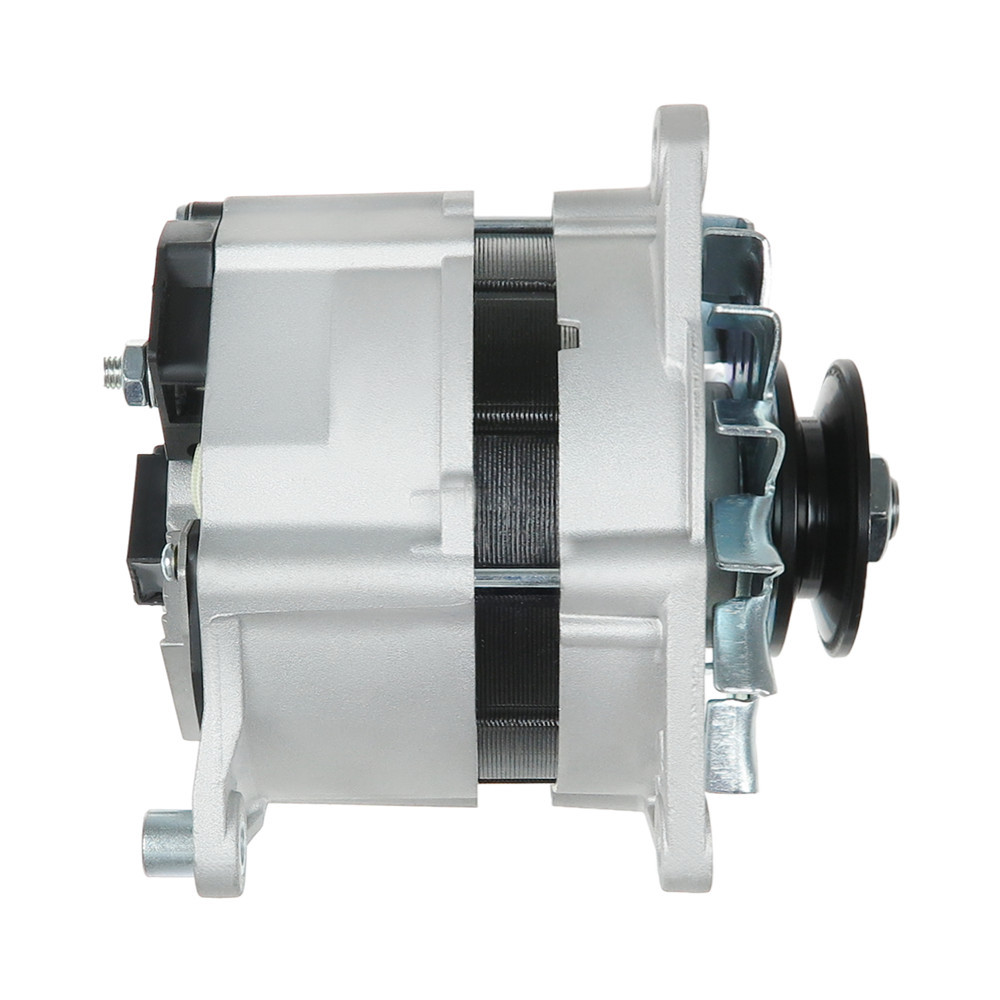

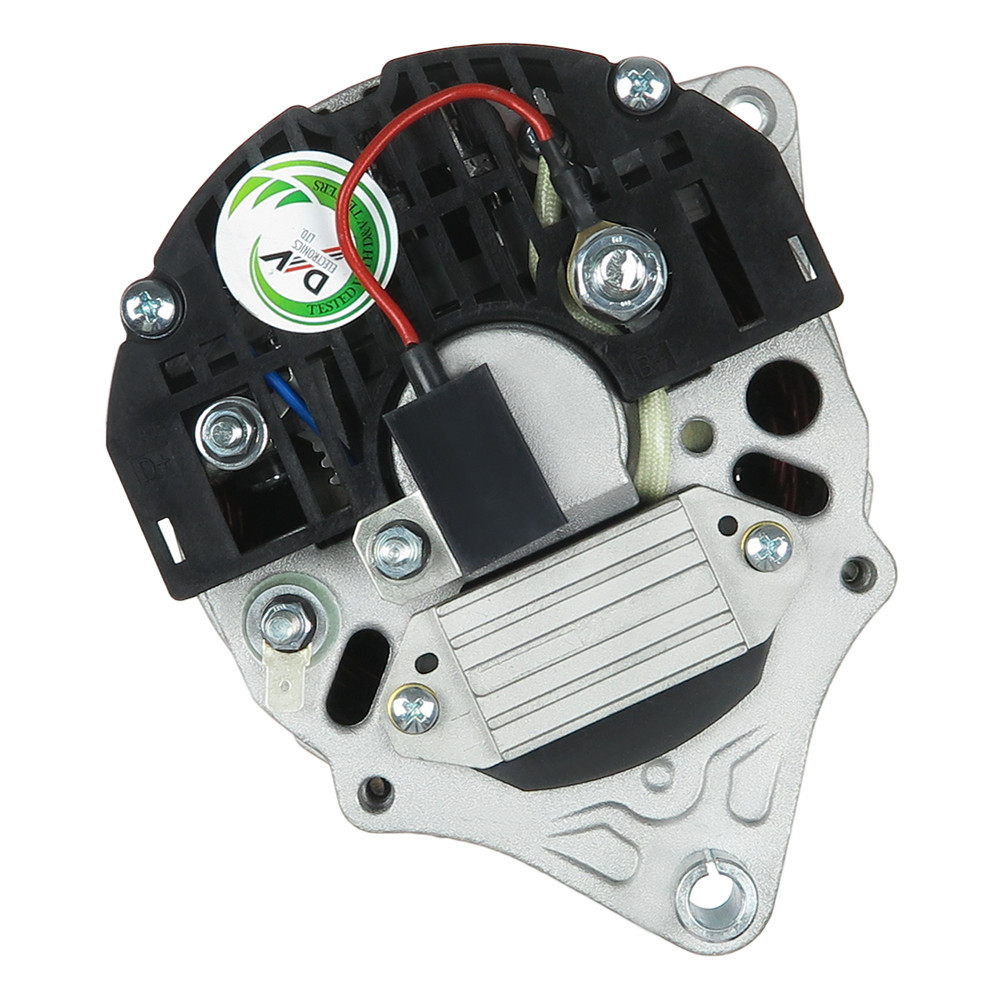

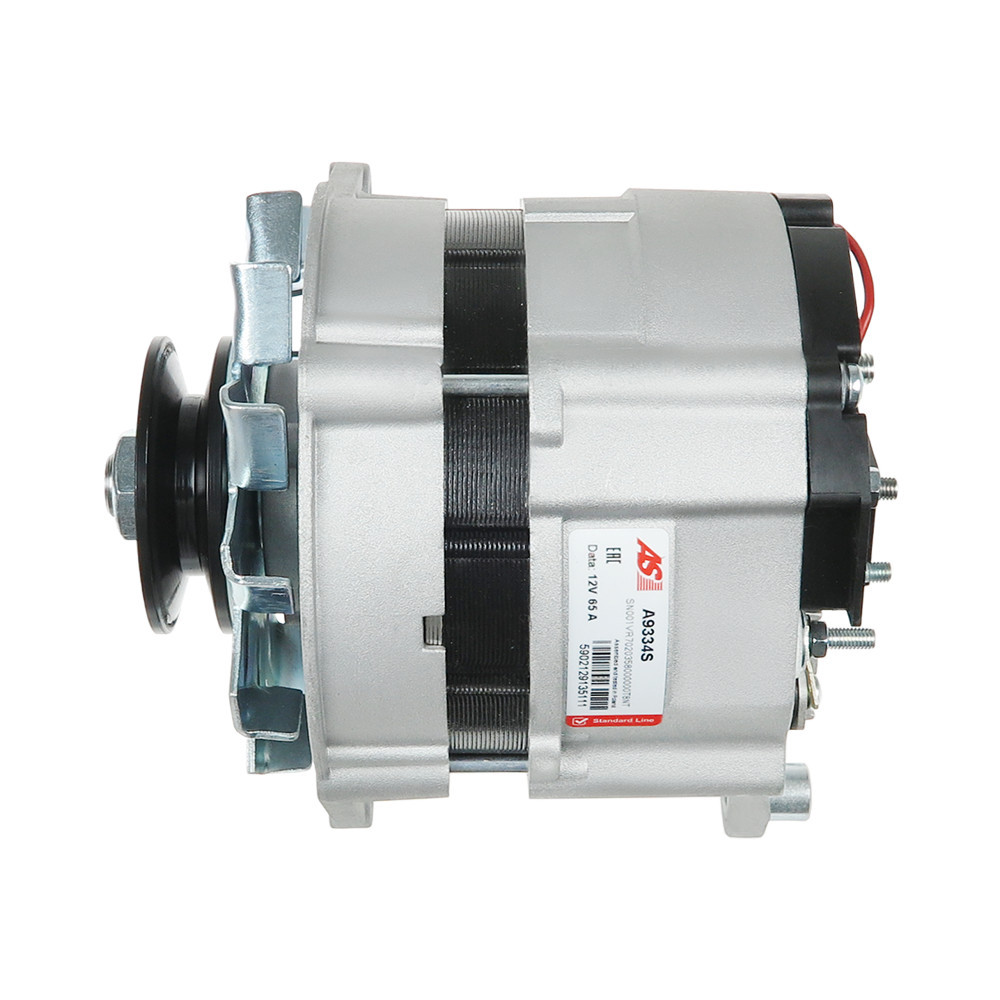

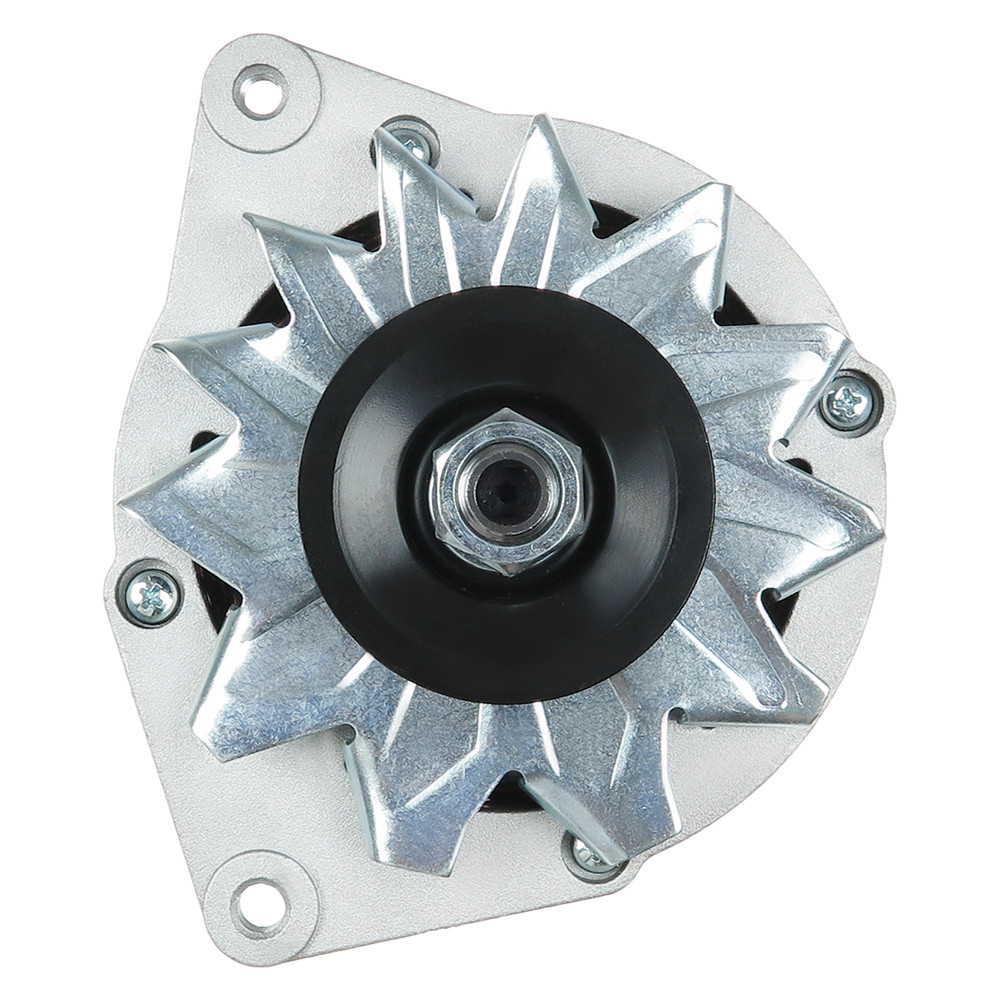

Alternator Rover 800 (XS)

Reference:
- IA1373 (ISKRA / LETRIKA)

Application
Data sheet

ROVER 800 (XS)

Model

Engine

Displacement and power

From To

800 (XS) 820 16 V I/SI (XS)

20HD

CCM:

1994

HP:

140

KW:

103

10.1986 => 10.1988

800 (XS) 820 SI (XS)

20HDM16

CCM:

1994

HP:

133

KW:

10.1988 => 12.1991

800 (XS) 820e

20HS

CCM:

1994

HP:

120

KW:

10.1986 => 10.1991

800 (XS) 827 SI/Sterling (XS)

C27A2

CCM:

2675

HP:

177

KW:

130

02.1988 => 12.1991

800 (XS) 827 SI/Sterling Catalytic-Conv (XS)

C27A1

CCM:

2675

HP:

169

KW:

124

02.1988 => 02.1999

Genuine part : no
Type of part : Alternator
Motorization : 800 (XS)
Can be mounted on : Rover
Amperage : 65
Number of grooves (pulley) : 1
Voltage : 12
From : 1986, 1987, 1988

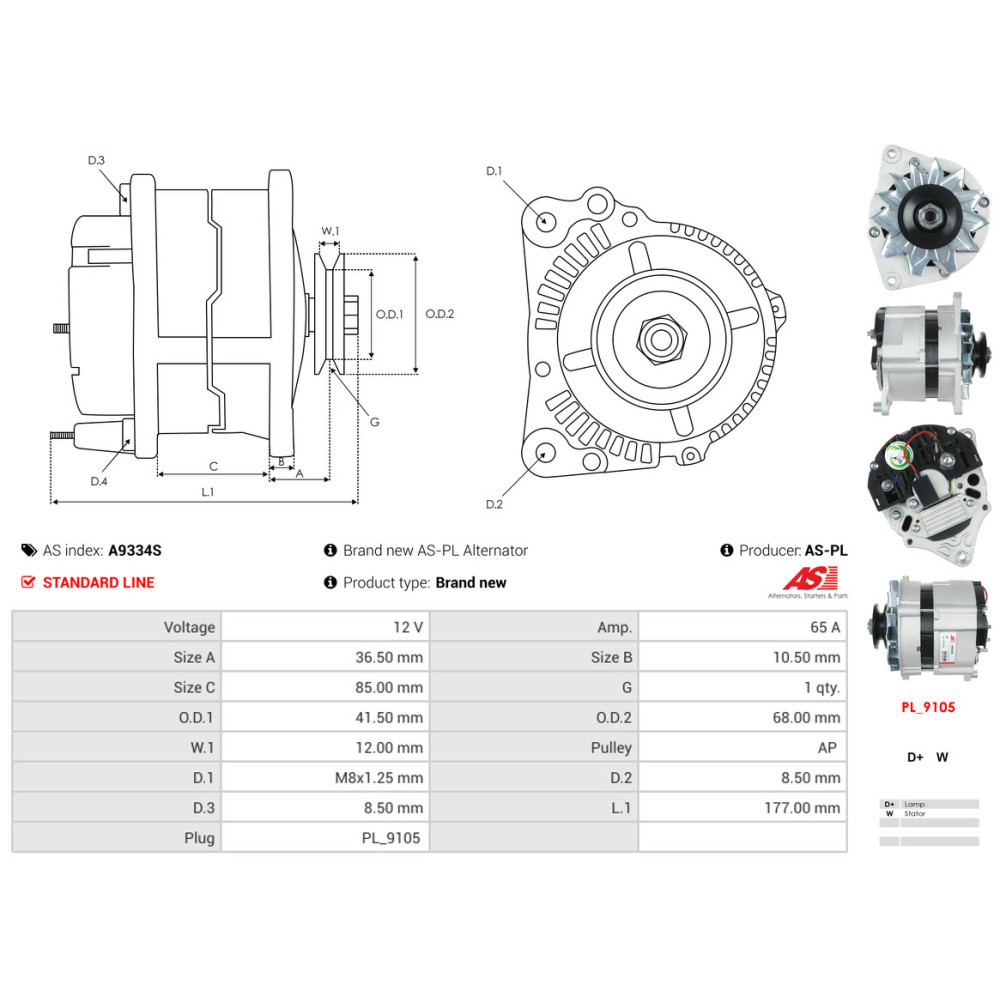

L.1 [ mm ] : 177.00
Taille A [ mm ] : 36.50
Taille B [ mm ] : 10.50
D.3 [ mm ] : 8.50
O.D.2 [ mm ] : 68.00
Taille C [ mm ] : 85.00
W.1 [ mm ] : 12.00
Plug type : PL_9105
Pulley : AP
D.1 [ mm ] : M8x1.25
D.2 [ mm ] : 8.50
O.D.1 [ mm ] : 41.50
Type : 800 (XS) 820 16 V I/SI (XS), 800 (XS) 820 SI (XS), 800 (XS) 820e, 800 (XS) 827 SI/Sterling (XS), 800 (XS) 827 SI/Sterling Catalytic-Conv (XS)
Engine code : 20HD, 20HDM16, 20HS, C27A1, C27A2
