Home>Electricity>Alternator>Alternator Seat ALHAMBRA VAN (7V8, 7V9)
SEAT ALHAMBRA VAN (7V8, 7V9)
Model
Engine
Displacement and power
From To
ALHAMBRA VAN (7V8, 7V9) 2.0
ADY
CCM:
1984
HP:
116
KW:
85
03.1996 => 03.2010
ALHAMBRA VAN (7V8, 7V9) 2.0
ATM
CCM:
1984
HP:
116
KW:
85
03.1996 => 03.2010
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : ALHAMBRA VAN (7V8, 7V9)
  • Can be mounted on : Seat
  • Years : 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
  • Amperage : 90
  • Number of grooves (pulley) : 6
  • Voltage : 12

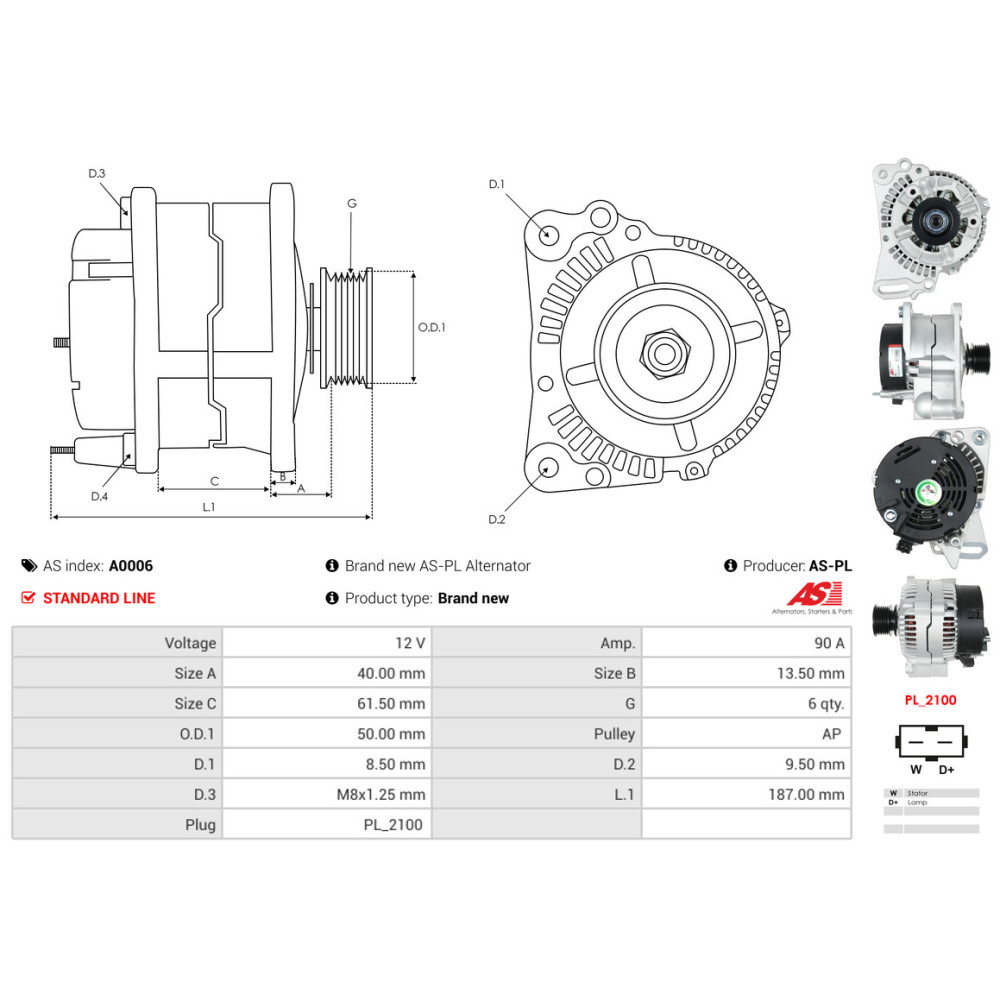

  • L.1 [ mm ] : 187.00
  • Taille A [ mm ] : 40.00
  • Taille B [ mm ] : 13.50
  • D.3 [ mm ] : M8x1.25
  • Taille C [ mm ] : 61.50
  • Plug type : PL_2100
  • Pulley : AP
  • D.1 [ mm ] : 8.50
  • D.2 [ mm ] : 9.50
  • O.D.1 [ mm ] : 50.00
  • Type : ALHAMBRA VAN (7V8, 7V9) 2.0
  • Engine code : ADY, ATM
