Home>Electricity>Alternator>Alternator Seat TOLEDO I (1L2)
SEAT TOLEDO I (1L2)
Model
Engine
Displacement and power
From To
TOLEDO I (1L2) 1.6 i
1F
CCM:
1595
HP:
71
KW:
52
05.1991 => 12.1993
TOLEDO I (1L2) 1.6 i
ABN
CCM:
1595
HP:
73
KW:
54
05.1991 => 03.1999
TOLEDO I (1L2) 1.6 i
EZ
CCM:
1595
HP:
73
KW:
54
05.1991 => 03.1999
TOLEDO I (1L2) 1.8 i
RP
CCM:
1781
HP:
88
KW:
65
05.1991 => 12.1996
TOLEDO I (1L2) 2.0 i
2E
CCM:
1984
HP:
115
KW:
85
05.1991 => 03.1999
TOLEDO I (1L2) 2.0 i
AGG
CCM:
1984
HP:
115
KW:
85
05.1991 => 03.1999

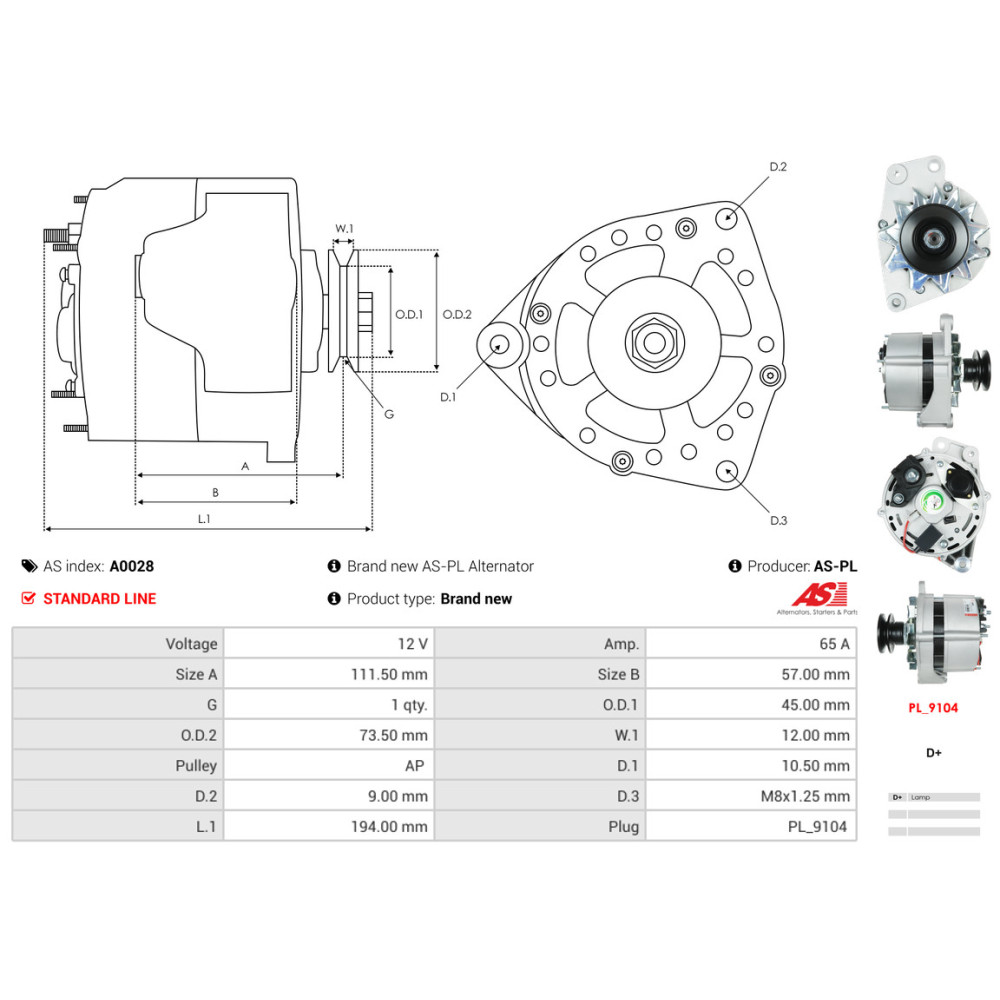

  • Genuine part : no
  • Type of part : Alternator
  • Motorization : TOLEDO I (1L2)
  • Can be mounted on : Seat
  • Years : 1991, 1992, 1993
  • Amperage : 65
  • Number of grooves (pulley) : 1
  • Voltage : 12
  • L.1 [ mm ] : 194.00
  • Taille A [ mm ] : 111.50
  • Taille B [ mm ] : 57.00
  • D.3 [ mm ] : M8x1.25
  • O.D.2 [ mm ] : 73.50
  • W.1 [ mm ] : 12.00
  • Plug type : PL_9104
  • Pulley : AP
  • D.1 [ mm ] : 10.50
  • D.2 [ mm ] : 9.00
  • O.D.1 [ mm ] : 45.00
  • Type : TOLEDO I (1L2) 1.6 i, TOLEDO I (1L2) 1.8 i, TOLEDO I (1L2) 2.0 i
  • Engine code : 1F, 2E, ABN, AGG, EZ, RP
