SEAT ALHAMBRA (7V8, 7V9)
Model
Engine
Displacement and power
From To
ALHAMBRA (7V8, 7V9) 1.8 T 20V
AJH
CCM:
1781
HP:
150
KW:
110
10.1997 => 03.2010
ALHAMBRA (7V8, 7V9) 1.8 T 20V
AWC
CCM:
1781
HP:
150
KW:
110
10.1997 => 03.2010
ALHAMBRA (7V8, 7V9) 1.9 TDI
1Z
CCM:
1896
HP:
90
KW:
66
04.1996 => 03.2010
ALHAMBRA (7V8, 7V9) 1.9 TDI
AFN
CCM:
1896
HP:
110
KW:
81
08.1996 => 06.2000
ALHAMBRA (7V8, 7V9) 1.9 TDI
AHU
CCM:
1896
HP:
90
KW:
66
04.1996 => 03.2010
ALHAMBRA (7V8, 7V9) 1.9 TDI
ANU
CCM:
1896
HP:
90
KW:
66
04.1996 => 03.2010
ALHAMBRA (7V8, 7V9) 1.9 TDI
ASZ
CCM:
1896
HP:
131
KW:
96
11.2002 => 11.2008
ALHAMBRA (7V8, 7V9) 1.9 TDI
AUY
CCM:
1896
HP:
115
KW:
85
06.2000 => 03.2010
ALHAMBRA (7V8, 7V9) 1.9 TDI
AVG
CCM:
1896
HP:
110
KW:
81
08.1996 => 06.2000
ALHAMBRA (7V8, 7V9) 1.9 TDI
BVK
CCM:
1896
HP:
115
KW:
85
06.2000 => 03.2010
ALHAMBRA (7V8, 7V9) 1.9 TDI 4motion
AUY
CCM:
1896
HP:
115
KW:
85
06.2000 => 03.2010
ALHAMBRA (7V8, 7V9) 1.9 TDI 4motion
BVK
CCM:
1896
HP:
115
KW:
85
06.2000 => 03.2010
ALHAMBRA (7V8, 7V9) 2.0 i
ADY
CCM:
1984
HP:
115
KW:
85
04.1996 => 03.2010
ALHAMBRA (7V8, 7V9) 2.0 i
ATM
CCM:
1984
HP:
115
KW:
85
04.1996 => 03.2010
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : ALHAMBRA (7V8, 7V9)
  • Can be mounted on : Seat
  • Amperage : 90
  • Number of grooves (pulley) : 6
  • Voltage : 12
  • From : 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

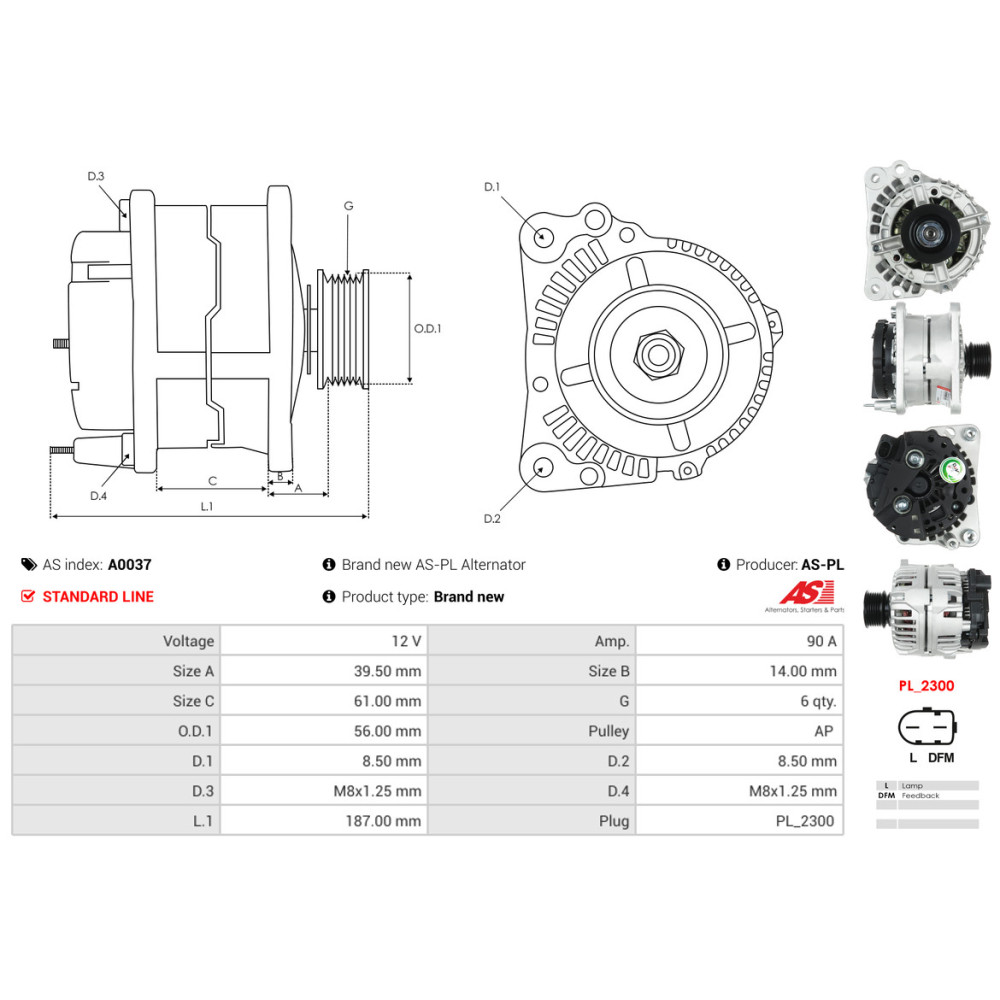

  • L.1 [ mm ] : 187.00
  • Taille A [ mm ] : 39.50
  • Taille B [ mm ] : 14.00
  • D.3 [ mm ] : M8x1.25
  • D.4 [ mm ] : M8x1.25
  • Taille C [ mm ] : 61.00
  • Plug type : PL_2300
  • Pulley : AP
  • D.1 [ mm ] : 8.50
  • D.2 [ mm ] : 8.50
  • O.D.1 [ mm ] : 56.00
  • Type : ALHAMBRA (7V8, 7V9) 1.8 T 20V, ALHAMBRA (7V8, 7V9) 1.9 TDI, ALHAMBRA (7V8, 7V9) 1.9 TDI 4motion, ALHAMBRA (7V8, 7V9) 2.0 i
  • Engine code : 1Z, ADY, AFN, AHU, AJH, ANU, ASZ, ATM, AUY, AVG, AWC, BVK
