Home>Electricity>Alternator>Alternator Seat LEON (1P1)
SEAT LEON (1P1)
Model
Engine
Displacement and power
From To
LEON (1P1) 1.6
BSE
CCM:
1595
HP:
102
KW:
75
07.2005 => 12.2012
LEON (1P1) 1.6
BSF
CCM:
1595
HP:
102
KW:
75
07.2005 => 12.2012
LEON (1P1) 1.6
CCSA
CCM:
1595
HP:
102
KW:
75
07.2005 => 12.2012
LEON (1P1) 1.6 LPG
CHGA
CCM:
1595
HP:
102
KW:
75
12.2009 => 12.2012
LEON (1P1) 1.6 MultiFuel
BSE
CCM:
1595
HP:
102
KW:
75
07.2005 => 08.2013
LEON (1P1) 1.6 MultiFuel
CCSA
CCM:
1595
HP:
102
KW:
75
07.2005 => 08.2013
LEON (1P1) 1.6 MultiFuel
CMXA
CCM:
1595
HP:
102
KW:
75
07.2005 => 08.2013
LEON (1P1) 1.9 TDI
BKC
CCM:
1896
HP:
105
KW:
77
07.2005 => 12.2010
LEON (1P1) 1.9 TDI
BLS
CCM:
1896
HP:
105
KW:
77
07.2005 => 12.2010
LEON (1P1) 1.9 TDI
BXE
CCM:
1896
HP:
105
KW:
77
07.2005 => 12.2010
LEON (1P1) 2.0 FSI
BLR
CCM:
1984
HP:
150
KW:
110
07.2005 => 05.2010
LEON (1P1) 2.0 FSI
BLY
CCM:
1984
HP:
150
KW:
110
07.2005 => 05.2010
LEON (1P1) 2.0 FSI
BVY
CCM:
1984
HP:
150
KW:
110
07.2005 => 05.2010
LEON (1P1) 2.0 FSI
BVZ
CCM:
1984
HP:
150
KW:
110
07.2005 => 05.2010
LEON (1P1) 2.0 TFSI
BWA
CCM:
1984
HP:
200
KW:
147
05.2005 => 03.2009

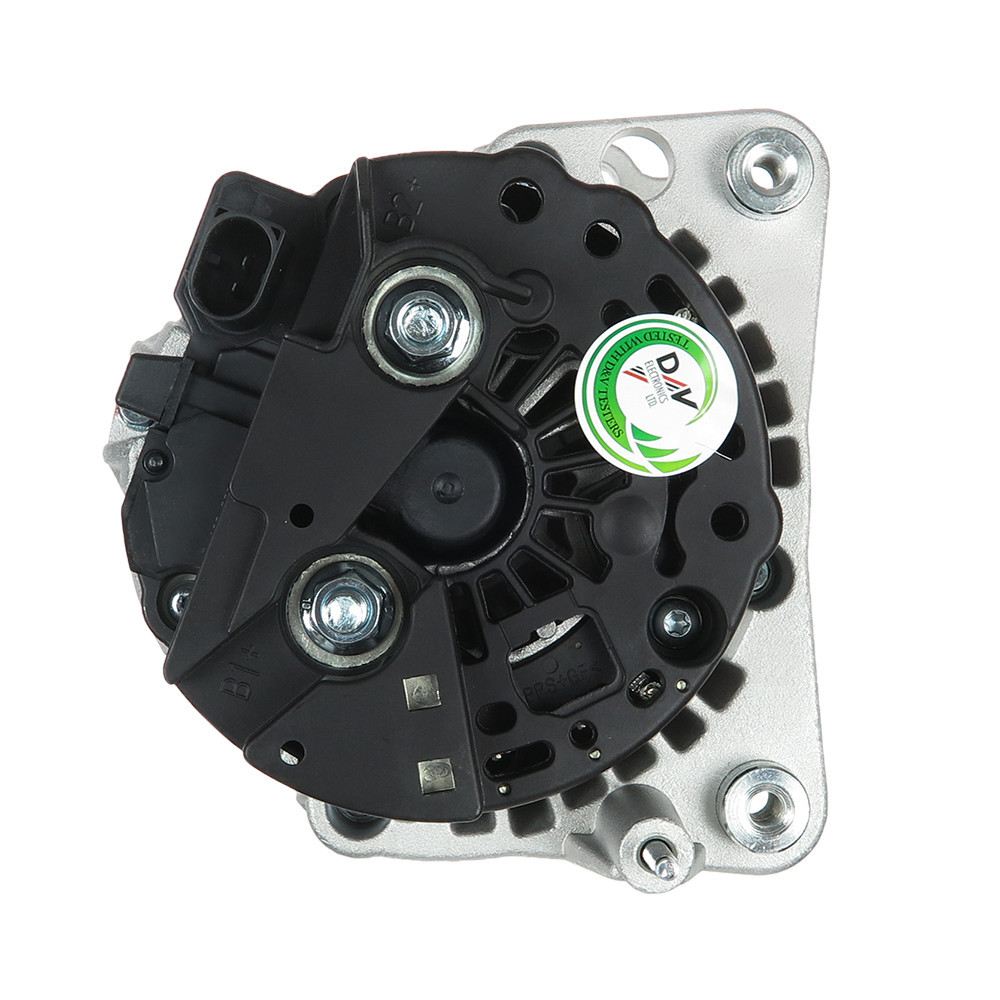

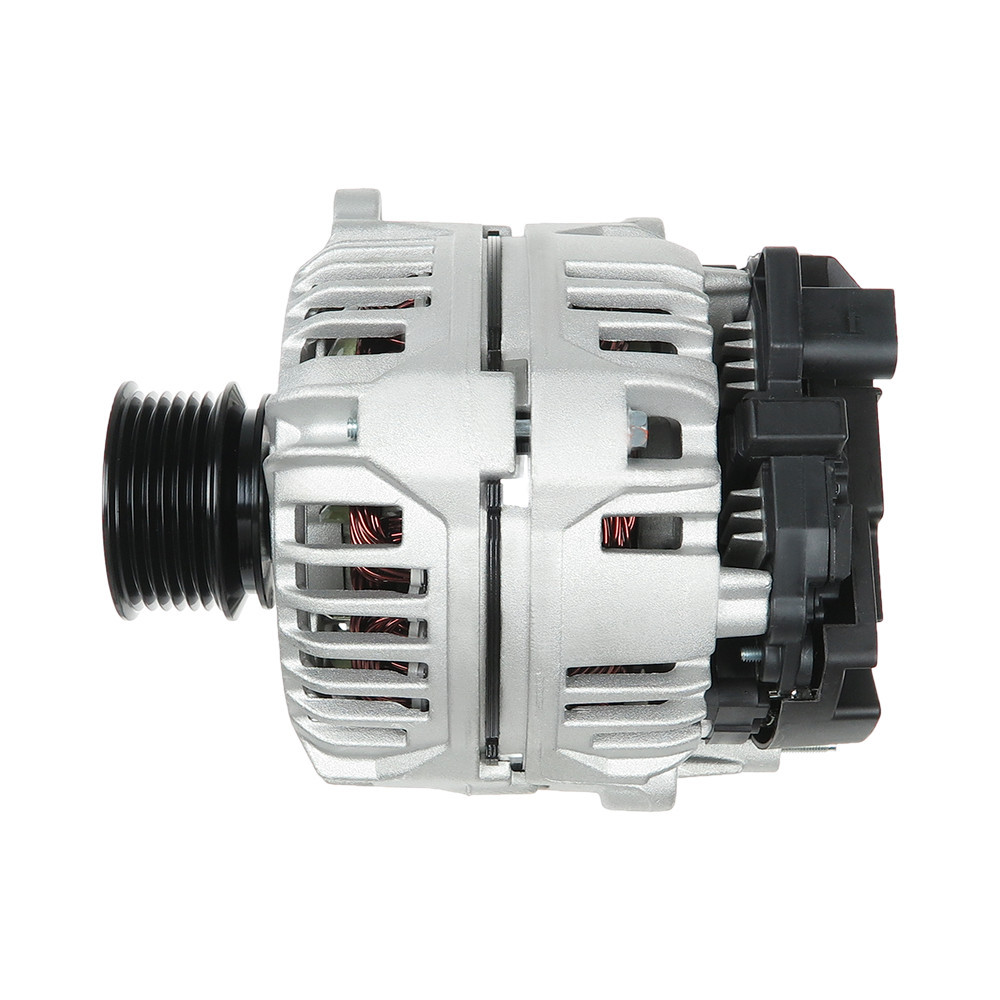

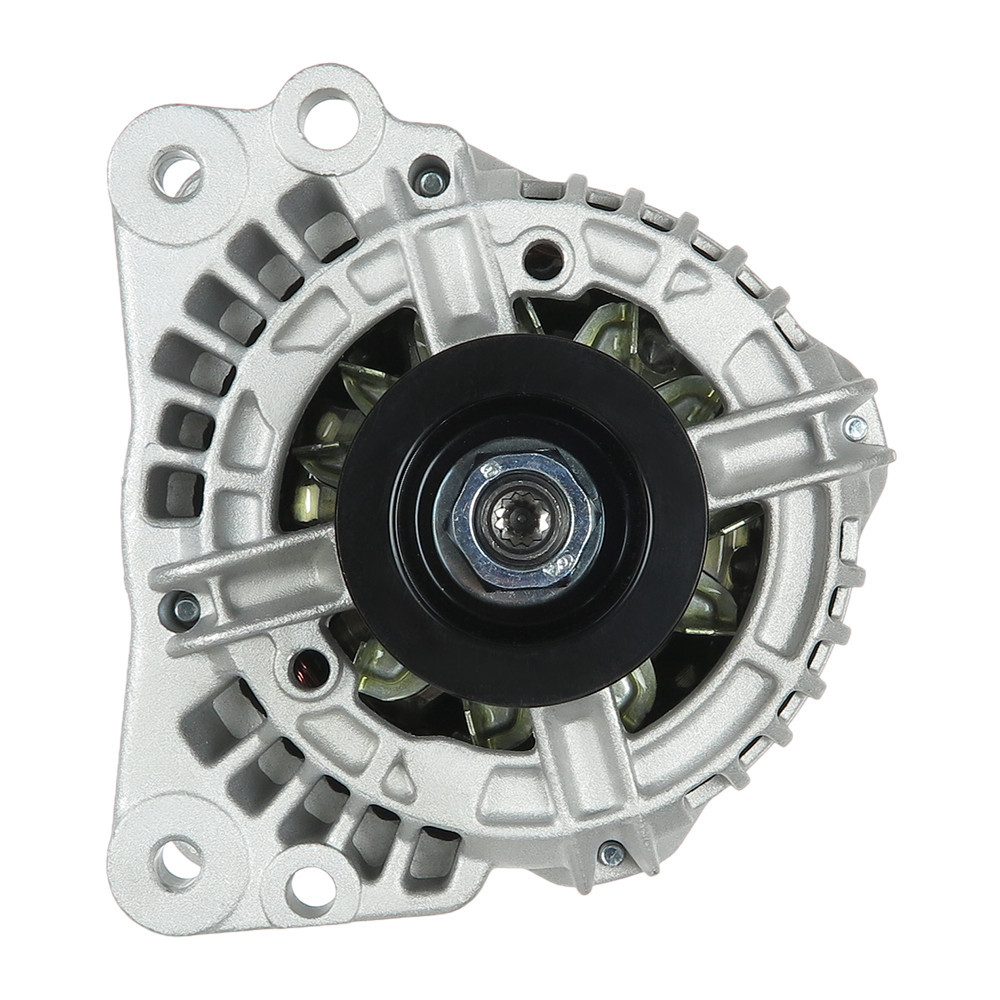

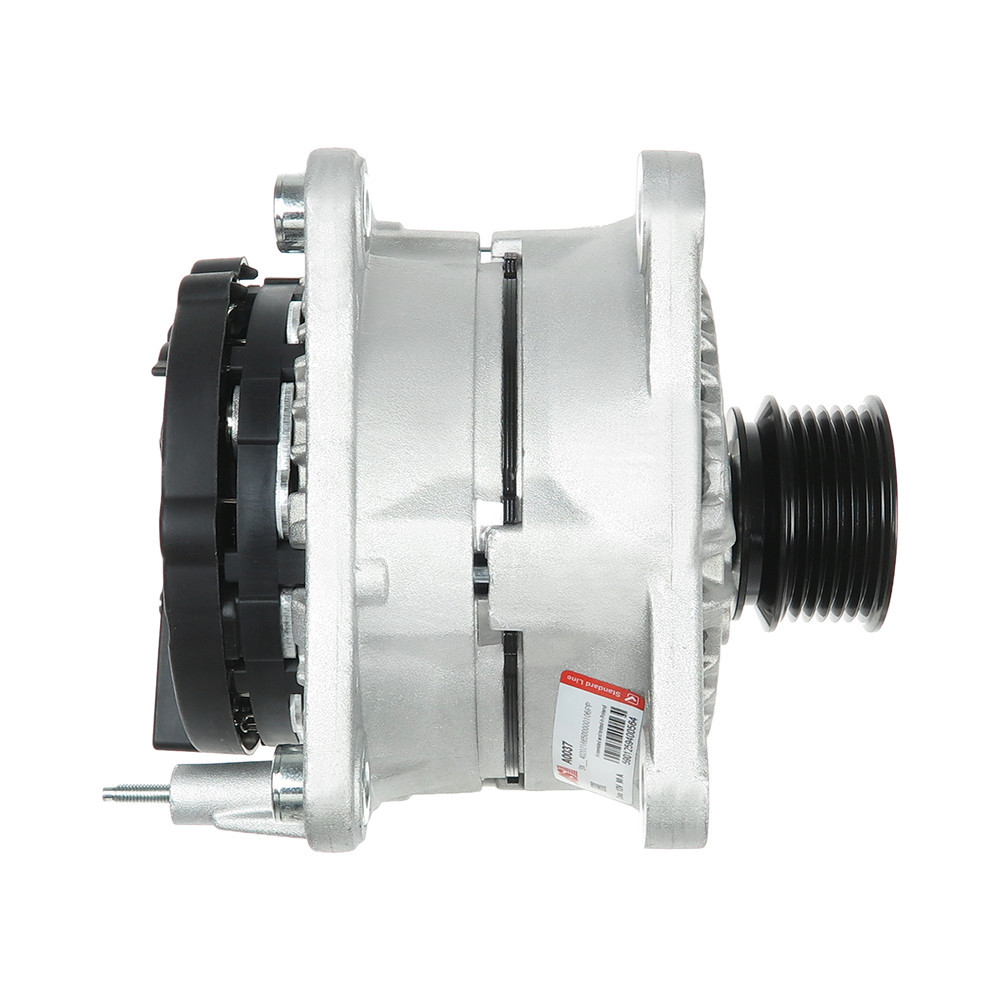

  • Genuine part : no
  • Type of part : Alternator
  • Motorization : LEON (1P1)
  • Can be mounted on : Seat
  • Amperage : 90
  • Number of grooves (pulley) : 6
  • Voltage : 12
  • From : 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

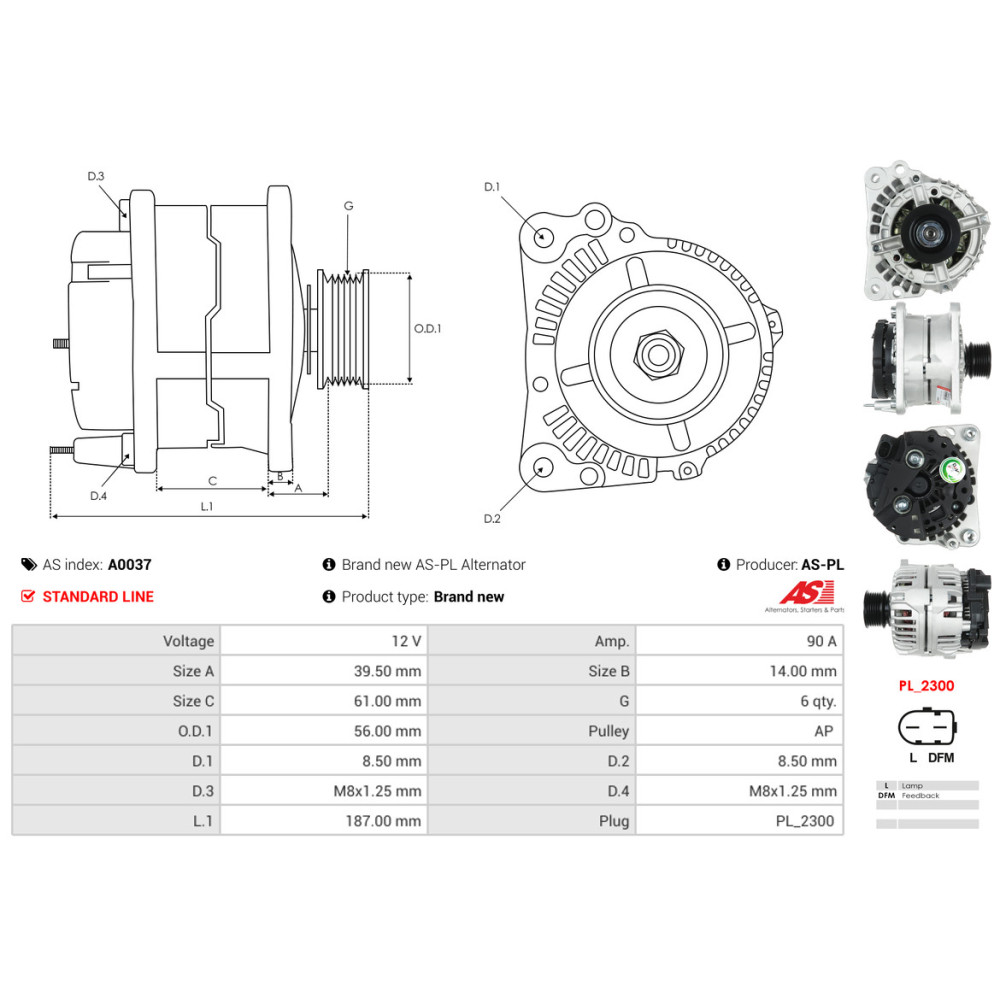

  • L.1 [ mm ] : 187.00
  • Taille A [ mm ] : 39.50
  • Taille B [ mm ] : 14.00
  • D.3 [ mm ] : M8x1.25
  • D.4 [ mm ] : M8x1.25
  • Taille C [ mm ] : 61.00
  • Plug type : PL_2300
  • Pulley : AP
  • D.1 [ mm ] : 8.50
  • D.2 [ mm ] : 8.50
  • O.D.1 [ mm ] : 56.00
  • Type : LEON (1P1) 1.6, LEON (1P1) 1.6 LPG, LEON (1P1) 1.6 MultiFuel, LEON (1P1) 1.9 TDI, LEON (1P1) 2.0 FSI, LEON (1P1) 2.0 TFSI
  • Engine code : BKC, BLR, BLS, BLY, BSE, BSF, BVY, BVZ, BWA, BXE, CCSA, CHGA, CMXA
