Home>Electricity>Alternator>Alternator Opel VECTRA C (Z02)
OPEL VECTRA C (Z02)
Model
Engine
Displacement and power
From To
VECTRA C (Z02) 2.0 16V Turbo (F69)
Z20NET
CCM:
1998
HP:
175
KW:
129
03.2003 => 08.2008
VECTRA C (Z02) 2.0 DTI 16V (F69)
Y20DTH
CCM:
1995
HP:
101
KW:
74
04.2002 => 08.2006
VECTRA C (Z02) 2.2 16V (F69)
Z22SE
CCM:
2198
HP:
147
KW:
108
04.2002 => 12.2008
VECTRA C (Z02) 2.2 DGi (F69)
Z22YH
CCM:
2198
HP:
155
KW:
114
10.2003 => 08.2008
VECTRA C (Z02) 2.2 DTI 16V (F69)
Y22DTR
CCM:
2172
HP:
117
KW:
86
04.2002 => 12.2004
  • Genuine part : no

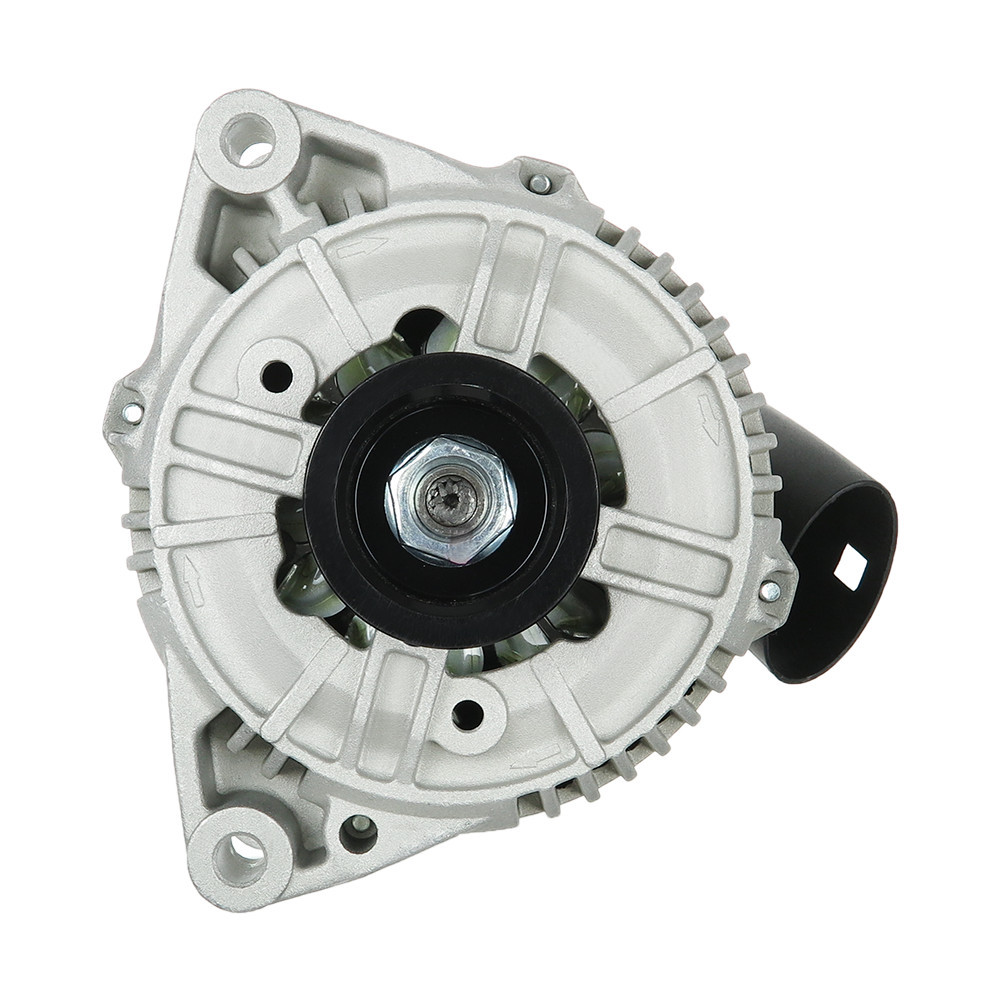

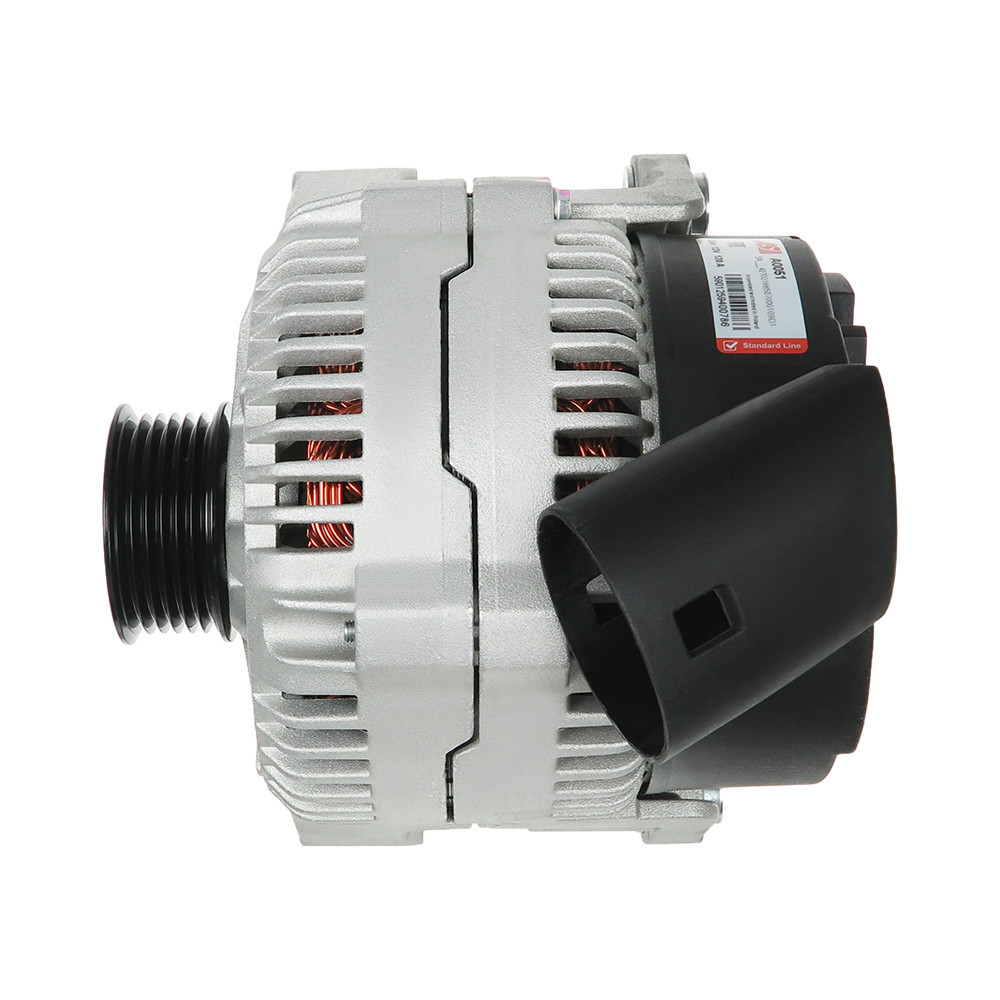

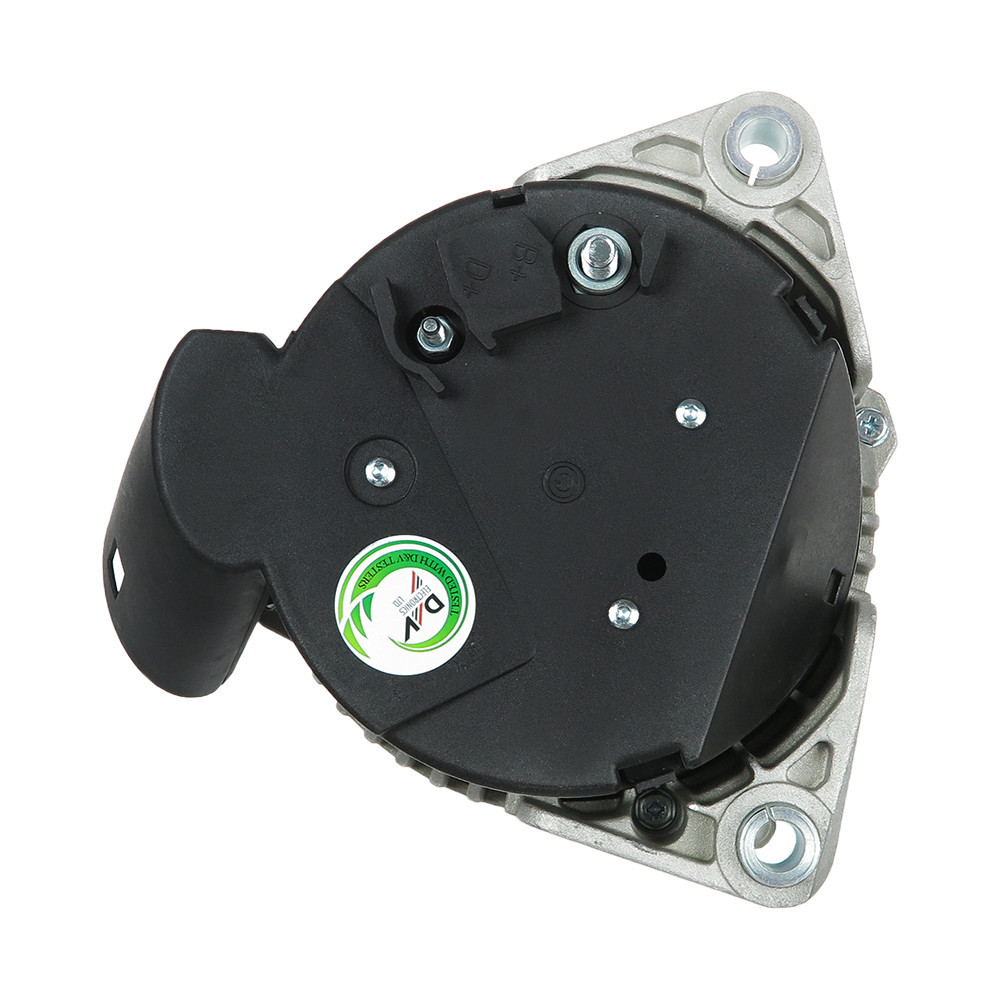

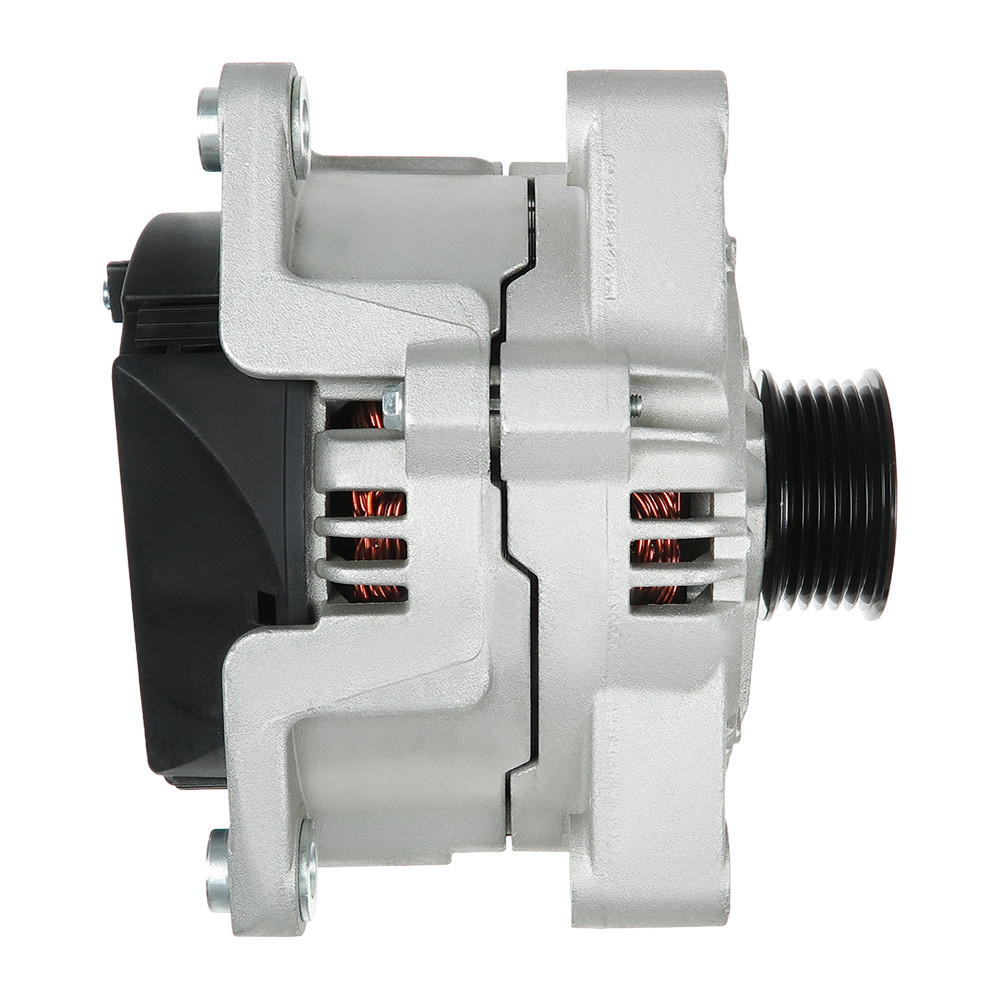

  • Type of part : Alternator
  • Motorization : VECTRA C (Z02)
  • Can be mounted on : Opel
  • Years : 2003, 2004, 2005, 2006, 2007, 2008
  • Amperage : 120
  • Number of grooves (pulley) : 6
  • Voltage : 12

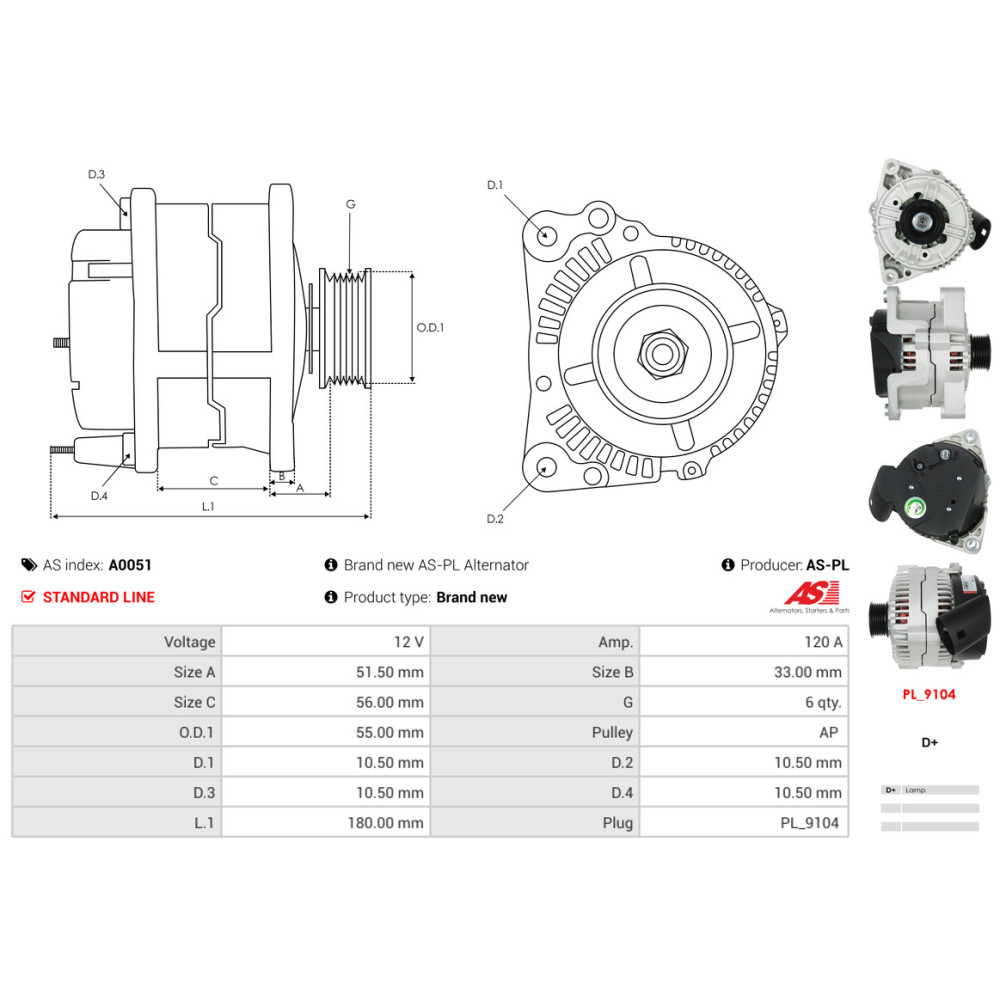

  • L.1 [ mm ] : 180.00
  • Taille A [ mm ] : 51.50
  • Taille B [ mm ] : 33.00
  • D.3 [ mm ] : 10.50
  • D.4 [ mm ] : 10.50
  • Taille C [ mm ] : 56.00
  • Plug type : PL_9104
  • Pulley : AP
  • D.1 [ mm ] : 10.50
  • D.2 [ mm ] : 10.50
  • O.D.1 [ mm ] : 55.00
  • Type : VECTRA C (Z02) 2.0 16V Turbo (F69), VECTRA C (Z02) 2.0 DTI 16V (F69), VECTRA C (Z02) 2.2 16V (F69), VECTRA C (Z02) 2.2 DGi (F69), VECTRA C (Z02) 2.2 DTI 16V (F69)
  • Engine code : Y20DTH, Y22DTR, Z20NET, Z22SE, Z22YH
