DEUTZ-FAHR DX
Model
Engine
Displacement and power
From To
DX 3.30
F3L912
CCM:
2827
HP:
65
KW:
48
01.1978 => 12.1995
DX 3.60
F4L912
CCM:
3770
HP:
65
KW:
47
01.1986 => 12.1995
DX 3.70
F4L912
CCM:
3770
HP:
70
KW:
51
01.1985 => 12.1989
DX 3.80
F4L913
CCM:
4086
HP:
75
KW:
55
01.1985 => 12.1990
DX 3.90
F4L913
CCM:
4086
HP:
75
KW:
55
01.1985 => 12.1989
DX 6.05
F6L912
CCM:
5655
HP:
98
KW:
72
01.1987 => 12.1991
  • Genuine part : no

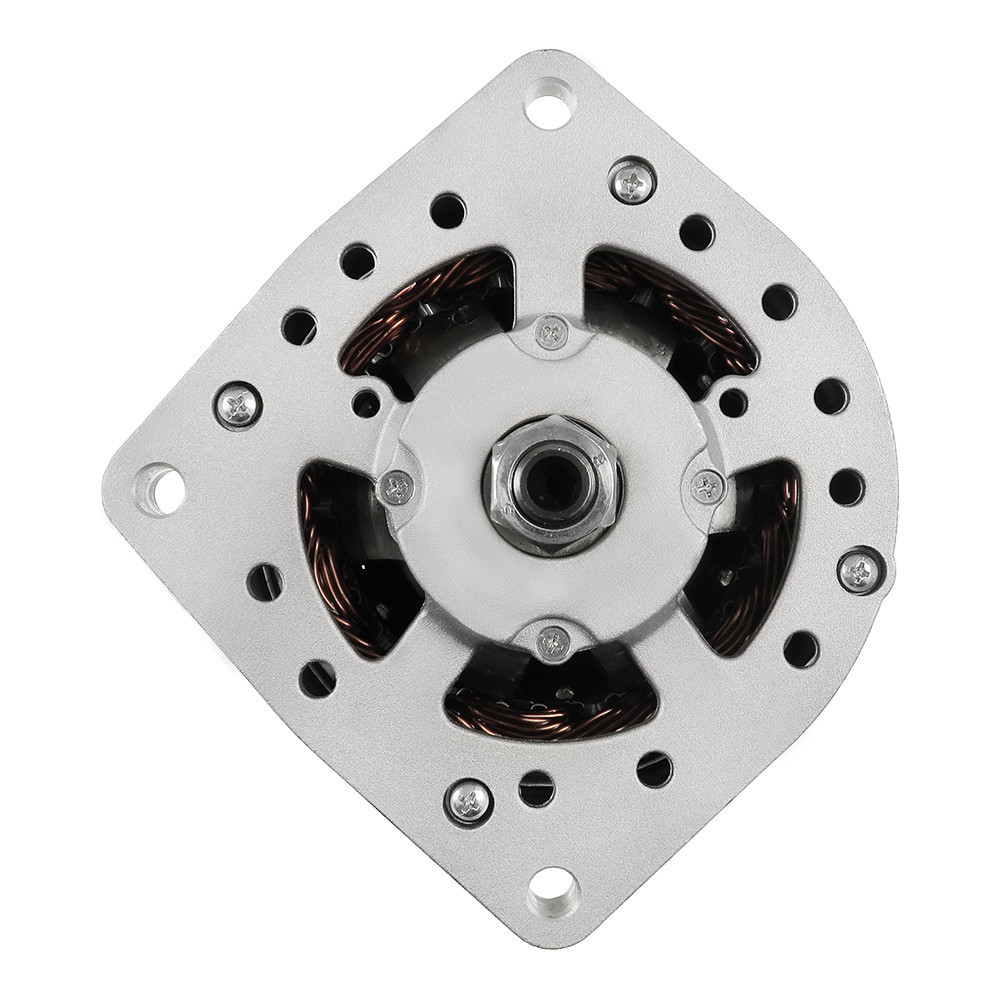

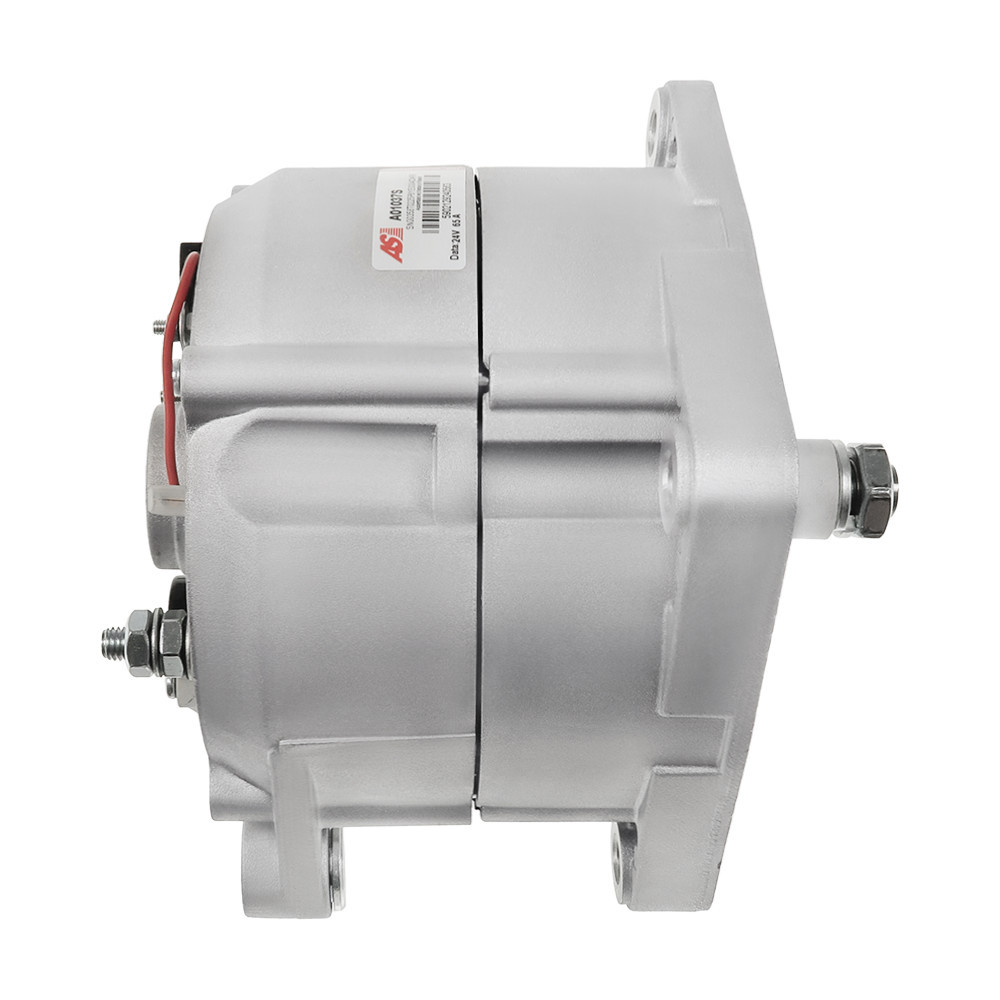

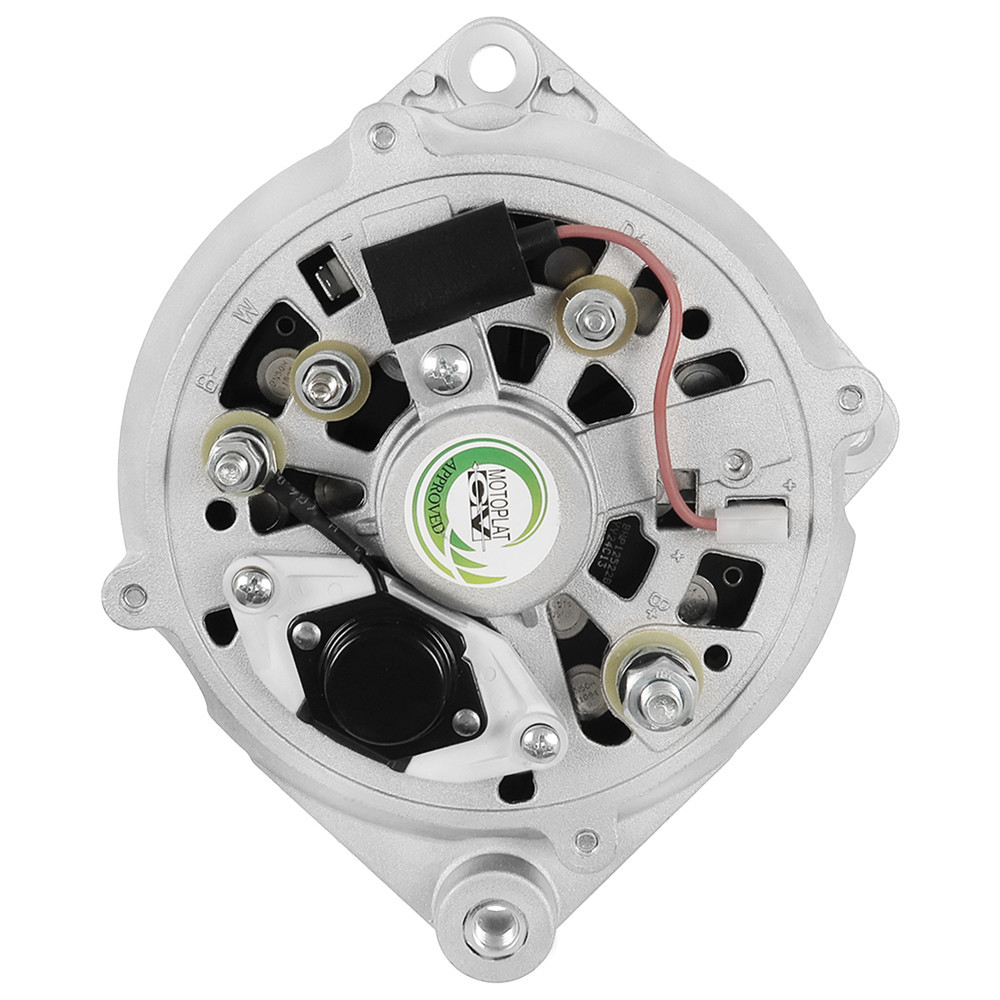

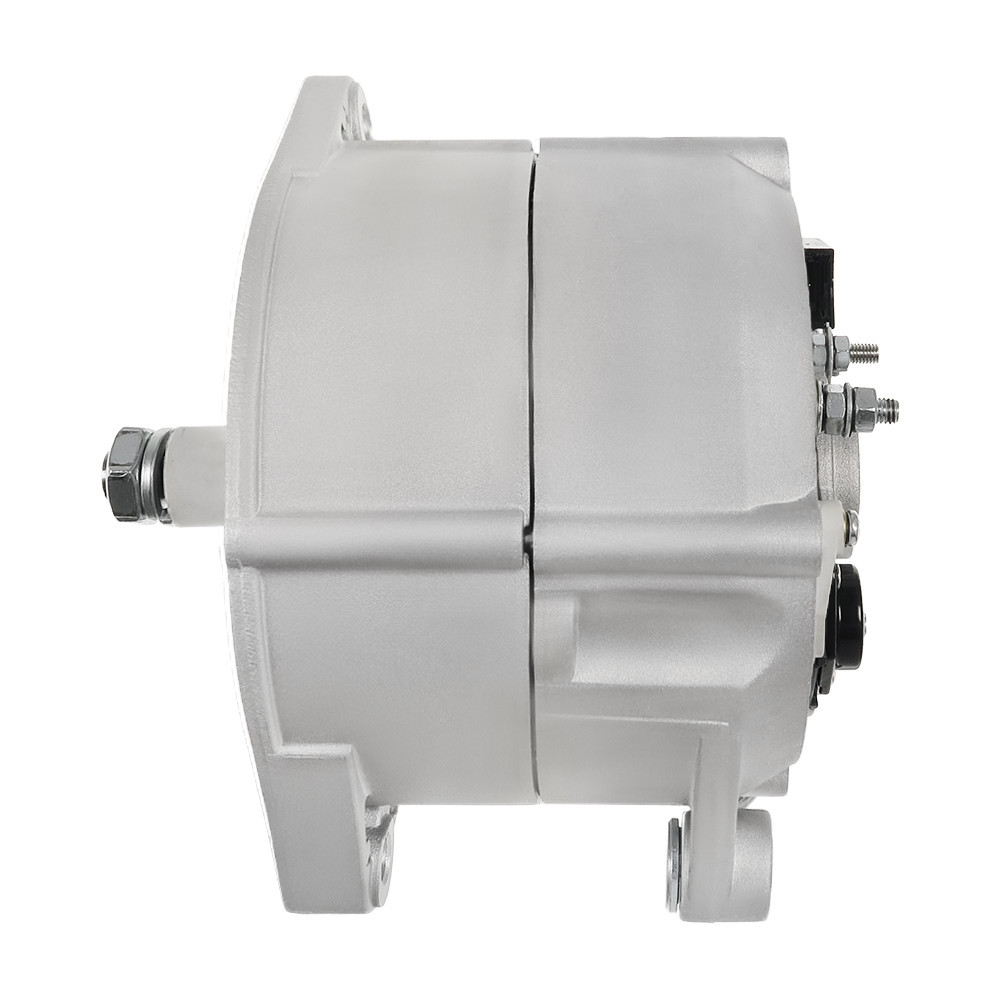

  • Type of part : Alternator
  • Motorization : DX
  • Can be mounted on : Deutz-Fahr
  • Amperage : 65
  • Voltage : 24
  • From : 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
  • Isolated return : Yes

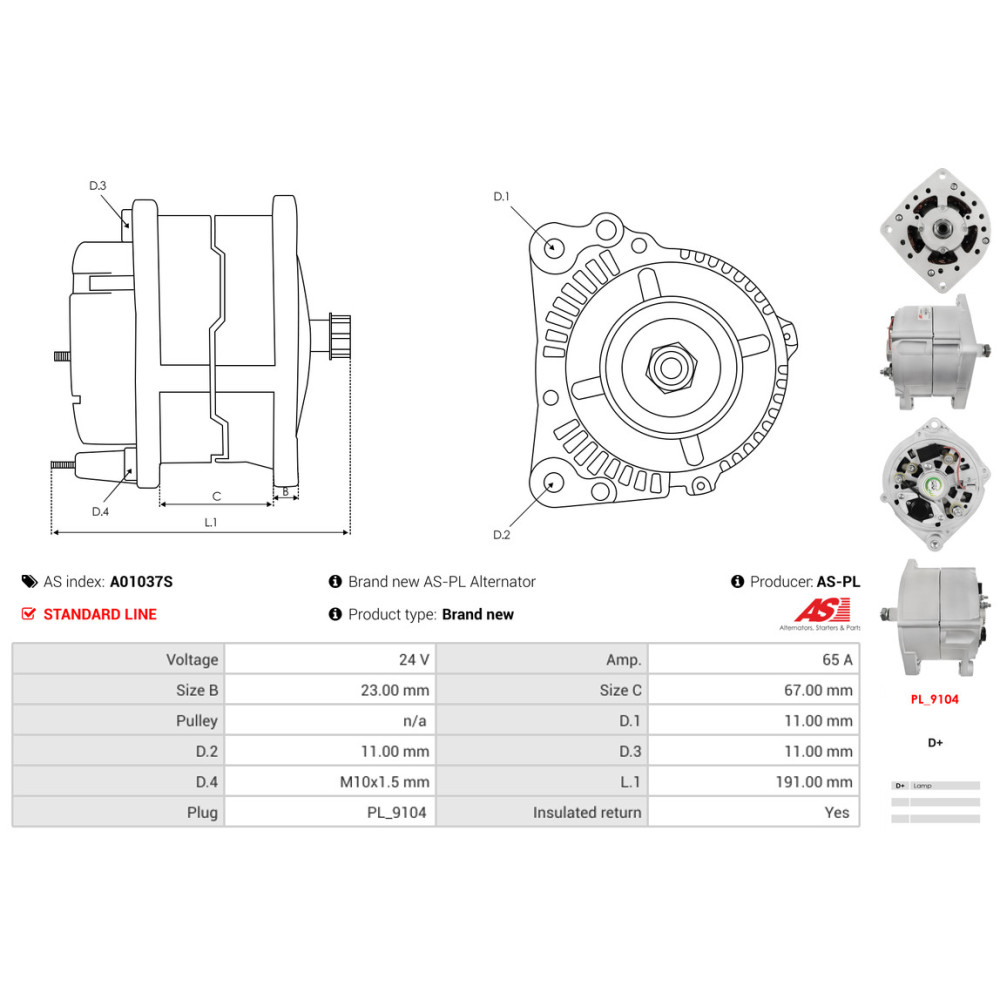

  • L.1 [ mm ] : 191.00
  • Taille B [ mm ] : 23.00
  • D.3 [ mm ] : 11.00
  • D.4 [ mm ] : M10x1.5
  • Taille C [ mm ] : 67.00
  • Plug type : PL_9104
  • Pulley : n/a
  • D.1 [ mm ] : 11.00
  • D.2 [ mm ] : 11.00
  • Type : DX 3.30, DX 3.60, DX 3.70, DX 3.80, DX 3.90, DX 6.05
  • Engine code : F3L912, F4L912, F4L913, F6L912
