Alternator Volvo 940 (944)

Reference:
- 0120469784 (BOSCH)

This product is no longer in stock

Application
Data sheet

VOLVO 940 (944)

Model

Engine

Displacement and power

From To

940 (944) 2.0

B200E

CCM:

1986

HP:

121

KW:

09.1990 => 09.1993

940 (944) 2.0

B200F

CCM:

1986

HP:

112

KW:

01.1992 => 07.1994

940 (944) 2.0

B200G

CCM:

1986

HP:

121

KW:

09.1990 => 09.1993

940 (944) 2.0 Turbo

B200FT

CCM:

1986

HP:

155

KW:

114

08.1990 => 12.1994

940 (944) 2.3

B230FB

CCM:

2316

HP:

131

KW:

08.1990 => 12.1994

940 (944) 2.3

B230FD

CCM:

2316

HP:

116

KW:

08.1992 => 07.1994

940 (944) 2.3

B230FK

CCM:

2316

HP:

135

KW:

05.1991 => 03.1995

940 (944) 2.3

B230FT

CCM:

2316

HP:

160

KW:

118

09.1990 => 09.1993

940 (944) 2.3

B230G

CCM:

2316

HP:

131

KW:

08.1990 => 12.1994

940 (944) 2.3 Turbo

B230FT

CCM:

2316

HP:

165

KW:

121

08.1990 => 07.1994

940 (944) 2.3 Turbo

B230FT+

CCM:

2316

HP:

190

KW:

140

08.1991 => 07.1993

940 (944) 2.4 D

D24

CCM:

2383

HP:

KW:

08.1990 => 12.1994

940 (944) 2.4 TD Intercooler

D24TIC

CCM:

2383

HP:

122

KW:

08.1990 => 12.1994

940 (944) 2.4 Turbo Diesel

D24T

CCM:

2383

HP:

109

KW:

08.1990 => 12.1994

Genuine part : no
Type of part : Alternator
Motorization : 940 (944)
Can be mounted on : Volvo
Years : 1990, 1991, 1992, 1993

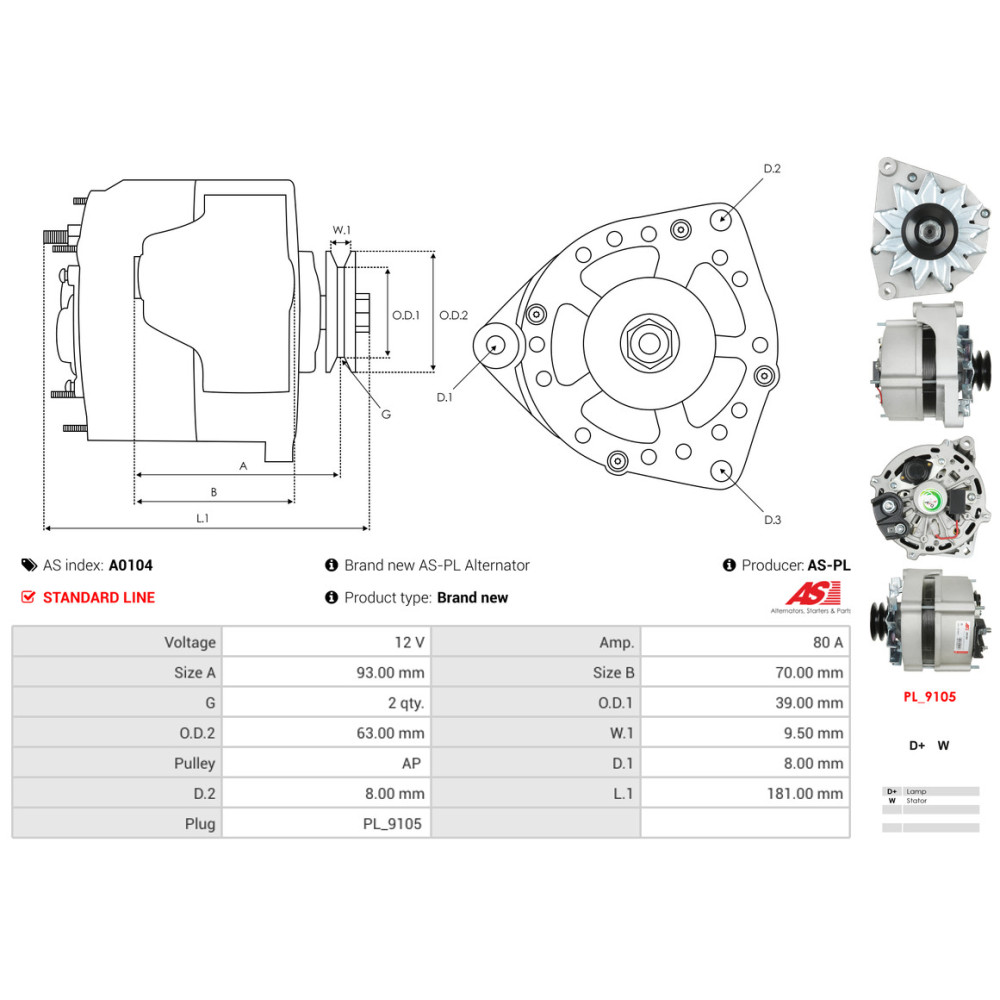

Amperage : 80
Number of grooves (pulley) : 2
Voltage : 12
L.1 [ mm ] : 181.00
Taille A [ mm ] : 93.00
Taille B [ mm ] : 70.00
O.D.2 [ mm ] : 63.00
W.1 [ mm ] : 9.50
Plug type : PL_9105
Pulley : AP
D.1 [ mm ] : 8.00
D.2 [ mm ] : 8.00
O.D.1 [ mm ] : 39.00
Type : 940 (944) 2.0, 940 (944) 2.0 Turbo, 940 (944) 2.3, 940 (944) 2.3 Turbo, 940 (944) 2.4 D, 940 (944) 2.4 TD Intercooler, 940 (944) 2.4 Turbo Diesel
Engine code : B200E, B200F, B200FT, B200G, B230FB, B230FD, B230FK, B230FT, B230FT+, B230G, D24, D24T, D24TIC
