TOYOTA COROLLA Estate (_E10_)
Model
Engine
Displacement and power
From To
COROLLA Estate (_E10_) 1.6 Si (AE101_, AE101R)
4A-FE
CCM:
1587
HP:
114
KW:
84
07.1992 => 04.1997
COROLLA Estate (_E10_) 1.8 (AE103)
7A-FE
CCM:
1762
HP:
110
KW:
81
09.1992 => 04.1997
COROLLA Estate (_E10_) 1.8 16V 4WD (AE103_, AE103)
7A-FE
CCM:
1762
HP:
110
KW:
81
09.1995 => 04.1997
  • Genuine part : no
  • Type of part : Alternator
  • Motorization : COROLLA Estate (_E10_)
  • Can be mounted on : Toyota
  • Years : 1992, 1993, 1994, 1995, 1996, 1997
  • Amperage : 70
  • Number of grooves (pulley) : 5
  • Voltage : 12

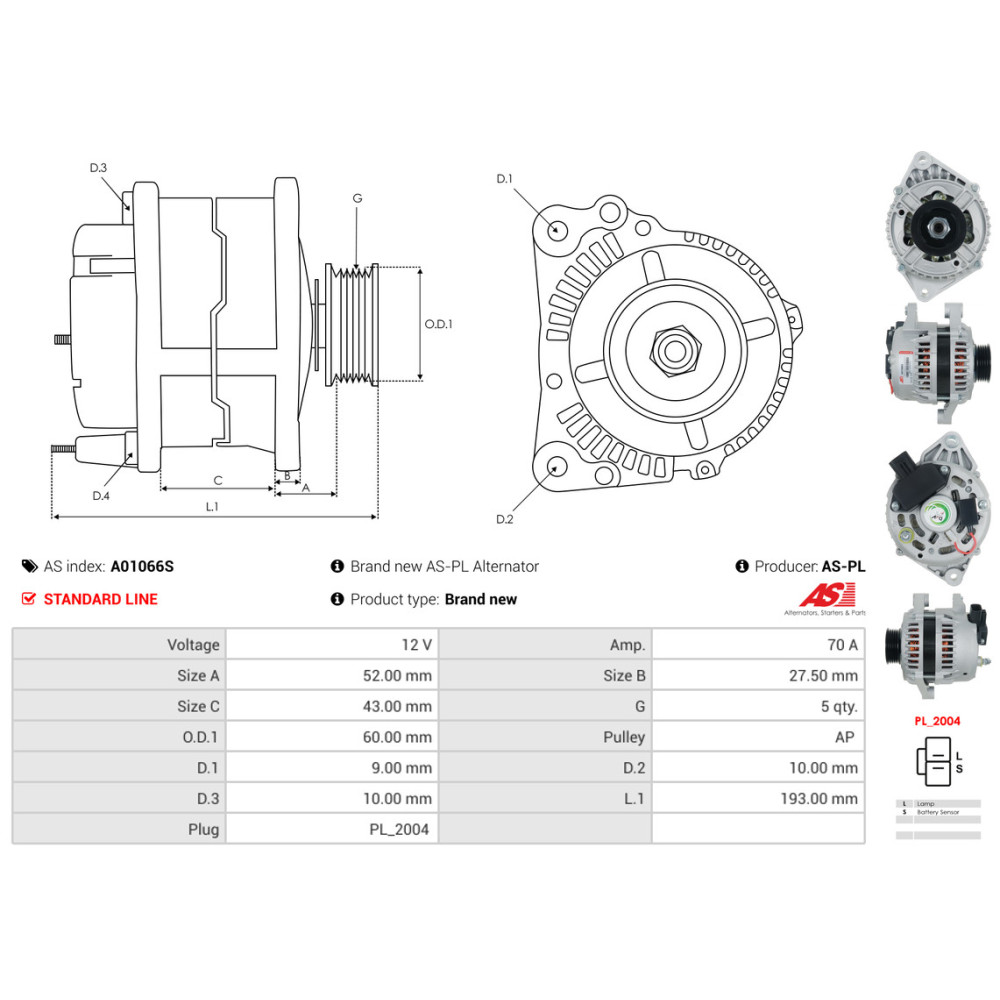

  • L.1 [ mm ] : 193.00
  • Taille A [ mm ] : 52.00
  • Taille B [ mm ] : 27.50
  • D.3 [ mm ] : 10.00
  • Taille C [ mm ] : 43.00
  • Plug type : PL_2004
  • Pulley : AP
  • D.1 [ mm ] : 9.00
  • D.2 [ mm ] : 10.00
  • O.D.1 [ mm ] : 60.00
  • Type : COROLLA Estate (_E10_) 1.6 Si (AE101_, AE101R), COROLLA Estate (_E10_) 1.8 (AE103), COROLLA Estate (_E10_) 1.8 16V 4WD (AE103_, AE103)
  • Engine code : 4A-FE, 7A-FE
