Home>Electricity>Alternator>Alternator Audi A5 (8T3)
AUDI A5 (8T3)
Model
Engine
Displacement and power
From To
A5 (8T3) 1.8 TFSI
CABD
CCM:
1798
HP:
170
KW:
125
10.2007 => 01.2017
A5 (8T3) 1.8 TFSI
CDHB
CCM:
1798
HP:
160
KW:
118
05.2009 => 09.2011
A5 (8T3) 1.8 TFSI
CJEB
CCM:
1798
HP:
170
KW:
125
10.2007 => 01.2017
A5 (8T3) 2.0 TFSI
CDNB
CCM:
1984
HP:
180
KW:
132
11.2008 => 03.2012
A5 (8T3) 2.0 TFSI
CDNC
CCM:
1984
HP:
211
KW:
155
06.2008 => 11.2013
A5 (8T3) 2.0 TFSI quattro
CAEB
CCM:
1984
HP:
211
KW:
155
06.2008 => 01.2017
A5 (8T3) 2.0 TFSI quattro
CDNC
CCM:
1984
HP:
211
KW:
155
06.2008 => 01.2017
A5 (8T3) 2.0 TFSI quattro
CPMA
CCM:
1984
HP:
211
KW:
155
06.2008 => 01.2017
A5 (8T3) 3.2 FSI
CALA
CCM:
3197
HP:
265
KW:
195
06.2007 => 03.2012
  • Type of part : Alternator
  • Motorization : A5 (8T3)
  • Can be mounted on : Audi
  • Years : 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
  • Amperage : 140
  • Number of grooves (pulley) : 6
  • Voltage : 12

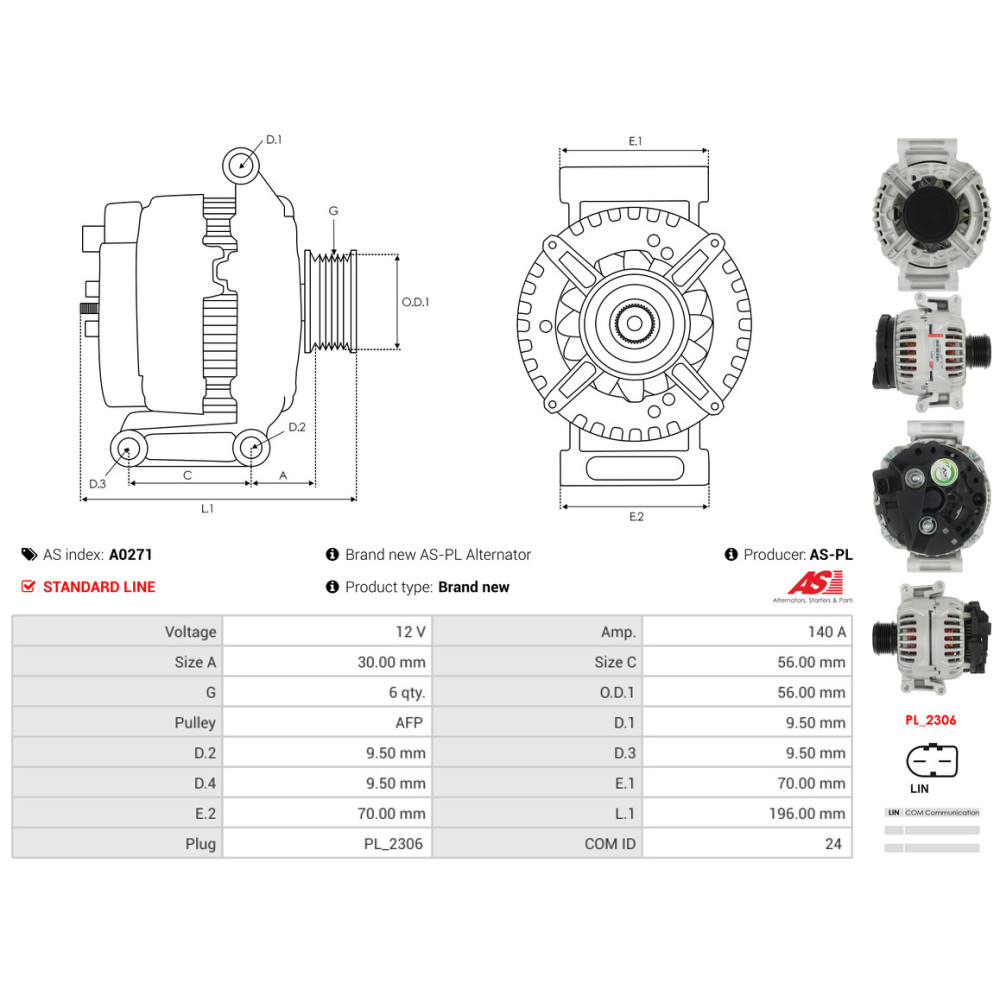

  • L.1 [ mm ] : 196.00
  • Taille A [ mm ] : 30.00
  • D.3 [ mm ] : 9.50
  • D.4 [ mm ] : 9.50
  • E.1 [ mm ] : 70.00
  • E.2 [ mm ] : 70.00
  • Taille C [ mm ] : 56.00
  • COM ID : 24
  • Plug type : PL_2306
  • Pulley : AFP
  • D.1 [ mm ] : 9.50
  • D.2 [ mm ] : 9.50
  • O.D.1 [ mm ] : 56.00
  • Type : A5 (8T3) 1.8 TFSI, A5 (8T3) 2.0 TFSI, A5 (8T3) 2.0 TFSI quattro, A5 (8T3) 3.2 FSI
  • Engine code : CABD, CAEB, CALA, CDHB, CDNB, CDNC, CJEB, CPMA
  • Genuine part : no
