Alternator Audi A4 B5 Avant (8D5)

Reference:
- 0124515025 (BOSCH)

Application
Data sheet

AUDI A4 B5 Avant (8D5)

Model

Engine

Displacement and power

From To

A4 B5 Avant (8D5) 1.6

ADP

CCM:

1595

HP:

100

KW:

11.1994 => 09.2001

A4 B5 Avant (8D5) 1.6

AHL

CCM:

1595

HP:

100

KW:

11.1994 => 09.2001

A4 B5 Avant (8D5) 1.6

ALZ

CCM:

1595

HP:

102

KW:

07.2000 => 09.2001

A4 B5 Avant (8D5) 1.6

ANA

CCM:

1595

HP:

100

KW:

11.1994 => 09.2001

A4 B5 Avant (8D5) 1.6

ARM

CCM:

1595

HP:

100

KW:

11.1994 => 09.2001

A4 B5 Avant (8D5) 1.8

ADR

CCM:

1781

HP:

125

KW:

02.1996 => 09.2001

A4 B5 Avant (8D5) 1.8

AFY

CCM:

1781

HP:

115

KW:

07.1995 => 09.2001

A4 B5 Avant (8D5) 1.8

APT

CCM:

1781

HP:

125

KW:

02.1996 => 09.2001

A4 B5 Avant (8D5) 1.8

ARG

CCM:

1781

HP:

125

KW:

02.1996 => 09.2001

A4 B5 Avant (8D5) 1.8

AVV

CCM:

1781

HP:

125

KW:

02.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 quattro

ADR

CCM:

1781

HP:

125

KW:

01.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 quattro

AFY

CCM:

1781

HP:

115

KW:

07.1995 => 09.2001

A4 B5 Avant (8D5) 1.8 quattro

APT

CCM:

1781

HP:

125

KW:

01.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 quattro

ARG

CCM:

1781

HP:

125

KW:

01.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T

AEB

CCM:

1781

HP:

150

KW:

110

03.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T

AJL

CCM:

1781

HP:

180

KW:

132

12.1997 => 09.2001

A4 B5 Avant (8D5) 1.8 T

ANB

CCM:

1781

HP:

150

KW:

110

03.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T

APU

CCM:

1781

HP:

150

KW:

110

03.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T

ARK

CCM:

1781

HP:

150

KW:

110

03.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T

AWT

CCM:

1781

HP:

150

KW:

110

03.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T quattro

AEB

CCM:

1781

HP:

150

KW:

110

01.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T quattro

AJL

CCM:

1781

HP:

180

KW:

132

12.1997 => 09.2001

A4 B5 Avant (8D5) 1.8 T quattro

ANB

CCM:

1781

HP:

150

KW:

110

01.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T quattro

APU

CCM:

1781

HP:

150

KW:

110

01.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T quattro

ARK

CCM:

1781

HP:

150

KW:

110

01.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T quattro

ATW

CCM:

1781

HP:

150

KW:

110

01.1996 => 09.2001

A4 B5 Avant (8D5) 1.8 T quattro

AWT

CCM:

1781

HP:

150

KW:

110

01.1996 => 09.2001

A4 B5 Avant (8D5) 2.8

ATX

CCM:

2771

HP:

190

KW:

140

03.1999 => 09.2000

A4 B5 Avant (8D5) RS4 quattro

ASJ

CCM:

2671

HP:

380

KW:

280

05.2000 => 09.2001

A4 B5 Avant (8D5) RS4 quattro

AZR

CCM:

2671

HP:

380

KW:

280

05.2000 => 09.2001

Type of part : Alternator
Motorization : A4 B5 Avant (8D5)
Can be mounted on : Audi
Years : 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Amperage : 120
Number of grooves (pulley) : 5
Voltage : 12

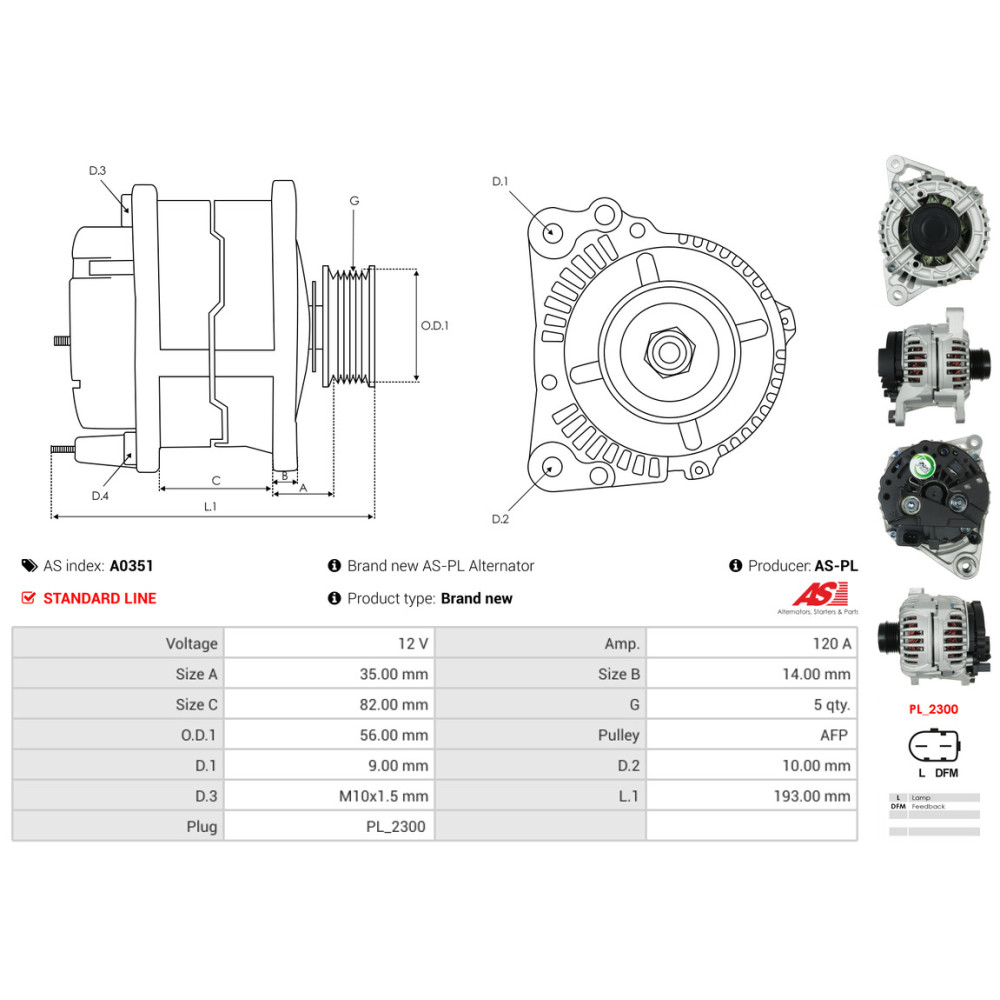

L.1 [ mm ] : 193.00
Taille A [ mm ] : 35.00
Taille B [ mm ] : 14.00
D.3 [ mm ] : M10x1.5
Taille C [ mm ] : 82.00
Plug type : PL_2300
Pulley : AFP
D.1 [ mm ] : 9.00
D.2 [ mm ] : 10.00
O.D.1 [ mm ] : 56.00
Type : A4 B5 Avant (8D5) 1.6, A4 B5 Avant (8D5) 1.8, A4 B5 Avant (8D5) 1.8 quattro, A4 B5 Avant (8D5) 1.8 T, A4 B5 Avant (8D5) 1.8 T quattro, A4 B5 Avant (8D5) 2.8, A4 B5 Avant (8D5) RS4 quattro
Engine code : ADP, ADR, AEB, AFY, AHL, AJL, ALZ, ANA, ANB, APT, APU, ARG, ARK, ARM, ASJ, ATW, ATX, AVV, AWT, AZR
Genuine part : no
