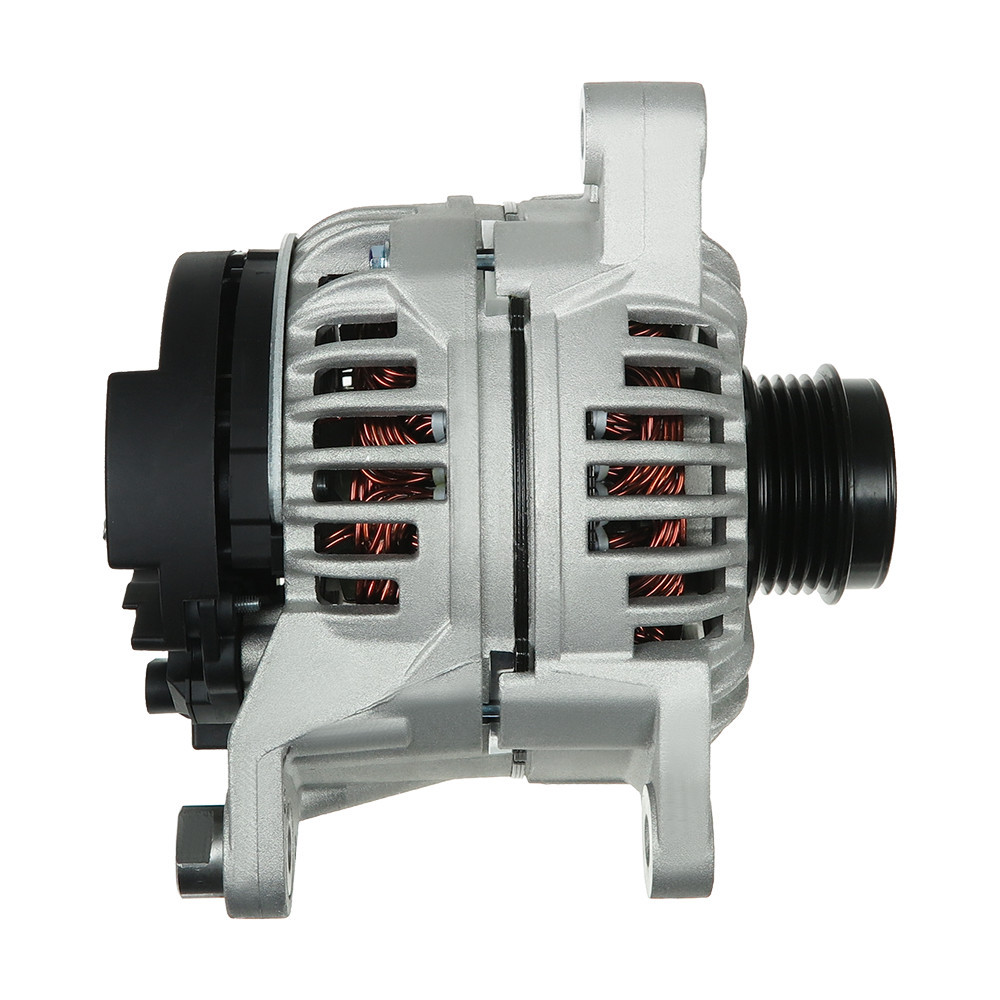

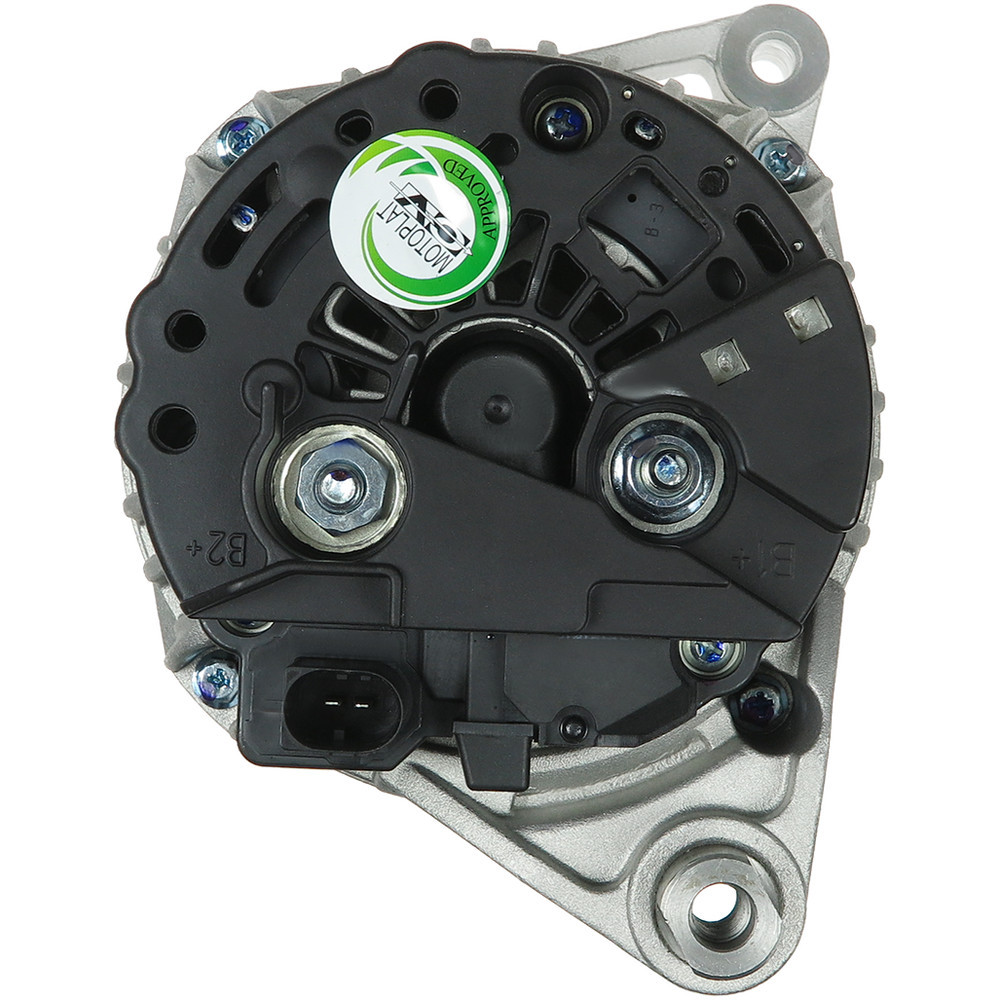

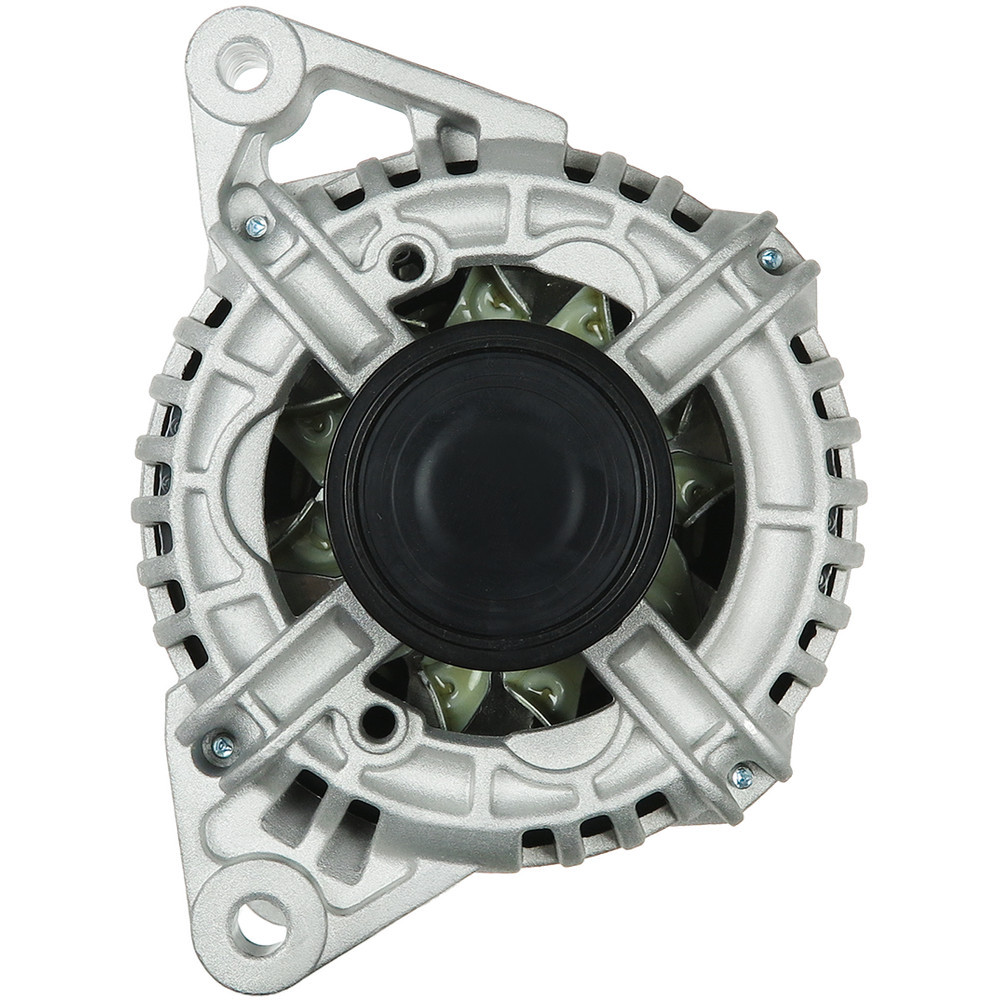

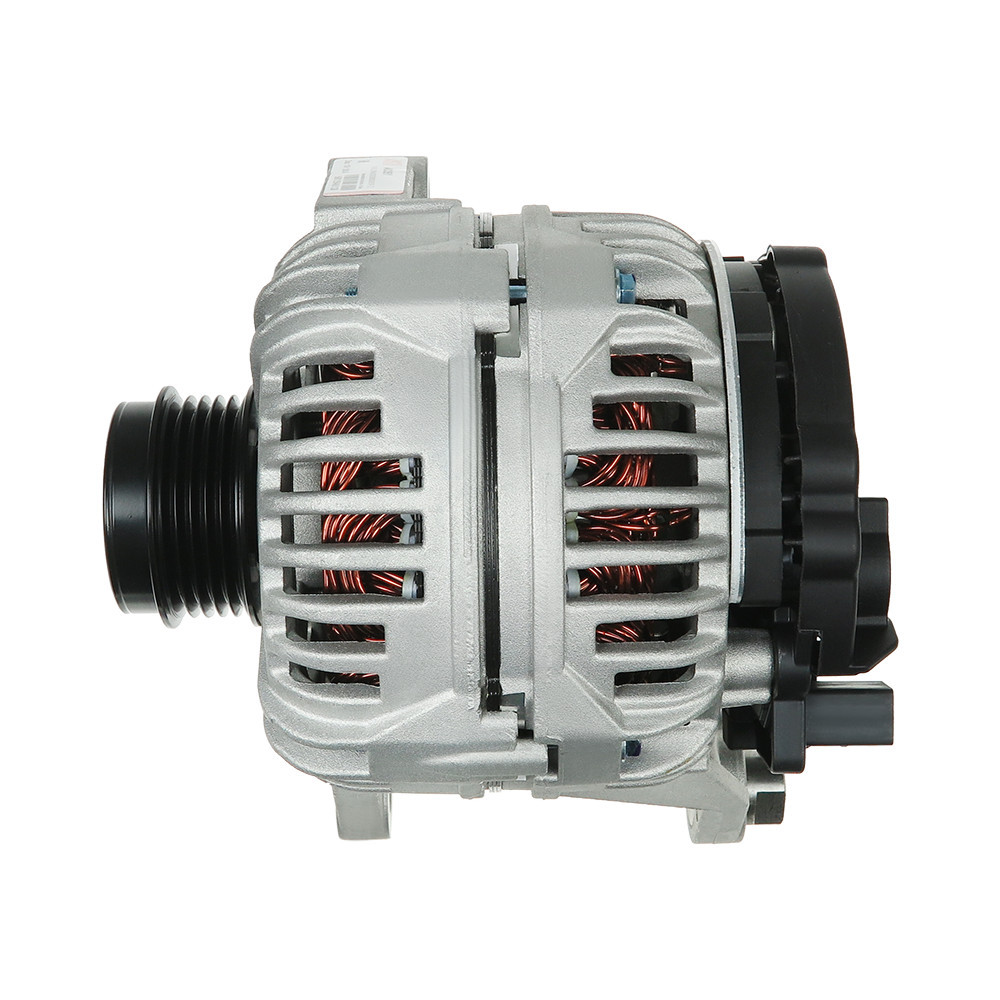

Alternator Audi A6 C5 (4B2, 4B4)

Reference:
- 0124515025 (BOSCH)

Application
Data sheet

AUDI A6 C5 (4B2, 4B4)

Model

Engine

Displacement and power

From To

A6 C5 (4B2, 4B4) 1.8

AFY

CCM:

1781

HP:

116

KW:

05.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8

AJP

CCM:

1781

HP:

125

KW:

07.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8

AQE

CCM:

1781

HP:

125

KW:

07.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8

ARH

CCM:

1781

HP:

125

KW:

07.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T

AEB

CCM:

1781

HP:

150

KW:

110

01.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T

AJL

CCM:

1781

HP:

180

KW:

132

12.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T

ANB

CCM:

1781

HP:

150

KW:

110

01.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T

APU

CCM:

1781

HP:

150

KW:

110

01.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T

ARK

CCM:

1781

HP:

150

KW:

110

01.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T

AWT

CCM:

1781

HP:

150

KW:

110

01.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T quattro

AEB

CCM:

1781

HP:

150

KW:

110

02.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T quattro

AJL

CCM:

1781

HP:

180

KW:

132

12.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T quattro

ANB

CCM:

1781

HP:

150

KW:

110

02.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T quattro

APU

CCM:

1781

HP:

150

KW:

110

02.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T quattro

ARK

CCM:

1781

HP:

150

KW:

110

02.1997 => 01.2005

A6 C5 (4B2, 4B4) 1.8 T quattro

AWT

CCM:

1781

HP:

150

KW:

110

02.1997 => 01.2005

A6 C5 (4B2, 4B4) 2.0

ALT

CCM:

1984

HP:

130

KW:

08.2001 => 01.2005

A6 C5 (4B2, 4B4) 4.2 quattro

ARS

CCM:

4172

HP:

299

KW:

220

11.1998 => 01.2005

A6 C5 (4B2, 4B4) 4.2 quattro

ART

CCM:

4172

HP:

299

KW:

220

11.1998 => 01.2005

A6 C5 (4B2, 4B4) 4.2 quattro

ASG

CCM:

4172

HP:

299

KW:

220

11.1998 => 01.2005

A6 C5 (4B2, 4B4) 4.2 quattro

AWN

CCM:

4172

HP:

299

KW:

220

11.1998 => 01.2005

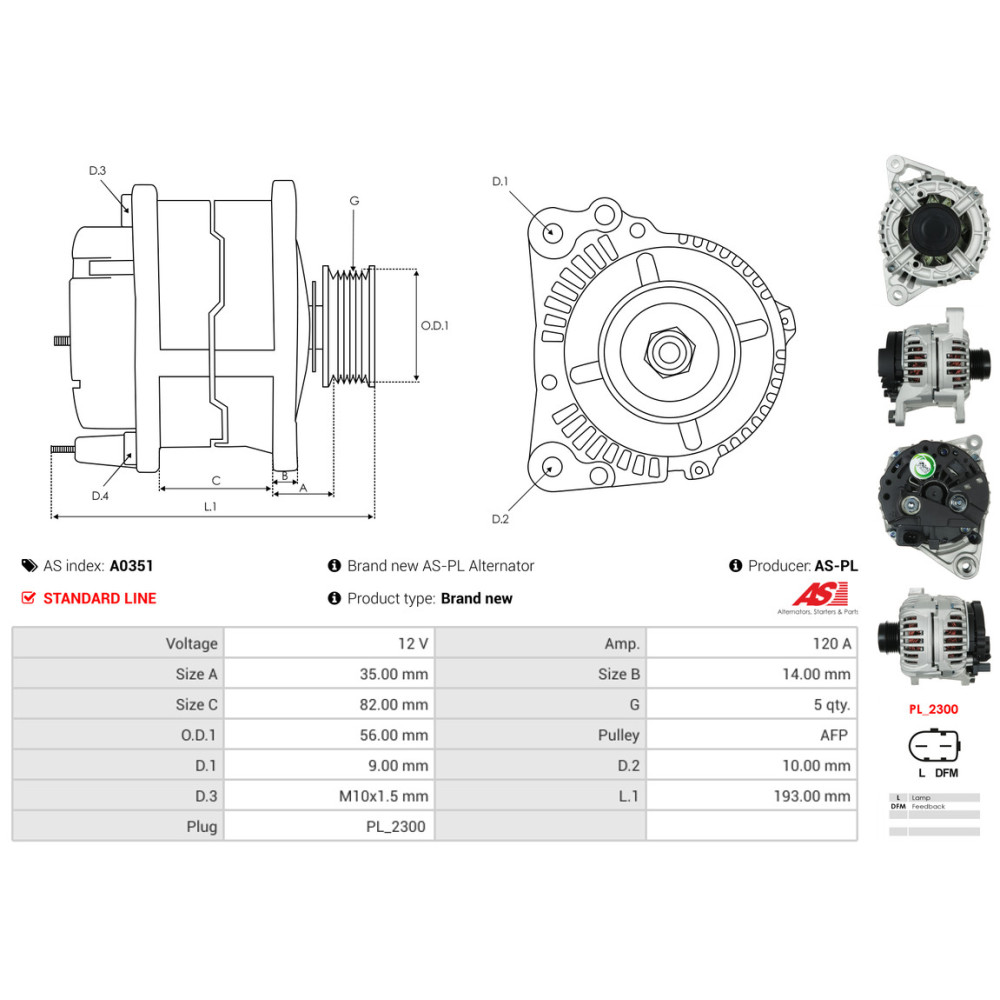

Type of part : Alternator
Motorization : A6 C5 (4B2, 4B4)
Can be mounted on : Audi
Years : 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Amperage : 120
Number of grooves (pulley) : 5
Voltage : 12
L.1 [ mm ] : 193.00
Taille A [ mm ] : 35.00
Taille B [ mm ] : 14.00
D.3 [ mm ] : M10x1.5
Taille C [ mm ] : 82.00
Plug type : PL_2300
Pulley : AFP
D.1 [ mm ] : 9.00
D.2 [ mm ] : 10.00
O.D.1 [ mm ] : 56.00
Type : A6 C5 (4B2, 4B4) 1.8, A6 C5 (4B2, 4B4) 1.8 T, A6 C5 (4B2, 4B4) 1.8 T quattro, A6 C5 (4B2, 4B4) 2.0, A6 C5 (4B2, 4B4) 4.2 quattro
Engine code : AEB, AFY, AJL, AJP, ALT, ANB, APU, AQE, ARH, ARK, ARS, ART, ASG, AWN, AWT
Genuine part : no
