AUDI A1 (8X1, 8XK)
Model
Engine
Displacement and power
From To
A1 (8X1, 8XK) 1.4 TFSI
CAVG
CCM:
1390
HP:
185
KW:
136
01.2011 => 04.2015
A1 (8X1, 8XK) 1.4 TFSI
CAXA
CCM:
1390
HP:
122
KW:
90
05.2010 => 04.2015
A1 (8X1, 8XK) 1.4 TFSI
CNVA
CCM:
1390
HP:
122
KW:
90
05.2010 => 04.2015
A1 (8X1, 8XK) 1.4 TFSI
CTHG
CCM:
1390
HP:
185
KW:
136
01.2011 => 04.2015

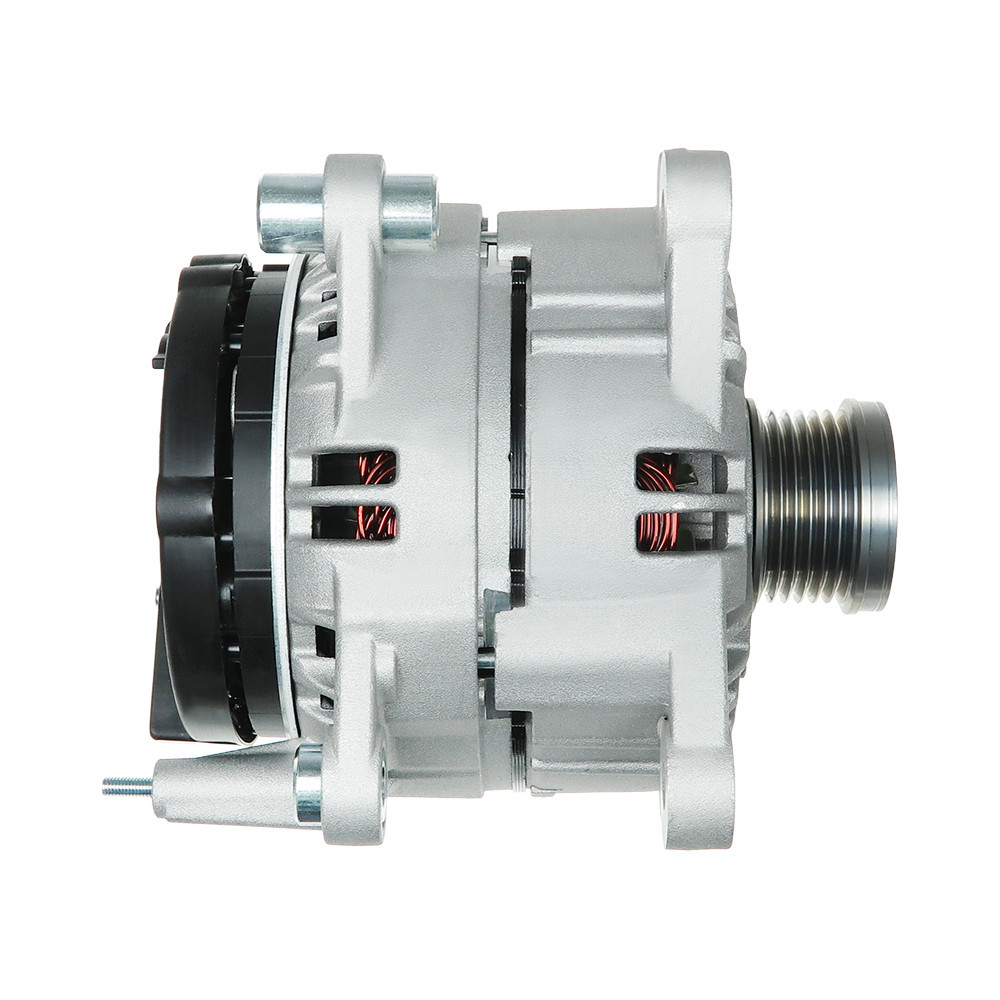

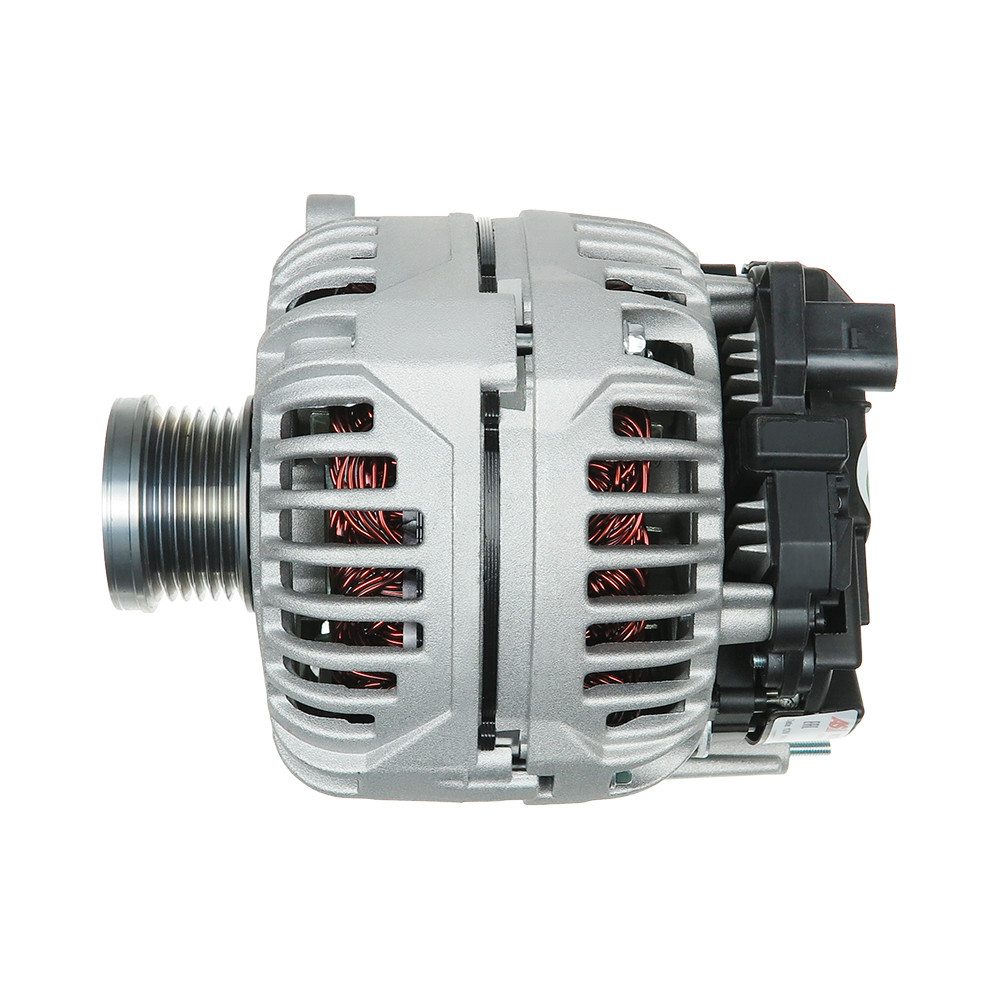

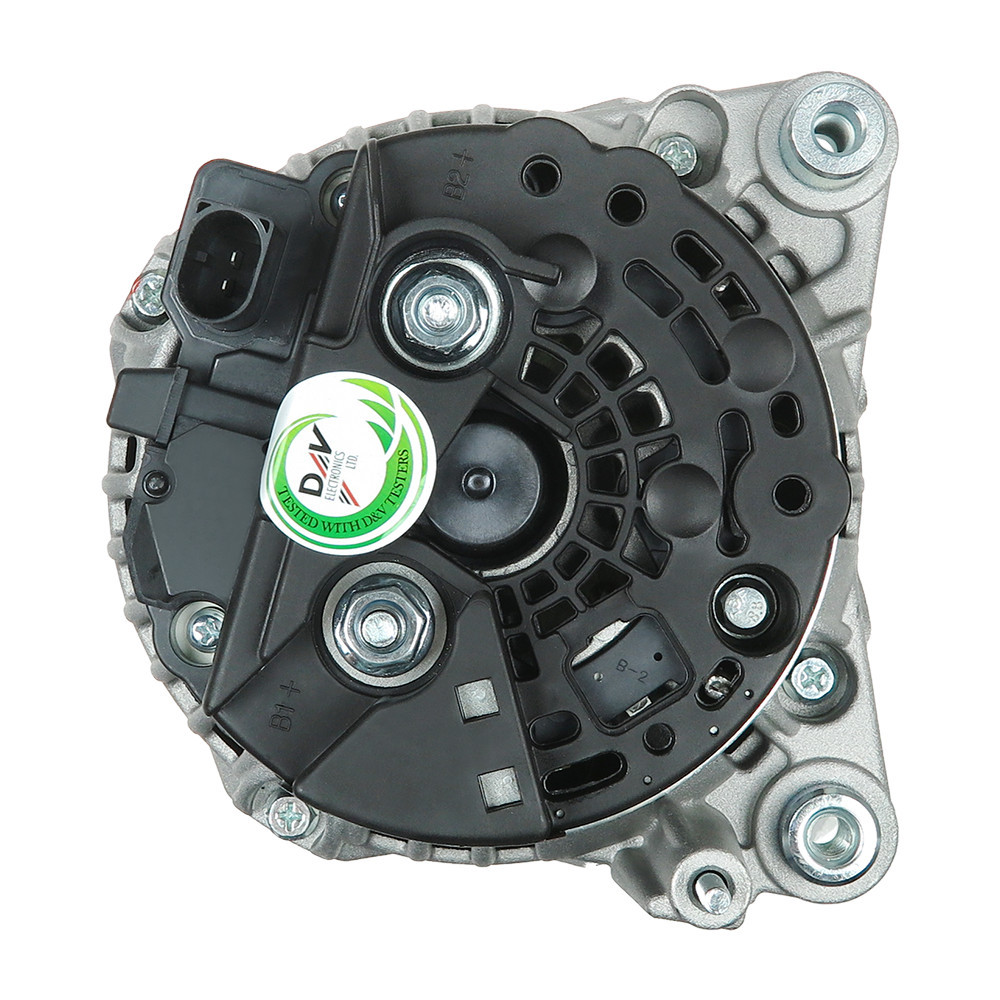

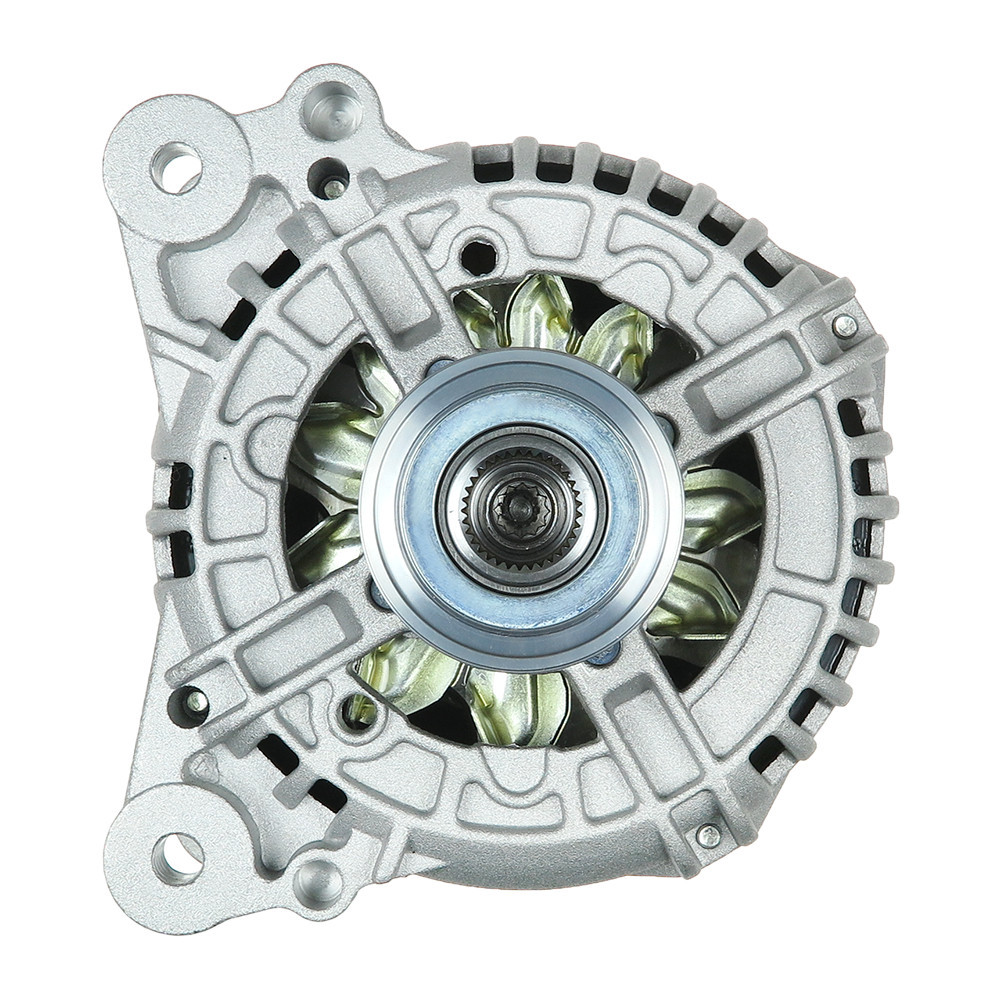

  • Type of part : Alternator
  • Motorization : A1 (8X1, 8XK)
  • Can be mounted on : Audi
  • Amperage : 140
  • Number of grooves (pulley) : 6
  • Voltage : 12
  • From : 2011, 2012, 2013, 2014, 2015

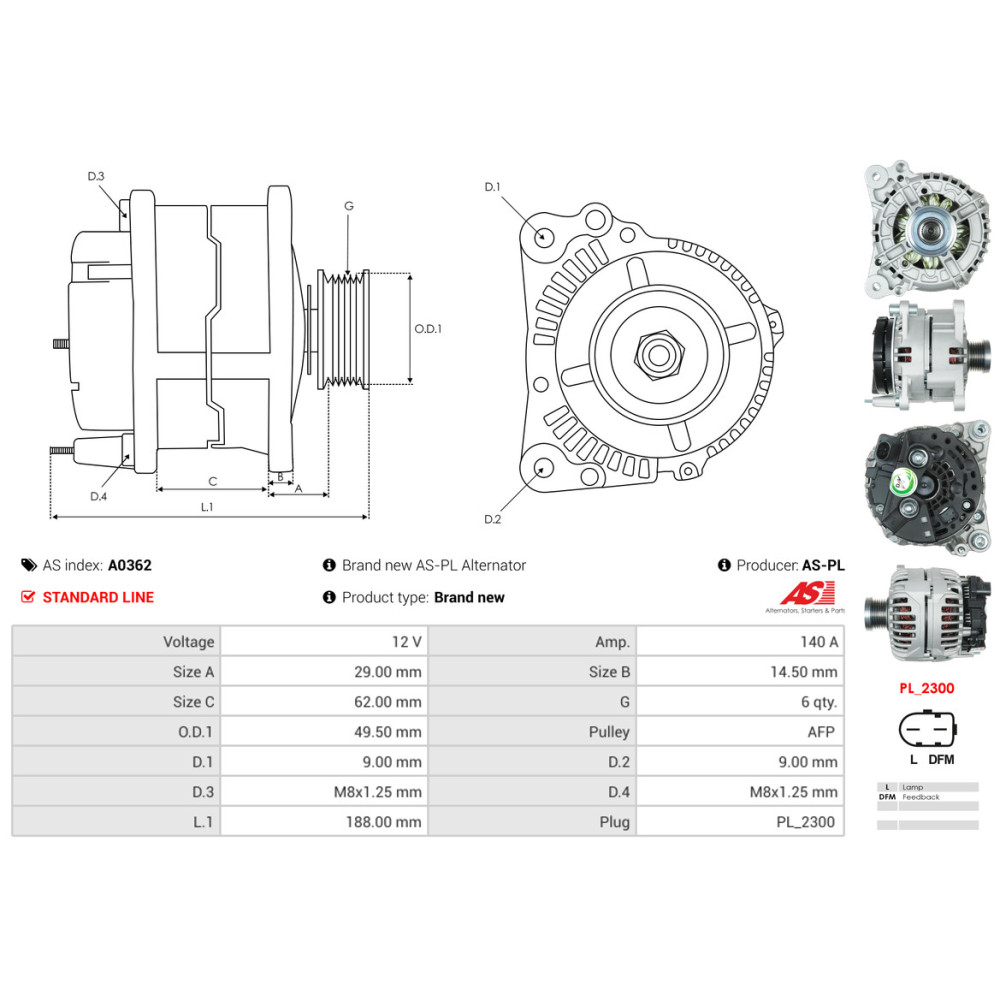

  • L.1 [ mm ] : 188.00
  • Taille A [ mm ] : 29.00
  • Taille B [ mm ] : 14.50
  • D.3 [ mm ] : M8x1.25
  • D.4 [ mm ] : M8x1.25
  • Taille C [ mm ] : 62.00
  • Plug type : PL_2300
  • Pulley : AFP
  • D.1 [ mm ] : 9.00
  • D.2 [ mm ] : 9.00
  • O.D.1 [ mm ] : 49.50
  • Type : A1 (8X1, 8XK) 1.4 TFSI
  • Engine code : CAVG, CAXA, CNVA, CTHG
  • Genuine part : no
