Home>Starter>Starter MAN NM
MAN NM
Model
Engine
Displacement and power
From To
NM 152
D0824LOH01
CCM:
4580
HP:
155
KW:
114
04.1992 => 03.1997
NM 152
D0826OH02
CCM:
6871
HP:
150
KW:
110
05.1990 => 10.1993
NM 182, 192
D0826LOH01
CCM:
6871
HP:
190
KW:
140
05.1990 => 03.1997
NM 222, 223
D0826LOH15
CCM:
6871
HP:
220
KW:
162
02.1996 =>
NM 222, 223
D0826LUH12
CCM:
6871
HP:
220
KW:
162
02.1996 =>
NM 223
D0826LOH15
CCM:
6871
HP:
220
KW:
162
08.1987 =>

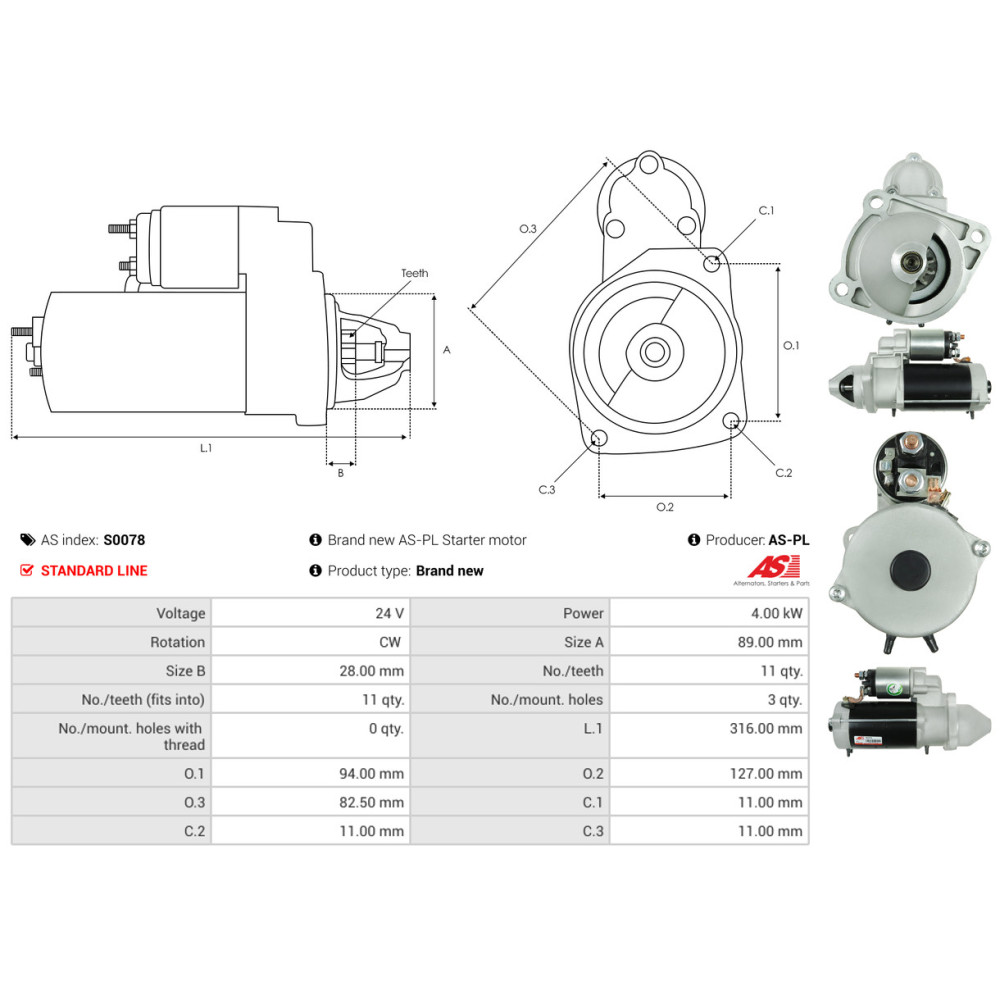

  • Genuine part : no
  • Type of part : Starter
  • Motorization : NM
  • Can be mounted on : MAN
  • Mounting holes : 3
  • Number of teeth : 11
  • Rotation : CW (clockwise)
  • Voltage : 24
  • From : 1992, 1993, 1994, 1995, 1996, 1997
  • Number of fitted teeth : 11
  • No./mount. holes with thread : 0
  • C.1 [ mm ] : 11.00
  • C.2 [ mm ] : 11.00
  • C.3 [ mm ] : 11.00
  • L.1 [ mm ] : 316.00
  • O.1 [ mm ] : 94.00
  • O.2 [ mm ] : 127.00
  • O.3 [ mm ] : 82.50
  • Taille A [ mm ] : 89.00
  • Taille B [ mm ] : 28.00
  • Type : NM NM 152, NM NM 182, NM 192, NM NM 222, NM 223, NM NM 223
  • Engine code : D0824LOH01, D0826LOH01, D0826LOH15, D0826LUH12, D0826OH02
