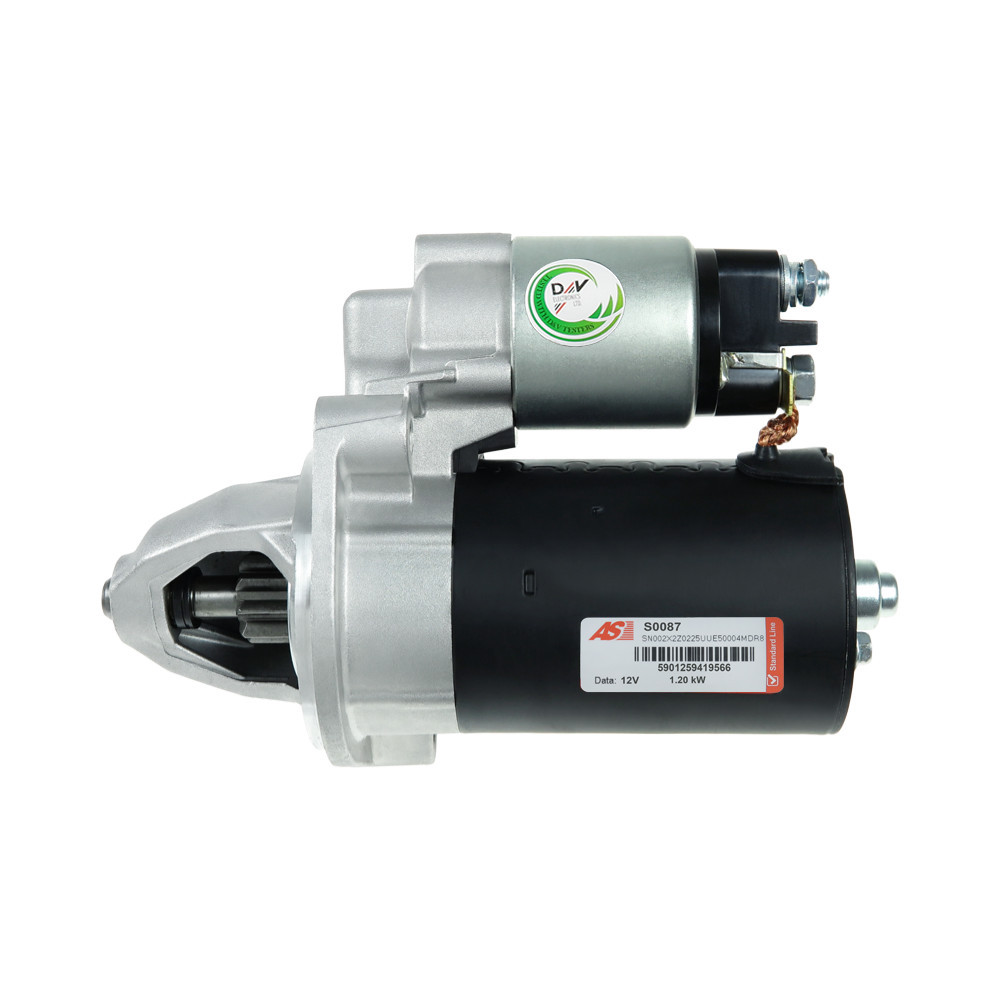

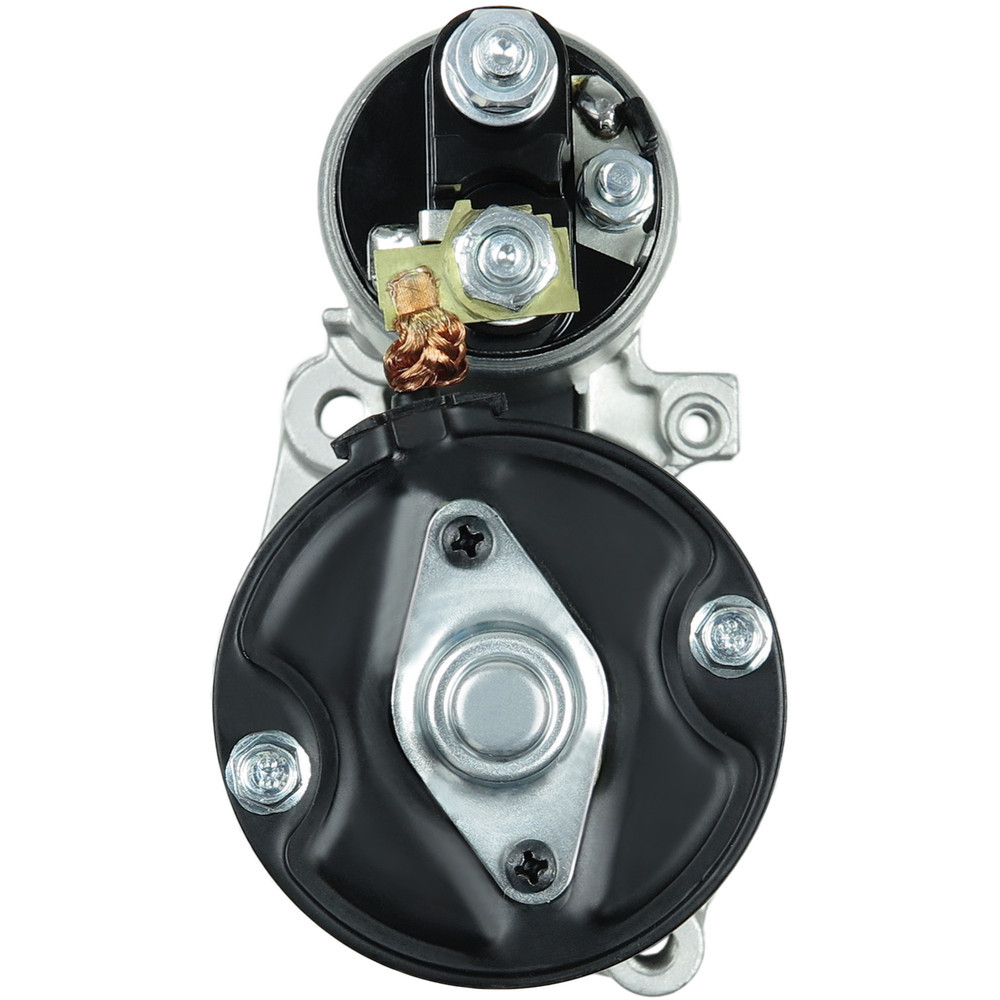

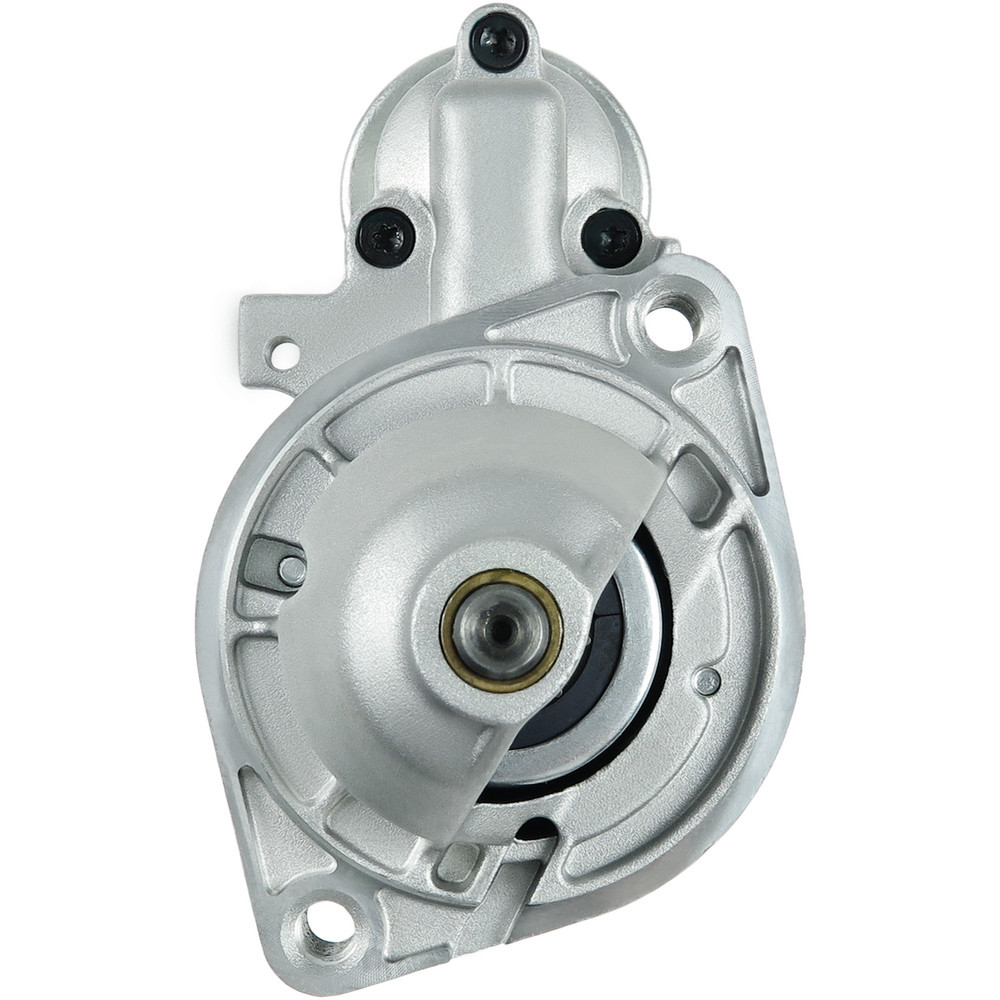

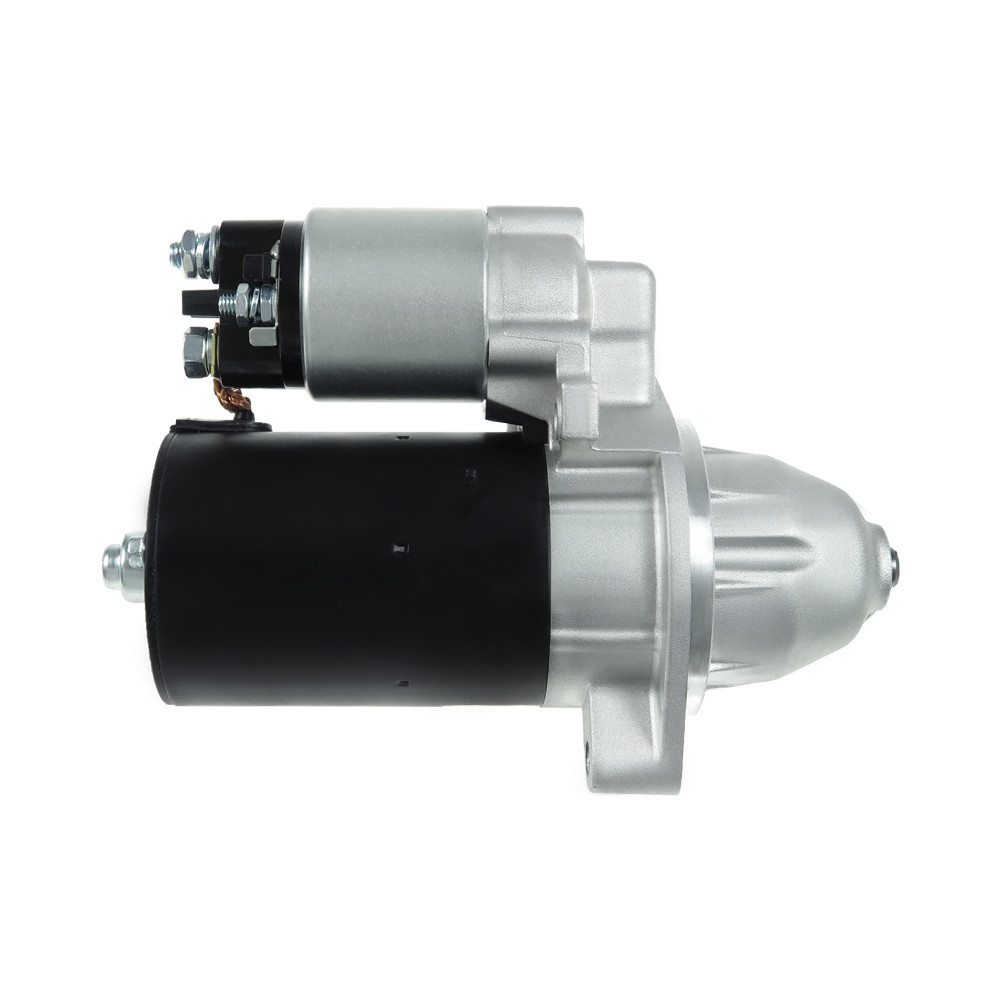

Starter MERCEDES-BENZ C-CLASS Coupe (CL203)

Reference:
- 0001107048 (BOSCH)

Application
Data sheet

MERCEDES-BENZ C-CLASS Coupe (CL203)

Model

Engine

Displacement and power

From To

C-CLASS Coupe (CL203) C 180 (203.735)

M111.951

CCM:

1998

HP:

129

KW:

03.2001 => 05.2002

C-CLASS Coupe (CL203) C 200 Kompressor (203.745)

M111.955

CCM:

1998

HP:

163

KW:

120

03.2001 => 05.2002

C-CLASS Coupe (CL203) C 220 CDI (203.706)

OM611.962

CCM:

2148

HP:

143

KW:

105

03.2001 => 01.2004

C-CLASS Coupe (CL203) C 230 Kompressor (203.747)

M111.981

CCM:

2295

HP:

197

KW:

145

03.2001 => 05.2002

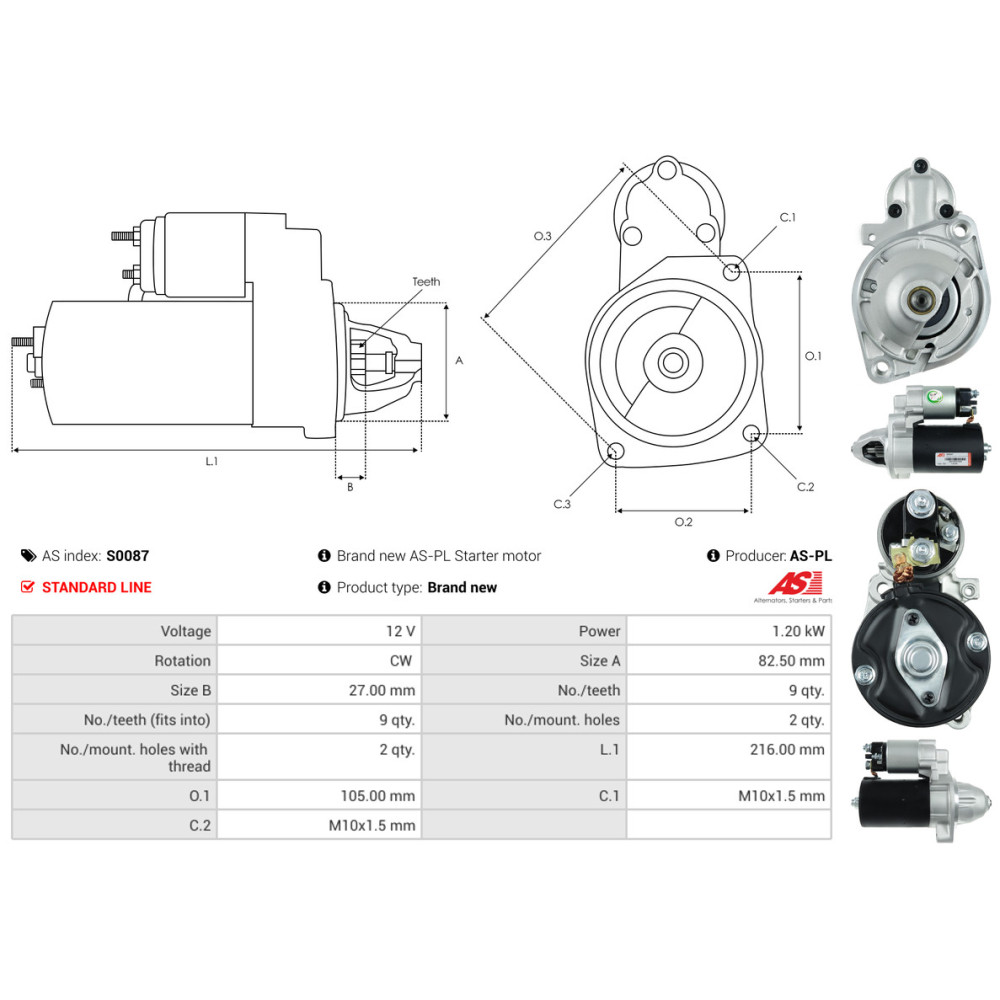

Type of part : Starter
Motorization : C-CLASS Coupe (CL203)
Can be mounted on : MERCEDES-BENZ
Mounting holes : 2
Number of teeth : 9
Rotation : CW (clockwise)
Voltage : 12
From : 2001, 2002
Number of fitted teeth : 9
No./mount. holes with thread : 2
C.1 [ mm ] : M10x1.5
C.2 [ mm ] : M10x1.5
L.1 [ mm ] : 216.00
O.1 [ mm ] : 105.00
Taille A [ mm ] : 82.50
Taille B [ mm ] : 27.00
Type : C-CLASS Coupe (CL203) C 180 (203.735), C-CLASS Coupe (CL203) C 200 Kompressor (203.745), C-CLASS Coupe (CL203) C 220 CDI (203.706), C-CLASS Coupe (CL203) C 230 Kompressor (203.747)
Engine code : M111.951, M111.955, M111.981, OM611.962
Genuine part : no
