Home>Starter>Starter KHD Engine
DEUTZ-FAHR Engine
Model
Engine
Displacement and power
From To
Engine
F1L410
CCM:
HP:
KW:
01.1968 => 12.1974
Engine
F2L411D
CCM:
HP:
KW:
01.1975 => 12.1985
Engine 1.3
F2L410
CCM:
HP:
KW:
01.1967 => 12.1977
Engine 1.4
F2L411
CCM:
HP:
KW:
01.1973 => 12.1975
  • Genuine part : no
  • Type of part : Starter
  • Motorization : Engine
  • Can be mounted on : KHD
  • Years : 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978

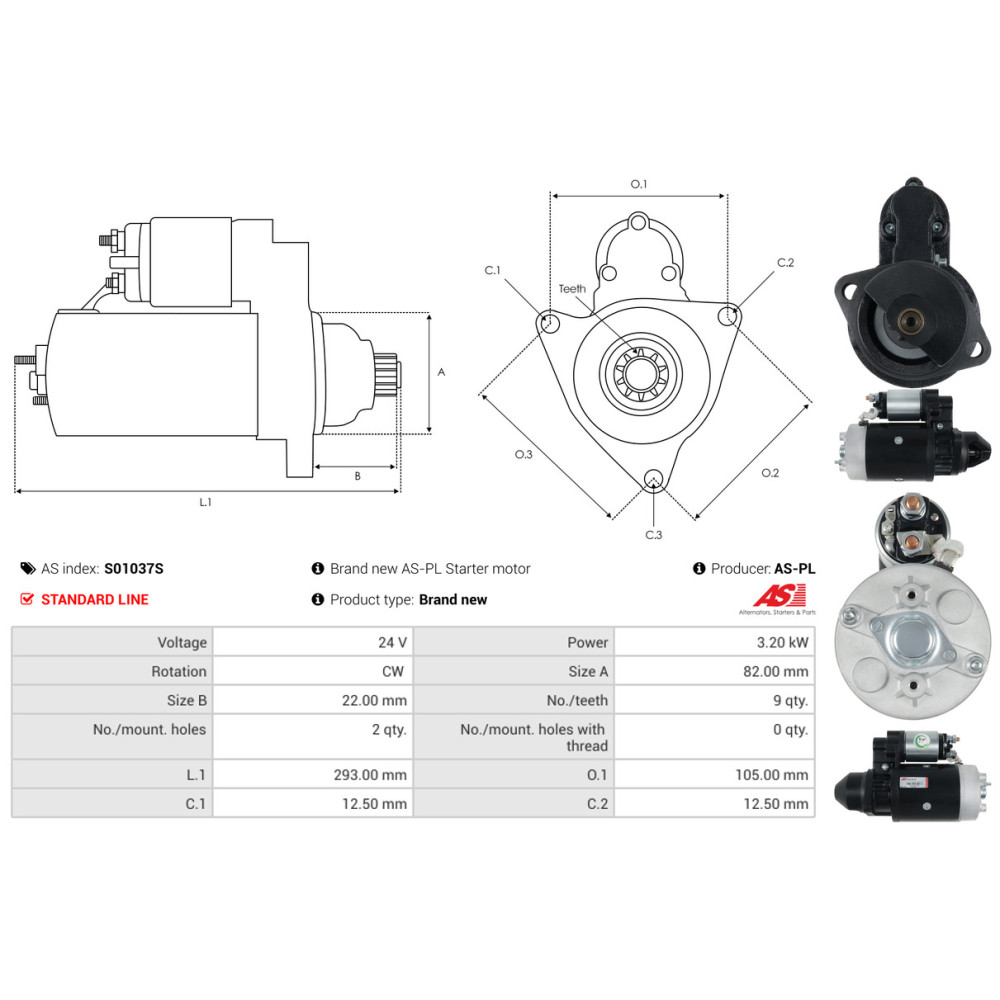

  • Mounting holes : 2
  • Number of teeth : 9
  • Rotation : CW (clockwise)
  • Voltage : 24
  • No./mount. holes with thread : 0
  • C.1 [ mm ] : 12.50
  • C.2 [ mm ] : 12.50
  • L.1 [ mm ] : 293.00
  • O.1 [ mm ] : 105.00
  • Taille A [ mm ] : 82.00
  • Taille B [ mm ] : 22.00
  • Type : Engine, Engine 1.3, Engine 1.4
  • Engine code : F1L410, F2L410, F2L411, F2L411D
