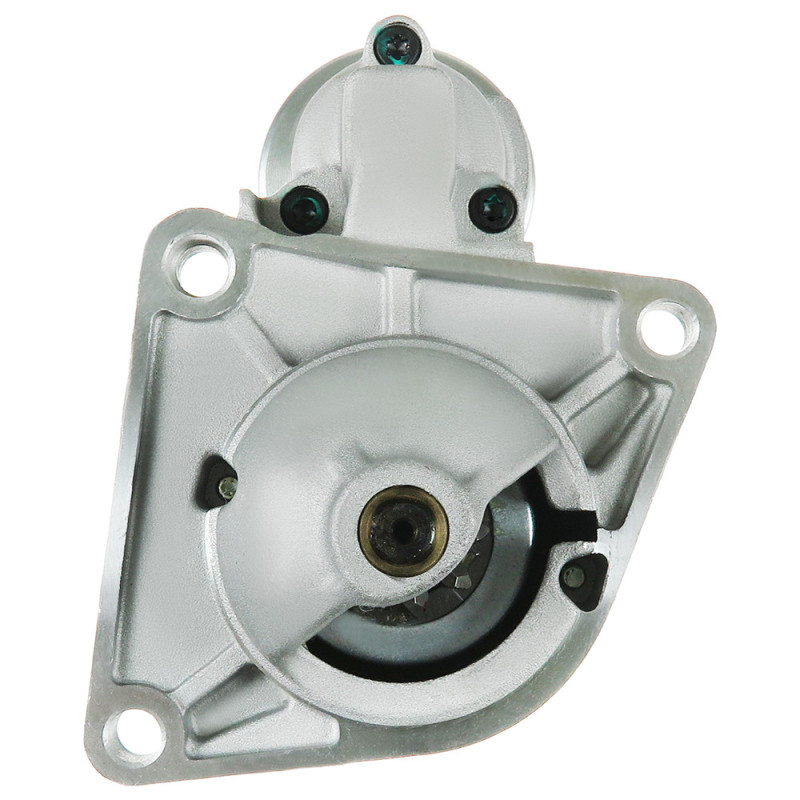

Starter Lancia LYBRA SW (839_)

LANCIA LYBRA SW (839_)

Model

Engine

Displacement and power

From To

LYBRA SW (839_) 1.8 16V (839BXB1A, 839BXG1A)

839A4.000

CCM:

1747

HP:

131

KW:

07.1999 => 10.2005

LYBRA SW (839_) 1.8 16V (839BXB1A, 839BXG1A)

839A7.000

CCM:

1747

HP:

131

KW:

07.1999 => 10.2005

LYBRA SW (839_) 2.0 20V (839BXC11, 839BXC1A)

182B7.000

CCM:

1998

HP:

154

KW:

113

07.1999 => 09.2000

LYBRA SW (839_) 2.0 20V (839BXH1A)

185A8.000

CCM:

1998

HP:

150

KW:

110

09.2000 => 10.2005

Genuine part : no
Type of part : Starter
Motorization : LYBRA SW (839_)
Can be mounted on : Lancia
Years : 1999, 2000, 2001, 2002, 2003, 2004, 2005
Mounting holes : 3
Number of teeth : 9
Rotation : CW (clockwise)
Voltage : 12
No./mount. holes with thread : 0
C.1 [ mm ] : 9.00
C.2 [ mm ] : 9.00
C.3 [ mm ] : 9.00
L.1 [ mm ] : 210.00
O.1 [ mm ] : 82.00
O.2 [ mm ] : 116.00
O.3 [ mm ] : 82.00
Taille A [ mm ] : 66.00
Taille B [ mm ] : 11.00
Type : LYBRA SW (839_) 1.8 16V (839BXB1A, 839BXG1A), LYBRA SW (839_) 2.0 20V (839BXC11, 839BXC1A), LYBRA SW (839_) 2.0 20V (839BXH1A)
Engine code : 182B7.000, 185A8.000, 839A4.000, 839A7.000
