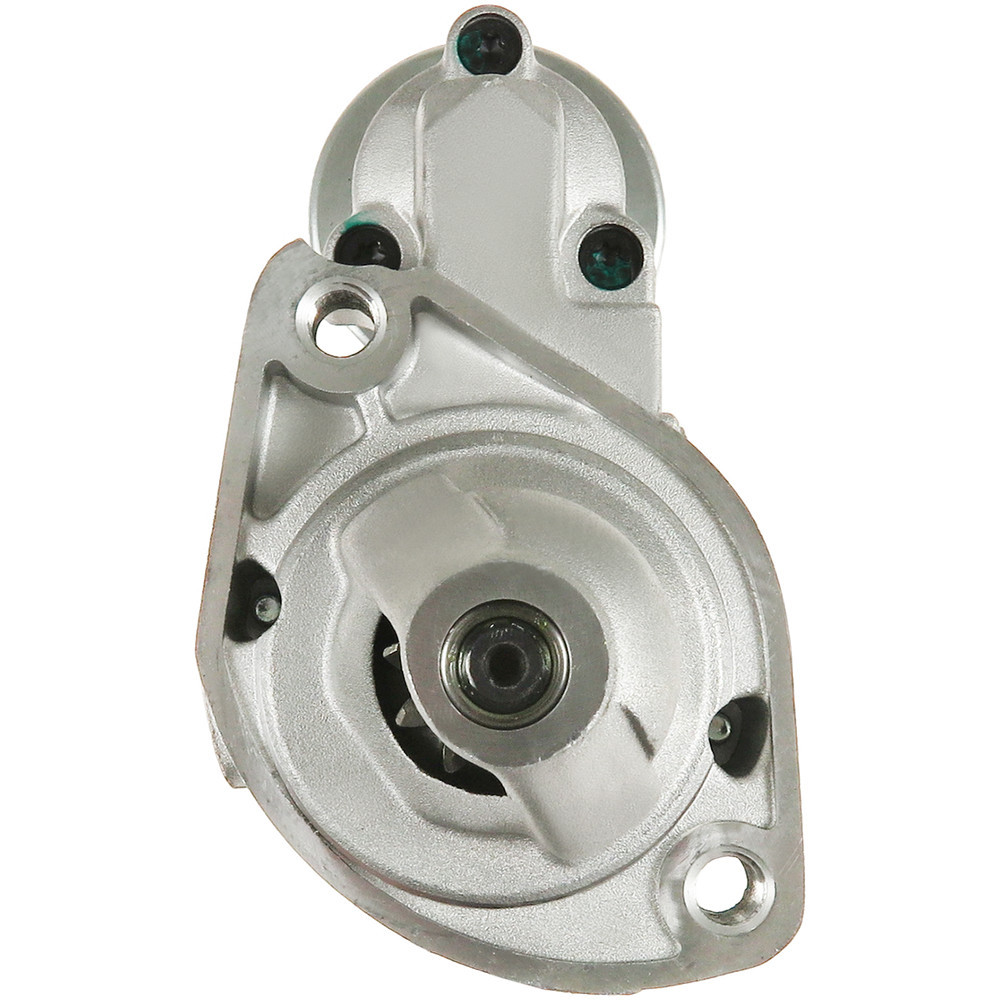

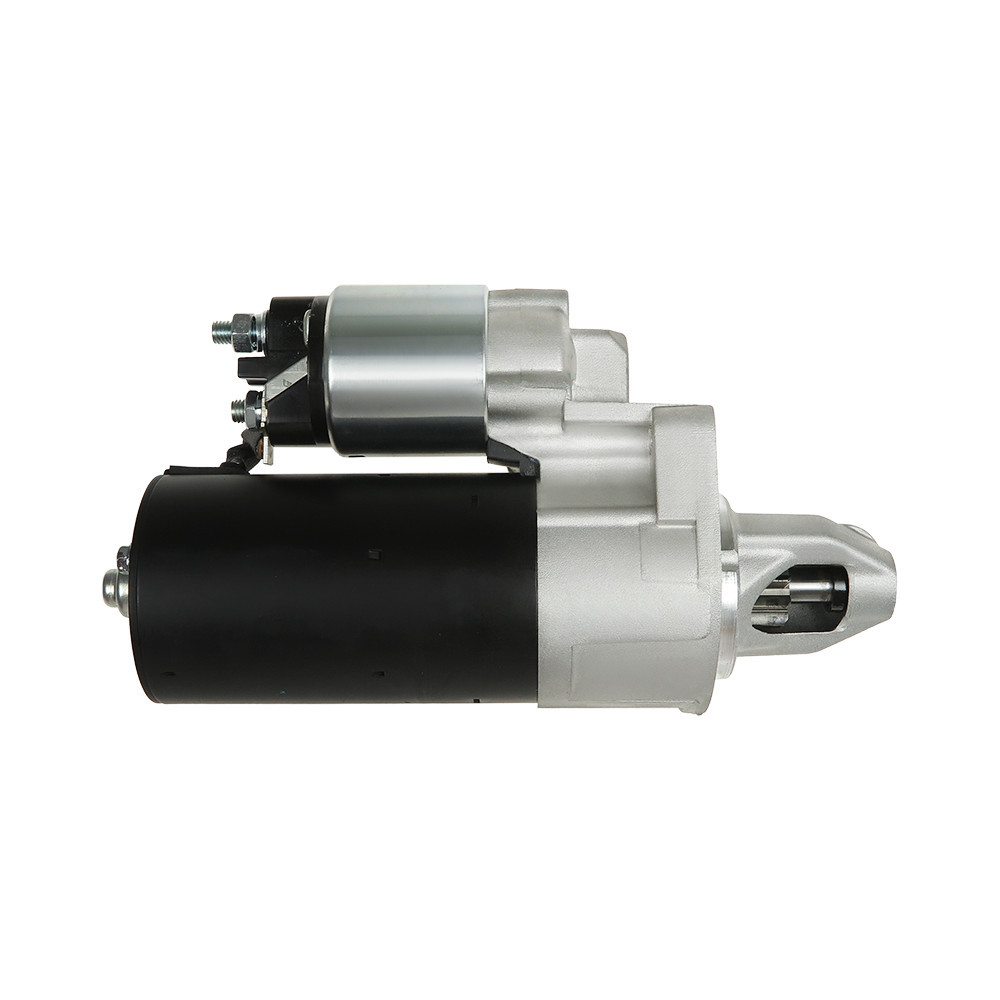

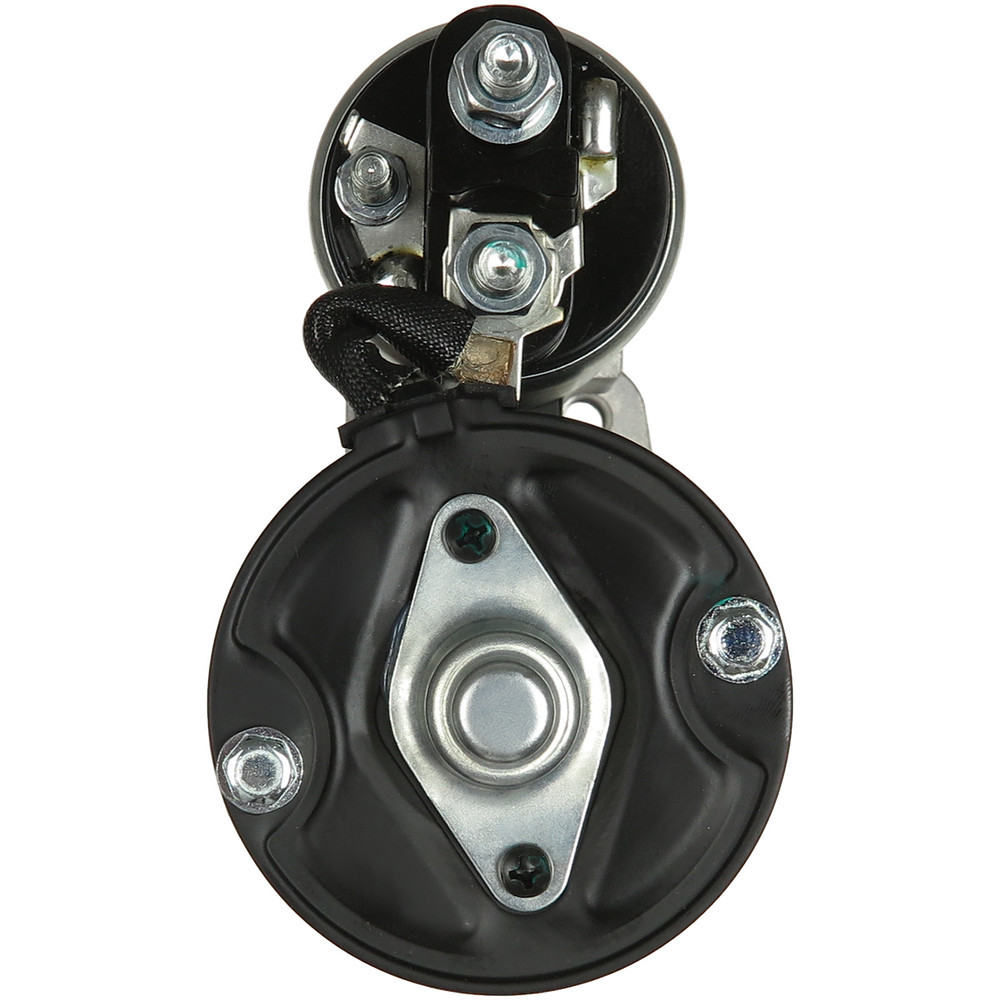

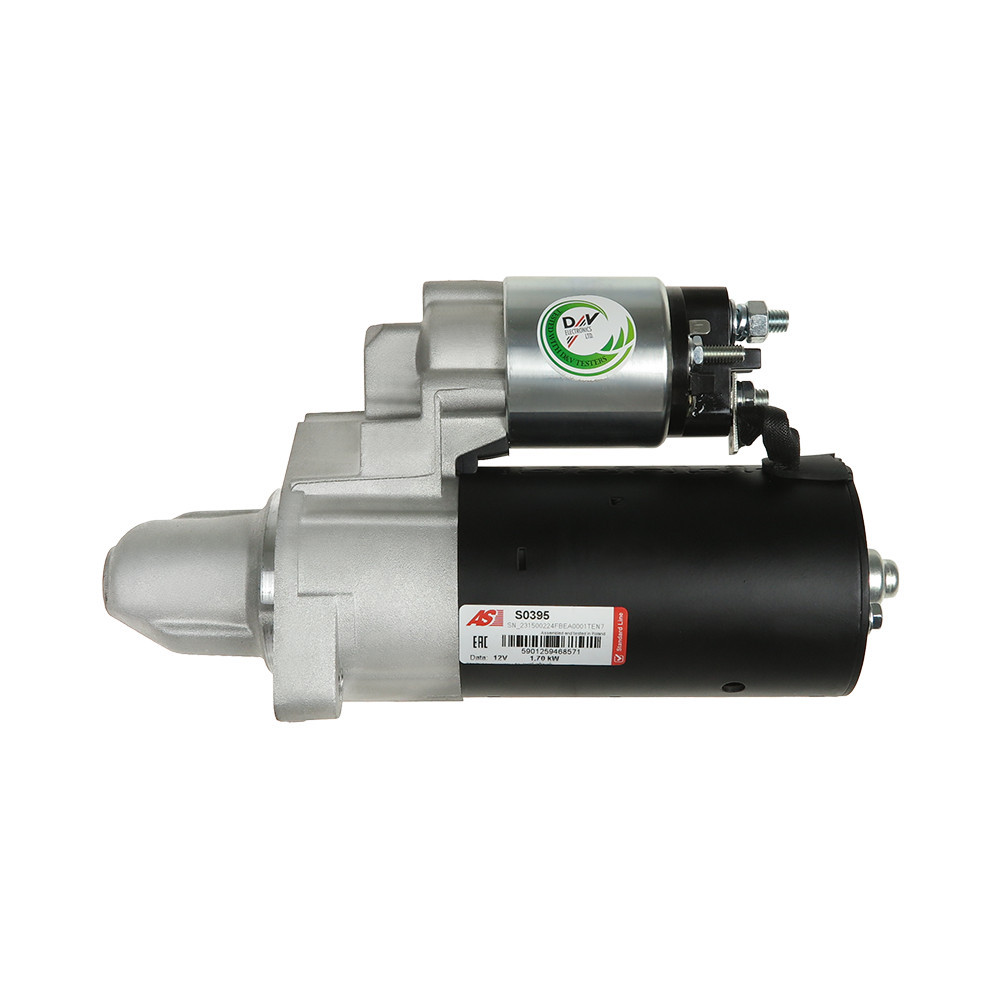

Starter MERCEDES-BENZ M-CLASS (W164)

Reference:
- 0001115005 (BOSCH)

Application
Data sheet

MERCEDES-BENZ M-CLASS (W164)

Model

Engine

Displacement and power

From To

M-CLASS (W164) ML 280 CDI 4-matic (164.120)

OM642.940

CCM:

2987

HP:

190

KW:

140

07.2005 => 07.2009

M-CLASS (W164) ML 300 CDI 4-matic (164.120)

OM642.940

CCM:

2987

HP:

190

KW:

140

07.2009 => 12.2011

M-CLASS (W164) ML 300 CDI 4-matic (164.121)

OM642.820

CCM:

2987

HP:

204

KW:

150

02.2010 => 12.2011

M-CLASS (W164) ML 320 CDI 4-matic (164.122)

OM642.940

CCM:

2987

HP:

224

KW:

165

07.2005 => 07.2009

M-CLASS (W164) ML 320 CDI 4-matic (164.124, 164.125, 164.122)

OM642.820

CCM:

2987

HP:

211

KW:

155

07.2005 => 07.2011

M-CLASS (W164) ML 320 CDI 4-matic (164.124, 164.125, 164.122)

OM642.940

CCM:

2987

HP:

211

KW:

155

07.2005 => 07.2011

M-CLASS (W164) ML 350 CDI 4-matic (164.122)

OM642.940

CCM:

2987

HP:

224

KW:

165

07.2009 => 12.2011

M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124)

OM642.820

CCM:

2987

HP:

211

KW:

155

09.2009 => 12.2011

M-CLASS (W164) ML 500 4-matic (164.172)

M273.963

CCM:

5461

HP:

388

KW:

285

12.2007 => 12.2011

M-CLASS (W164) ML 500 4-matic (164.175)

M113.964

CCM:

4966

HP:

306

KW:

225

07.2005 => 12.2011

Type of part : Starter
Motorization : M-CLASS (W164)
Can be mounted on : MERCEDES-BENZ
Mounting holes : 2
Number of teeth : 10
Rotation : CW (clockwise)
Voltage : 12
From : 2005, 2006, 2007, 2008, 2009
Number of fitted teeth : 10
No./mount. holes with thread : 2

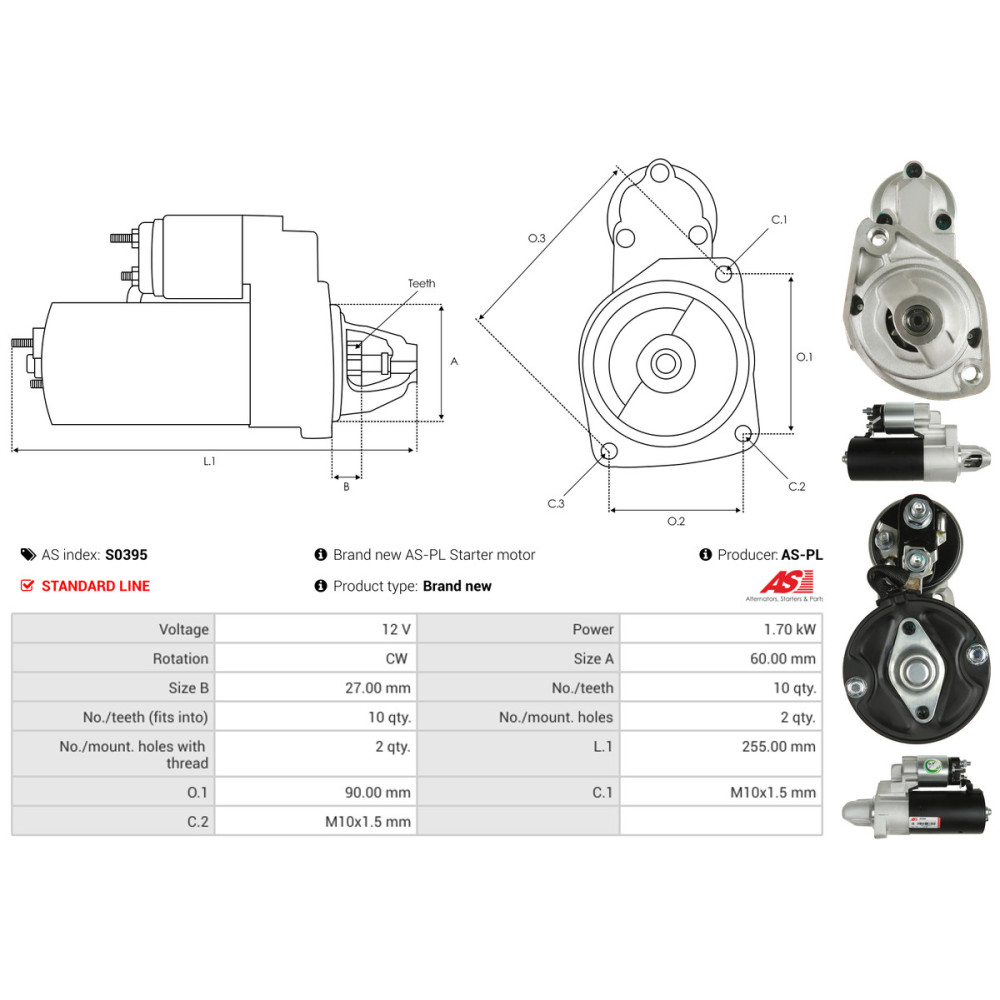

C.1 [ mm ] : M10x1.5
C.2 [ mm ] : M10x1.5
L.1 [ mm ] : 255.00
O.1 [ mm ] : 90.00
Taille A [ mm ] : 60.00
Taille B [ mm ] : 27.00
Type : M-CLASS (W164) ML 280 CDI 4-matic (164.120), M-CLASS (W164) ML 300 CDI 4-matic (164.120), M-CLASS (W164) ML 300 CDI 4-matic (164.121), M-CLASS (W164) ML 320 CDI 4-matic (164.122), M-CLASS (W164) ML 320 CDI 4-matic (164.124, 164.12, M-CLASS (W164) ML 350 CDI 4-matic (164.122), M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.12, M-CLASS (W164) ML 500 4-matic (164.172), M-CLASS (W164) ML 500 4-matic (164.175)
Engine code : M113.964, M273.963, OM642.820, OM642.940
Genuine part : no
