Starter KHD Engine

Reference:
- 0001362700 (BOSCH)

Application
Data sheet

KHD Engine

Model

Engine

Displacement and power

From To

Engine

F2L1011

CCM:

HP:

KW:

06.1989 => 12.1994

Engine 1.4 Diesel

F2L1011

CCM:

HP:

KW:

06.1989 =>

Engine 2.0

F3L1011

CCM:

1998

HP:

KW:

06.1989 => 12.1994

Engine 2.0 Diesel

F3L1011

CCM:

HP:

KW:

06.1989 =>

Engine 2.7

BF4L1011

CCM:

2664

HP:

KW:

06.1989 => 12.1994

Engine 2.7

F4L1011

CCM:

2664

HP:

KW:

06.1989 => 12.1994

Engine 2.7 Diesel

BF4L1011

CCM:

HP:

KW:

06.1989 =>

Engine 2.7 Diesel

F4L1011

CCM:

HP:

KW:

06.1989 =>

Genuine part : no
Type of part : Starter
Motorization : Engine
Can be mounted on : KHD
Mounting holes : 3
Number of teeth : 11
Rotation : CW (clockwise)
Voltage : 12
From : 1989, 1990, 1991, 1992, 1993, 1994
Number of fitted teeth : 11
No./mount. holes with thread : 0

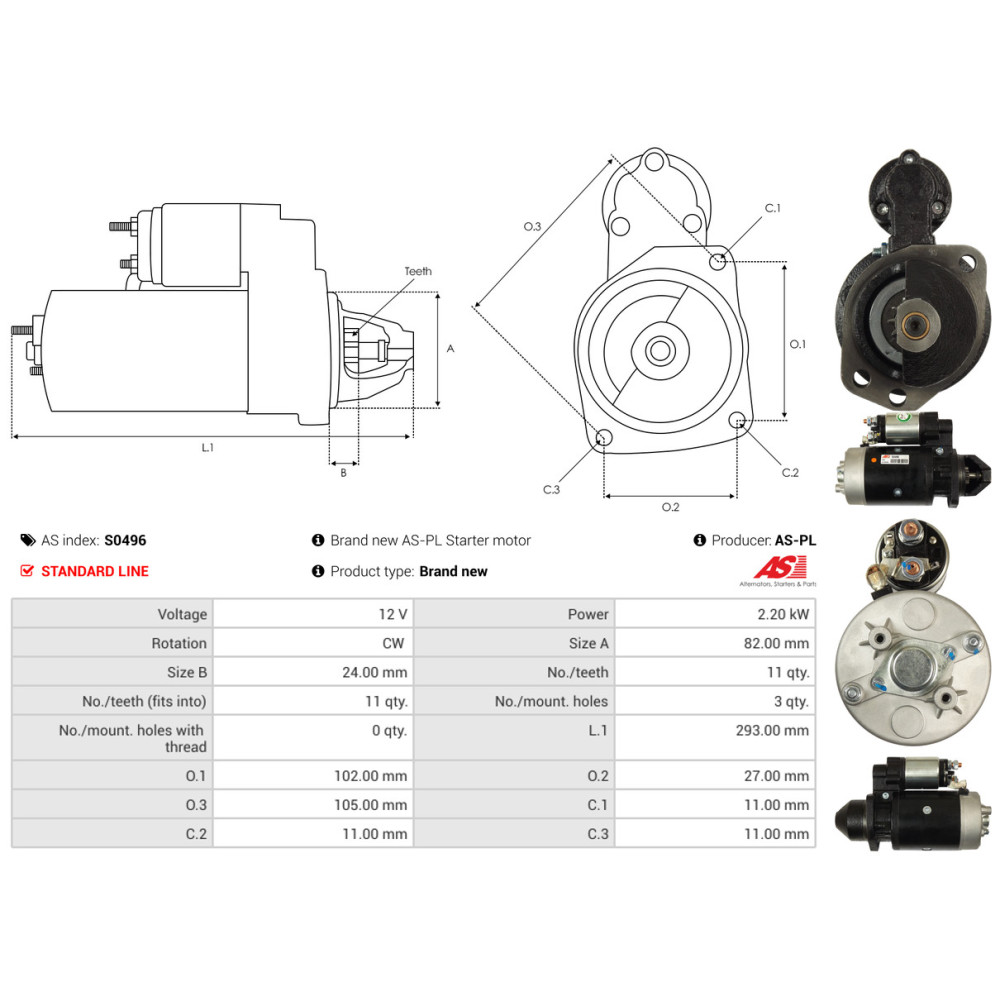

C.1 [ mm ] : 11.00
C.2 [ mm ] : 11.00
C.3 [ mm ] : 11.00
L.1 [ mm ] : 293.00
O.1 [ mm ] : 102.00
O.2 [ mm ] : 27.00
O.3 [ mm ] : 105.00
Taille A [ mm ] : 82.00
Taille B [ mm ] : 24.00
Type : Engine, Engine 1.4 Diesel, Engine 2.0, Engine 2.0 Diesel, ENGINE 2.7, Engine 2.7 Diesel
Engine code : BF4L1011, F2L1011, F3L1011, F4L1011
