Home>Starter>Starter Seat ALTEA (5P1)
SEAT ALTEA (5P1)
Model
Engine
Displacement and power
From To
ALTEA (5P1) 1.2 TSI
CBZB
CCM:
1197
HP:
105
KW:
77
04.2010 => 07.2015
ALTEA (5P1) 1.4 TSI
CAXC
CCM:
1390
HP:
125
KW:
92
11.2007 => 07.2015
ALTEA (5P1) 1.8 TFSI
BYT
CCM:
1798
HP:
160
KW:
118
01.2007 => 07.2015
ALTEA (5P1) 1.8 TFSI
BZB
CCM:
1798
HP:
160
KW:
118
01.2007 => 07.2015
ALTEA (5P1) 1.8 TFSI
CDAA
CCM:
1798
HP:
160
KW:
118
01.2007 => 07.2015
ALTEA (5P1) 2.0 FSI
BLR
CCM:
1984
HP:
150
KW:
110
05.2004 => 03.2009
ALTEA (5P1) 2.0 FSI
BLY
CCM:
1984
HP:
150
KW:
110
05.2004 => 03.2009
ALTEA (5P1) 2.0 FSI
BVY
CCM:
1984
HP:
150
KW:
110
05.2004 => 03.2009
ALTEA (5P1) 2.0 FSI
BVZ
CCM:
1984
HP:
150
KW:
110
05.2004 => 03.2009
ALTEA (5P1) 2.0 TDI
BMN
CCM:
1968
HP:
170
KW:
125
03.2006 => 05.2010
ALTEA (5P1) 2.0 TDI
CEGA
CCM:
1968
HP:
170
KW:
125
03.2006 => 05.2010
ALTEA (5P1) 2.0 TDI 16V
BKD
CCM:
1968
HP:
140
KW:
103
03.2004 => 07.2015
ALTEA (5P1) 2.0 TDI 16V
CFHC
CCM:
1968
HP:
140
KW:
103
03.2004 => 07.2015

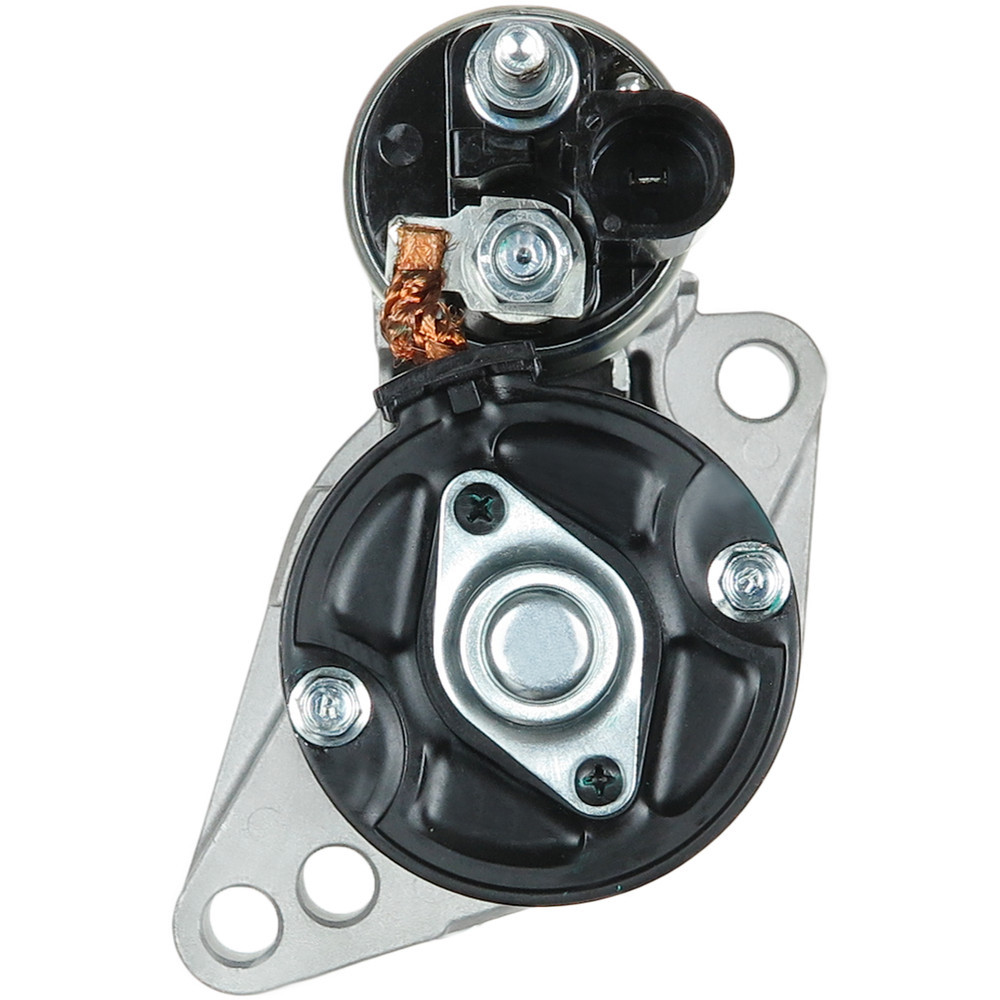

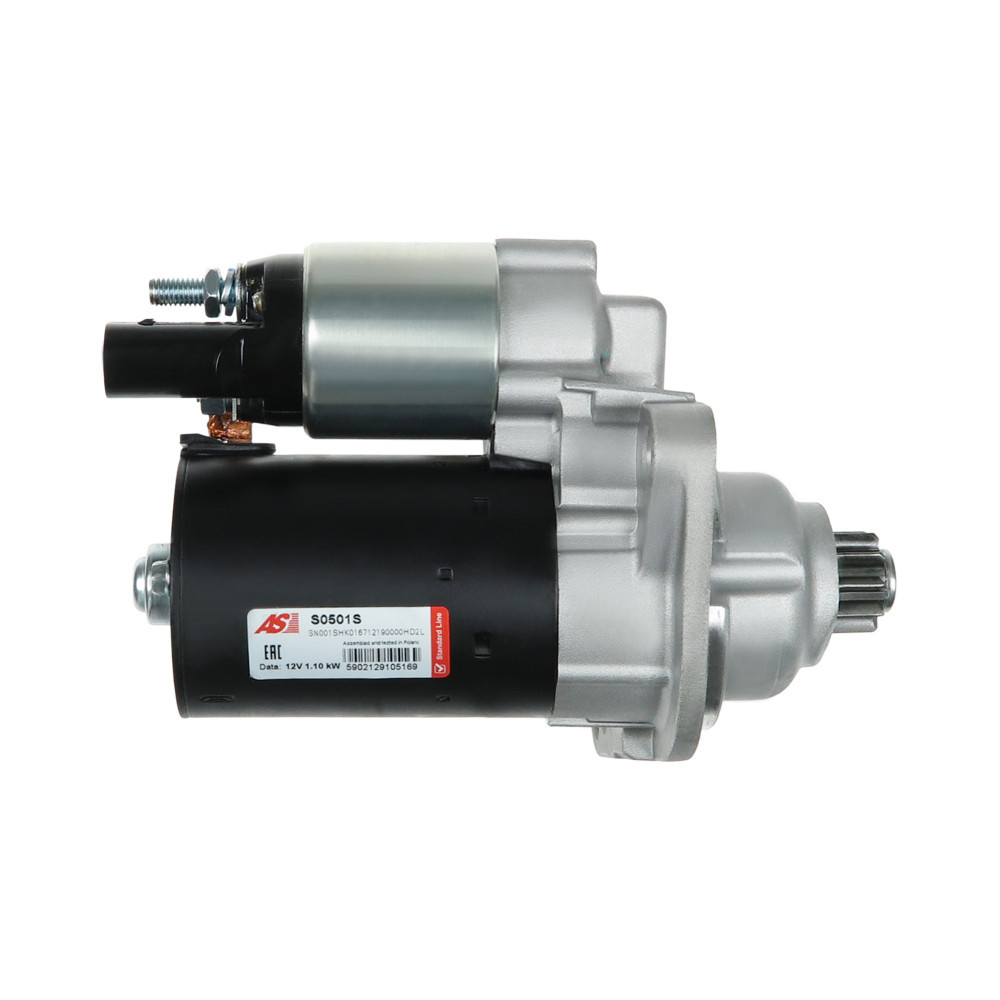

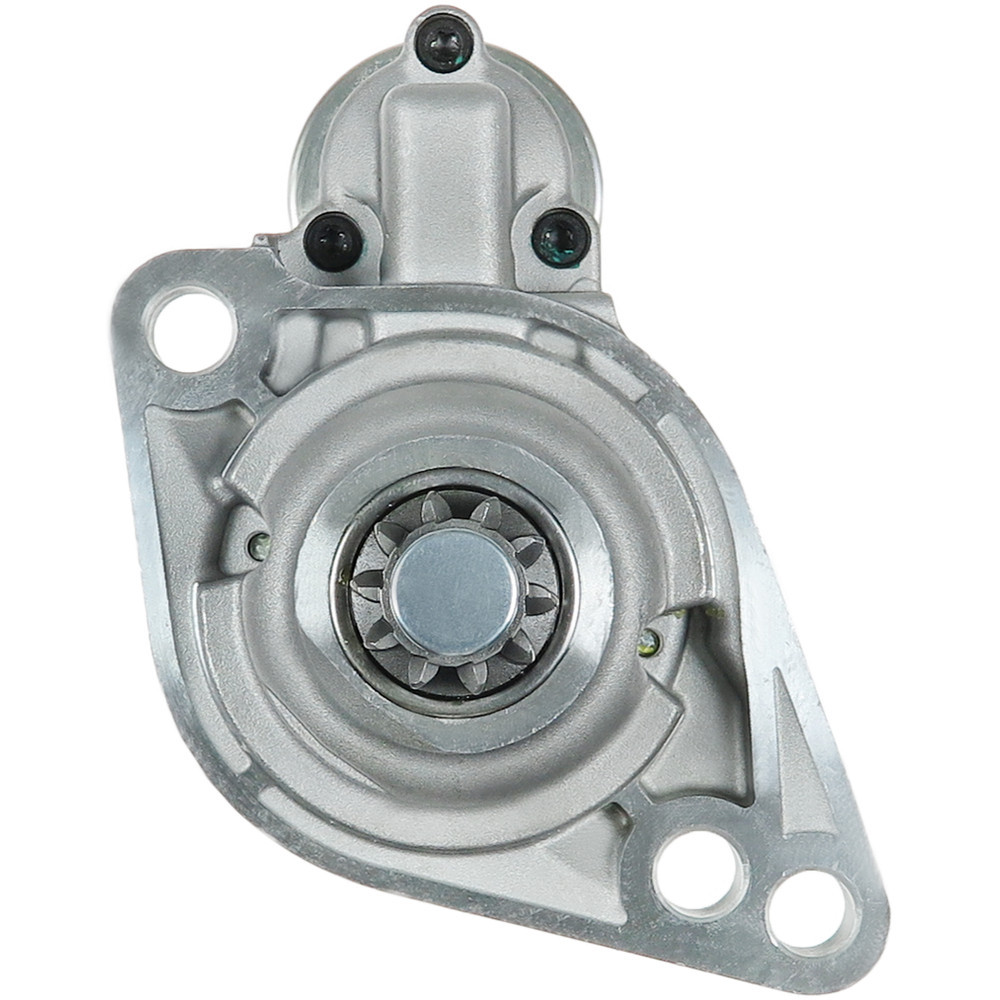

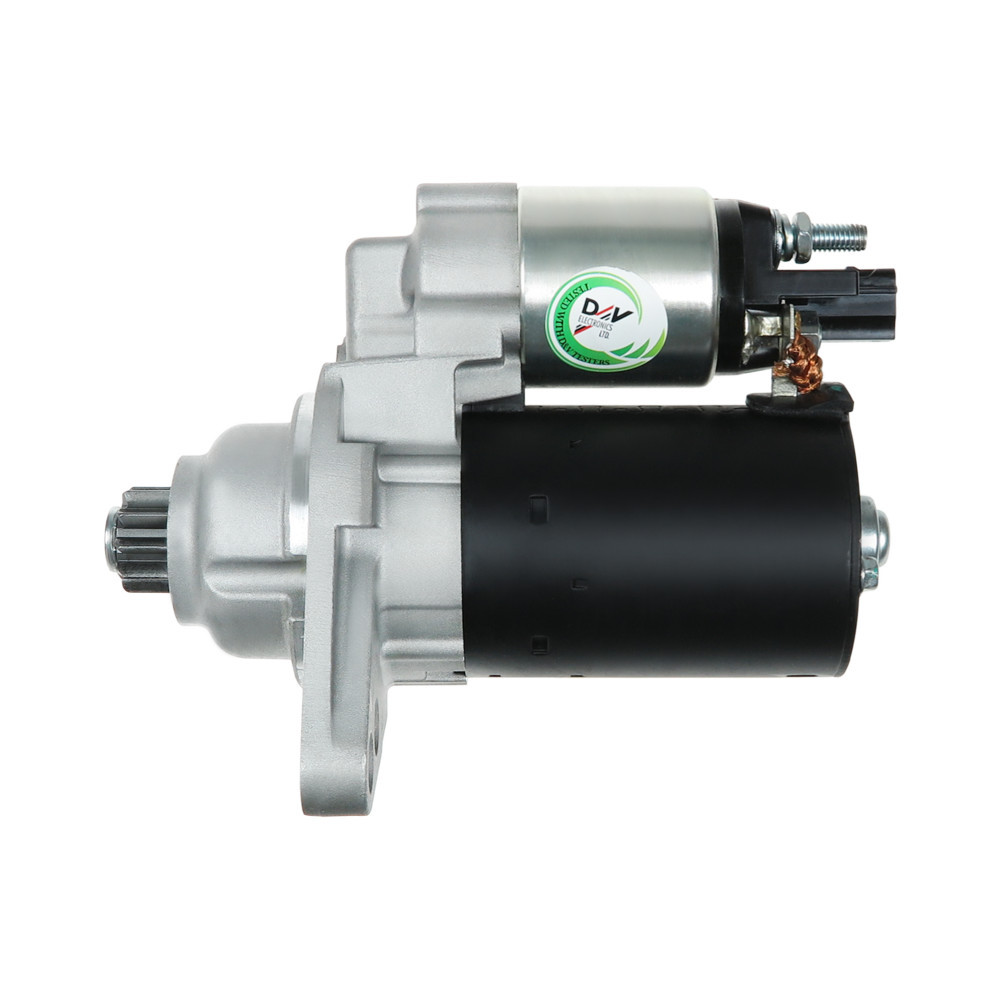

  • Genuine part : no
  • Type of part : Starter
  • Motorization : ALTEA (5P1)
  • Can be mounted on : Seat
  • Years : 2010, 2011, 2012, 2013, 2014, 2015
  • Mounting holes : 3
  • Number of teeth : 10
  • Rotation : ACW (counterclockwise)
  • Voltage : 12
  • No./mount. holes with thread : 0

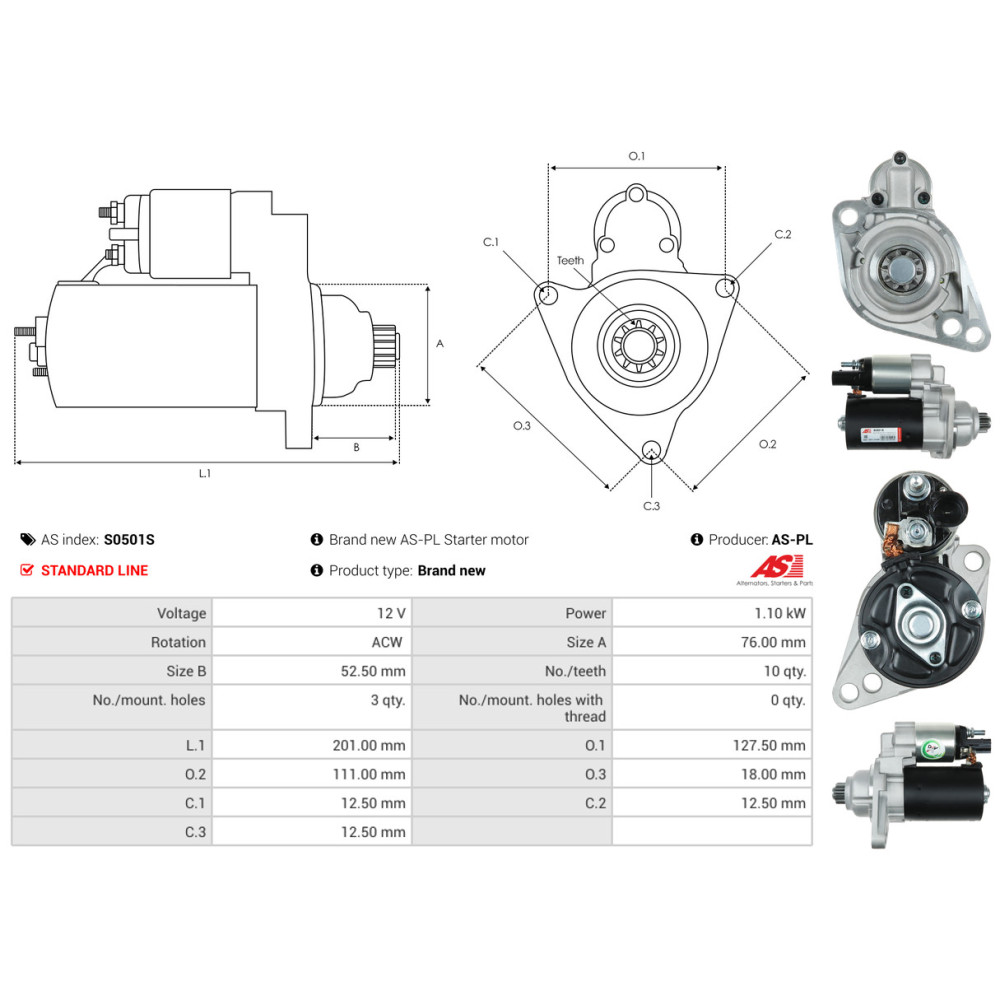

  • C.1 [ mm ] : 12.50
  • C.2 [ mm ] : 12.50
  • C.3 [ mm ] : 12.50
  • L.1 [ mm ] : 201.00
  • O.1 [ mm ] : 127.50
  • O.2 [ mm ] : 111.00
  • O.3 [ mm ] : 18.00
  • Taille A [ mm ] : 76.00
  • Taille B [ mm ] : 52.50
  • Type : ALTEA (5P1) 1.2 TSI, ALTEA (5P1) 1.4 TSI, ALTEA (5P1) 1.8 TFSI, ALTEA (5P1) 2.0 FSI, ALTEA (5P1) 2.0 TDI, ALTEA (5P1) 2.0 TDI 16V
  • Engine code : BKD, BLR, BLY, BMN, BVY, BVZ, BYT, BZB, CAXC, CBZB, CDAA, CEGA, CFHC
