Starter Mazda MPV II (LW)

Reference:
- 0001108011 (BOSCH)

Application
Data sheet

MAZDA MPV II (LW)

Model

Engine

Displacement and power

From To

MPV II (LW) 2.0 (LWEW)

CCM:

1991

HP:

120

KW:

08.2000 => 07.2002

MPV II (LW) 2.0 (LWEW)

FS-DS

CCM:

1991

HP:

122

KW:

09.1999 => 08.2000

MPV II (LW) 2.0 DI

RF5C

CCM:

1998

HP:

136

KW:

100

07.2002 => 02.2006

MPV II (LW) 2.3 (LW3W)

CCM:

2261

HP:

141

KW:

104

07.2002 => 02.2006

MPV II (LW) 2.5 V6 (LW5W)

GY-DE

CCM:

2495

HP:

170

KW:

125

09.1999 => 03.2002

MPV II (LW) 3.0 i V6 (LWFW)

CCM:

2967

HP:

200

KW:

147

01.2002 => 12.2006

Genuine part : no
Type of part : Starter
Motorization : MPV II (LW)
Can be mounted on : Mazda
Mounting holes : 3
Number of teeth : 9
Rotation : CW (clockwise)
Voltage : 12
From : 2000, 2001, 2002
No./mount. holes with thread : 0

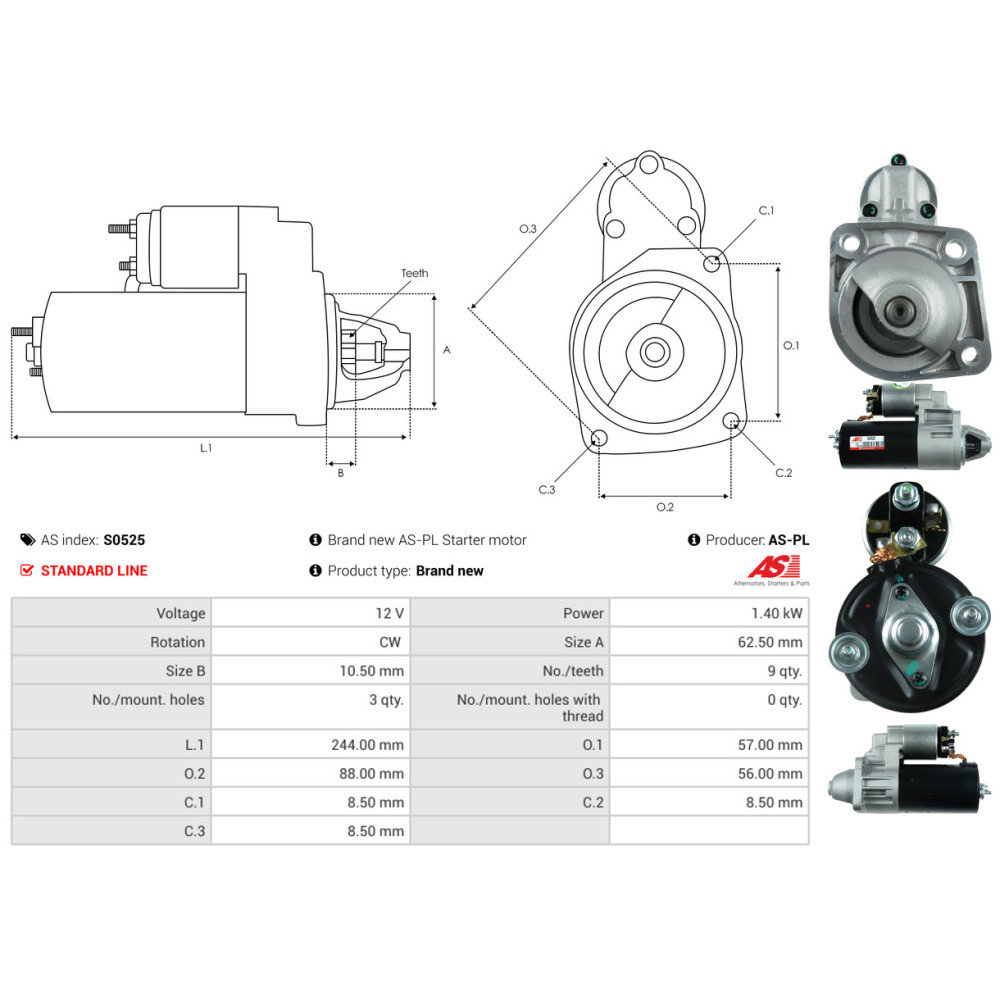

C.1 [ mm ] : 8.50
C.2 [ mm ] : 8.50
C.3 [ mm ] : 8.50
L.1 [ mm ] : 244.00
O.1 [ mm ] : 57.00
O.2 [ mm ] : 88.00
O.3 [ mm ] : 56.00
Taille A [ mm ] : 62.50
Taille B [ mm ] : 10.50
Type : MPV II (LW) 2.0 (LWEW), MPV II (LW) 2.0 DI, MPV II (LW) 2.3 (LW3W), MPV II (LW) 2.5 V6 (LW5W), MPV II (LW) 3.0 i V6 (LWFW)
Engine code : AJ, FS, FS-DS, GY-DE, L3, RF5C
